Activated charcoal container vent hose petr engine — Mk3 Golf Fuel Supply (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Fuel tank

Generation: Mk3 1993 - 1996 (MEX) Group: Fuel / air power supply Rebuild step 5 Parts: 41 Primary OEM: 1H0 201 827 0 1C, 333 201 182, 1HM 201 799

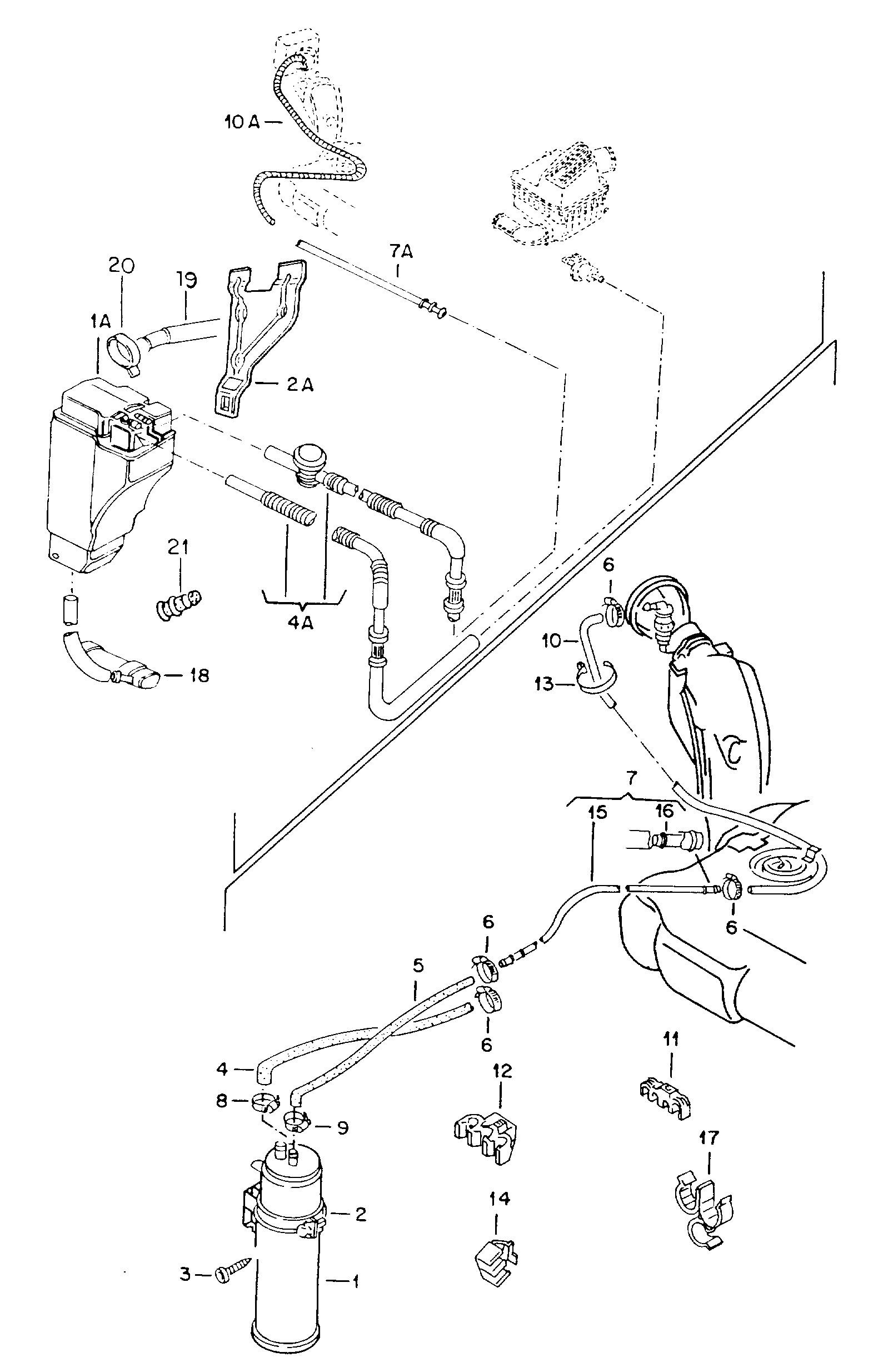

Activated charcoal container vent hose petr engine for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 201095 from the Volkswagen ETKA parts catalogue, group 29 Fuel / air power supply, listing 39 OEM part numbers across 41 catalogued positions including 1H0 201 827 0 1C, 333 201 182 and 1HM 201 799. Parts on this plate carry the engine codes AAA and ABA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 39 OEM part numbers across 41 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Activated charcoal container Vent hose Petr. engine	—
	Satin black	1H0 201 827 0 1C
	Satin black	1H0 201 827 0 1C
-	Vent hose	333 201 182
-	Activated charcoal container only for: 1 HM 201 801 B/C "USA"+ABA 1 HM 201 801 B/C	1HM 201 799
(1)	Activated charcoal container F >> 1 H-S-999 000 "USA"+ABA;AAA	1HM 201 801
(1)	Activated charcoal container F >> 1 H-T-042 102 "CDN"+ABA;AAA	1HM 201 801
(1A)	Activated charcoal container F 1 H-T-000 001>> 1 H-T-107 409 ABA;CALIFORNIA+ABA	1HM 201 801 C
(21)	End cap F 1 H-T-000 001>> 1 H-T-107 409 "USA"+ABA	1HM 201 821
(2A)	Bracket F 1 H-T-000 001>> 1 H-T-107 410 ABA;CALIFORNIA+ABA	1HM 201 827
(2A)	Bracket F 1 H-T-107 410>> ABA;CALIFORNIA+ABA	1HM 201 827 A
(4)	Vent hose	535 201 179
(4A)	Vent hose Pressure valve F 1 H-S-014 923>> CALIFORNIA+AAA,ABA ABA	1HM 201 123 B
(5)	Breather line with:Pressure valve F 1 H-T-095 501>> 1 H 0 201 346 A "CDN"+ACC,ABA,AAA"USA"+AAA 1 H 0 201 346 A ABA	3A0 201 160 A
(7)	Breather line F 1 H-P-014 215>>F >> 1 H-S-999 000 F 1 H-P-006 273>> 8 MM "CDN"+ACCABA,AAA"USA"+AAA"USA"+ABA 8 MM	1H0 201 997 G
1	Activated charcoal container F 1 H-T-000 001>>F 1 H-T-042 103>> "USA"+AAA"CDN"+ABA,AAA AAA	1HM 201 801 B
10	shorten to: 980 MM 980 MM	—
10A	Vent hose F 1 H-S-014 923>> 1 H-S-999 000 F 1 H-T-000 001>> CALIFORNIA+AAAABA;CALIFORNIA+ABA	1H0 201 931
11	Clip F 1 H-T-107 410>> "USA","CDN"	1H0 201 449
12	Clip	1H0 201 449 A
13	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
14	Hose bracket	1H0 201 248 A
15	reducing piece	1H0 201 328
16	Sleeve 6 X 29 MM 6 X 29 MM	191 201 316 A
17	Retainer, swivel 13,5 X 13,5 X 14 13,5 X 13,5 X 14	N 102 841 01
18	Intake manifold F 1 H-S-012 942>> 1 H-S-999 000 F 1 H-T-000 001>> CALIFORNIA+AAAABA;CALIFORNIA+ABA	1H0 201 837
19	Vent hose F 1 H-T-107 410>> ABA;CALIFORNIA+ABA	1HM 201 090 A
2	Bracket F >> 1 H-S-999 000 "USA"+ABA	1H0 201 827
2	Bracket	1H0 201 827
20	clamp F 1 H-T-107 410>> 13,8 "USA","CDN" 13,8	N 100 022 01
21	Cap closure F 1 H-T-107 410>> 7 ABA;CALIFORNIA+ABA 7	034 133 335 D
3	hexagon head panel screw 5,5 X 25 5,5 X 25	N 043 887 1
5	Vent hose F >> 1 H-T-095 500 "CDN"+ACC,ABA,AAA"USA"+AAA ABA	357 201 179
5	Vent hose	357 201 179
6	Clamp 8-12 X 8 X 0,4 8-12 X 8 X 0,4	N 901 072 03
7	Breather line F >> 1 H-P-014 214F >> 1 H-P-006 272 6 MM "CDN" 6 MM	1H0 201 997 B
7A	Breather line F 1 H-S-012 942>> 1 H-S-999 000 F 1 H-T-000 001>> CALIFORNIA+AAAABA;CALIFORNIA+ABA	1H0 201 997 E
8	Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4	N 102 582 01
8	Clamp Connecting piece 18,5 X 7 X 0,60 18,5 X 7 X 0,60	N 100 980 01
8	Clamp Connecting piece 10-16 X 9 X 0,4 10-16 X 9 X 0,4	N 101 393 01
9	Clamp 8-12 X 8 X 0,4 8-12 X 8 X 0,4	N 901 072 03

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these fuel supply diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Engine codes on this plate: AAA, ABA
Factory group: 29 Fuel / air power supply
Factory subgroup: 201095
