Fuel tank — Mk3 Golf Fuel Supply (1993 - 1996)
Factory title: Volkswagen Golf (1993 - 1996) - Fuel tank

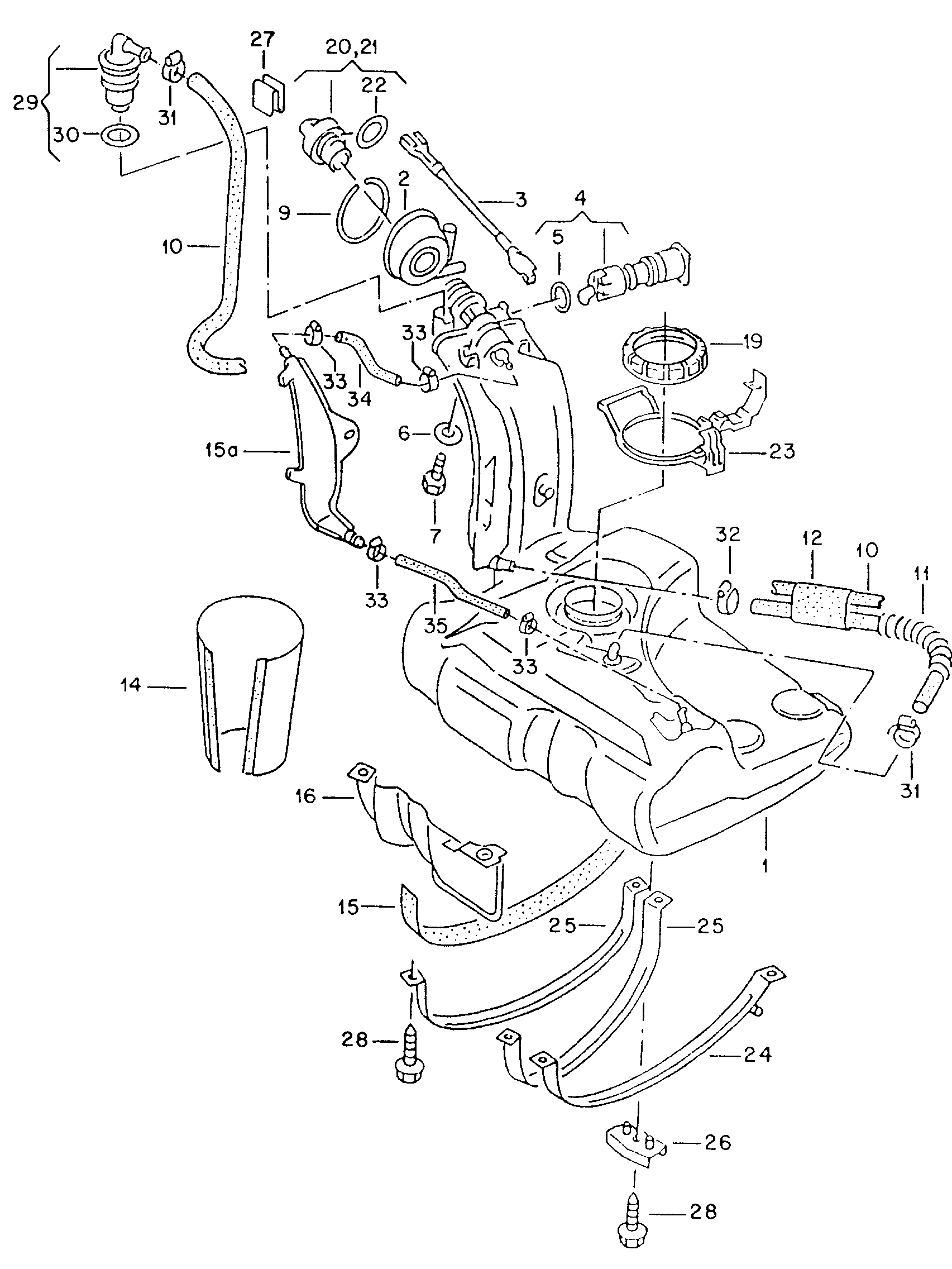

Fuel tank for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 201005 from the Volkswagen ETKA parts catalogue, group 29 Fuel / air power supply, listing 56 OEM part numbers across 59 catalogued positions including 1H0 201 376 A 2 BC, 1J0 201 550 AN0 1C and N 100 816 01. Parts on this plate carry the engine codes AAA, ABA, ACC, ADC and ADD. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 56 OEM part numbers across 59 numbered positions.
| № | Description | Part number |
|---|---|---|
| graphite | 1H0 201 376 A 2 BC | |
| Satin black | 1J0 201 550 AN0 1C | |
| - | hose in coils of 5 m'order unit 5' 9,5 X 3 "USA","CDN" 9,5 X 3 | N 100 816 01 |
| - | hose in coils of 5 m'order unit 5' 13 X 3,5 "USA","CDN" 13 X 3,5 | N 101 238 01 |
| (1) | Fuel tank "BR."+ABA,ADC ADC | 1H0 201 075 AQ |
| (1) | fuel tank with narrowfuel filler neck (22 mm)for lead-free fuel "MEX"+ACC,ADD,AAA,ADC;"RA."+ADC,ADD AAAADD | 1H0 201 075 AS |
| (10) | Vent hose shorten to: 980 MM "USA","CDN"+AAA;"CDN"+ABA,ACC 980 MM ACC | 333 201 182 |
| (10) | Vent hose F 1 H-S-014 923>> 1 H-S-999 000 F 1 H-T-000 001>> CALIFORNIA+AAA;"USA"+ABA | 1H0 201 931 |
| (11) | shorten to:F 1 H-P-000 001>>F >> 1 H-S-999 000 500 MM "USA","CDN"+AAA;"CDN"+ACC,"USA"+ABA 500 MM | — |
| (12) | protective pipe | 1H0 201 340 A |
| (12) | protective pipe "USA","CDN" | 1HM 201 340 |
| (14) | Heat insulation F 1 H-S-071 631>>F 1 H-S-020 692>> "USA","CDN"ADC,AAA AAA | 1H0 201 963 C |
| (2) | Potfor models with activatedcharcoal canister | 1H0 201 253 C |
| (20) | cap, lockable, not for one keylocking system forfuel tank "USA","CDN" | 191 201 551 A |
| (23) | Retaining ring | 1H0 201 376 A |
| (24) | tensioning strap without:Trim for fueltank F 1 H-S-000 001>> | 1H0 201 653 F |
| (24) | tensioning strap F >> 1 H-R-078 542 | 1H0 201 653 F |
| (24) | tensioning strap F >> 1 H-R-078 542 | 191 201 653 |
| (24) | tensioning strap F 1 H-R-078 543>> 1 H-R-999 000 | 1H0 201 653 E |
| (24) | tensioning strap F 1 H-R-078 543>> 1 H-R-999 000 | 1H0 201 653 A |
| (35) | Breather line F 1 H-S-012 942>> 1 H-S-999 000 F 1 H-T-000 001>> CALIFORNIA+AAAABA;CALIFORNIA+ABA | 1H0 201 995 A |
| (9) | ring F 1 H-R-027 541>>F 1 H-R-002 588>> "USA","CDN" | 1H0 201 255 |
| 1 | Fuel tank "USA","CDN"+ACC,ABA,AAA AAAABA | 1H0 201 075 AE |
| 10 | Vent hose shorten to:F >> 1 H-S-999 000 980 MM "USA"+ABA 980 MM | 333 201 182 |
| 11 | breather hosewith spring shorten to: 1050 MM 550 MM 1050 MM 550 MM | 171 201 153 J |
| 11 | Breather line F 1 H-S-012 942>> 1 H-S-999 000 F 1 H-T-000 001>> CALIFORNIA+AAAABA;CALIFORNIA+ABA | 1H0 201 993 A |
| 12 | protective pipe | 1H0 201 340 |
| 12 | protective pipe | 1H0 201 340 A |
| 14 | Heat insulation F >> 1 H-S-071 630 F >> 1 H-S-020 691 "USA","CDN"ABA,ADC,AAA AAAADC | 1H0 201 963 A |
| 15 | Underlay 620 X 35 X 1,5 ABA,AAA 620 X 35 X 1,5 AAAABA | 321 201 300 B |
| 15A | Reservoir "USA","CDN" | 1HM 201 303 |
| 16 | Guard plate for fueltank | 1H0 201 307 C |
| 19 | Union nut | 8N0 201 375 A |
| 2 | Pot "USA","CDN"+AAZ | 1H0 201 253 B |
| 20 | cap, lockable for singlekey system with separatelock cylinder but withouttumblers, springs andkeys forfuel tank | 7D0 201 551 C |
| 21 | cap with retaining strap forfuel tankfor vehicles with centrallocking system | 1J0 201 550 AN |
| 22 | seal ring | 3C0 201 557 |
| 24 | tensioning strap Trim for fueltank "USA","CDN" | 1H0 201 653 F |
| 25 | tensioning strap | 1H0 201 654 C |
| 26 | Bracket | 191 201 661 |
| 27 | Clip | 171 819 086 |
| 28 | Hex collared bolt M 8 X 30 M 8 X 30 | N 019 700 2 |
| 28 | Hexagon bolt M 8 X 30 M 8 X 30 | N 010 244 25 |
| 28 | Hex collared bolt M 8 X 30 M 8 X 30 | N 019 700 1 |
| 29 | gravity valve AAA;"CDN"+ACC,ABA ABA | 7M3 201 751 |
| 3 | Earth line F >> 1 H-R-089 436 | 1J0 201 142 A |
| 3 | Earth line F 1 H-R-089 437>> | 1J0 201 142 A |
| 3 | Earth line F >> 1 H-R-089 436 | 191 201 142 |
| 30 | O-ring 29 X 3 29 X 3 | N 903 596 01 |
| 31 | Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4 | N 102 582 01 |
| 32 | Clamp 9 X 13 9 X 13 | N 024 122 2 |
| 33 | clamp 16,8 "USA","CDN" 16,8 | N 100 811 01 |
| 34 | shorten to: 65 MM "USA","CDN" 65 MM | — |
| 35 | shorten to:F 1 H-P-000 001>>F >> 1 H-S-999 000 600 MM AAA;"CDN"+ACC,ABA"USA"+ABA 600 MM | — |
| 4 | ventilation valve | 6X0 201 136 |
| 5 | O-ring 13,94 X 2,62 13,94 X 2,62 | N 905 638 01 |
| 6 | Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6 | N 011 666 15 |
| 6 | Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6 | N 011 666 20 |
| 7 | hexagon head panel screw 6,3 X 25 6,3 X 25 | N 013 894 2 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these fuel supply diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1993 - 1996
- Generation region
- MEX
- Generation code
- 128
- Engine codes on this plate
- AAA, ABA, ACC, ADC, ADD
- Variant tags
- diesel_turbo
- Factory group
- 29 Fuel / air power supply
- Factory subgroup
- 201005
