Activated charcoal container vent hosefor models catalyst — Mk3 Golf Fuel Supply (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Fuel tank

Generation: Mk3 1997 (RDW) Group: Fuel / air power supply Rebuild step 5 Parts: 23 Primary OEM: 1H0 201 827 0 1C, 3A0 201 160 A, 1H0 201 179 C

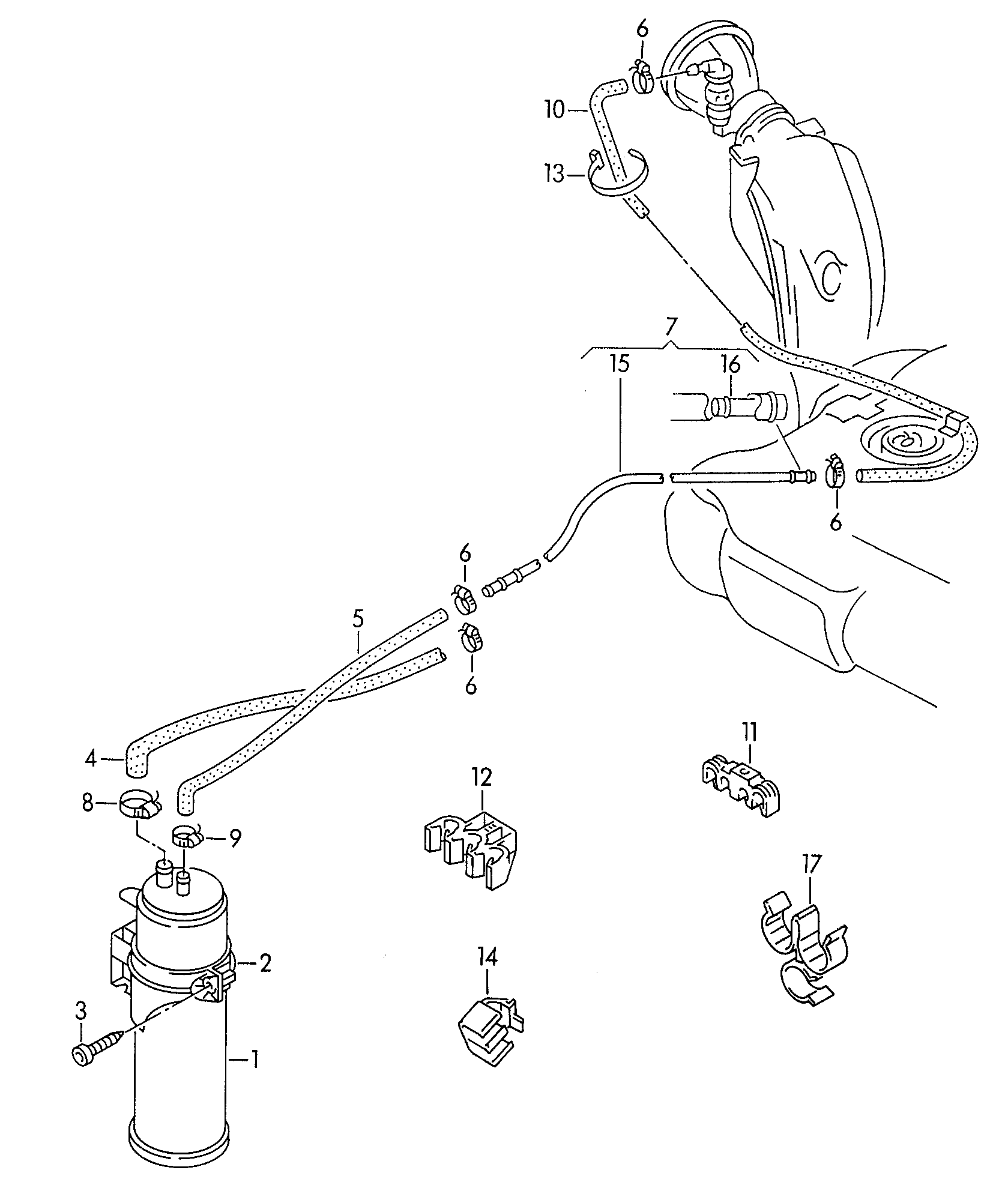

Activated charcoal container vent hosefor models catalyst for the Volkswagen Golf Mk3 (1997): factory exploded diagram 201095 from the Volkswagen ETKA parts catalogue, group 29 Fuel / air power supply, listing 22 OEM part numbers across 23 catalogued positions including 1H0 201 827 0 1C, 3A0 201 160 A and 1H0 201 179 C. Parts on this plate carry the engine codes AAA, AAM, ABF, ADZ, AEE, AEP, AEX and AFT. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 22 OEM part numbers across 23 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H0 201 827 0 1C
	Activated charcoal container Vent hosefor models with catalyst ADZ,AAM,AEX,AEP,AFT,AAA,AEE,ABF,AGG,APQ,ANP AAAAAMABFADZAEEAEPAEXAFTAGGANPAPQ	—
-	Breather line with:Pressure valve 1 H 0 201 346 A 1 H 0 201 346 A	3A0 201 160 A
(4)	Vent hose AEP,ABF,AGG ABFAEPAGG	1H0 201 179 C
(4)	Vent hose ADZ,AAM,AEE,AEX,APQ,ANP AAMADZAEEAEXANPAPQ	1H0 201 179 E
1	Activated charcoal container	1H0 201 801 C
10	Vent hose	333 201 182
11	Clip	1H0 201 449
12	Clip	1H0 201 449 A
13	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
13	Cable ties 4,5 X 140 4,5 X 140	N 902 055 01
14	Hose bracket	1H0 201 248 A
15	reducing piece	1H0 201 328
16	Sleeve 6 X 29 MM 6 X 29 MM	191 201 316 A
17	Retainer, swivel 13,5 X 13,5 X 14 13,5 X 13,5 X 14	N 102 841 01
2	Bracket	1H0 201 827
3	hexagon head panel screw 5,5 X 25 5,5 X 25	N 043 887 1
4	Vent hose shorten to: 570 MM 470 MM AAA,AFT 570 MM 470 MM AAAAFT	535 201 179
5	Vent hose shorten to: 890 MM 710 MM 890 MM 710 MM	357 201 179
6	Clamp 9 X 13 9 X 13	N 024 122 2
7	Breather line 8 MM 8 MM	1H0 201 997 G
8	Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4	N 102 582 01
9	Hose clamp 8-12 X 8 X 0,4 8-12 X 8 X 0,4	N 024 528 1

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these fuel supply diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AAA, AAM, ABF, ADZ, AEE, AEP, AEX, AFT
Factory group: 29 Fuel / air power supply
Factory subgroup: 201095
