Fuel line — Mk3 Golf Fuel Supply (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Fuel tank

Generation: Mk3 1993 - 1996 (MEX) Group: Fuel / air power supply Rebuild step 5 Parts: 32 Primary OEM: N 101 207 01, N 103 035 04, N 900 801 02

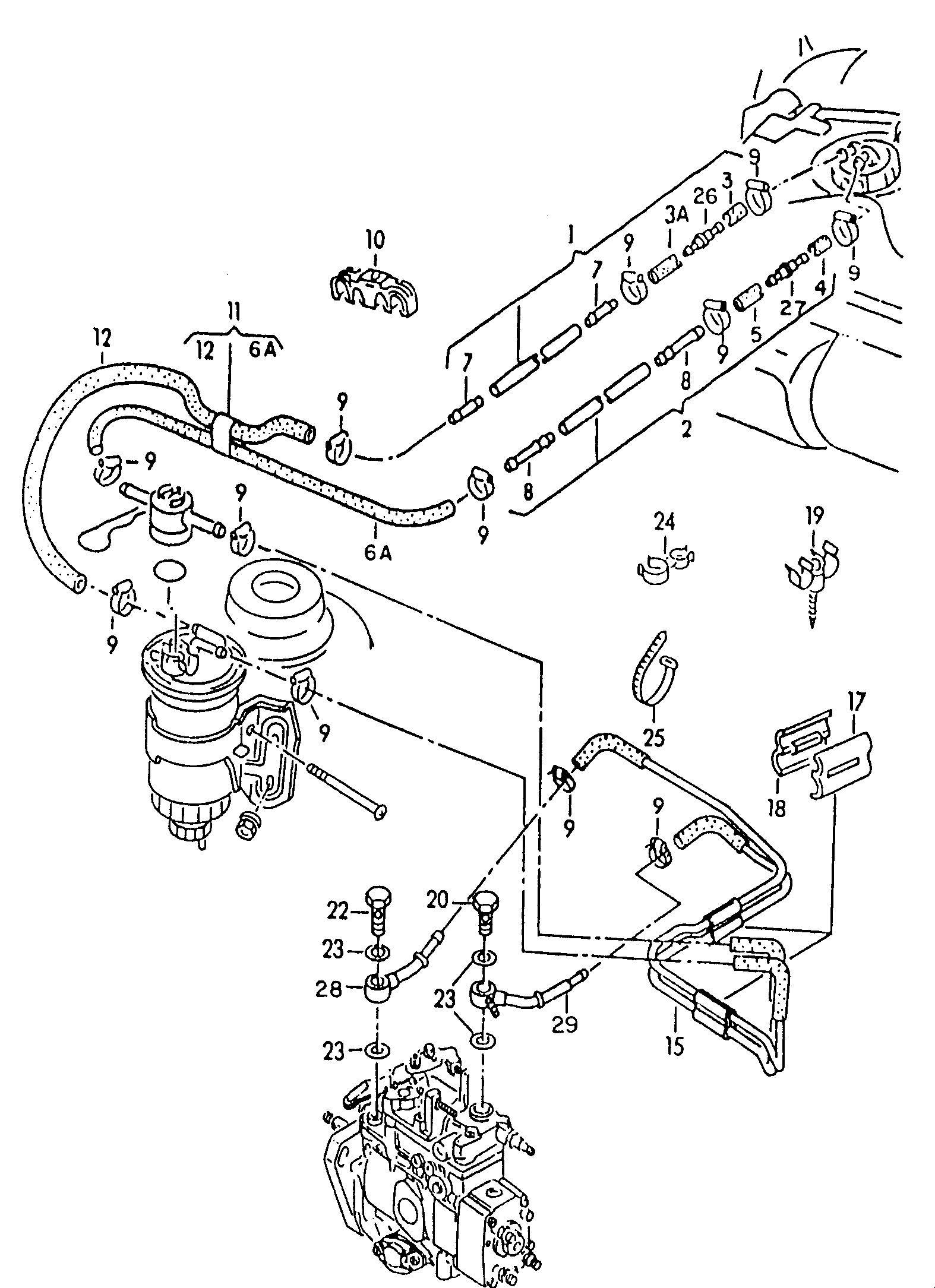

Fuel line for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 201025 from the Volkswagen ETKA parts catalogue, group 29 Fuel / air power supply, listing 25 OEM part numbers across 32 catalogued positions including N 101 207 01, N 103 035 04 and N 900 801 02. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 25 OEM part numbers across 32 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Fuel line "USA","CDN"+diesel eng.	—
-	hose in coils of 5 m'order unit 5' 5,5 X 3 5,5 X 3	N 101 207 01
-	hose in coils of 5 m'order unit 5' 7,3 X 3,5 7,3 X 3,5	N 103 035 04
-	hose in coils of 5 m'order unit 5' 7,5 X 3 7,5 X 3	N 900 801 02
-	Hose(Bulk stock) 7 X 3 7 X 3	N 020 281 1
(23)	seal ring	028 130 520
1	fuel pipe	1HM 201 215
10	Clip	1H0 201 449
11	1 set fuel pipes F >> 1 H-R-031 339	1H0 130 295 A
11	1 set fuel pipes F >> 1 H-R-031 339	1H0 130 295 H
12	shorten to: 295 MM 295 MM	—
15	1 set fuel pipes	1H0 130 307 C
17	Retainer, upper part	1H0 130 346
18	Retainer, lower part	1H0 130 346 A
19	Retainer for fuel line	028 130 324 A
2	fuel pipe	1HM 201 219
20	Banjo bolt withexcess fuel line restrictor	068 130 157
22	Banjo bolt with filter M 12 X 1,5 M 12 X 1,5	048 133 505
24	Cable holder 8/9 8/9	811 971 849
25	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
26	Non-return valve	165 201 542
27	Non-return valve	3A0 201 542
28	Connection piece	028 130 463 A
29	Connection piece	028 130 465
3	shorten to: 80 MM 80 MM	—
3A	shorten to: 80 MM 80 MM	—
4	shorten to: 80 MM 80 MM	—
5	shorten to: 80 MM 80 MM	—
6A	shorten to: 265 MM 265 MM	—
7	Sleeve 6 X 29 MM 6 X 29 MM	191 201 316 A
8	Sleeve 4 X 29 MM 4 X 29 MM	191 201 316
9	Clamp 9 X 13 9 X 13	N 024 122 2

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these fuel supply diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Variant tags: diesel
Factory group: 29 Fuel / air power supply
Factory subgroup: 201025
