Fuel line — Mk3 Golf Fuel Supply (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Fuel tank

Generation: Mk3 1997 (RDW) Group: Fuel / air power supply Rebuild step 5 Parts: 37 Primary OEM: N 103 035 04, N 103 035 01, N 101 207 01

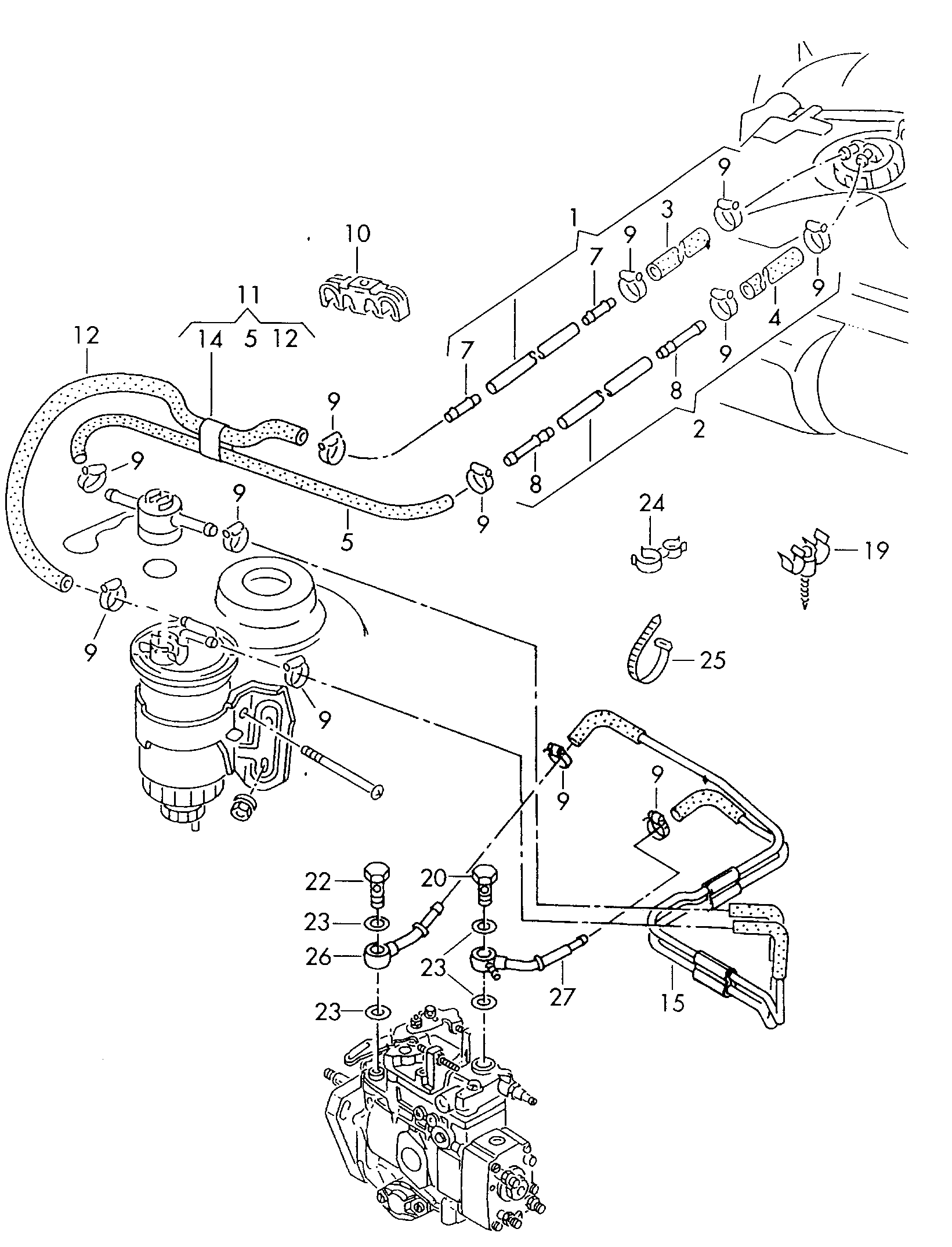

Fuel line for the Volkswagen Golf Mk3 (1997): factory exploded diagram 201025 from the Volkswagen ETKA parts catalogue, group 29 Fuel / air power supply, listing 32 OEM part numbers across 37 catalogued positions including N 103 035 04, N 103 035 01 and N 101 207 01. Parts on this plate carry the engine codes 1Y, 1Z, AAZ, AEY, AFN, AHU and ALE. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 32 OEM part numbers across 37 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Fuel line diesel eng.1 Y,AAZ,1 Z,AEY,AFN,AHU,ALE;ecomatic: 1ZAAZAEYAFNAHU	—
-	hose in coils of 5 m'order unit 5' 7,3 X 3,5 7,3 X 3,5	N 103 035 04
-	hose in coils of 5 m'order unit 5' 7,3 X 3,5 7,3 X 3,5	N 103 035 01
-	hose in coils of 5 m'order unit 5' 7,3 X 3,5 7,3 X 3,5	N 103 035 01
-	hose in coils of 5 m'order unit 5' 5,5 X 3 5,5 X 3	N 101 207 01
-	hose in coils of 5 m'order unit 5' 7,3 X 3,5 7,3 X 3,5	N 103 035 04
(11)	1 set fuel pipes	1H0 130 295 K
(15)	1 set fuel pipes ALE,AFN AFNALE	1H0 130 307 AE
(15)	1 set fuel pipes AFN AFN	1H0 130 307 AC
(15)	1 set fuel pipes 1 Z,AFN,AHU 1ZAFNAHU	1H0 130 307 S
(26)	Connection piece AEY AEY	074 130 355 C
(27)	Connection piece AAZ,ALE AAZALE	028 130 465
(27)	Connection piece 1 Z,AFN,AHU 1ZAFNAHU	028 130 465 G
(27)	Connection piece AEY AEY	028 130 465 J
1	fuel pipe	1H0 201 215 B
10	Clip	1H0 201 449
12	shorten to: 295 MM 295 MM	—
15	1 set fuel pipes 1 Y,AAZ,AEY,1 Z,AHU 1Y1ZAAZAEYAHU	1H0 130 307 N
17	Retainer, upper part	1H0 130 346
18	Retainer, lower part	1H0 130 346 A
19	Retainer for fuel line	028 130 324 A
19	Retainer for fuel line	028 130 324
2	fuel pipe	1H0 201 219 G
20	Banjo bolt withexcess fuel line restrictor	068 130 157
22	Banjo bolt LL 8 LL 8	N 021 071 5
23	seal ring	028 130 520
24	Cable holder 8/9 8/9	811 971 849
25	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
25	Cable ties 4,5 X 140 4,5 X 140	N 902 055 01
26	Connection piece 1 Y,AAZ,1 Z,AFN,AHU,ALE 1Y1ZAAZAFNAHUALE	028 130 463 A
27	Connection piece 1 Y 1Y	028 130 465 A
3	shorten to: 180 MM 180 MM	—
4	shorten to: 185 MM 185 MM	—
5	shorten to: 270 MM 270 MM	—
7	Sleeve 6 X 29 MM 6 X 29 MM	191 201 316 A
8	Sleeve 4 X 29 MM 4 X 29 MM	191 201 316
9	Clamp 9 X 13 9 X 13	N 024 122 2

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these fuel supply diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Y, 1Z, AAZ, AEY, AFN, AHU, ALE
Variant tags: diesel
Factory group: 29 Fuel / air power supply
Factory subgroup: 201025
