Which VW part numbers are on the fuel tank diagram for the Mk3 Golf?

This diagram lists 49 OEM part numbers for the Mk3 Golf. The first three are 1J0 201 550 AC0 1C, 191 201 553 A 0 1C and 1H0 201 376 A 2 BC.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Fuel tank — Mk3 Golf Fuel Supply (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Fuel tank

Generation: Mk3 1997 (RDW) Group: Fuel / air power supply Rebuild step 5 Parts: 49 Primary OEM: 1J0 201 550 AC0 1C, 191 201 553 A 0 1C, 1H0 201 376 A 2 BC

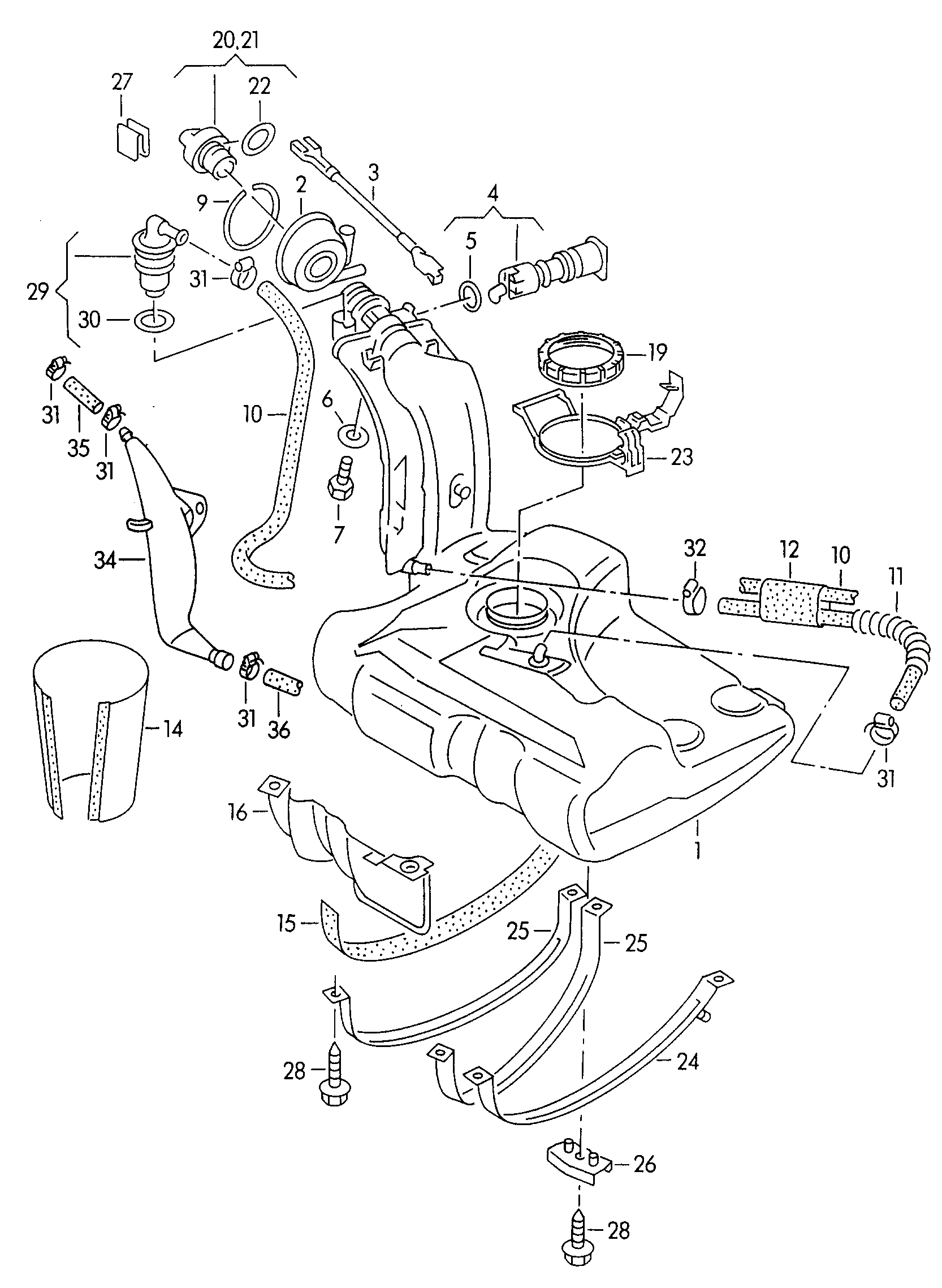

Fuel tank for the Volkswagen Golf Mk3 (1997): factory exploded diagram 201005 from the Volkswagen ETKA parts catalogue, group 29 Fuel / air power supply, listing 49 OEM part numbers including 1J0 201 550 AC0 1C, 191 201 553 A 0 1C and 1H0 201 376 A 2 BC. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 49 OEM part numbers across 49 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1J0 201 550 AC0 1C
	Satin black	191 201 553 A 0 1C
	graphite	1H0 201 376 A 2 BC
(1)	fuel tank with no restrictedfuel filler neck(26 mm > )	1H0 201 075 AR
(1)	fuel tank with narrowfuel filler neck (22 mm)for lead-free fuel	1H0 201 075 AS
(1)	Fuel tank	1H0 201 075 AC
(1)	fuel tank with narrowfuel filler neck (22 mm)for lead-free fuel	1H0 201 075 AD
(2)	Potfor models with activatedcharcoal canister	1H0 201 253 C
(20)	cap, lockable, not for one keylocking system forfuel tank	191 201 551 A
(24)	tensioning strap without:Trim for fueltank	1H0 201 653 F
1	Fuel tank diesel eng.	1H0 201 075 AQ
1	Fuel tank diesel eng.	1H0 201 075 AB
10	Vent hose	333 201 182
11	breather hosewith spring shorten to: 1050 MM 550 MM 1050 MM 550 MM	171 201 153 J
12	protective pipe	1H0 201 340 A
14	Heat insulation	1H0 201 963 C
15	Underlay 620 X 35 X 1,5 620 X 35 X 1,5	321 201 300 B
16	Guard plate for fueltank	1H0 201 307 C
19	Union nut	321 201 375 A
2	Pot	1H0 201 253 B
20	cap, lockable for singlekey system with separatelock cylinder but withouttumblers, springs andkeys forfuel tank	191 201 551 D
20	cap, lockable for singlekey system with separatelock cylinder but withouttumblers, springs andkeys forfuel tank	1H0 201 551
20	cap, lockable for singlekey system with separatelock cylinder but withouttumblers, springs andkeys forfuel tank	7D0 201 551 C
21	cap with retaining strap forfuel tankfor vehicles with centrallocking system	1J0 201 550 AC
21	fuel tankcapfor vehicles with centrallocking system	191 201 553 A
21	fuel tankcapfor vehicles with centrallocking system	1H0 201 553 B
22	seal ringfor vehicle use with vegtableoil methyl ester -pme-	191 201 557
22	Sealfor vehicle use with vegtableoil methyl ester -pme-	4A0 201 557
23	Retaining ring	1H0 201 376 A
24	tensioning strap	1H0 201 653 E
25	tensioning strap	1H0 201 654 C
26	Bracket	191 201 661
27	Clip	171 819 086
28	Hex collared bolt M 8 X 30 M 8 X 30	N 019 700 2
28	Hex collared bolt M 8 X 30 M 8 X 30	N 019 700 1
29	gravity valve	357 201 751
3	Earth line	1J0 201 142 A
3	Earth line	1H9 201 142 A
30	O-ring 29 X 3 29 X 3	N 903 596 01
31	Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4	N 102 582 01
32	Clamp 9 X 13 9 X 13	N 024 122 2
4	Breather valve	1H0 201 136 A
4	ventilation valve	6X0 201 136
4	Breather valve	8D0 201 136
5	O-ring 13,94 X 2,62 13,94 X 2,62	N 905 638 01
6	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
7	hexagon head panel screw 6,3 X 25 6,3 X 25	N 013 894 2
9	ring	321 201 255 A
9	ring	1H0 201 255

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these fuel supply diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 29 Fuel / air power supply
Factory subgroup: 201005

Related factory diagrams

Other published fuel supply plates for the Mk3 Golf in this catalogue.

Fuel line 1993 - 1996 · subgroup 201025
Fuel tank 1993 - 1996 · subgroup 201005
Activated charcoal container vent hose petr engine 1993 - 1996 · subgroup 201095
Fuel line 1997 · subgroup 201025
Fuel line fuel filter aex aee aaa aft aam adz acc abf agg 1997 · subgroup 201040
Activated charcoal container vent hosefor models catalyst 1997 · subgroup 201095
