Boot floor plate rear cross panel — Mk3 Golf Rear Body (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Boot floor plate. Rear cross panel

Generation: Mk3 1997 (RDW) Group: Rear body Parts: 31 Primary OEM: N 904 823 01, 191 813 869, N 010 240 22

Boot floor plate rear cross panel for the Volkswagen Golf Mk3 (1997): factory exploded diagram 813000 from the Volkswagen ETKA parts catalogue, group 24 Rear body, listing 28 OEM part numbers across 31 catalogued positions including N 904 823 01, 191 813 869 and N 010 240 22. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 28 OEM part numbers across 31 numbered positions.

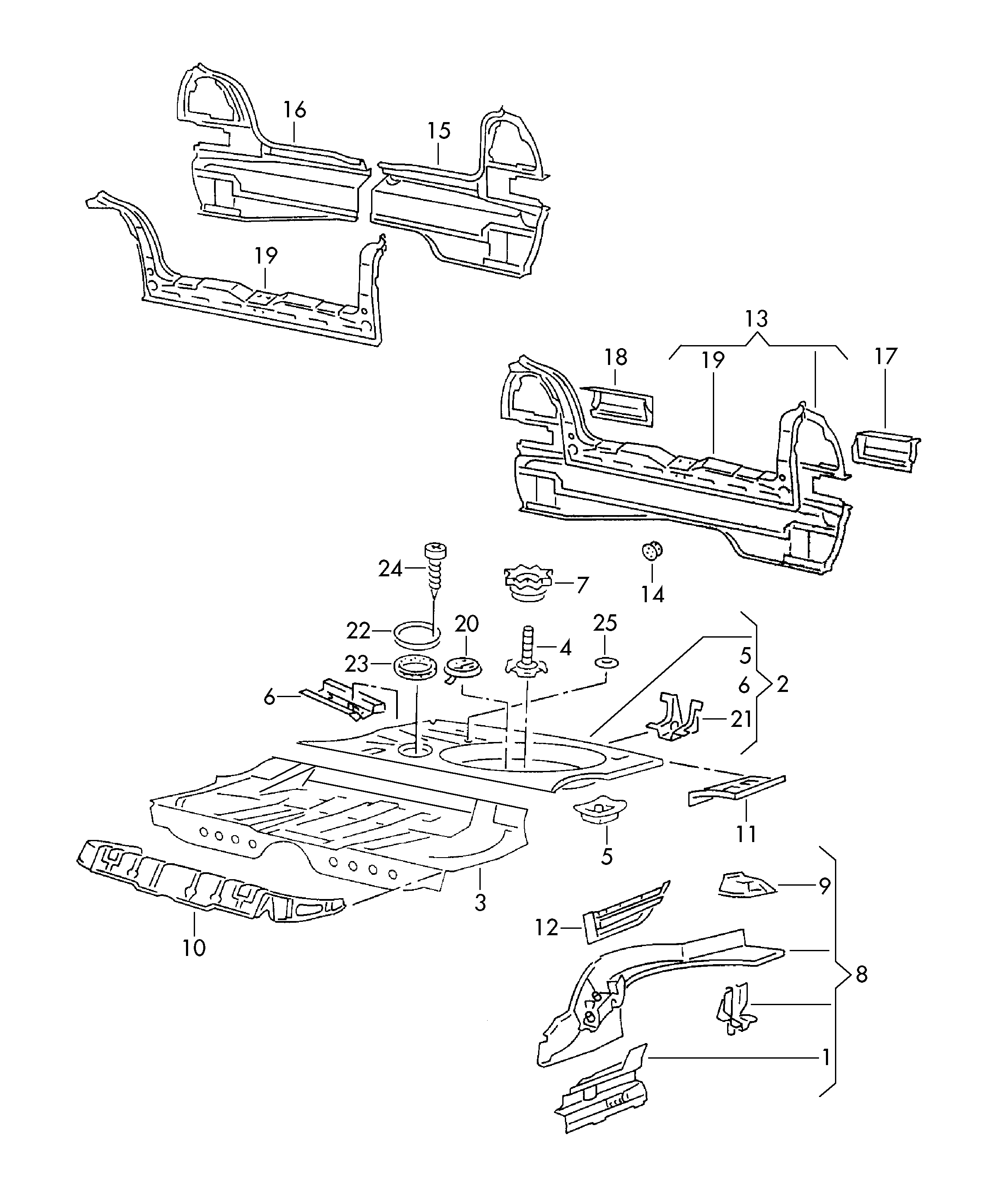

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	nut, square M 6 M 6	N 904 823 01
-	Reinforcementexhaust system	191 813 869
-	bolt, hexagon headself-locking M 8 X 20 M 8 X 20	N 010 240 22
(1)	Support plate	1H0 813 087 A
(1)	Support plate	1H0 813 088 A
(10)	seat support	1H0 813 141 D
(11)	Cross panel for sidemember	1H6 813 228
(12)	Support plate	1H3 809 074 A
(9)	Reinforcement for bumperfixing	1H6 813 126 B
11	Cross panel for sidemember	1H6 813 227
12	Support plate	1H3 809 073 A
13	Rear cross panel also use: 1 H 6 813 3071 H 6 813 308 1 H 6 813 3071 H 6 813 308	1H6 813 302 A
14	Grommet 33,5 33,5	191 971 926 B
15	No longer available replacement: POS. 13 POS. 13	—
16	No longer available replacement: POS. 13 POS. 13	—
17	Insert piece	1H6 813 307
18	Insert piece	1H6 813 308
20	End cap	191 813 589
21	Retainer for bumper	1H6 813 743
22	Cover for sender	321 803 958
22	Cover for sender	6X0 803 959
23	seal ring	321 803 963
24	oval head panel screw 4,2 X 9,5 4,2 X 9,5	N 013 965 5
25	Sealing washer 40 X 0,5 40 X 0,5	N 901 466 04
3	boot floor plate	1H6 813 115
4	bracket for spare wheel	357 803 272
5	bracket for strap	1H0 803 745
6	bracket for strap	191 803 746
7	nut for spare wheelmounting	861 803 899 B
8	see illustration: 803-020 803-020	—
9	Reinforcement for bumperfixing	1H6 813 125

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these rear body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 24 Rear body
Factory subgroup: 813000
