Rear lid — Mk3 Golf Rear Body (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Rear lid

Generation: Mk3 1994 - 1997 (RDW) Group: Rear body Parts: 73 Primary OEM: 1H6 827 571 E B 41, 107 827 571 EA3 FZ, 1E0 827 790 B 41

Rear lid for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 827000 from the Volkswagen ETKA parts catalogue, group 24 Rear body, listing 70 OEM part numbers across 73 catalogued positions including 1H6 827 571 E B 41, 107 827 571 EA3 FZ and 1E0 827 790 B 41. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 70 OEM part numbers across 73 numbered positions.

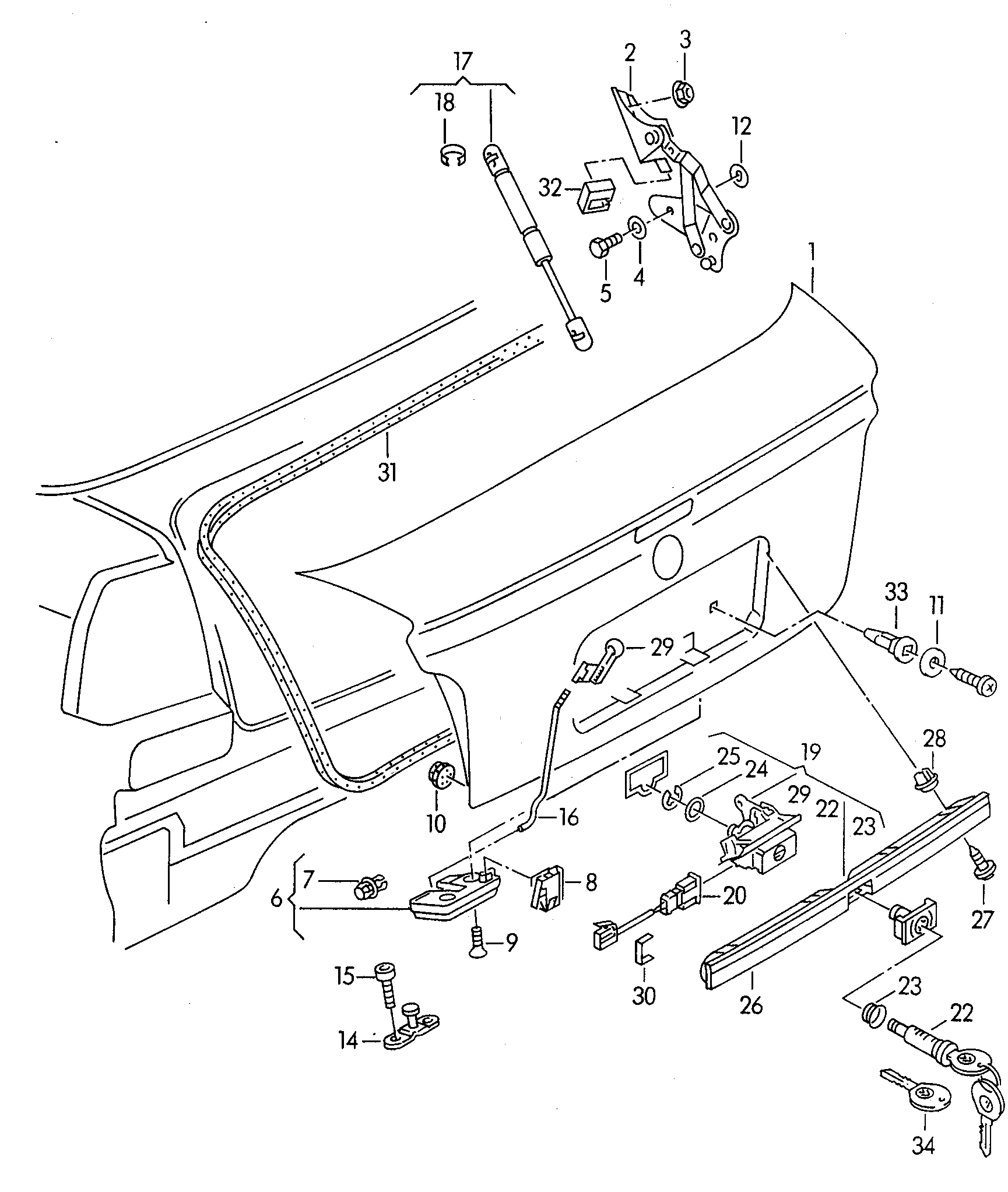

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Satin black
 1H6 827 571 E B 41
Satin black
 107 827 571 EA3 FZ
Satin black
 1E0 827 790 B 41
Satin black
 107 827 571 EB3 FZ
primed "J.."
 1E0 827 577 G RU
primed
 1H6 827 577 C G RU
Satin black
 1H6 827 577 E 3 FZ
primed
 1H6 827 577 A G RU
Satin black
 1H6 827 577 D 3 FZ
-
fillister hd. bolt F 1 E-S-009 001>>* M 5 X 15
M 5 X 15
 N 014 131 3
-
oval head panel screw F >> 1 E-S-009 000* 4,8 X 22
4,8 X 22
 N 013 971 3
-
adhesiveadhesives and sealing compound 3 G
3 G
 AMV 195 KD1 01
-
Cover cap 13 X 9,5
13 X 9,5
 N 906 500 01
-
Washer 5,1 X 12 X 2 "J.."
5,1 X 12 X 2
 N 904 107 02
-
fillister hd. bolt M 5 X 16 "J.."
M 5 X 16
 N 100 957 02
-
intermediate (zinc)(bag contains 50 pieces)modify in workshop 35 X 22
35 X 22
 AKL 381 035 50
-
Licence plate holder "J.."
 1H6 827 211 A
-
Washer A 8,4 X 16 X 1,6
A 8,4 X 16 X 1,6
 N 011 525 20
-
Washer A 8,4 X 16 X 1,6
A 8,4 X 16 X 1,6
 N 011 525 13
-
plastic sealing strip 20 X 2 X 5000 MM
20 X 2 X 5000 MM
 D 486 020 A5
-
Lock cylinder grease spray 50 ML
50 ML
 G 052 778 A2
(1)
Rear lid also use: >>1 E-S-009000 N 904 792 01 N 906 262 01
>>1 E-S-009000 N 904 792 01 N 906 262 01
 1E0 827 025 J
(1)
Rear lid For vehicles with highmounted brake light also use: >>1 E-S-009000 N 904 792 01 N 906 262 01
>>1 E-S-009000 N 904 792 01 N 906 262 01
 1E0 827 025 K
(1)
Rear lid For vehicles with highmounted brake light F >> 1 E-S-023 866* also use: >>1 E-S-009000 N 904 792 01 N 906 262 01 "J.."
>>1 E-S-009000 N 904 792 01 N 906 262 01
 1E0 827 025 K
(1)
Rear lid For vehicles with highmounted brake light F 1 E-S-023 867>>* "J.."
 1E0 827 025 E
(10)
Bungs 10 X 1 X 12
10 X 1 X 12
 N 020 024 1
(11)
Sealing plate
 803 955 637
(14)
Striker plate F 1 E-T-000 001>>*
 1H6 827 511 B
(16)
pull rod F 1 E-R-022 583>>F 1 E-R-022 777>> "J.."
 1H6 827 515 A
(19)
button withlock cylinder For vehicle withoutcentral locking* to retain the one key* system the key code* number and/or chassis* number must be quoted* when ordering F 1 E-W-000 001>> HUF
HUF
 107 827 571 EA
(19)
button withlock cylinder* to retain the one key* system the key code* number and/or chassis* number must be quoted* when orderingfor central locking system use if required:F 1 E-W-000 001>> HUF 1 H 0 953 2291 H 0 827 649
HUF 1 H 0 953 2291 H 0 827 649
 107 827 571 EB
(2)
Lid hinge
 1E0 827 301
(22)
Lock cylinders F 1 E-W-000 001>>Not for this model replacement:SIEHE POS.19!! POS.19
POS.19
 —
(22)
Lock cylinder for rearlidsystem 'b' profile ah 8201-9282 F >> 1 E-V-050 000*
 1H6 827 573 C
(23)
seal ring F 1 E-W-000 001>>
 7M0 837 227
(26)
grip molding "J.."
 1H6 827 577 E
(26)
grip molding "J.."
 1H6 827 577 C
(26)
grip molding
 1E0 827 577
(26)
grip molding
 1H6 827 577 A
(27)
Oval hexagon socket head bolt F 1 E-S-009 001>>* M 5 X 13,6
M 5 X 13,6
 N 906 262 01
(28)
rivetted cap nut F 1 E-S-009 001>>* BM 5/0,75-1
BM 5/0,75-1
 N 906 261 02
(29)
Clipfor vehicles with centrallocking system
 171 837 199
(29)
Clip F 1 E-R-020 001>>*
 191 837 199
(3)
Hexagon nut M 8.0
M 8.0
 N 011 008 30
(31)
Seal also use: 3970 MMAMV 195 KD 1 01
3970 MMAMV 195 KD 1 01
 1H0 827 705 A
(33)
rivetted cap nut F 1 E-S-009 001>> M 5 X 0,5-3
M 5 X 0,5-3
 N 904 792 01
(6)
Lid lock use if required: 333 947 561
333 947 561
 1H6 827 505 B
11
Sealing plate
 171 853 919
12
Sealing plate make up from: D 486 020 A 5
D 486 020 A 5
 —
14
Striker plate F >> 1 E-S-040 000*
 1H6 827 511
15
Socket head bolt withhexagon socket head M 8 X 15
M 8 X 15
 N 014 770 2
16
pull rod F >> 1 E-R-022 582 F >> 1 E-R-022 776 "J.."
 1H6 827 515
17
Gas filled strut
 1E0 827 550 B
19
button withlock cylinder------------------------------For vehicles with anti-theftalarm system use if required:------------------------------ also use:F >> 1 E-V-050 000* 1 H 0 827 6491 H 0 953 229>>1 E-R-022 582>>1 E-R-022 7761 H 6 827 515 A
1 H 0 827 6491 H 0 953 229>>1 E-R-022 582>>1 E-R-022 7761 H 6 827 515 A
 1H6 827 571 E
2
Lid hinge
 1E0 827 302
20
Micro switch For vehicles with anti-theftalarm system
 1H0 953 229
22
Lock cylinder for rearlidsystem 'a' profile ah F >> 1 E-V-050 000*
 1H6 827 573 B
23
seal ring F >> 1 E-V-050 000*
 1H0 837 227
24
seal ring 18,5 X 2
18,5 X 2
 N 900 989 01
25
Retaining washer 5
5
 N 012 435 2
26
grip molding
 1H6 827 577 D
27
oval head panel screw F >> 1 E-S-009 000* 6 X 14
6 X 14
 N 905 821 01
28
expanding nut F >> 1 E-S-009 000*
 1H6 827 584 A
29
Clip F >> 1 E-R-020 000*
 357 827 637 A
30
Clip For vehicles with anti-theftalarm system
 1H0 827 649
32
Stop
 1E0 827 790
33
insert nut F >> 1 E-S-009 000*
 357 827 998 A
34
key F >> 1 E-V-050 000* see illustration:F 1 E-W-000 001>> see illustration: 837-000837-010
837-000837-010
 —
4
Washer 8,4 X 21 X 2
8,4 X 21 X 2
 N 900 577 03
5
Hexagon bolt M 8 X 18
M 8 X 18
 N 010 239 11
7
Clip
 191 837 199
8
Switch for luggage comp.light
 333 947 561
9
oval head countersunk bolt M 8 X 32
M 8 X 32
 N 021 416 3

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these rear body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1994 - 1997
Generation region
RDW
Generation code
146
Factory group
24 Rear body
Factory subgroup
827000

Related factory diagrams

Other published rear body plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the rear lid diagram for the Mk3 Golf?
This diagram lists 70 OEM part numbers for the Mk3 Golf. The first three are 1H6 827 571 E B 41, 107 827 571 EA3 FZ and 1E0 827 790 B 41.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1994 - 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
