Rear lid spoiler jetta usa cdn — Mk3 Golf Rear Body (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Spoiler. Rear lid

Generation: Mk3 1993 - 1996 (MEX) Group: Rear body Parts: 58 Primary OEM: 1H5 827 933 A G RU, 1H5 827 571 H B 41, 1H5 827 499

Rear lid spoiler jetta usa cdn for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 827010 from the Volkswagen ETKA parts catalogue, group 24 Rear body, listing 53 OEM part numbers across 58 catalogued positions including 1H5 827 933 A G RU, 1H5 827 571 H B 41 and 1H5 827 499. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 53 OEM part numbers across 58 numbered positions.

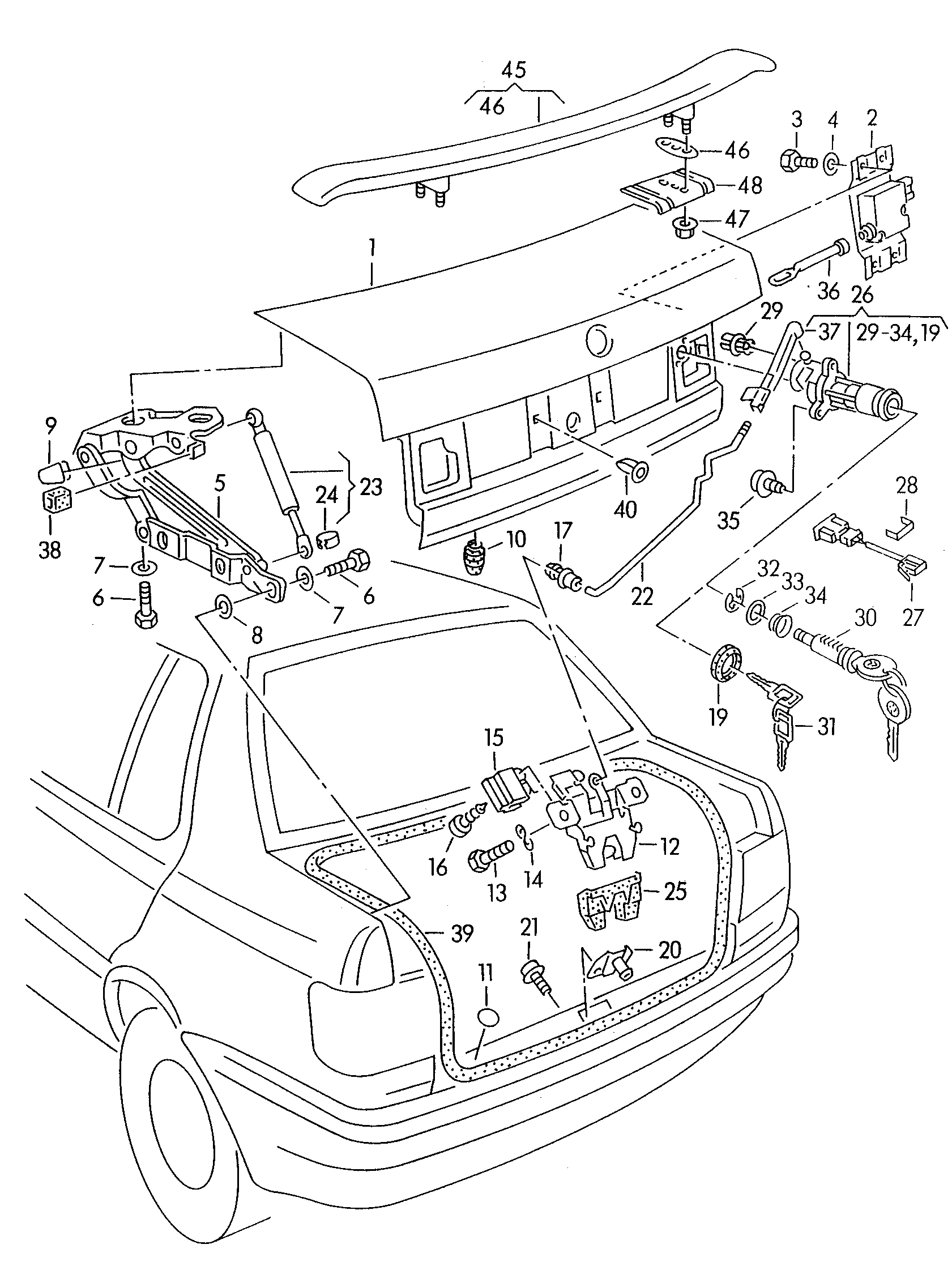

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Spoiler "USA","CDN"
 —
primed
 1H5 827 933 A G RU
Rear lid Spoiler JETTA"USA","CDN"
 —
Rear lid JETTA
 —
Satin black
 1H5 827 571 H B 41
-
Stop buffer F 1 H-T-033 653>>F 1 H-T-001 286>>* "USA","CDN"
 1H5 827 499
-
spoiler, primed, with securingparts F >> 1 H-S-059 842 F >> 1 H-S-001 639* "USA","CDN"+GLXVR 6 CARAT
 1H5 898 933
-
Bungs 30 X 20 X 16
30 X 20 X 16
 1H0 971 908 E
-
adhesive 3 G
3 G
 AMV 195 KD1 01
-
Lock cylinder grease spray 50 ML "USA","CDN"
50 ML
 G 052 778 A2
(1)
Rear lid also use: 1 H 5 827 4991 H 5 853 630 D(739)
1 H 5 827 4991 H 5 853 630 D(739)
 1HM 827 025 F
(23)
Gas filled strut
 1H5 827 550 B
(26)
button withlock cylinderfor vehicles with centrallocking system For vehicles with anti-theftalarm system
 1H5 827 571 H
(3)
Hexagon bolt M 5 X 20
M 5 X 20
 N 010 264 4
(45)
Spoiler VR 6 CARATGLX"USA","CDN"
 1H5 827 933 A
(46)
Underlay F 1 H-S-059 843>>F 1 H-T-080 629>>F 1 H-S-001 640>> 1 H-T-001 708 F 1 H-T-001 709>> "USA","CDN""USA","CDN"VR 6 CARATGLX
 1H5 827 979 A
(46)
Underlay F 1 H-S-059 843>>F 1 H-T-080 629>>F 1 H-S-003 640>> 1 H-T-001 708 F 1 H-T-001 709>> "USA","CDN""USA","CDN"VR 6 CARATGLX
 1H5 827 980
(48)
Reinforcement VR 6 CARAT,GLX
 1H5 827 941
(5)
Lid hinge
 1H5 827 302 A
10
Stop buffer 30 X 22/12
30 X 22/12
 867 827 500 A
11
Protective film make up from: AKL 448 300 04
AKL 448 300 04
 —
12
Lid lock
 3A5 827 503
13
Hexagon bolt M 6 X 18
M 6 X 18
 N 010 216 12
14
Spring washer 6
6
 N 012 226 5
15
Switchluggage compartment light
 357 947 561
16
oval head panel screw 3,5 X 6,5
3,5 X 6,5
 N 013 956 6
17
Clip
 191 837 199
19
seal ring
 1H5 827 527
2
tailgate/boot lid lock,electrically operated
 1HM 827 061 B
20
Striker plate
 1H5 827 511
21
fillister head bolt (combi.) M 6 X 9
M 6 X 9
 N 904 723 01
22
pull rod
 1HM 827 515 B
24
Clip
 443 823 397
25
Cover cap for flaplock
 357 827 563
27
Micro switch
 1H0 953 229
28
Clip
 1H0 827 649
29
Clip
 171 837 199
3
Hexagon bolt M 5 X 18
M 5 X 18
 N 010 296 2
30
Lock cylinder for rearlid
 1H5 827 573
31
see illustration: 837-000
837-000
 —
32
Retaining washer 5
5
 N 012 435 2
33
seal ring 18,5 X 2
18,5 X 2
 N 900 989 01
34
seal ring
 111 837 227 B
35
fillister head bolt (combi.) M 5 X 15
M 5 X 15
 N 905 296 01
36
connecting rod
 1H5 827 609
37
Clip
 1H5 827 637
38
Stop
 1H5 827 681 B
39
Seal Shorten if necessary also use: 3970 MM 3170 MMAMV 195 KD 1 01
3970 MM 3170 MMAMV 195 KD 1 01
 1H0 827 705 A
4
Washer 5,5
5,5
 N 011 540 2
40
insert nut
 357 827 998 A
46
Underlay F >> 1 H-S-059 842 F >> 1 H-S-001 639* "USA","CDN"VR 6 CARAT
 1H5 827 979
47
hex. nut, self-locking withwasher M 6 VR 6 CARAT,GLX
M 6
 N 902 867 03
48
Reinforcement VR 6 CARAT,GLX
 1H5 827 942
5
Lid hinge
 1H5 827 301 A
6
Hexagon bolt M 8 X 16
M 8 X 16
 N 010 293 5
7
tensioning washer 8,2 X 22,25 X 1,4
8,2 X 22,25 X 1,4
 N 900 641 01
8
Seal
 861 827 365
9
Stop buffer
 1H5 827 489

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these rear body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1993 - 1996
Generation region
MEX
Generation code
128
Factory group
24 Rear body
Factory subgroup
827010

Related factory diagrams

Other published rear body plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the rear lid spoiler jetta usa cdn diagram for the Mk3 Golf?
This diagram lists 53 OEM part numbers for the Mk3 Golf. The first three are 1H5 827 933 A G RU, 1H5 827 571 H B 41 and 1H5 827 499.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
