Rear lid spoiler golf — Mk3 Golf Rear Body (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Spoiler. Rear lid

Generation: Mk3 1993 - 1996 (MEX) Group: Rear body Parts: 71 Primary OEM: 1H6 827 571 E B 41, 1H6 827 577 E 3 FZ, 1H6 827 939 3 FZ

Rear lid spoiler golf for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 827020 from the Volkswagen ETKA parts catalogue, group 24 Rear body, listing 64 OEM part numbers across 71 catalogued positions including 1H6 827 571 E B 41, 1H6 827 577 E 3 FZ and 1H6 827 939 3 FZ. Parts on this plate carry the engine code RA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 64 OEM part numbers across 71 numbered positions.

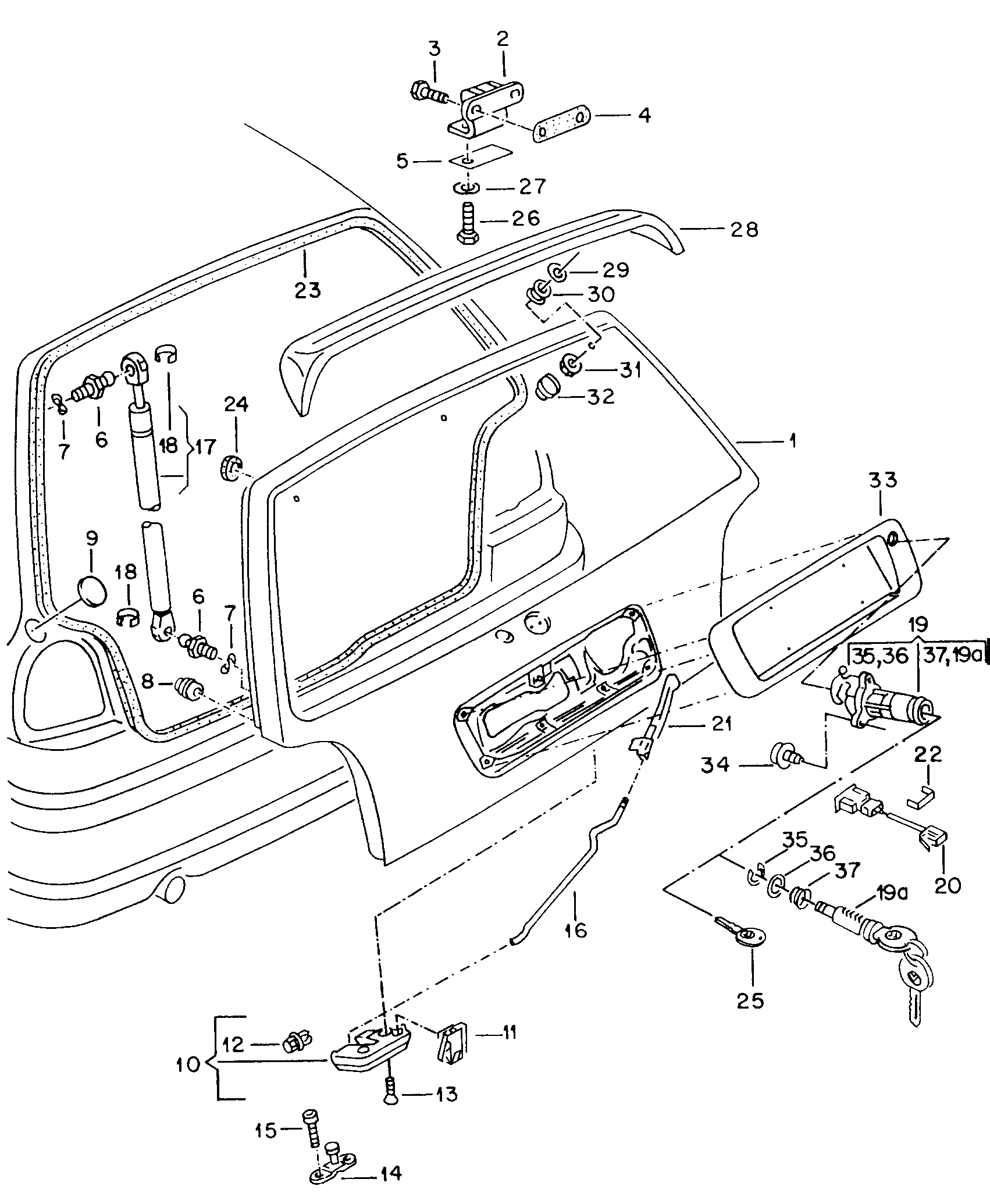

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Satin blackif necessary paint in colorof vehicle
 1H6 827 571 E B 41
Satin black
 1H6 827 577 E 3 FZ
Satin black
 1H6 827 939 3 FZ
Satin black
 1H6 827 933 B 41
Satin black
 1HM 827 201 0 1C
Rear lid Spoiler GOLF
 —
Satin black
 1HM 827 201 0 1C
Rear lid GOLF
 —
Satin black
 1HM 827 571 B B 41
-
adhesive 3 G
3 G
 AMV 195 KD1 01
-
plastic sealing strip 20 X 2 X 5000 MM
20 X 2 X 5000 MM
 D 486 020 A5
-
expanding nut F 1 H-R-002 751>>F 1 H-S-018 220>>F 1 H-S-021 240>> "BR."+ GTI"BR."+ GLX"BR."+ GL
 1H6 827 584 A
-
connecting rod
 1H5 827 609
-
Cap Rear lid F 1 H-S-058 910>> 1 H-S-999 000 also use: N 905 748 01 "USA","CDN""USA"+ CITY
N 905 748 01
 1HM 827 201
-
Cap Rear lid F >> 1 H-S-999 000 F 1 H-T-000 001>> also use: N 905 748 01 CLCITY
N 905 748 01
 1HM 827 201
-
hex. nut with rubberwasher F 1 H-S-058 910>> 1 H-S-999 000 M 6 "USA","CDN""USA"+ CITY
M 6
 N 905 748 01
-
hex. nut with rubberwasher F >> 1 H-S-999 000 F 1 H-T-000 001>> M 6 CLCITY
M 6
 N 905 748 01
-
tailgate/boot lid lock,electrically operated
 1HM 827 061 E
-
oval head panel screw 4,2 X 16
4,2 X 16
 N 013 964 9
-
Bungs 6,8 X 15,5
6,8 X 15,5
 1H6 971 910 A
-
Bungs 14
14
 8A0 831 449
-
grip molding "BR."+GTI,GLX,GL
 1H6 827 577 E
-
Lock cylinder grease spray 50 ML "USA","CDN"
50 ML
 G 052 778 A2
-
Protective film 290 X 210 MM
290 X 210 MM
 AKL 448 300 04
(1)
Rear lid F 1 H-R-002 751>> 1 H-T-999 000 F 1 H-S-018 220>> 1 H-T-999 000 F 1 H-S-021 240>> 1 H-T-999 000 also use: 3 A 9 853 630(739) "BR."+ GTI"BR."+ GLX"BR."+ GL
3 A 9 853 630(739)
 1HM 827 025 M
(1)
Rear lid F >> 1 H-T-999 000 F >> 1 H-S-999 000 F >> 1 H-T-999 000 F >> 1 H-T-999 000 also use: 3 A 9 853 630(739) "USA","CDN""MEX"+GT,GTI VR 6"MEX"+GL,GTISPORT,CITYATLANTA"RA."+GTI,GLX,GL
3 A 9 853 630(739)
RA
1HM 827 025 K
(10)
Lid lock "BR."+GTI, GLX
 1H6 827 505 B
(16)
pull rod "BR."+GTI,GLX,GL
 1H6 827 515 A
(19)
button withlock cylinderfor vehicles with centrallocking system F 1 H-R-002 751>> also use: >>1 H-S-0022531 H 6 827 515 A "BR."+ GTI,GLX, GL
>>1 H-S-0022531 H 6 827 515 A
 1H6 827 571 E
(19)
button withlock cylinderfor vehicles with centrallocking system For vehicles with anti-theftalarm system F 1 H-T-000 001>>F 1 H-S-000 001>> 1 H-S-999 000 F 1 H-S-020 610>>F 1 H-T-002 950>> GL,GTI"USA","CDN""MEX"+GTI,VR 6"RA."+GTI,GLX"RA."+ GL
RA
1HM 827 571 B
(2)
Lid hinge
 1H6 827 301 B
(26)
Hexagon bolt M 6 X 15 "USA","CDN"
M 6 X 15
 N 904 407 01
(28)
Spoiler F >> 1 H-T-999 000 F 1 H-P-014 215>> 1 H-T-999 000 F 1 H-R-002 751>> 1 H-T-999 000 F 1 H-R-006 758>> 1 H-S-999 000 F 1 H-S-000 001>> 1 H-S-999 000 F 1 H-S-018 220>> 1 H-T-999 000 F 1 H-S-020 610>> 1 H-T-999 000 F 1 H-S-021 191>> 1 H-T-999 000 F 1 H-T-002 481>> 1 H-T-999 000 GL,GTI"USA","CDN""USA","CDN""BR."+ GTI"MEX"+ GT"MEX"+GTI VR 6"BR."+ GLX"RA."+GTI,GLXMANHATTAN"MEX"+ SPORT
RA
1H6 827 939
10
Lid lock use if required:F 1 H-S-000 001>> 1 H-S-999 000 F 1 H-S-020 610>>F 1 H-S-021 191>>F 1 H-S-021 240>>F 1 H-T-000 001>>F 1 H-T-001 232>>F 1 H-T-002 481>> 333 947 561 CL,GL,GT,GTI"MEX":GTI VR 6"RA.":GL,GTI,GLXMANHATTAN"BR.":GL"MEX":CITY"MEX":ATLANTA"MEX": SPORT
333 947 561
RA
1HM 827 505 A
11
Switch for luggage comp.light
 333 947 561
12
Clip
 191 837 199
13
oval head countersunk boltchrome colored M 8 X 32
M 8 X 32
 N 021 416 3
14
Striker plate
 1H6 827 511 B
15
Socket head bolt withhexagon socket head M 8 X 15
M 8 X 15
 N 014 770 2
16
pull rod F 1 H-R-006 758>> 1 H-S-999 000 F 1 H-S-000 001>> 1 H-S-999 000 F 1 H-S-020 610>>F 1 H-S-021 191>>F 1 H-T-000 001>>F 1 H-T-001 232>>F 1 H-T-002 481>>F 1 H-T-002 950>> GL,GTI"MEX"+ GT"MEX"+GTI VR 6"RA."+GTI,GLXMANHATTANCITY"MEX"+ATLANTA"MEX"+ SPORT"RA." GL
RA
1HM 827 515 E
17
Gas filled strut
 1H6 827 550 A
18
Clip
 443 823 397
19
button withlock cylinder For vehicles with anti-theftalarm system F >> 1 H-S-999 000 F 1 H-R-006 758>> 1 H-S-999 000 F 1 H-S-021 191>>F 1 H-T-000 001>>F 1 H-T-001 232>>F 1 H-T-002 481>> also use: 1 H 0 953 2291 H 0 827 649 CL,GL"USA","CDN""MEX": GTMANHATTANCITY"MEX":ATLANTA"MEX": SPORT
1 H 0 953 2291 H 0 827 649
 1HM 827 571 C
19A
Lock cylinder for rearlid SYSTEM A PROFIL AH see illustration: 837-000
837-000
 1H5 827 573
2
Lid hinge
 1HM 827 301
20
Micro switch
 1H0 953 229
21
Clip
 1HM 827 637
22
Clip For vehicles with anti-theftalarm system
 1H0 827 649
23
Seal Shorten if necessary also use: 3970 MMAMV 195 KD 1 01
3970 MMAMV 195 KD 1 01
 1H0 827 705 A
24
Grommet 9
9
 861 877 399
25
see illustration: 837-000
837-000
 —
26
Hexagon bolt M 8 X 16
M 8 X 16
 N 106 684 01
27
Washer 8,2 X 18 X 2
8,2 X 18 X 2
 N 901 076 04
28
Spoiler CL
 1H6 827 933
29
Washer 7 X 12 X 1,2
7 X 12 X 1,2
 N 011 652 1
3
dodecagonal head bolt M 6 X 16
M 6 X 16
 N 907 497 01
30
Grommet
 191 827 976
31
Hexagon collar nut M 5
M 5
 171 857 026 A
32
Cover cap 8 X 6,5
8 X 6,5
 N 100 297 01
33
see illustration: 853-030
853-030
 —
34
fillister head bolt (combi.) M 5 X 15
M 5 X 15
 N 905 296 01
35
Retaining washer 5
5
 N 012 435 2
36
seal ring 18,5 X 2
18,5 X 2
 N 900 989 01
37
seal ring
 111 837 227 B
4
Seal make up from: D 001 900 05
D 001 900 05
 —
5
Seal make up from: D 001 900 05
D 001 900 05
 —
6
Ball stud
 191 827 439
7
Washer A 8,4 X 16 X 1,6
A 8,4 X 16 X 1,6
 N 011 525 20
7
Washer A 8,4
A 8,4
 N 011 525 13
8
Stop buffer
 191 827 499 A
9
Protective film make up from: AKL 448 300 04
AKL 448 300 04
 —

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these rear body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1993 - 1996
Generation region
MEX
Generation code
128
Engine codes on this plate
RA
Variant tags
diesel_turbo
Factory group
24 Rear body
Factory subgroup
827020

Related factory diagrams

Other published rear body plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the rear lid spoiler golf diagram for the Mk3 Golf?
This diagram lists 64 OEM part numbers for the Mk3 Golf. The first three are 1H6 827 571 E B 41, 1H6 827 577 E 3 FZ and 1H6 827 939 3 FZ.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The parts on it carry the engine code RA.
