Boot floor plate rear cross panel jetta — Mk3 Golf Rear Body (1993 - 1996)

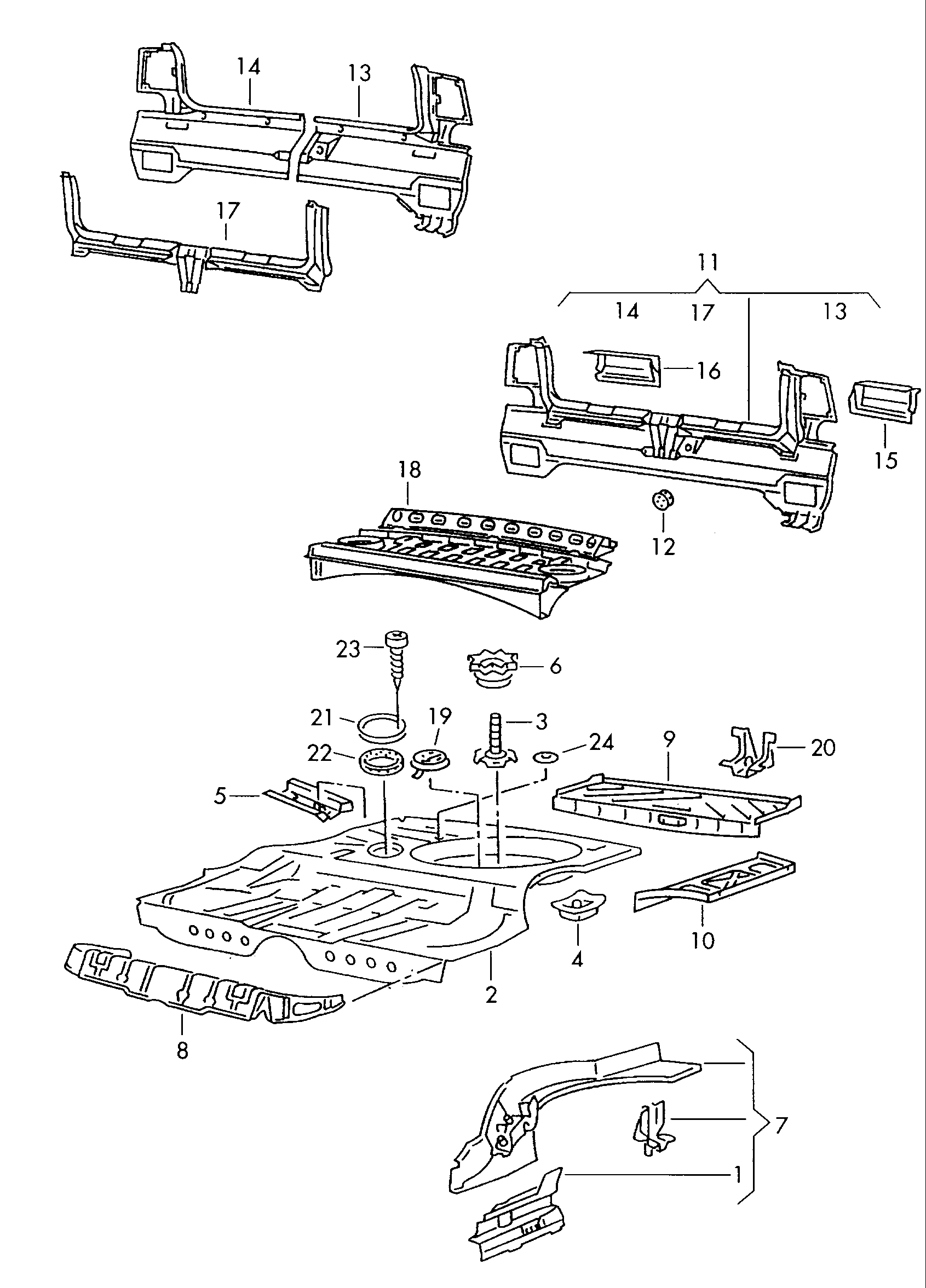

Factory title: Volkswagen Golf (1993 - 1996) - Boot floor plate. Rear cross panel
Boot floor plate rear cross panel jetta for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 813010 from the Volkswagen ETKA parts catalogue, group 24 Rear body, listing 34 OEM part numbers across 36 catalogued positions including 1HM 813 125 D, N 905 763 01 and N 102 497 01. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 34 OEM part numbers across 36 numbered positions.
| № | Description | Part number |
|---|---|---|
| boot floor plate Rear cross panel JETTA | — | |
| - | Reinforcement for bumperfixing | 1HM 813 125 D |
| - | Pop rivet F 1 H-T-000 001>> 4 X 9 4 X 9 | N 905 763 01 |
| - | Bungs 15 15 | N 102 497 01 |
| - | panel nut F 1 H-T-000 001>> 5/16-18 5/16-18 | N 989 514 01 |
| - | Reinforcement for bumperfixing | 1HM 813 126 C |
| (1) | Support plate | 1H0 813 088 A |
| (10) | Cross panel | 1H5 813 228 A |
| (12) | Grommet For vehicles without anti-lock braking system 23,5 23,5 | 431 971 908 |
| (17) | lock carrier | 1HM 813 311 A |
| (18) | rear panel F 1 H-T-000 001>> | 1HM 813 511 |
| (24) | Bungs 12,5 X 18,5 12,5 X 18,5 | 6K0 813 583 |
| (24) | Bungs 15 15 | N 102 497 01 |
| (24) | Water drain valve 19,8 19,8 | 893 803 593 |
| (8) | seat support F 1 H-P-014 215>>F 1 H-P-006 273>> "USA","CDN" | 1HM 813 141 A |
| 1 | Support plate | 1H0 813 087 A |
| 10 | Cross panel | 1H5 813 227 |
| 11 | Rear cross panel also use: also use: 1 H 5 813 3071 H 5 813 308 1 H 5 813 3071 H 5 813 308 | 1HM 813 302 |
| 12 | Grommet 33,5 33,5 | 191 971 926 B |
| 15 | Insert piece Rear cross panel | 1H5 813 307 |
| 16 | Insert piece Rear cross panel | 1H5 813 308 |
| 18 | rear panel F >> 1 H-S-999 000 | 1H5 813 511 |
| 19 | End cap | 191 813 589 |
| 2 | boot floor plate | 1HM 813 115 A |
| 20 | Bracket | 1H5 813 743 |
| 21 | Cover for sender | 6X0 803 961 |
| 22 | seal ring | 321 803 963 |
| 23 | oval head panel screw 4,2 X 9,5 4,2 X 9,5 | N 013 965 5 |
| 24 | Sealing washer 40 X 0,5 40 X 0,5 | N 901 466 04 |
| 3 | bracket for spare wheel | 357 803 272 |
| 4 | bracket for strap | 1H0 803 745 |
| 5 | bracket for strap | 176 803 746 A |
| 6 | nut for spare wheelmounting | 861 803 899 B |
| 7 | see illustration: 803-020 803-020 | — |
| 8 | seat support F >> 1 H-P-014 214 F >> 1 H-P-006 272 "USA","CDN" | 1HM 813 141 |
| 9 | Cross panel | 1H5 813 225 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these rear body diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1993 - 1996
- Generation region
- MEX
- Generation code
- 128
- Factory group
- 24 Rear body
- Factory subgroup
- 813010
