Which VW part numbers are on the rear lid diagram for the Mk3 Golf?

This diagram lists 77 OEM part numbers for the Mk3 Golf. The first three are 1H6 827 571 E B 41, 1H6 827 577 A G RU and 1H6 827 933 B G RU.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

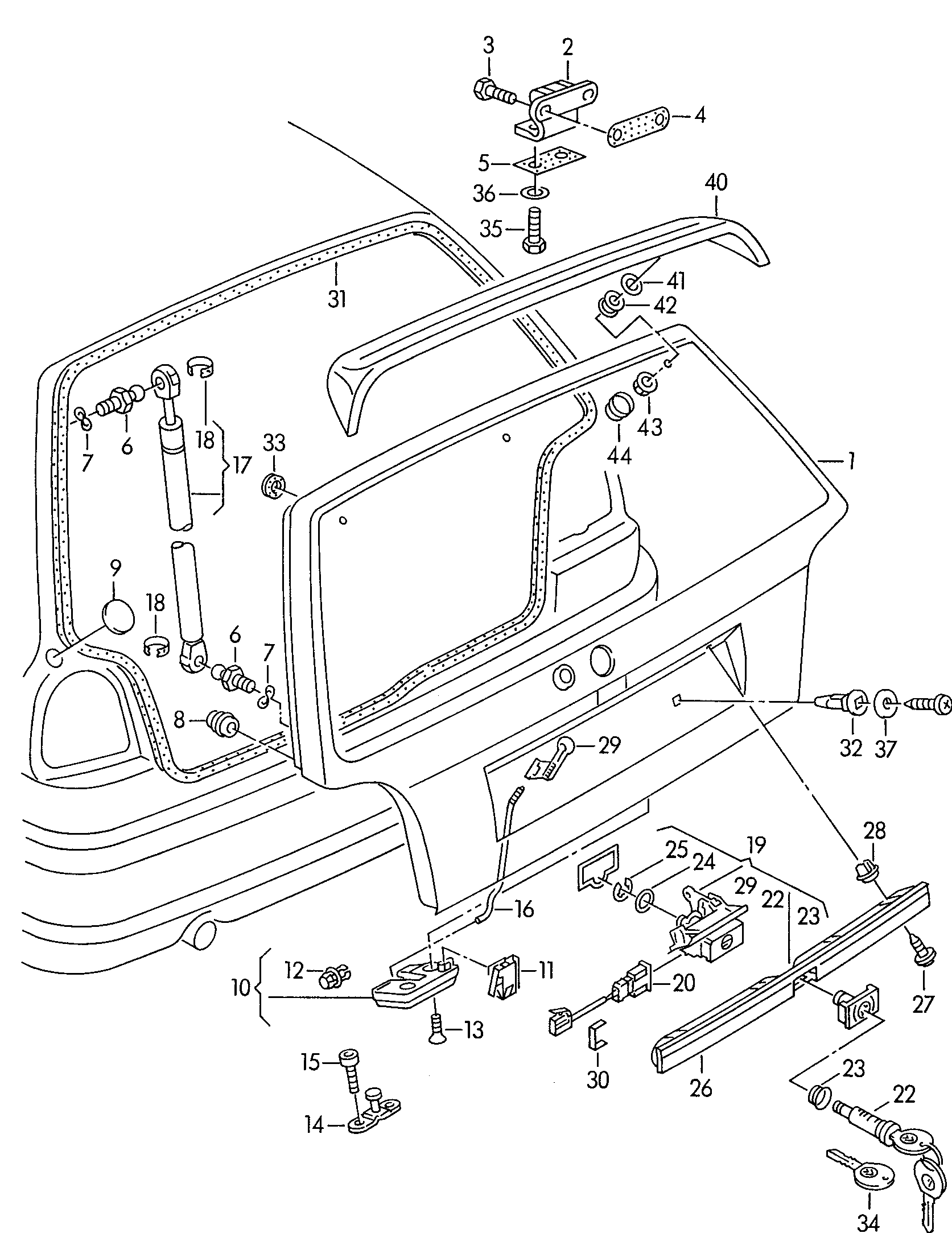

Rear lid — Mk3 Golf Rear Body (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Rear lid

Generation: Mk3 1997 (RDW) Group: Rear body Parts: 82 Primary OEM: 1H6 827 571 E B 41, 1H6 827 577 A G RU, 1H6 827 933 B G RU

Rear lid for the Volkswagen Golf Mk3 (1997): factory exploded diagram 827020 from the Volkswagen ETKA parts catalogue, group 24 Rear body, listing 77 OEM part numbers across 82 catalogued positions including 1H6 827 571 E B 41, 1H6 827 577 A G RU and 1H6 827 933 B G RU. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 77 OEM part numbers across 82 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin blackif necessary paint in colorof vehicle	1H6 827 571 E B 41
	primed	1H6 827 577 A G RU
	primed	1H6 827 933 B G RU
	Satin black	1H6 827 577 D 3 FZ
	Satin black	1H6 827 933 B 41
	primed	1H6 827 577 C G RU
	Satin black	1H6 827 577 E 3 FZ
-	Locking fluid 10 ML 10 ML	D 185 400 A2
-	fillister hd. bolt also use: AM 5 X 15 D 185 400 A 2 AM 5 X 15 D 185 400 A 2	N 014 131 3
-	Lock cylinder grease spray 50 ML 50 ML	G 052 778 A2
-	Washer 5,1 X 12 X 2 "J.." 5,1 X 12 X 2	N 904 107 02
-	adhesive 3 G 3 G	AMV 195 KD1 01
-	Bungs 14 14	8A0 831 449
-	fillister hd. bolt M 5 X 18 "J.." M 5 X 18	N 034 602 1
-	Licence plate holder "J.."	1H6 827 211 A
-	Protective film 290 X 210 MM 290 X 210 MM	AKL 448 300 04
-	Bungsfor rear lid 6,8 X 15,5 6,8 X 15,5	1H6 971 910 A
-	Licence plate holder "J.."	1H6 827 211
-	plastic sealing strip 20 X 2 X 5000 MM 20 X 2 X 5000 MM	D 486 020 A5
-	Bungs 14 MM 14 MM	311 611 849
-	1 set attachment partsfor rear lid	1H0 898 617
-	Clamp B "BR." B	3BE 813 297
-	Clamp B "BR." B	ZBA 813 985
-	Licence plate holder see illustration: 941-090 "BR." 941-090	—
-	Bungs	1H0 971 904 B
(1)	Rear lid also use: ZBA 813 985 "BR." ZBA 813 985	1H6 827 025 J
(1)	Rear lid also use: use if required: 3 BE 813 2971 H 0 898 617 "BR." 3 BE 813 2971 H 0 898 617	1H6 827 025 J
(19)	button withlock cylinderfor vehicles with centrallocking system------------------------------For vehicle withoutcentral lockingnote:Adjusting levercentral locking system------------------------------For vehicles with anti-theftalarm system use if required: 1 H 0 827 6491 H 0 953 229 1 H 0 827 6491 H 0 953 229	1H6 827 571 E
(22)	Lock cylinder for rearlidsystem 'b' profile ah 8201-9282	1H6 827 573 C
(26)	grip molding "J..","CN.","BR.","GUS":GL,GTI,16 V,VR 6	1H6 827 577 C
(26)	grip molding GL,GTI,16 V,VR 6	1H6 827 577 A
(26)	grip molding "J..","CN.","BR.","GUS":CL,GT,GTD,	1H6 827 577 E
(27)	Oval hexagon socket head bolt M 5 X 13,6 M 5 X 13,6	N 906 262 01
(28)	rivetted cap nut BM 5/0,75-1 BM 5/0,75-1	N 906 261 02
(28)	rivetted cap nut BM 5 BM 5	N 906 261 01
(29)	Clipfor vehicles with centrallocking system	171 837 199
(32)	rivetted cap nut BM 5/0,75-1 "J.." BM 5/0,75-1	N 906 261 02
(35)	Hexagon bolt M 6 X 15 M 6 X 15	N 904 407 01
(36)	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
(40)	Spoiler VR 6:HIGHLINE	1H6 827 933 B
(7)	Washer A 8,4 A 8,4	N 011 525 13
(7)	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20
1	Rear lid use if required: 1 H 0 898 617 1 H 0 898 617	1H6 827 025 J
10	Lid lock use if required: 333 947 561 333 947 561	1H6 827 505 B
11	Switch for luggage comp.light	333 947 561
12	Clip	191 837 199
13	oval head countersunk boltchrome colored M 8 X 32 M 8 X 32	N 021 416 3
14	Striker plate	1H6 827 511 B
14	Striker plate F >> 1 H-V-020 000*	1H6 827 511 A
15	Socket head bolt withhexagon socket head M 8 X 15 M 8 X 15	N 014 770 2
16	pull rod	1H6 827 515 A
17	Gas filled strut	1H6 827 550 A
18	Clip	443 823 397
2	Lid hinge	1H6 827 301
20	Micro switchfor vehicles withanti-theft alarm system	1H0 953 229
22	Lock cylinder for rearlidsystem 'a' profile ah 7101-8154	1H6 827 573 B
23	seal ring	111 837 227 B
24	seal ring 18,5 X 2 18,5 X 2	N 900 989 01
25	Retaining washer 5 5	N 012 435 2
26	grip molding CL,GT,GTD	1H6 827 577 D
29	Clip	191 837 199
3	12-point head bolt M 6 X 17 M 6 X 17	N 905 403 01
3	dodecagonal head bolt M 6 X 18-V M 6 X 18-V	N 907 322 01
30	Clip For vehicles with anti-theftalarm system	1H0 827 649
31	Seal shorten to: also use: 3970 MM 3445 MMAMV 195 KD 1 01 3970 MM 3445 MMAMV 195 KD 1 01	1H0 827 705 A
31	Seal shorten to: also use: 3970 MM 3445 MMAMV 195 KD 1 01 3970 MM 3445 MMAMV 195 KD 1 01	333 827 705
33	Grommet 9 9	861 877 399
34	key see illustration: 837-000 837-000	—
35	Hexagon bolt M 8 X 18 M 8 X 18	111 821 145
35	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
36	Washer 8,2 X 18 X 2 8,2 X 18 X 2	N 901 076 04
37	Sealing plate 21/4 X 1,5 MM 21/4 X 1,5 MM	803 955 637
4	Seal make up from: D 001 900 05 D 001 900 05	—
40	Spoiler	1H6 827 933
41	Washer 7 X 12 X 1,2 7 X 12 X 1,2	N 011 652 1
42	Grommet	191 827 976
43	Hexagon collar nut M 5 M 5	171 857 026 A
44	Cover cap 8 X 6,5 8 X 6,5	N 100 297 01
5	Seal make up from: D 001 900 05 D 001 900 05	—
6	Ball stud	191 827 439
8	Stop buffer	191 827 499 A
9	Protective film make up from: AKL 448 300 04 AKL 448 300 04	—

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these rear body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 24 Rear body
Factory subgroup: 827020
