Airbag wiring harnesswiring harness cruise control — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 64 Primary OEM: 1H0 971 295 B, 1H0 971 581 A, 1H0 971 673

Airbag wiring harnesswiring harness cruise control for the Volkswagen Golf Mk3 (1997): factory exploded diagram 972020 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 62 OEM part numbers across 64 catalogued positions including 1H0 971 295 B, 1H0 971 581 A and 1H0 971 673. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 62 OEM part numbers across 64 numbered positions.

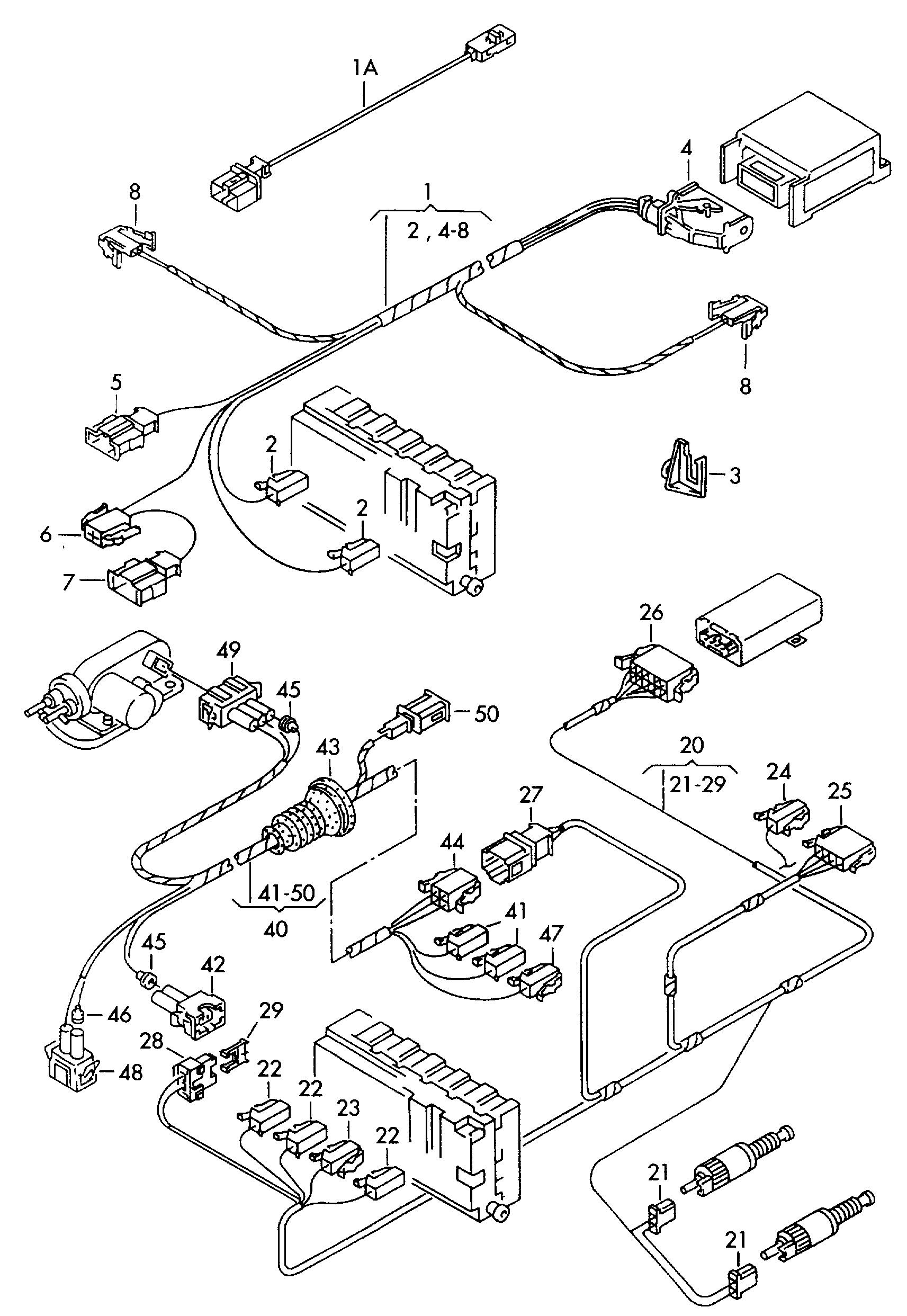

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Protective cap Accelerator sensorfor models withside airbag	1H0 971 295 B
-	wiring harness for cancellingringfor vehicles with retrofittedairbag	1H0 971 581 A
-	wiring harness for airbag-ledfor vehicles with retrofittedairbag	1H0 971 673
-	Cable ties A 3,6 X 246 A 3,6 X 246	N 020 902 2
-	Cable ties For hole/material thickness: 215 X 4,68,0 / 0,6-2,5 215 X 4,68,0 / 0,6-2,5	1H0 971 850
-	retrofit kit to immobilize thepassenger side airbagcomprising: observe technical service handbook: 4.1 - 068.1 4.1 - 068.1	1H0 998 521 B
-	* Corrug. tubes, T-pieces,* clips, holders, grommets,* cable ties, insulating* hose, wiring,* single wires and seals* see special catalogue:* ELECTRICAL* CONNECTING ELEMENTS	—
-	------------------------------Also note the overview for DIY wiring sets------------------------------ 1-425 1-425	—
-	Protective cap Accelerator sensorfor models withside airbag	1H0 971 295 C
(1)	airbag wiring harness	1H0 971 581 B
(1)	airbag wiring harness ecomatic:	1H0 971 581 D
(1)	airbag wiring harnessfor models withside airbag	1H0 971 581 F
(1A)	Adapter cable loomairbag unit for steering wheelfor models withside airbag	1H0 971 583
(1A)	Wire set Side airbag unit	1H0 971 582 C
(2)	Flat contact housing	1H0 972 701
(20)	wiring harness forcruise control system Petrol eng.+automatic	1H1 971 425 A
(24)	flat connector housing automatic	191 972 761
(24)	flat connector housing automatic	191 972 711
(4)	flat contact housing withcap Control unit for driver andfront passenger airbag	4A0 973 373
(4)	Cover cap with securing-bar Connection piece Control unit for airbag	2D0 973 373
(4)	flat connector housing Control unit Airbag	2D0 973 374
(4)	flat connector housing Connection piece Control unit for airbagfor models withside airbag	4D0 973 373 B
(4)	Cover cap with securing-bar Connection piece Control unit for airbagfor models withside airbag	4D0 973 374 B
(4)	flat connector housing Control unit for driver, frontpassenger and side airbag	4D0 973 373 B
(40)	wiring harness forcruise control system Vacuum pumpand/orheadlight washer systemand/oranti-theft system (ats)	1H2 971 425 AD
(40)	wiring harness forcruise control system Vacuum pumpand/orheadlight washer systemand/oranti-theft system (ats)	1H1 971 425 AF
(43)	Grommet	867 971 872
(43)	Grommet	6N0 971 915 B
(44)	Flat contact housing Coupling element Control unitanti-theft system (ats)	1J0 972 732
(44)	Flat contact housing Coupling element Control unitanti-theft system (ats)	191 972 732
(5)	Flat contact housing Airbag(passenger side)	1H0 972 479
(50)	flat contact housing withgasket Connection piece Signal hornanti-theft system (ats)	357 973 202
(6)	flat connector housing Coupling element Control lamp for airbag	191 972 711
(8)	Flat contact housing Airbag Coupling elementadapter wiring harness forside airbag	4D0 972 571
1A	Wire set Adapter cable loom Airbag unit(passenger side)	535 971 582
2	Flat contact housing	701 906 231
20	wiring harness forcruise control system Petr. engine	1H1 971 425
21	Flat contact housing	443 906 231
22	Flat contact housing	701 906 231
23	Flat contact housing Connection piecewiring harness for anti-lockbrakesystem -abs-	191 972 701
25	Flat contact housing Connection piecesteering col. combi switch	191 972 704
25	Flat contact housing Connection piecesteering col. combi switch	1J0 972 704
26	Flat contact housing	191 972 726
26	Flat contact housing withcontact locking mechanism	1J0 972 726
27	Flat contact housing	191 972 732
27	Flat contact housing	1J0 972 732
28	fuse box forflat fuses automatic	1H0 937 530
28	fuse box forflat fuses automatic	161 937 501
29	flat fuse 19/2 x 5 automatic	N 017 131 16
3	Bracketplug housing Airbag(passenger side)	1H0 971 843 H
4	Cover cap with securing-bar Control unit for airbag	701 972 515
41	Flat contact housing	701 906 231
42	flat contact housing withgasket	037 906 240
44	Flat contact housing	191 972 722
44	Flat contact housing	1J0 972 722
45	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
46	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
47	Flat contact housing	3A0 972 751 H
48	flat contact housing withgasket Connection piece Vacuum pumpcontacts	357 972 752
49	Flat contact housing	357 972 753
5	flat connector housing	191 972 712
50	flat connector housing	191 972 761
6	Flat contact housing Connection piece Wiring set for engine ecomatic	191 972 751
7	flat connector housing Connection piece Wiring set for dash panel ecomatic	191 972 761
