Wiring set engine aam acc add — Mk3 Golf Wiring Looms (1993 - 1996)
Factory title: Volkswagen Golf (1993 - 1996) - Wiring set for engine

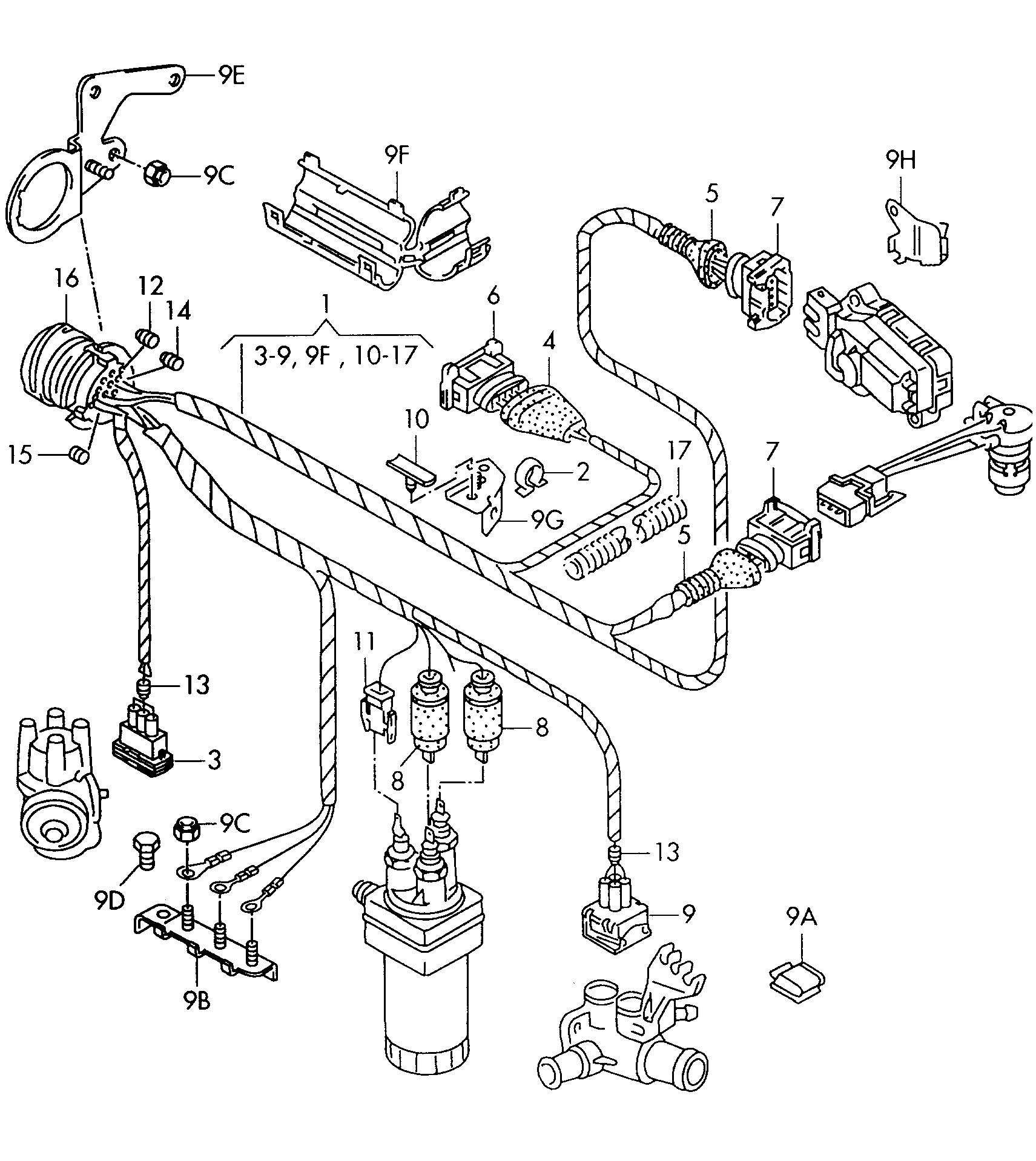

Wiring set engine aam acc add for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 971009 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 40 OEM part numbers across 42 catalogued positions including 1HM 971 845, 3D0 971 838 N and N 906 661 01. Parts on this plate carry the engine codes AAM, ACC and ADD. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 40 OEM part numbers across 42 numbered positions.
| № | Description | Part number |
|---|---|---|
| Wiring set for engine AAM,ACC,ADD AAMACCADD | — | |
| Wiring set for engine AAM,ACC,ADD AAMACCADD | — | |
| - | Bracket | 1HM 971 845 |
| - | Cable ties with bracket 4,5 X 200 4,5 X 200 | 3D0 971 838 N |
| - | Cable ties 4,6 X 200 4,6 X 200 | N 906 661 01 |
| (1) | Wiring set for engine F 1 H-R-014 325>> Automatic+ADD | 1HM 971 595 B |
| (1) | Wiring set for engine "BR."+ADD | 1HM 971 595 G |
| (1) | Wiring set for engine AAM.ACC | 051 971 595 D |
| (1) | Wiring set for engine F >> 1 H-N-008 769 F >> 1 H-P-003 407* Automatic+ACCautomatic | 051 971 595 E |
| (1) | Wiring set for engine F 1 H-N-008 770>> 1 H-P-046 264*F 1 H-P-003 408>> 1 H-P-046 265* Automatic+AAM,ACCautomatic | 051 971 595 J |
| (1) | Wiring set for engine F 1 H-R-000 001>> 1 H-R-014 324 F 1 H-R-000 001>> Automatic+ACCautomatic | 051 971 595 K |
| (1) | Wiring set for engine F 1 H-R-014 325>> ADD ADD | 1HM 971 595 A |
| (3) | Flat contact housing Connection piecedistance sensor also use: 357 972 741 automatic 357 972 741 | 357 972 753 |
| (4) | Grommet 30 automatic 30 | 4A0 906 102 |
| (6) | Flat contact housing Connection piece Throttle valve positionersender automatic | 071 906 233 |
| (9B) | Potential distributor | 037 971 501 B |
| 10 | Bundling clip f wiring harness | 4B0 971 848 |
| 11 | Flat contact housing Connection piece Oil temperature sender | 191 971 922 |
| 12 | single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0 | 357 972 740 D |
| 13 | single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0 | 357 972 741 |
| 14 | single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5 | 357 972 741 A |
| 15 | Bungs 4,0 X 7,8 4,0 X 7,8 | 3C0 972 841 |
| 15 | Bungs 4,0 X 7,8 4,0 X 7,8 | 357 972 840 |
| 16 | flat connector housing Connection pieceharness for engine compartment | 1H0 973 131 |
| 17 | corrugated pipe in coils of 5 m'order unit 5' 13 13 | N 907 736 01 |
| 17 | corrugated pipe in coils of 5 m'order unit 5' 13 13 | N 107 327 01 |
| 2 | Cable ties with bracket 4,5 X 200 4,5 X 200 | 3D0 971 838 N |
| 2 | Cable ties 4,6 X 200 4,6 X 200 | N 906 661 01 |
| 3 | Flat contact housing Connection piece Distributor | 357 905 327 |
| 4 | Grommet | 4B0 906 102 |
| 5 | Grommet | 443 906 102 G |
| 6 | Flat contact housing Connection piece Throttle valve positionersender | 025 906 235 B |
| 7 | Flat contact housing Connection piece Throttle valve positioner Injection valve F 1 H-R-014 325>>* ADD ADD | 4A0 906 234 |
| 8 | Protective cap Connection piece Oil pressure switch 32 X 10 32 X 10 | 191 919 083 |
| 9 | Flat contact housing Connection piece Temperature sensor | 357 919 754 |
| 9A | Bracket | 803 959 849 |
| 9C | Hexagon collar nut M 6 M 6 | N 901 752 05 |
| 9D | Hexagon bolt F 1 H-R-014 325>>* M 8 X 10 M 8 X 10 | N 010 235 3 |
| 9E | Bracket Connection pieceflat connector housing | 051 971 501 |
| 9F | Cable guide | 037 971 824 |
| 9G | bracket for breather pipe | 051 971 843 B |
| 9H | terminal Connection piece Injector unit | 050 971 847 |
