Harness engine compartment — Mk3 Golf Wiring Looms (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Wiring set for engine

Generation: Mk3 1993 - 1996 (MEX) Group: Wiring looms Parts: 54 Primary OEM: 1J0 972 752, 701 971 848 C, N 107 327 01

Harness engine compartment for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 971026 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 52 OEM part numbers across 54 catalogued positions including 1J0 972 752, 701 971 848 C and N 107 327 01. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 52 OEM part numbers across 54 numbered positions.

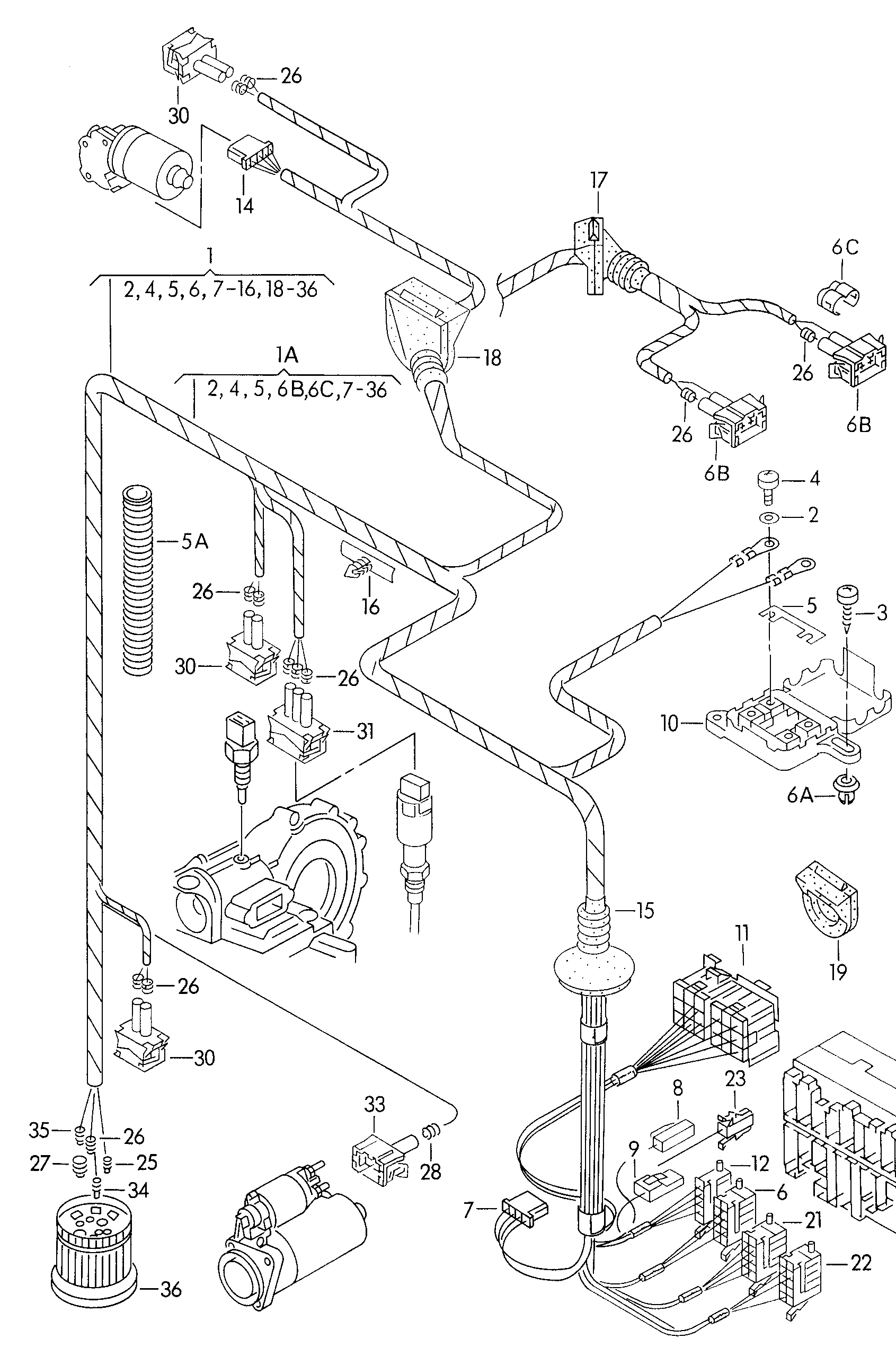

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for engine compartment Diesel eng.+AAZ	—
	harness for engine compartment F >> 1 H-S-012 882 Diesel eng.+AAZ	—
	Flat contact housing	1J0 972 752
	Clip	701 971 848 C
-	corrugated pipe in coils of 5 m'order unit 5' 13 13	N 107 327 01
-	Cable guide Connection piecewater box	1H0 971 615 M
-	Clip	701 971 848 M
-	hexagon socket head bolt,countersunk M 6 X 12 M 6 X 12	N 907 437 01
(10)	fuse holder F 1 H-R-000 001>>	3A0 937 501 A
(18)	Grommet 39/13 39/13	1H0 971 905
(1A)	harness for engine compartment F 1 H-R-000 001>> 1 H-R-059 407 automatic	1HM 971 072 BF
(1A)	harness for engine compartment F 1 H-R-000 001>>	1HM 971 072 BT
(1A)	harness for engine compartment F 1 H-R-000 001>> 1 H-R-059 407	1HM 971 072 BE
(23)	Flat contact housing F >> 1 H-P-999 000 automatic	191 972 724
(23)	flat connector housing F 1 H-P-000 001>> air condit.	191 972 712
(31)	flat connector housing	191 972 762
(36)	flat contact housing withgasket also use: 357972840 automatic 357972840	6N0 973 103
(5)	flat fuse 29/2 x 8 F 1 H-R-000 001>>	N 102 519 04
(6B)	Flat contact housing	701 906 231
10	Fuse socket withoutfuses F >> 1 H-P-999 000	281 937 505 A
11	relay plate	443 937 528
12	Flat contact housing withcontact locking mechanism Slot: S S	357 955 968 A
14	Flat contact housing Connection piece Wiper motor	171 971 835 A
15	Grommet 46/10,5 46/10,5	1H0 971 840
16	Bundling clip f wiring harness	4B0 971 848
17	Grommet 31/6 31/6	1H0 971 905 A
18	Grommet 39/6 39/6	1H0 971 905 B
19	Bungs Front cross panel	1H0 971 908 A
1A	harness for engine compartment F >> 1 H-P-999 000	1HM 971 072 T
2	Washer 5,3 X 9,5 X 1 5,3 X 9,5 X 1	N 011 556 2
21	Flat contact housing withcontact locking mechanism Slot: G 1 G 1	357 971 967
22	Flat contact housing withcontact locking mechanism Slot: G 2 G 2	357 971 967 A
23	Flat contact housing Coupling element Rear wiring set	191 972 701
25	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
26	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
27	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B
28	single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0	357 972 742 C
3	oval head panel screw 4,8 X 13 4,8 X 13	N 013 968 1
30	flat contact housing withgasket Connection piece Spray nozzle, heatedswitch for reversing light Alternator	357 972 752
31	Flat contact housing Connection piecespeed regulator	357 972 753
33	flat contact housing withgasket	357 972 771
34	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
35	Bungs 5,6 X 7,8 5,6 X 7,8	357 972 841
36	flat connector housing	1H0 973 103 C
4	fillister hd. bolt M 5 X 8 M 5 X 8	N 014 128 11
5	fuse F >> 1 H-P-999 001 50 A 50 A	N 017 125 1
5A	corrugated pipe in coils of 5 m'order unit 5'F 1 H-R-000 001>> 13 13	N 107 327 01
6	Flat contact housing withcontact locking mechanism Slot: F F	357 903 968
6A	insert nut F >> 1 H-P-999 000	191 905 370
6B	flat contact housing withgasket	037 906 240
6C	Bracket protective cover	357 906 732 B
7	Flat contact housing Slot: V V	357 907 968
8	Flat contact housing	357 907 971 B
9	Flat contact housing	357 915 971 C

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Variant tags: diesel
Factory group: 06 Wiring looms
Factory subgroup: 971026
