Wiring set engine — Mk3 Golf Wiring Looms (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Wiring set for engine

Generation: Mk3 1993 - 1996 (MEX) Group: Wiring looms Parts: 18 Primary OEM: 028 971 501 E, 028 971 595 H, 028 971 595 N

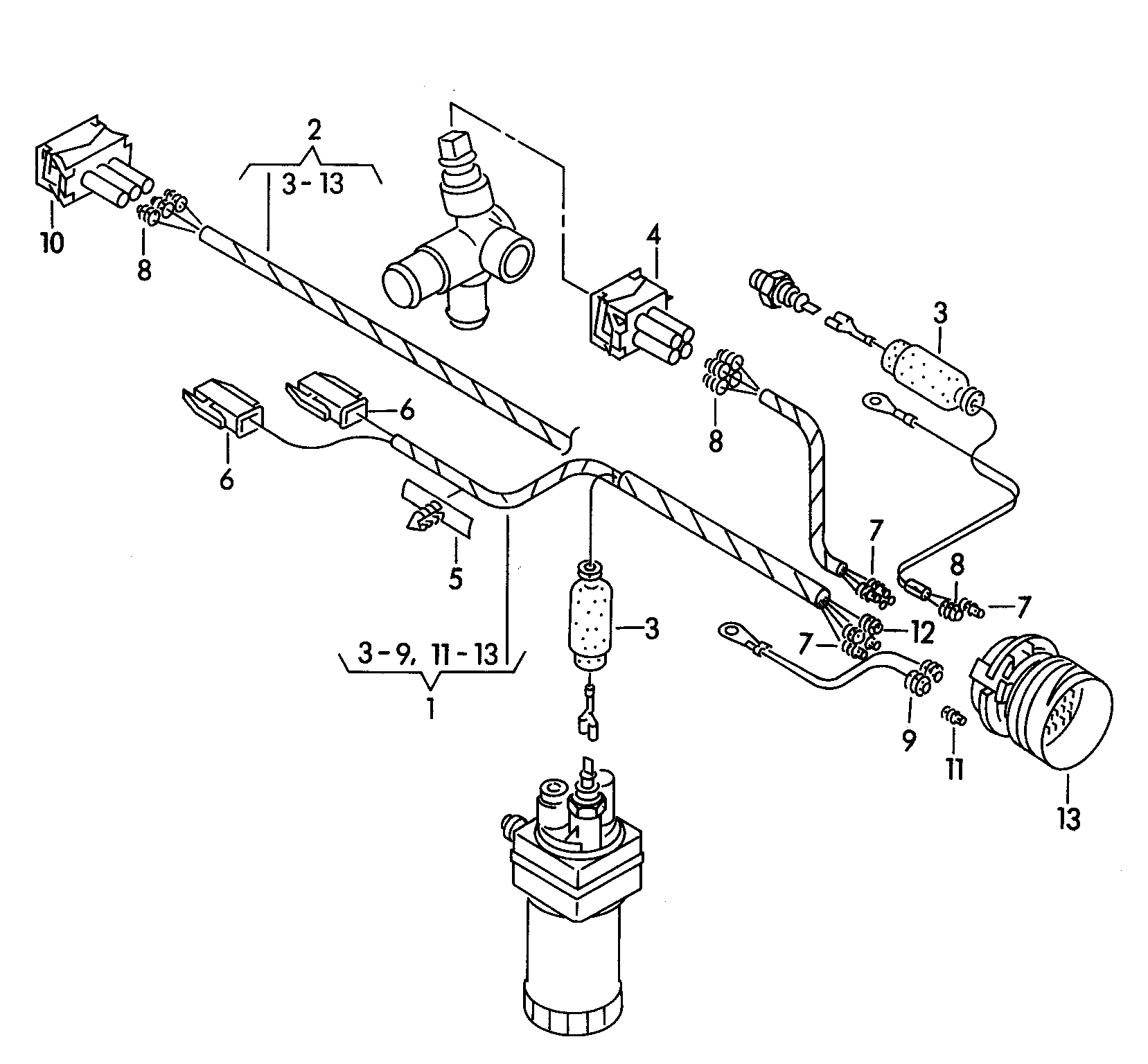

Wiring set engine for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 971012 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 16 OEM part numbers across 18 catalogued positions including 028 971 501 E, 028 971 595 H and 028 971 595 N. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 16 OEM part numbers across 18 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Wiring set for engine Diesel eng.+AAZ	—
	Wiring set for engine Diesel eng.+AAZ	—
-	Bracket Connection pieceflat connector housing	028 971 501 E
(1)	Wiring set for enginefor vehicles with air condit.	028 971 595 H
(1)	Wiring set for engine F 1 H-P-004 605>>*	028 971 595 N
(13)	flat connector housing Connection pieceharness for engine compartment	1H0 973 131 C
1	Wiring set for engine F >> 1 H-P-004 604*	028 971 595 C
10	Flat contact housing Connection piece Potentiometer automatic	357 972 753
11	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
12	Bungs 5,6 X 7,8 5,6 X 7,8	357 972 841
13	flat connector housing Connection pieceharness for engine compartment automatic	1H0 973 131 D
3	Protective cap Connection piece Oil pressure switch 32 X 10 32 X 10	191 919 083
4	Flat contact housing Connection piece Temperature sensor	357 919 754
5	Bundling clip f wiring harness	4B0 971 848
6	Flat contact housing Connection piece Solenoid valve	191 971 922
7	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
8	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
9	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Variant tags: diesel
Factory group: 06 Wiring looms
Factory subgroup: 971012
