Harness engine compartment abf — Mk3 Golf Wiring Looms (1992)

Factory title: Volkswagen Golf (1992 - 1994) - Adapter cable loom. Wiring set for engine

Generation: Mk3 1992 (RDW) Group: Wiring looms Parts: 78 Primary OEM: N 906 437 01, 1H1 971 072 PG, 1H2 971 072 LK

Harness engine compartment abf for the Volkswagen Golf Mk3 (1992): factory exploded diagram 971030 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 72 OEM part numbers across 78 catalogued positions including N 906 437 01, 1H1 971 072 PG and 1H2 971 072 LK. Parts on this plate carry the engine code ABF. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 72 OEM part numbers across 78 numbered positions.

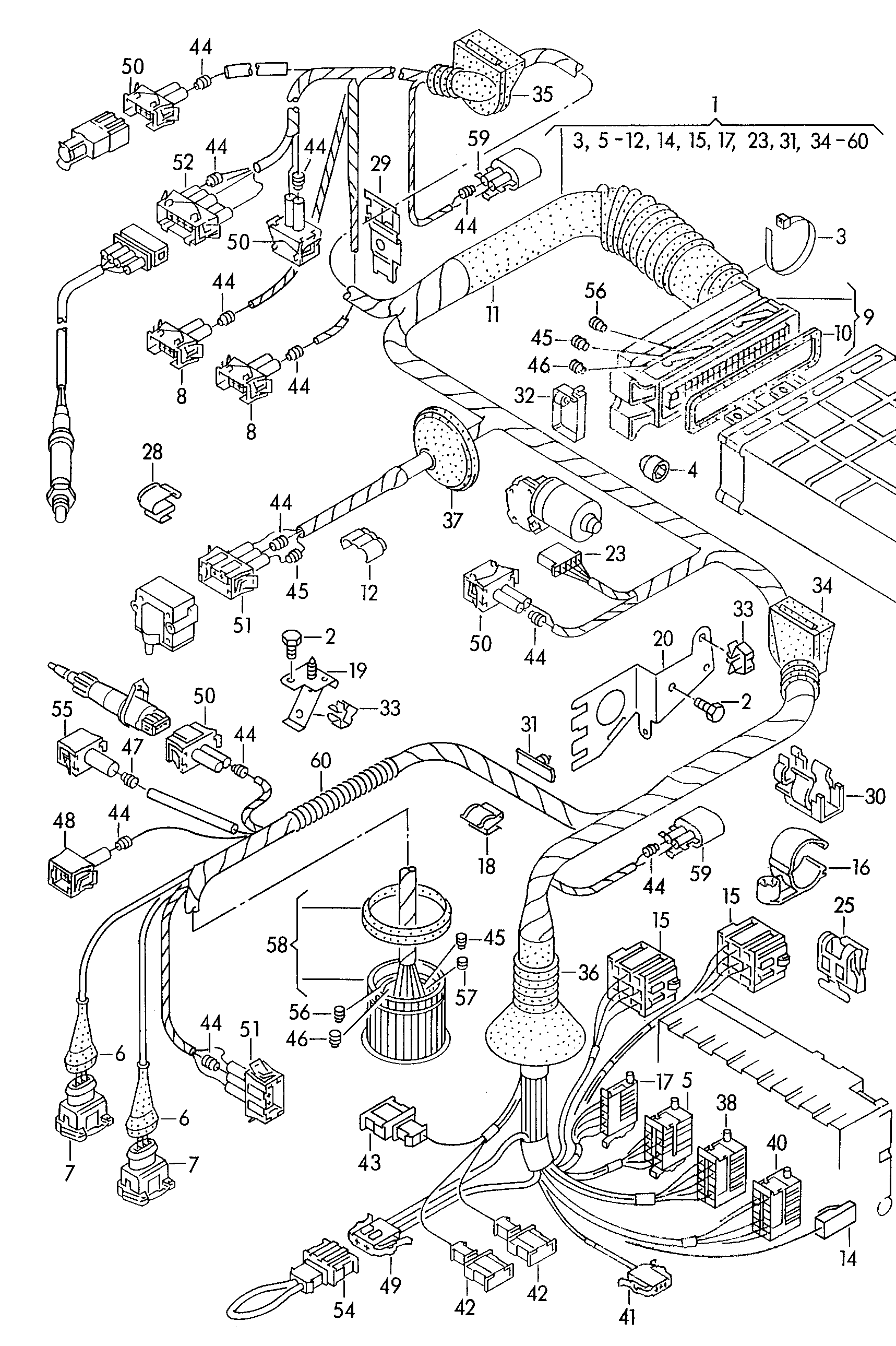

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for engine compartment F 1 H-R-000 001>> 1 H-RB 074 512 F 1 H-R-000 001>> 1 H-RW 410 003 F 1 H-R-000 001>> 1 H-RP 253 302 ABF ABF	—
	harness for engine compartment F >> 1 H-P-990 000 ABF ABF	—
	harness for engine compartment F 1 H-RB 074 513>>F 1 H-RW 410 004>>F 1 H-RP 253 303>> ABF ABF	—
	harness for engine compartment ABF ABF	—
-	Cable tie with holder for weld pin: 10 X 1875 10 X 1875	N 906 437 01
(1)	harness for engine compartment	1H1 971 072 PG
(1)	harness for engine compartment	1H2 971 072 LK
(1)	harness for engine compartment	1H2 971 072 AK
(1)	harness for engine compartment	1H1 971 072 PG
(1)	harness for engine compartment	1H2 971 072 LK
(16)	Cable tie with holder for weld pin:Connection piecesuspension strut dome 10 X 185/M 5 10 X 185/M 5	N 904 288 01
(16)	Cable tie with holder for weld pin: 10 X 1875 10 X 1875	N 906 437 01
(2)	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 26
(25)	terminal Connection piece Line Lambda probe Heat shieldfor models with catalystcontrol	1H0 971 842 A
(29)	Bracket Connection piece Front cross panelwater box Linebrake pad wear display	1H0 971 845 G
(30)	Bracket Connection piece Front cross panel Linebrake pad wear display	1H0 971 845
(30)	Bracket Connection piece Front cross panelwater box Linebrake pad wear display	1H0 971 845 G
(31)	Cable holder	1H0 971 848 F
(31)	Bundling clip f wiring harness	4B0 971 848
(34)	Grommet Connection piece Wiper motor 31/6 31/6	1H0 971 905 A
(35)	Grommet F 1 H-R-000 001>> 31/6 31/6	1H0 971 905 A
(36)	Grommet 46/10,5 46/10,5	1H0 971 840
(41)	Flat contact housing Connection piecefor diagnostic plug F 1 H-R-000 001>>	1H0 972 701
(49)	Flat contact housing withcontact locking mechanism Connection piecefor vehicles with anti-theftalarm system and imobiliser F 1 H-RB 074 513>>F 1 H-RW 410 004>>F 1 H-RP 253 303>>	1J0 972 702
(49)	Flat contact housing Connection piecefor vehicles with anti-theftalarm system and imobiliser F 1 H-RB 074 513>>F 1 H-RW 410 004>>F 1 H-RP 253 303>>	191 972 702
(54)	flat connector housing Connection piecefor vehicles with anti-theftalarm system and imobiliser F 1 H-RB 074 513>>F 1 H-RW 410 004>>F 1 H-RP 253 303>>	191 972 712
(9)	flat contact housing withgasket Connection piece Control unit	1H0 906 370 J
1	harness for engine compartment	1H1 971 072 CD
10	Seal 16 X 105 16 X 105	1H0 906 375
11	Protective cap 27/19 27/19	1H0 906 376
12	Bracket protective cover	357 906 733 B
14	Flat contact housing Slot: Z 1 Z 1	357 915 971 C
15	relay plate Relay Catalytic converter Relay Lambda probe	161 937 501 B
17	Flat contact housing withcontact locking mechanism Slot: S S	357 955 968 A
18	Bracket	803 959 849
19	Bracket No replacement part	—
20	Bracket No replacement part	—
23	Flat contact housing Connection piece Wiper motor	171 971 835 A
25	terminal Connection piece Line Lambda probe Heat shield	1H0 971 842 B
28	Cable holder	191 971 842 A
3	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
30	Bracket	1H0 971 845 B
32	Clip Connection piece Line Control unitwater box 20 X 34 20 X 34	1H2 971 848
33	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
33	Clip 6,5 6,5	867 971 848
34	Grommet 39/19 39/19	1H0 971 905 D
35	Grommet F >> 1 H-P-990 000 31/15 31/15	1H0 971 905 E
37	Grommet 46/7 46/7	1H0 971 913 B
38	Flat contact housing withcontact locking mechanism Slot: G 1 G 1	357 971 967
4	Protective cap 10 X 12 10 X 12	N 904 502 01
40	Flat contact housing withcontact locking mechanism Slot: G 2 G 2	357 971 967 A
41	Flat contact housing withcontact locking mechanism Connection piecefor diagnostic plug F >> 1 H-P-990 000	1J0 972 702
41	Flat contact housing Connection piecefor diagnostic plug F >> 1 H-P-990 000	191 972 702
42	flat connector housing Coupling element Instrument housingbrake pad wear displaymulti-function indicator	191 972 711
43	flat connector housing Coupling element air condit.	191 972 712
44	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
45	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
46	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
47	single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0	357 972 742 C
48	flat contact housing withgasket Connection piece Alternator	357 972 751
49	Flat contact housing Connection piece For vehicles with anti-theftalarm system	191 972 752
49	Flat contact housing Connection piece For vehicles with anti-theftalarm system	1J0 972 752
5	Flat contact housing withcontact locking mechanism Slot: F F	357 903 968
50	flat contact housing withgasket Connection piece Spray nozzle, heated Selector on the gearbox Temperature sensor Temperature sensor Catalytic converter "J.."	357 972 752
51	Flat contact housing Connection piece Transformerdistance sensor	357 972 753
52	Flat contact housing Connection piece Lambda probe	357 972 754 J
54	flat connector housing Connection piece For vehicles with anti-theftalarm system	191 972 762
55	flat contact housing withgasket Connection piece Starter	357 972 771
56	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
56	Bungs 4,0 X 7,8 4,0 X 7,8	4B0 972 840
57	Bungs 5,6 X 7,8 5,6 X 7,8	357 972 841
58	flat contact housing withgasket Connection piece Wiring set for engine	1H0 973 103
59	flat contact housing withgasket Connection piecebrake pad wear display	357 973 202
6	Grommet 18 X 20,5 18 X 20,5	443 906 102 B
60	corrugated pipe 5000 MM 5000 MM	N 905 930 01
60	corrugated pipe in coils of 5 m'order unit 5' 13 13	N 907 736 01
7	Flat contact housing Connection piece Knock sensor	443 906 233
8	flat contact housing withgasket Connection pieceexhaust recirculation valve NTC NTC	037 906 240

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1992
Generation region: RDW
Generation code: 121
Engine codes on this plate: ABF
Factory group: 06 Wiring looms
Factory subgroup: 971030
