Wiring set engine aaa — Mk3 Golf Wiring Looms (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Wiring set for engine

Generation: Mk3 1993 - 1996 (MEX) Group: Wiring looms Parts: 35 Primary OEM: N 904 887 03, N 102 116 06, 3A0 973 714

Wiring set engine aaa for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 971013 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 33 OEM part numbers across 35 catalogued positions including N 904 887 03, N 102 116 06 and 3A0 973 714. Parts on this plate carry the engine code AAA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 33 OEM part numbers across 35 numbered positions.

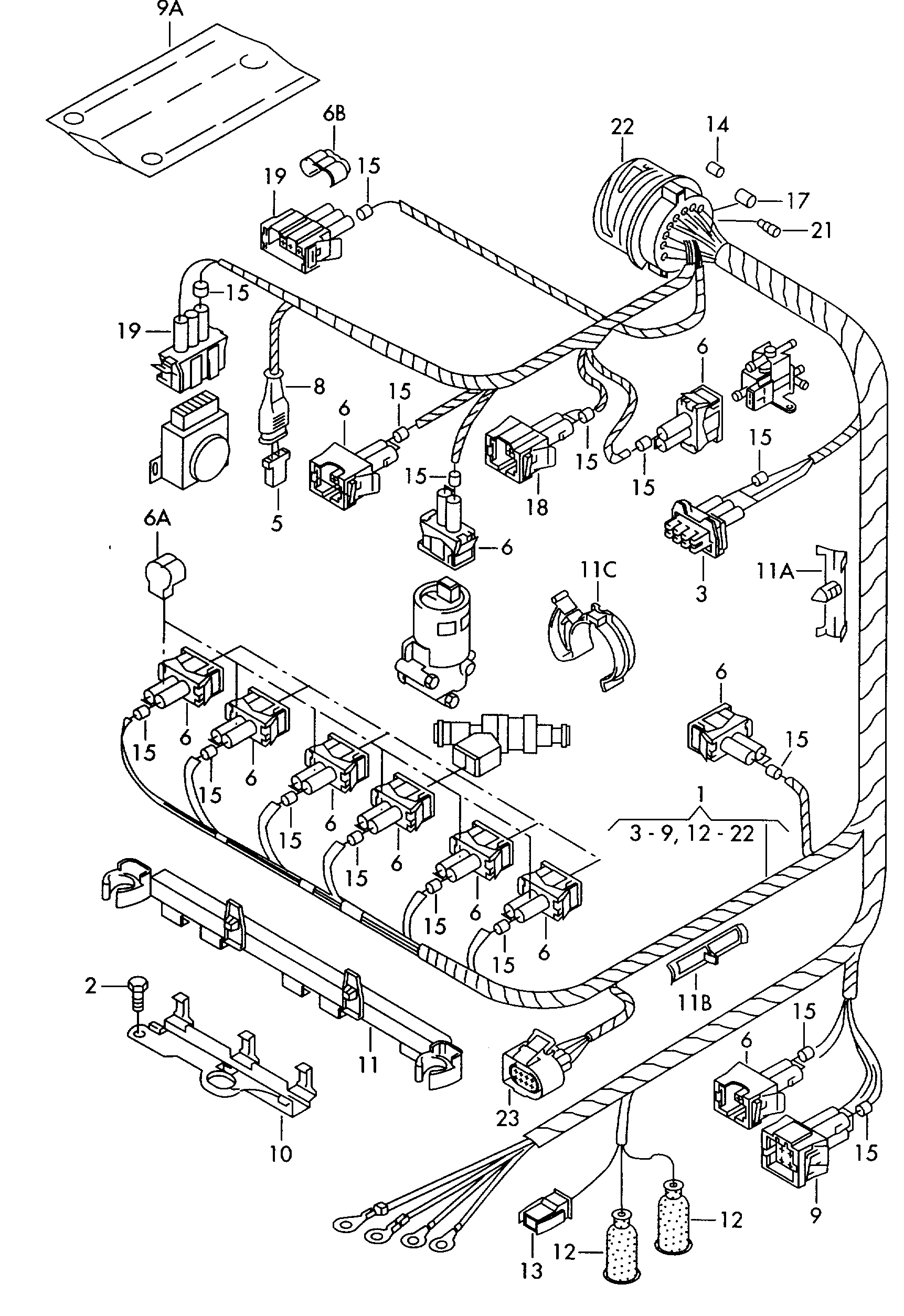

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Wiring set for engine AAA AAA	—
	Wiring set for engine AAA AAA	—
-	Flat male connector withdetent lug 'Order quantity 25' 2,8 X 2,5 2,8 X 2,5	N 904 887 03
-	Flat male connector withdetent lug 1,5 X 1,0 1,5 X 1,0	N 102 116 06
-	Flat contact housing	3A0 973 714
-	corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5	N 906 355 17
-	Cable holder Connection piece Cooling pipe F 1 H-T-000 001>> 35 MM 35 MM	021 971 848 A
(1)	Wiring set for engine F >> 1 H-S-999 000	021 971 595 B
(1)	Wiring set for engine F 1 H-T-000 001>>	021 971 595 AA
(19)	Flat contact housing Connection piece Potentiometer	357 972 755
(19)	Flat contact housing Connection piece Potentiometer also use: 357 972 841 automatic 357 972 841	357 972 754
10	Cover Potentiometer Throttle valve	021 971 824
11	Cable holder Connection piece Valve	021 971 824 B
11A	Bundling clip f wiring harness	4B0 971 848
11B	Cable holder	1H0 971 848 Q
12	Grommet 10 X 32 10 X 32	811 971 867
13	Flat contact housing Connection piece Oil temperature sender	191 971 922
14	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
15	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
16	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
17	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
18	flat contact housing withgasket Connection piece Pump	357 972 752
19	Flat contact housing Connection piece Potentiometer	357 972 753
2	Hexagon bolt M 6 X 15 M 6 X 15	N 010 215 27
21	Bungs 4,0 X 7,8 4,0 X 7,8	3C0 972 841
21	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
22	flat connector housing Connection pieceharness for engine compartment	1H0 973 131 B
3	Flat contact housing Connection piece	443 906 236
4	Protective cap	191 906 102
5	Flat contact housing Connection pieceheater Crankcase housing	443 906 231
6	flat contact housing withgasket Connection piece Control unitexhaust recirculation valveexhaust guideidling stabilsation Cylinders 1-4 cylinders 5,6 Temperature sensor NTC NTC	037 906 240
6A	Bracket protective cover	357 906 732 A
6B	Bracket protective cover	357 906 733 B
8	Protective cap	447 919 141
9	Flat contact housing Connection piece Pump	357 919 754
