Which VW part numbers are on the harness engine compartment aam aba acc aba acc diagram for the Mk3 Golf?

This diagram lists 86 OEM part numbers for the Mk3 Golf. The first three are 111 971 940 A, N 107 327 01 and 3D0 971 838 N.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The parts on it carry the engine codes AAM, ABA and ACC.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Harness engine compartment aam aba acc aba acc — Mk3 Golf Wiring Looms (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Wiring set for engine

Generation: Mk3 1993 - 1996 (MEX) Group: Wiring looms Parts: 88 Primary OEM: 111 971 940 A, N 107 327 01, 3D0 971 838 N

Harness engine compartment aam aba acc aba acc for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 971022 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 86 OEM part numbers across 88 catalogued positions including 111 971 940 A, N 107 327 01 and 3D0 971 838 N. Parts on this plate carry the engine codes AAM, ABA and ACC. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 86 OEM part numbers across 88 numbered positions.

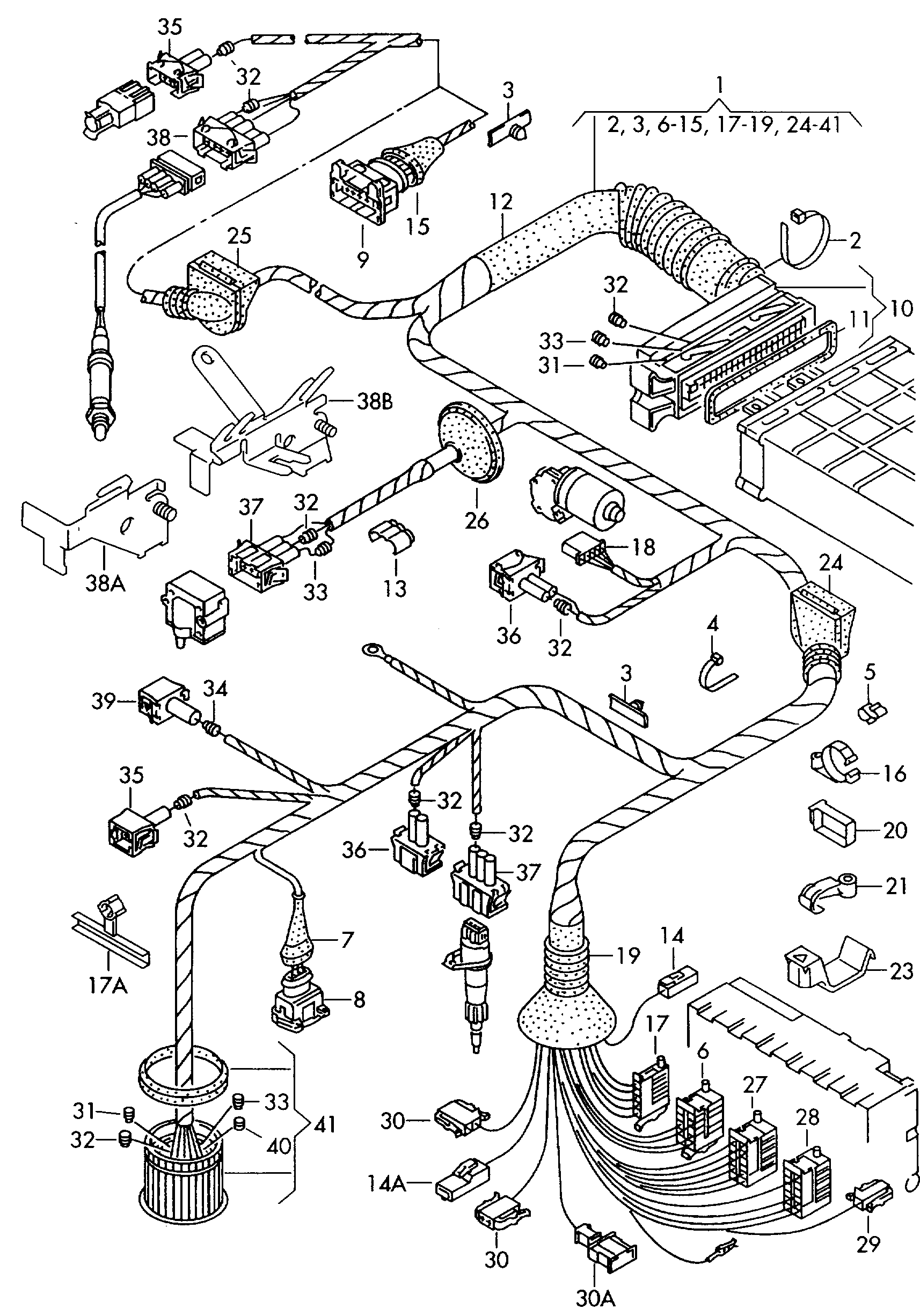

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for engine compartment F >> 1 H-R-014 324 F >> 1 H-S-012 882 AAM,ABA,ACCABA,ACC AAMABAACC	—
	harness for engine compartment AAM,ABA,ACCABA,ACC AAMABAACC	—
-	butt connector, watertight,can be welded 0,5-1,0 0,5-1,0	111 971 940 A
-	corrugated pipe in coils of 5 m'order unit 5' 13 13	N 107 327 01
-	Cable ties with bracket 4,5 X 200 4,5 X 200	3D0 971 838 N
-	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
-	Protective cap 3,2 X 14 3,2 X 14	N 905 530 01
-	Cable guide Connection piecewater box	1H0 971 615 M
-	Clip	701 971 848 C
-	Clip Connection piece 20 20	535 971 848 A
-	Bundling clip f wiring harness	4B0 971 848
(1)	harness for engine compartment F 1 H-P-003 435>> 1 H-P 999 000 Automatic+ACC	1HM 971 072 S
(1)	harness for engine compartment F 1 H-R-000 001>> 1 H-R-014 234 Automatic+ACC	1HM 971 072 BJ
(1)	harness for engine compartment F 1 H-N-005 836>> 1 H-P-999 000 F 1 H-P-001 770>> 1 H-P-999 000 ABA"CDN"+ABA	1HM 971 072 AA
(1)	harness for engine compartment F 1 H-R-000 001>> 1 H-R-014 324 F 1 H-R-000 001>> ABAABA	1HM 971 072 AM
(1)	harness for engine compartment F 1 H-P-001 770>> CALIFORNIA+ABA	1HM 971 072 BP
(1)	harness for engine compartment F >> 1 H-N-005 835 Automatic+ABA	1HM 971 072 B
(1)	harness for engine compartment F 1 H-N-005 836>> 1 H-P-004 933 Automatic+ABA	1HM 971 072 H
(1)	harness for engine compartment F 1 H-N-005 836>> 1 H-P-999 000 F 1 H-P-001 770>> 1 H-P-999 000 Automatic+ABA"CDN"+Automatic+ABA	1HM 971 072 AC
(1)	harness for engine compartment F 1 H-R-000 001>> 1 H-R-014 324 F 1 H-R-000 001>> Automatic+ABAAutomatic+ABA	1HM 971 072 AN
(1)	harness for engine compartment F 1 H-P-001 770>> CALIFORNIA+Automatic+ABA	1HM 971 072 BQ
(1)	harness for engine compartment F 1 H-R-000 001>> "CDN"+ACC	1HM 971 072 BR
(1)	harness for engine compartment F 1 H-P-003 435>> 1 H-P-999 000 LATINA+Automatic+ACC	1HM 971 072 Q
(1)	harness for engine compartment F 1 H-P-003 435>> LATINA+Automatic+ACC	1HM 971 072 BS
(1)	harness for engine compartment F 1 H-N-005 836>> 1 H-P-004 933 ABA ABA	1HM 971 072 F
(1)	harness for engine compartment F 1 H-R-000 001>> 1 H-R-014 324 ACC ACC	1HM 971 072 BH
(1)	harness for engine compartment F 1 H-P-003 408>> 1 H-P-999 000 ACC ACC	1HM 971 072 R
(1)	harness for engine compartment F 1 H-P-008 027>> 1 H-P-999 000 AAM,ACC AAMACC	1HM 971 072 P
(1)	harness for engine compartmentfor models with catalyst F >> 1 H-P-008 026 AAM,ACC AAMACC	1H1 971 072 CR
(1)	harness for engine compartment F >> 1 H-P-003 407 LATINA:ACC ACC	1HM 971 072 M
(10)	flat contact housing withgasket ACC ACC	1H0 906 370 H
(10)	flat contact housing withgasket ABA ABA	1H0 906 370 J
(14)	Flat contact housing Connection piece Lambda probe F 1 H-R-000 001>> 1 H-R-014 324 AAM,ACCACC AAM	357 906 752
(14)	Flat contact housing AAM,ACC AAMACC	357 915 971 B
(14A)	relay plate AAM,ACC AAMACC	867 937 501
(14A)	relay plate	161 937 501 B
(23)	Cable holdera-pillar	1H0 971 731
(30A)	Flat contact housing automatic	191 972 724
(33)	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
(36)	Flat contact housing	1J0 972 752
(38)	Flat contact housing automatic	191 972 763
(39)	flat connector housing Connection piecepre-heater AAM AAM	357 972 781
(9)	flat contact housing withgasket Connection pieceexhaust recirculation valve AAM,ACC AAMACC	037 906 240
1	harness for engine compartment F >> 1 H-N-005 835 ABA ABA	1HM 971 072
11	Seal	1H0 906 375
12	Protective cap 27/19 27/19	1H0 906 376
13	Bracket protective cover	357 906 733 B
14	Flat contact housing	357 907 971 B
14A	Flat contact housing	357 915 971 C
15	Grommet 28 X 10,7 28 X 10,7	853 945 521
16	Cable tie with holder for weld pin: 10 X 185 10 X 185	N 904 288 01
16	Cable tie with holder for weld pin: 10 X 187 10 X 187	N 906 437 01
17	Flat contact housing withcontact locking mechanism	357 955 968 A
18	Flat contact housing Connection piece Wiper motor	171 971 835 A
19	Grommet 46/10,5 46/10,5	1H0 971 840
2	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
20	Clip 23 X 46 23 X 46	1H0 971 848 M
21	Clip	191 971 848 C
23	Clip 4,8 4,8	191 971 898 C
24	Grommet 39/13 39/13	1H0 971 905
25	Grommet 31/6 31/6	1H0 971 905 A
26	Grommet 46/7 46/7	1H0 971 913 B
27	Flat contact housing withcontact locking mechanism	357 971 967
28	Flat contact housing withcontact locking mechanism	357 971 967 A
29	Flat contact housing Connection piece Instrument housing	191 972 701
3	Bundling clip f wiring harness	4B0 971 848
30	Flat contact housing withcontact locking mechanism Connection piecefor diagnostic plug air condit.	1J0 972 702
30	Flat contact housing Connection piecefor diagnostic plug air condit.	191 972 702
30A	flat connector housing Connection piece Instrument housing MFA MFA	191 972 711
31	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
32	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
33	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
34	single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0	357 972 742 C
35	flat contact housing withgasket Coupling element Alternator	357 972 751
36	flat contact housing withgasket Connection piecethermal switch Spray nozzle, heatedswitch for reversing light	357 972 752
37	Flat contact housing Connection piece Transformerdistance sensor	357 972 753
38	Flat contact housing Connection piece Lambda probe	357 972 754 J
39	flat contact housing withgasket Connection piece Starter	357 972 771
4	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
4	Cable ties with bracket 4,5 X 200 4,5 X 200	3D0 971 838 N
40	Bungs 4,0 X 7,8 4,0 X 7,8	3C0 972 841
40	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
41	flat contact housing withgasket Connection piece Wiring set for engine	1H0 973 103
5	Clip 8 MM 8 MM	251 721 592
6	Flat contact housing withcontact locking mechanism	357 903 968
7	Grommet 18 X 20,5 18 X 20,5	443 906 102 B
8	Flat contact housing Connection piece Knock sensor	443 906 233
9	Flat contact housing Connection pieceair flow meter	025 906 235 B

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Engine codes on this plate: AAM, ABA, ACC
Factory group: 06 Wiring looms
Factory subgroup: 971022
