Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Airbag wiring harnesswiring harness cruise control system — Mk3 Golf Wiring Looms (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Wiring set for engine

Generation: Mk3 1993 - 1996 (MEX) Group: Wiring looms Parts: 33 Primary OEM: N 017 131 16, 1H0 937 530, 191 972 711

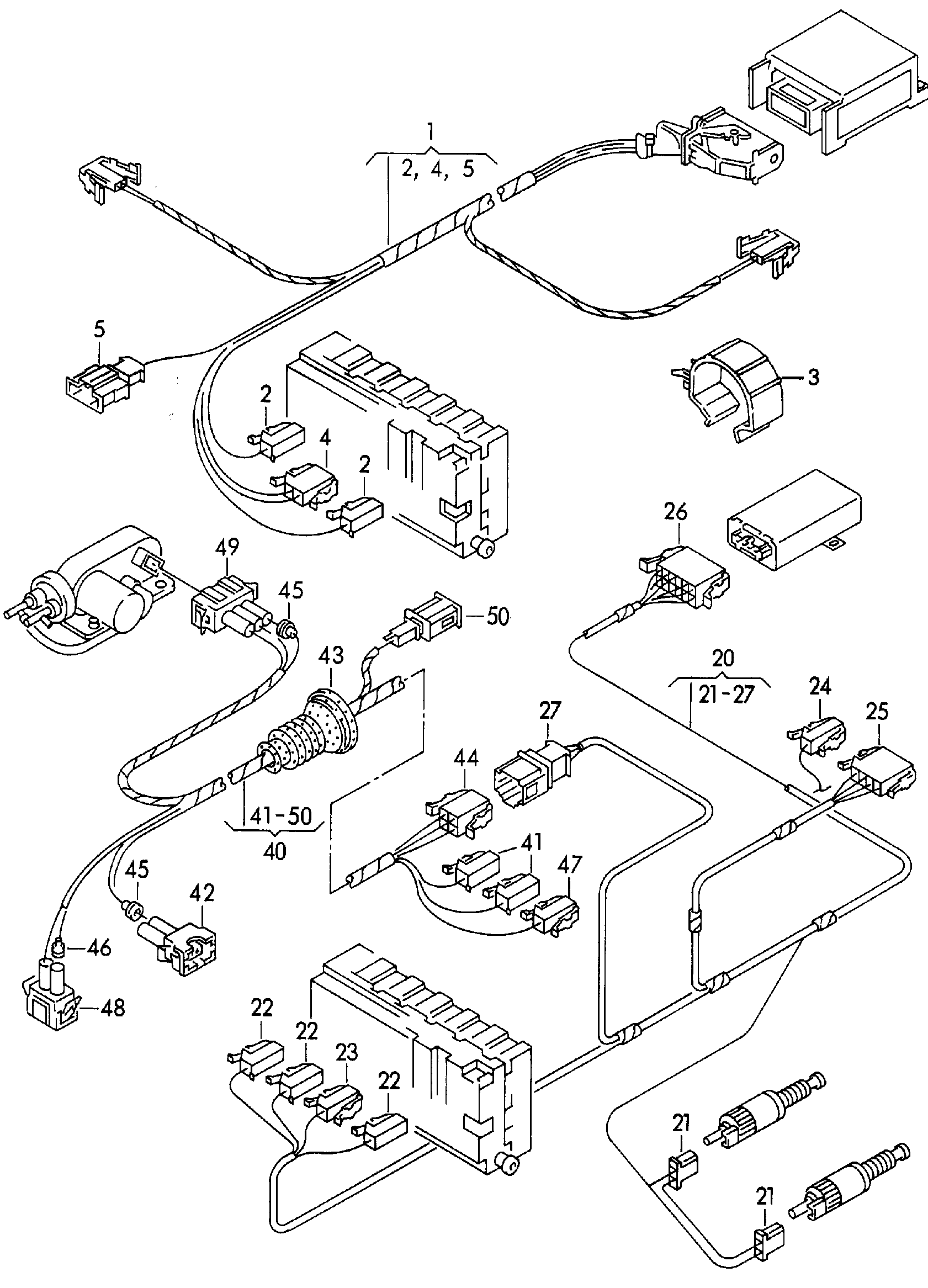

Airbag wiring harnesswiring harness cruise control system for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 972020 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 33 OEM part numbers including N 017 131 16, 1H0 937 530 and 191 972 711. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 33 OEM part numbers across 33 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	flat fuse 19/2 x 5 automatic	N 017 131 16
-	fuse box forflat fuses automatic	1H0 937 530
-	flat connector housing automatic	191 972 711
(1)	airbag wiring harness	1H0 971 581 B
(2)	Flat contact housing F 1 H-R-000 001>>	1H0 972 701
(20)	wiring harness forcruise control system F 1 H-T-003 732>>F 1 H-T-084 501>>	1HM 971 425
(20)	wiring harness forcruise control system F >> 1 H-T-003 731F >> 1 H-T-084 500 automaticautomatic	1H1 971 425 A
(20)	wiring harness forcruise control system F 1 H-T-003 732>>F 1 H-T-084 501>> automaticautomatic	1HM 971 425 A
(24)	flat connector housing automatic	191 972 761
(40)	wiring harness forcruise control system	1H1 971 425 K
2	Flat contact housing F >> 1 H-S-062 645	701 906 231
20	wiring harness forcruise control system F >> 1 H-T-003 731F >> 1 H-T-084 500	1H1 971 425
21	Flat contact housing	443 906 231
22	Flat contact housing	701 906 231
23	Flat contact housing Connection piecewiring harness for anti-lockbrakesystem -abs-	191 972 701
25	Flat contact housing Connection piecesteering col. combi switch	1J0 972 704
25	Flat contact housing Connection piecesteering col. combi switch	191 972 704
26	Flat contact housing	191 972 726
27	Flat contact housing	1J0 972 732
3	Bracketplug housing Airbag(passenger side)	1H0 971 843 H
4	Cover cap with securing-bar	701 972 515
40	wiring harness forcruise control system Pump F >> 1 H-S-022 524*	1H2 971 425 G
41	Flat contact housing	701 906 231
42	flat contact housing withgasket	037 906 240
43	Grommet 24/7 24/7	1H0 971 919
44	Flat contact housing	1J0 972 722
45	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
46	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
47	Flat contact housing	3A0 972 751 H
48	flat contact housing withgasket	357 972 752
49	Flat contact housing	357 972 753
5	flat connector housing	191 972 712
50	flat connector housing	191 972 761

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Factory group: 06 Wiring looms
Factory subgroup: 972020

Related factory diagrams

Other published wiring looms plates for the Mk3 Golf in this catalogue.

Harness engine compartment 1992 · subgroup 971027
Harness engine compartmentwiring harness gearbox ecomatic 1992 · subgroup 971024
Harness engine compartment abf 1992 · subgroup 971030
Wiring set engine 1993 - 1996 · subgroup 971012
Wiring set engine aba adc 1993 - 1996 · subgroup 971010
Wiring set engine aaa 1993 - 1996 · subgroup 971013
Wiring set engine aam acc add 1993 - 1996 · subgroup 971009
Harness engine compartment aam aba acc aba acc 1993 - 1996 · subgroup 971022
