Harness electric window jetta — Mk3 Golf Wiring Looms (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Wiring set for engine

Generation: Mk3 1993 - 1996 (MEX) Group: Wiring looms Parts: 24 Primary OEM: 1H0 971 048, 1H0 971 908, 3A0 972 751 H

Harness electric window jetta for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 972041 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 22 OEM part numbers across 24 catalogued positions including 1H0 971 048, 1H0 971 908 and 3A0 972 751 H. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 22 OEM part numbers across 24 numbered positions.

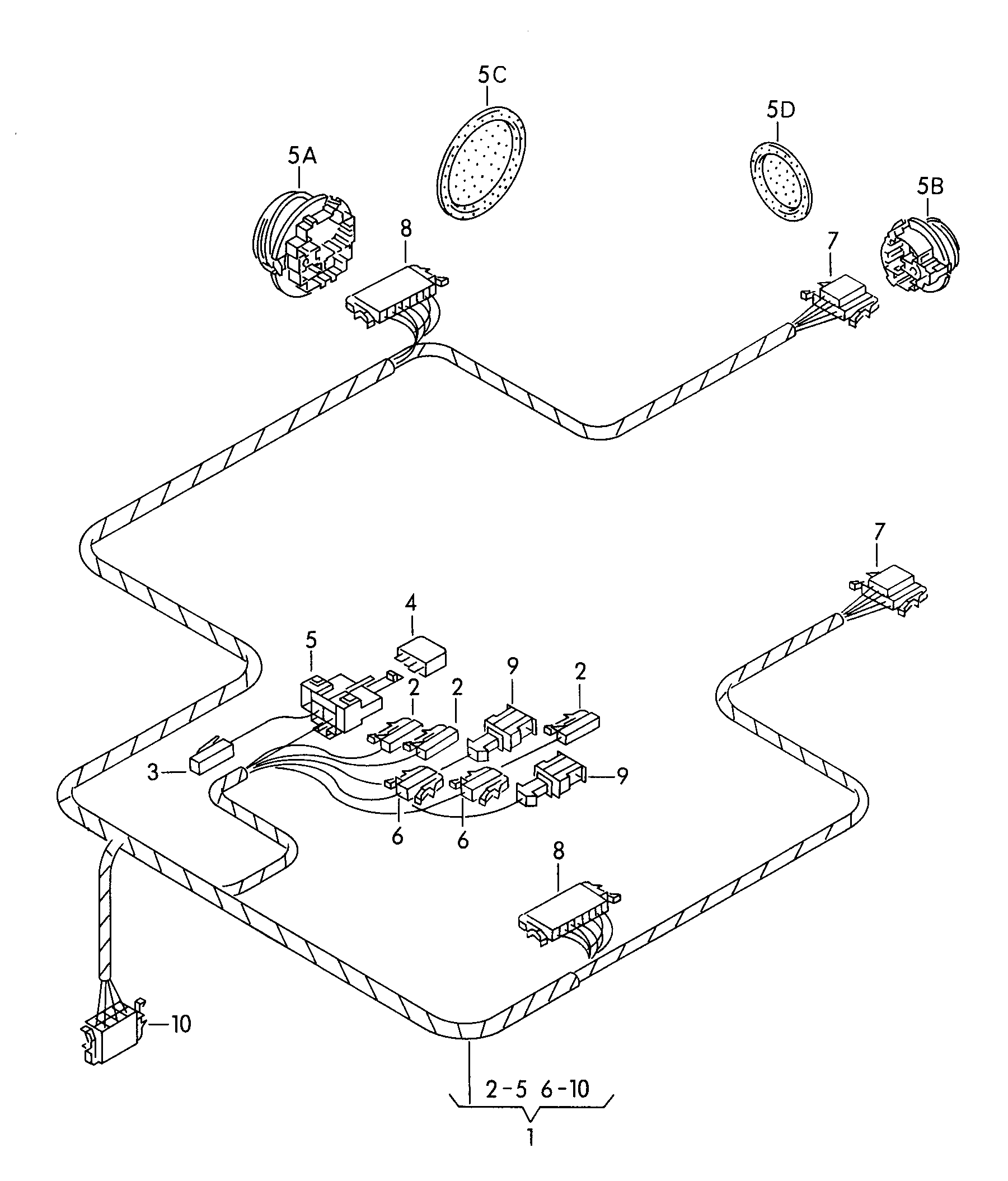

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for electric window JETTA	—
	harness for electric window F >> 1 H-T-003 731F >> 1 H-T-084 500 JETTAJETTA	—
-	Cable guidefor vehicles with three-pointseat belts with inertia reeland belt tensioner	1H0 971 048
-	Bungs 70 70	1H0 971 908
-	Flat contact housing F 1 H-R-000 001>>	3A0 972 751 H
-	Cable guidefor vehicles with three-pointseat belts with inertia reeland belt tensioner	1H0 971 047
(5B)	flat contact housing mountingb-pillar F 1 H-S-012 883>>	1H4 959 741 C
(5B)	flat contact housing mountingb-pillar F 1 H-R-004 700>>F 1 H-R-043 700>>	3A0 959 740
(5B)	flat contact housing mountingb-pillar F 1 H-S-026 300>>	1H4 959 741 C
(6)	Flat contact housing F 1 H-R-000 001>>	3A0 972 701 H
(7)	Flat contact housing F 1 H-R-000 001>>	3A0 972 709
1	harness for electric window	1HM 971 160 C
10	Flat contact housing Connection piece Wire set Switch for electricwindow regulator	191 972 723
2	Flat contact housing	701 906 231
3	Flat contact housing Slot: U 2,Y U 2,Y	357 907 971 B
4	Thermal fuse 30 A 30 A	443 937 105 A
5	bracket for thermo switch	191 937 501
5A	flat contact housing mountinga-pillarfor:Connection piece Wiring set for door	3A0 959 741 A
5B	flat contact housing mountingb-pillarfor:Connection piece Wiring set for door F >> 1 H-S-012 882	1H4 959 741 B
5B	flat contact housing mountingb-pillarfor:Connection piece Wiring set for door F >> 1 H-S-026 299	1H4 959 741 B
6	Flat contact housing	191 972 701
7	Flat contact housing Connection piece Wiring set for door F >> 1 H-P-999 000	1H4 972 709
8	Flat contact housing Connection piece Wiring set for door	1H0 972 708
9	flat connector housing	191 972 711
