Harness engine compartment — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 84 Primary OEM: N 103 113 04, 1H1 971 617 A, 1H1 971 077 FG

Harness engine compartment for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971051 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 80 OEM part numbers across 84 catalogued positions including N 103 113 04, 1H1 971 617 A and 1H1 971 077 FG. Parts on this plate carry the engine code 1Y. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 80 OEM part numbers across 84 numbered positions.

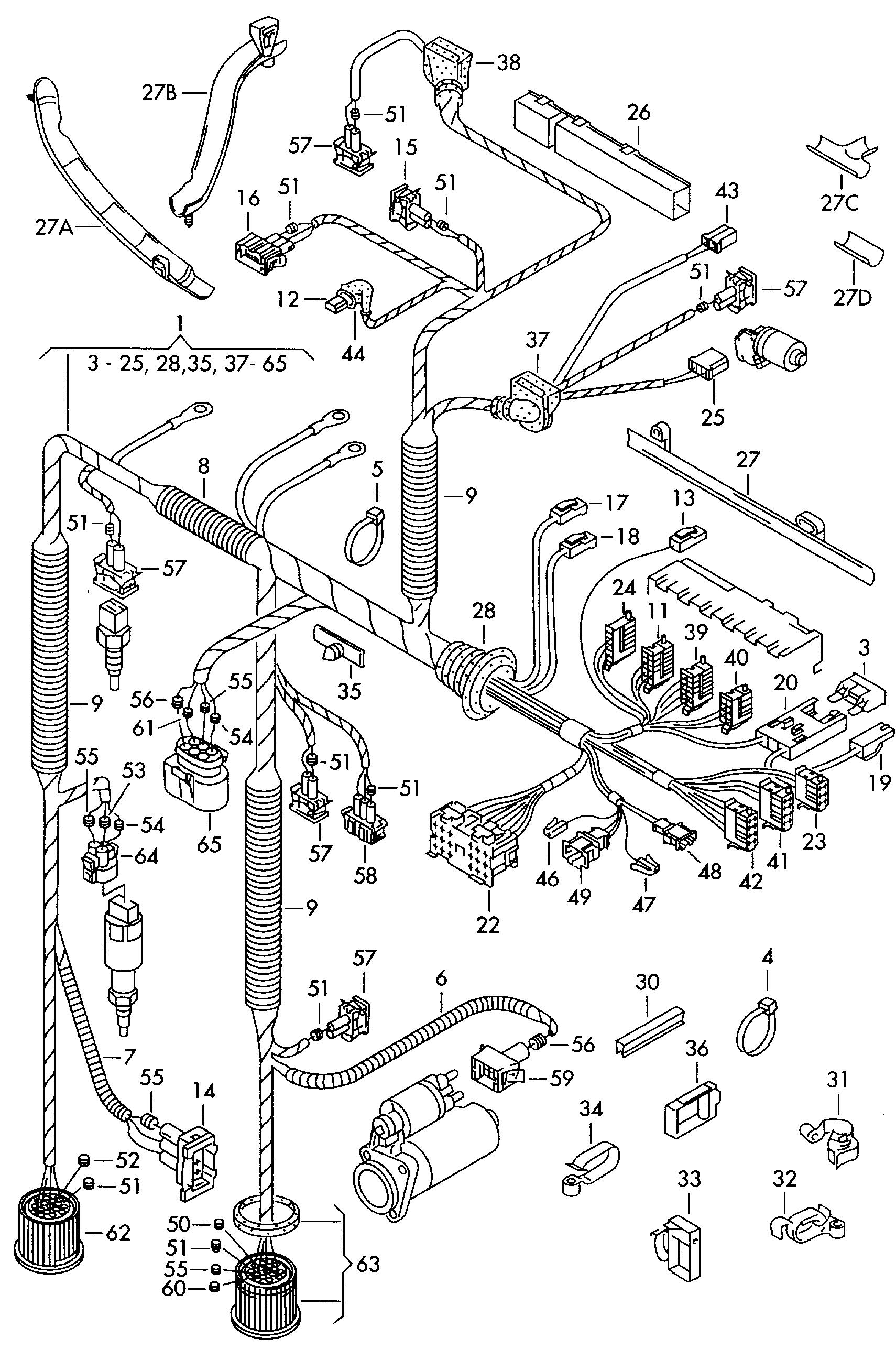

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for engine compartment Diesel eng.+1 Y 1Y	—
	harness for engine compartment Diesel eng.+1 Y 1Y	—
-	Insulating tape 0,15 X 19 X 10000 0,15 X 19 X 10000	N 103 113 04
-	Formed partt-piece	1H1 971 617 A
(1)	harness for engine compartment	1H1 971 077 FG
(1)	harness for engine compartmentfor models withtowing facility	1H1 971 077 FJ
(1)	harness for engine compartment	1H2 971 077 TB
(1)	harness for engine compartment	1H1 971 077 CS
(1)	harness for engine compartmentfor models withtowing facility	1H2 971 077 CT
(1)	harness for engine compartmentfor models withtowing facility	1H2 971 077 TC
(1)	harness for engine compartment	1H2 971 077 CS
(1)	harness for engine compartmentfor models withtowing facility	1H1 971 077 CT
(12)	Flat contact housing withcontact locking mechanism Connection piece Switchbrake fluid	6N0 973 702
(49)	flat connector housing	191 972 761
(49)	Flat contact housing	191 972 751
11	Flat contact housing withcontact locking mechanism	357 903 968
13	Flat contact housing Coupling elementdoor contact switch	701 906 231
14	Flat contact housing Connection piece Radiator fan	1H0 906 233
15	flat contact housing withgasket Connection pieceexhaust recirculation valve	037 906 240
16	Flat contact housing	357 906 752
17	Flat contact housing Slot: Z 2 Z 2	357 915 971 A
18	Flat contact housing Slot: 30,30 B 30,30 B	357 915 971 B
19	Flat contact housing Slot: Z 1 Z 1	357 915 971 C
20	fuse holder Connection piece	3A0 937 501 A
22	relay plate	443 937 528
23	Flat contact housing withcontact locking mechanism Slot: C C	357 955 968
24	Flat contact housing withcontact locking mechanism Slot: S S	357 955 968 A
25	Flat contact housing Connection piece Wiper motor	171 971 835 A
26	Cable guide Connection piecewater box	1H0 971 615 M
27	Cable holder	1H0 971 615 S
27A	Cable guide	1H1 971 615 A
27B	Cable guide	1H2 971 615 C
27C	Formed partt-piece	1H0 971 617 C
27D	Formed part	1H0 971 617 D
28	Grommet	1H0 971 840 C
3	flat fuse 29/2 x 8	N 102 519 05
30	Cover Connection piece Side member Cross panel	1H1 971 813 A
31	Clip 23 X 46 23 X 46	1H0 971 847 A
32	Clip Connection piece Side member 20 X 28 20 X 28	1H1 971 848
33	Discont. / replace: N 904 288 01 N 904 288 01	—
34	Discont. / replace: N 904 288 01 N 904 288 01	—
35	Cable holder 6 MM 6 MM	1H0 971 848 F
35	Bundling clip f wiring harness 6 MM 6 MM	4B0 971 848
37	Grommet 39/5 39/5	1H0 971 905 H
38	Grommet 39/6 39/6	1H0 971 905 J
39	Flat contact housing withcontact locking mechanism Slot: G 1 G 1	357 971 967
4	Cable tie with holder for weld pin: 10 X 1005 10 X 1005	N 906 333 01
4	Cable tie with holder for weld pin: 10 X 185/M 5 10 X 185/M 5	N 904 288 01
4	Cable tie with holder for weld pin: 10 X 1875 10 X 1875	N 906 437 01
40	Flat contact housing withcontact locking mechanism Slot: G 2 G 2	357 971 967 A
41	Flat contact housing withcontact locking mechanism Slot: A 2 A 2	357 971 968
42	Flat contact housing withcontact locking mechanism Slot: A 1 A 1	357 971 968 A
43	Flat contact housing Connection piece Spray nozzle, heated	161 971 989 C
46	Flat contact housing Coupling element Diagnostics infinite bus	1H0 972 701
47	Flat contact housing Coupling element Wiring set for dash panel	535 972 701
48	flat connector housing Coupling element Wiring set for dash panel	191 972 713
49	Flat contact housing Coupling element Wiring harness for headlightrange control	1J0 972 732
49	Flat contact housing Coupling element Wiring harness for headlightrange control	191 972 732
5	Cable ties 6,5 X 175 6,5 X 175	N 900 603 01
5	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
50	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
51	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
52	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
53	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
54	single wiring seal for wire cross section: 9,0 X 7,81,0 9,0 X 7,81,0	357 972 742
55	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B
56	single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0	357 972 742 C
57	flat contact housing withgasket Connection piece Turn signal indicator Selector on the gearbox Pump Coupling element Alternator Connection piece Resistor	357 972 752
58	Flat contact housing Connection piecedistance sensor	357 972 753
59	flat contact housing withgasket Connection piece Starter	357 972 771
6	corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5	N 906 355 17
60	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
60	Bungs 4,0 X 7,8 4,0 X 7,8	4B0 972 840
61	Bungs 9,0 9,0	357 972 842
62	round connector housing	1H0 973 103 A
63	flat connector housing	1H0 973 103 D
63	flat contact housing withgasket also use: 357 972 840 357 972 840	6N0 973 103
64	flat contact housing withgasket Connection piecethermal switch	1H0 973 203
65	Flat contact housing Connection piece Radiator fan Control unitfor models withtowing facility	1H0 973 763
7	corrugated pipe in coils of 5 m'order unit 5' 10 10	N 907 735 01
8	corrugated pipe in coils of 5 m'order unit 5' 22 22	N 907 738 01
8	corrugated pipe 1000 X 22 X 25 1000 X 22 X 25	535 971 820 C
9	corrugated pipe 1000 X 17 X 21 1000 X 17 X 21	535 971 820 B
9	corrugated pipe in coils of 5 m'order unit 5' 17 17	N 907 737 01
