Harness engine compartment — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 97 Primary OEM: 1H1 971 617 A, N 103 113 04, 1H1 971 077 RH

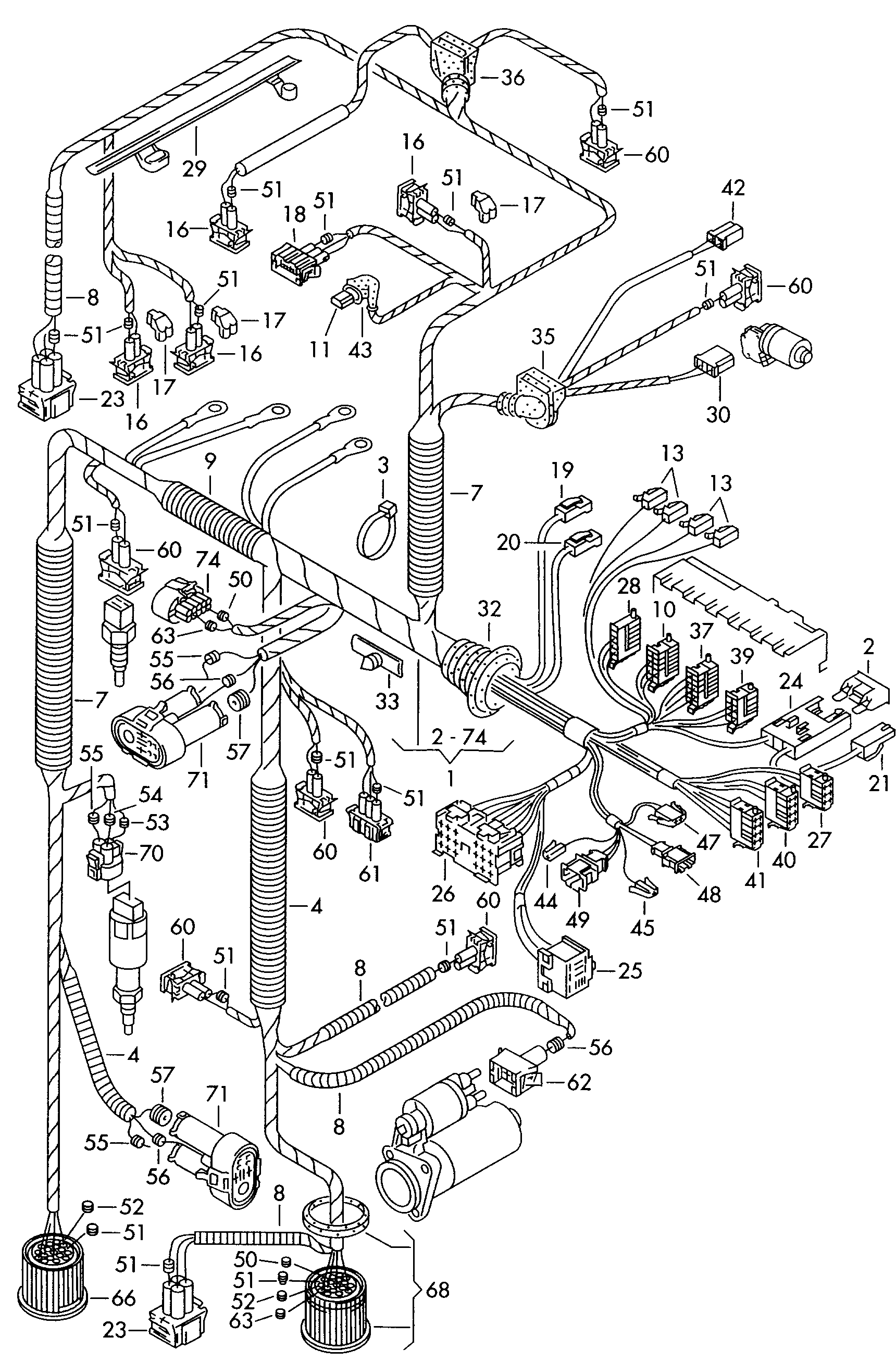

Harness engine compartment for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971052 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 94 OEM part numbers across 97 catalogued positions including 1H1 971 617 A, N 103 113 04 and 1H1 971 077 RH. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 94 OEM part numbers across 97 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for engine compartment Diesel eng.+AAZ	—
	harness for engine compartment Diesel eng.+AAZ	—
-	Formed partt-piece	1H1 971 617 A
-	Insulating tape 0,15 X 19 X 10000 0,15 X 19 X 10000	N 103 113 04
(1)	harness for engine compartment	1H1 971 077 RH
(1)	harness for engine compartmentfor models withtowing facilityfor vehicle use in warmclimates	1H1 971 077 RJ
(1)	harness for engine compartmentfor vehicles with air condit.	1H1 971 077 RM
(1)	harness for engine compartment "J.."	1H1 971 077 DE
(1)	harness for engine compartmentfor models withtowing facility "J.."	1H1 971 077 DF
(1)	harness for engine compartmentfor vehicles with air condit. "J.."	1H1 971 077 DH
(1)	harness for engine compartmentfor vehicles with air condit. "J.."	1H1 971 077 QQ
(1)	harness for engine compartment	1H2 971 077 QP
(1)	harness for engine compartment	1H2 971 077 DC
(1)	harness for engine compartmentfor models withtowing facilityfor vehicle use in warmclimates	1H2 971 077 DD
(1)	harness for engine compartmentfor vehicles with air condit.	1H2 971 077 QT
(1)	harness for engine compartmentfor vehicles with air condit.	1H2 971 077 DG
(1)	harness for engine compartment "J.."	1H2 971 077 DE
(1)	harness for engine compartmentfor models withtowing facility "J.."	1H2 971 077 DF
(1)	harness for engine compartmentfor vehicles with air condit. "J.."	1H2 971 077 RA
(1)	harness for engine compartmentfor vehicles with air condit. "J.."	1H2 971 077 DH
(1)	harness for engine compartmentfor models withtowing facilityfor vehicle use in warmclimates	1H2 971 077 QQ
(1)	harness for engine compartment	1H1 971 077 DC
(1)	harness for engine compartmentfor models withtowing facilityfor vehicle use in warmclimates	1H1 971 077 DD
(1)	harness for engine compartmentfor vehicles with air condit.	1H1 971 077 DG
(11)	Flat contact housing withcontact locking mechanism Connection piece Switchbrake fluid	6N0 973 702
(13)	Flat contact housing Connection piece Radiator fan	1H0 906 233
(29)	Formed partt-piece	1H0 971 617 C
(29)	Formed part	1H0 971 617 B
(35)	Grommet 39/13 39/13	1H0 971 905 G
(4)	corrugated pipe in coils of 5 m'order unit 5' 10 10	N 907 735 01
(60)	Flat contact housing	191 972 752
(60)	Flat contact housing	1J0 972 752
(63)	Bungs 9,0 9,0	357 972 842
(68)	flat connector housing "J.."	1H0 973 103 C
(71)	Flat contact housingfor models withtowing facility	3A0 973 712
(74)	Flat contact housing	1H0 973 763
10	Flat contact housing withcontact locking mechanism Slot: F F	357 903 968
13	Flat contact housing	701 906 231
16	flat contact housing withgasket Connection piece Valve Valveby-pass air cut-off valvetemperature switch External temperature sensor -PLA--EGR- air condit. air condit. air condit. -PLA--EGR-	037 906 240
17	Bracket protective cover	357 906 732 A
18	Flat contact housing	357 906 752
19	Flat contact housing Slot: Z 2 Z 2	357 915 971 A
2	flat fuse 29/2 x 8	N 102 519 05
20	Flat contact housing Slot: 30,30 B 30,30 B	357 915 971 B
21	Flat contact housing Slot: Z 1 Z 1	357 915 971 C
23	Flat contact housing Connection piece Switchthermal switch air condit.	357 919 754
24	fuse holder	3A0 937 501 A
25	relay plate	161 937 501 B
26	relay plate	443 937 528
27	Flat contact housing withcontact locking mechanism Slot: C C	357 955 968
28	Flat contact housing withcontact locking mechanism Slot: S S	357 955 968 A
29	Cable holder	1H0 971 615 S
3	Cable ties 6,5 X 175 6,5 X 175	N 900 603 01
3	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
30	Flat contact housing	171 971 835 A
32	Grommet	1H0 971 840 C
33	Cable holder	1H0 971 848 F
33	Bundling clip f wiring harness	4B0 971 848
35	Grommet 39/5 39/5	1H0 971 905 H
36	Grommet 39/6 39/6	1H0 971 905 J
37	Flat contact housing withcontact locking mechanism Slot: G 1 G 1	357 971 967
39	Flat contact housing withcontact locking mechanism Slot: G 2 G 2	357 971 967 A
4	corrugated pipe in coils of 5 m'order unit 5' 13 13	N 907 736 01
4	corrugated pipe in coils of 5 m'order unit 5' 5000 X 13 X 16 5000 X 13 X 16	N 102 871 01
40	Flat contact housing withcontact locking mechanism Slot: A 2 A 2	357 971 968
41	Flat contact housing withcontact locking mechanism Slot: A 1 A 1	357 971 968 A
42	Flat contact housing Connection piece Spray nozzle, heated	161 971 989 C
43	Discont. / replace: 6 N 0 973 702 6 N 0 973 702	—
44	Flat contact housing Connection piecefor diagnostic plug	1H0 972 701
45	Flat contact housing	535 972 701
47	Flat contact housing Coupling element Wiring set for dash panel air condit.	191 972 702
47	Flat contact housing withcontact locking mechanism Coupling element Wiring set for dash panel air condit.	1J0 972 702
48	flat connector housing Coupling element Combi-instrument	191 972 713
49	Flat contact housing	1J0 972 732
49	Flat contact housing	191 972 732
50	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
51	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
52	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
53	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
54	single wiring seal for wire cross section: 9,0 X 7,81,0 9,0 X 7,81,0	357 972 742
55	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B
56	single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0	357 972 742 C
57	single wiring seal for wire cross section: 16,2 X 15,06,0 16,2 X 15,06,0	357 972 744 A
60	flat contact housing withgasket Connection piece Turn signal indicator Transmission switch Pump Switch Coupling elementdynamo air condit.	357 972 752
61	Flat contact housing Connection piecedistance sensor	357 972 753
62	flat contact housing withgasket Connection piece Starter	357 972 771
63	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
66	round connector housing	1H0 973 103 A
68	flat connector housing	1H0 973 103 D
68	flat contact housing withgasket also use: 357 972 840 357 972 840	6N0 973 103
7	corrugated pipe 1000 X 17 X 21 1000 X 17 X 21	535 971 820 B
7	corrugated pipe in coils of 5 m'order unit 5' 17 17	N 907 737 01
70	flat contact housing withgasket Connection piecethermal switch Radiator fan	1H0 973 203
71	Flat contact housing Connection piece Radiator fanfor models withtowing facility	1H0 973 204
74	Flat contact housing withcontact locking mechanism air condit.	3A0 973 715
8	corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5	N 906 355 17
9	corrugated pipe 260 X 22 X 26 260 X 22 X 26	895 971 788

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Variant tags: diesel
Factory group: 06 Wiring looms
Factory subgroup: 971052
