Harness engine compartment — Mk3 Golf Wiring Looms (1994 - 1997)
Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Wiring set for engine

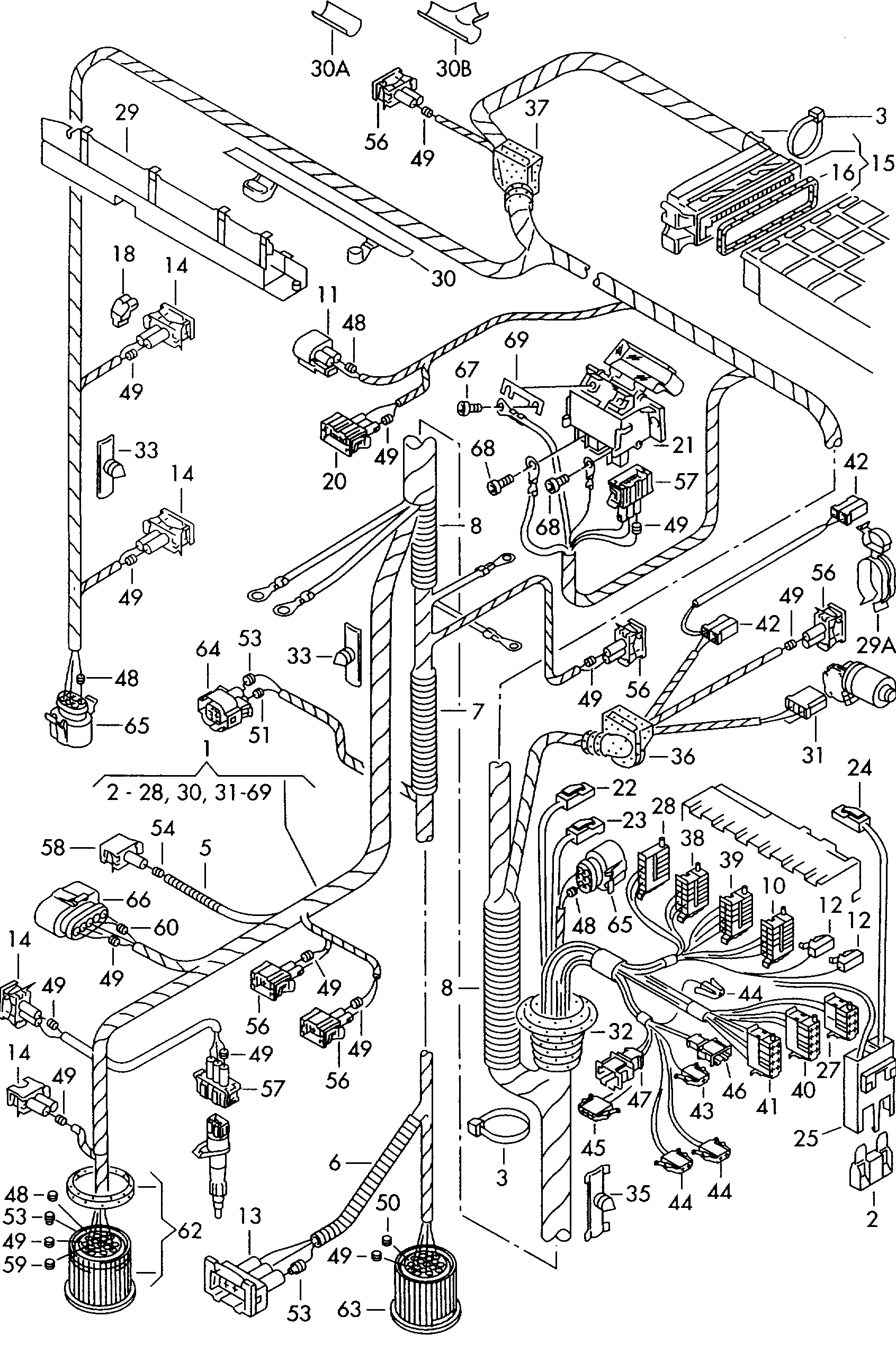

Harness engine compartment for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 971035 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 116 OEM part numbers across 120 catalogued positions including N 103 113 03, 357 972 841 and 1H1 971 615. Parts on this plate carry the engine codes AFN, AHU and ALE. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 116 OEM part numbers across 120 numbered positions.
| № | Description | Part number |
|---|---|---|
| harness for engine compartment Diesel eng.+1 Z,AHU,AFN,ALE AFNAHUALE | — | |
| harness for engine compartment F >> 1 E-S-040 000 Diesel eng.+1 Z | — | |
| harness for engine compartment F 1 E-T-000 001>> Diesel eng.+1 Z,AHU,ALE AHUALE | — | |
| harness for engine compartment Diesel eng.+AFN | — | |
| - | Insulating tape 0,15 X 19 0,15 X 19 | N 103 113 03 |
| - | Bungs 5,6 X 7,8 5,6 X 7,8 | 357 972 841 |
| - | Cable guide F 1 E-T-000 001>> | 1H1 971 615 |
| (1) | harness for engine compartment air condit. | 1E1 971 070 GS |
| (1) | harness for engine compartment | 1E2 971 070 GC |
| (1) | harness for engine compartmentfor vehicles with glow plugheater air condit. | 1E2 971 070 GE |
| (1) | harness for engine compartment air condit. | 1E2 971 070 GF |
| (1) | harness for engine compartmentfor vehicles with glow plugheater | 1E1 971 070 JB |
| (1) | harness for engine compartment | 1E1 971 070 JC |
| (1) | harness for engine compartmentfor vehicles with glow plugheater air condit. | 1E1 971 070 JD |
| (1) | harness for engine compartment air condit. | 1E1 971 070 JE |
| (1) | harness for engine compartmentfor vehicles with glow plugheater | 1E2 971 070 HA |
| (1) | harness for engine compartment | 1E2 971 070 HB |
| (1) | harness for engine compartmentfor vehicles with glow plugheater air condit. | 1E2 971 070 HC |
| (1) | harness for engine compartment air condit. | 1E2 971 070 HD |
| (1) | harness for engine compartment | 1E1 971 070 HR |
| (1) | harness for engine compartmentfor vehicles with glow plugheater | 1E1 971 070 HS |
| (1) | harness for engine compartment air condit. | 1E1 971 070 JE |
| (1) | harness for engine compartmentfor vehicles with glow plugheater air condit. | 1E1 971 070 JD |
| (1) | harness for engine compartmentfor vehicles with glow plugheater | 1E2 971 070 GB |
| (1) | harness for engine compartmentfor vehicle use in coldclimates | 1E1 971 070 EQ |
| (1) | harness for engine compartmentfor vehicles with glow plugheater air condit. | 1E1 971 070 ET |
| (1) | harness for engine compartment air condit. | 1E1 971 070 FA |
| (1) | harness for engine compartmentfor vehicles with glow plugheater | 1E1 971 070 GN |
| (1) | harness for engine compartment | 1E1 971 070 GP |
| (1) | harness for engine compartmentfor vehicles with glow plugheater air condit. | 1E1 971 070 GR |
| (24) | Flat contact housing Connection piece Switch air condit. | 357 919 754 |
| (25) | relay plate air condit. | 161 937 501 B |
| (28) | Flat contact housing withcontact locking mechanism Air cond.+AFN | 357 959 968 B |
| (3) | Cable tie with holder for weld pin: 10 X 185/M 5 10 X 185/M 5 | N 904 288 01 |
| (3) | Cable tie with holder for weld pin: 10 X 1875 10 X 1875 | N 906 437 01 |
| (30) | Cable guide F 1 E-T-000 001>> | 1H2 971 615 C |
| (30) | Cable guide F 1 E-T-000 001>> | 1H1 971 615 A |
| (43) | Flat contact housing Possible single wire: counterpart to: 000 979 126000 979 126 A 1 J 0 971 712 000 979 126000 979 126 A 1 J 0 971 712 | 1J0 972 702 |
| (43) | Flat contact housing withcontact locking mechanism Possible single wire: counterpart to: 000 979 133000 979 133 A 1 J 0 971 712 000 979 133000 979 133 A 1 J 0 971 712 | 1J0 972 702 |
| (43) | Flat contact housing Coupling element Wiring set for dash panel air condit. | 191 972 702 |
| (44) | Flat contact housing Connection pieceswitches at pedal cluster | 1H0 972 702 |
| (51) | single wiring seal for wire cross section: 9,0 X 7,81,0 9,0 X 7,81,0 | 357 972 742 |
| (54) | single wiring seal for wire cross section: 16,2 X 15,06,0 16,2 X 15,06,0 | 357 972 744 A |
| (60) | Bungs 9,0 9,0 | 357 972 842 |
| (64) | flat contact housing withgasket Slot: BW air condit. BW | 1H0 973 204 A |
| (66) | Flat contact housing withcontact locking mechanism Slot: BV air condit. BV | 3A0 973 715 |
| 1 | harness for engine compartmentfor vehicles with glow plugheater | 1E1 971 070 EP |
| 10 | Flat contact housing withcontact locking mechanism Slot: F F | 357 903 968 |
| 11 | Flat contact housing withcontact locking mechanism Connection piece Switchbrake fluid | 6N0 973 702 |
| 12 | Flat contact housing Connection piece Potential distributor Hall sensor | 701 906 231 |
| 13 | Flat contact housing Connection piece Radiator fan | 1H0 906 233 |
| 14 | flat contact housing withgasket Connection piece Exhaust gas recirculationwastegateby-pass air cut-off valve External temperature sensor Temperature sensor Coupling element Switch for accelerator pedal air condit. air condit. | 037 906 240 |
| 15 | flat contact housing withgasket Possible single wire: 000 979 131000 979 131 A 000 979 133000 979 133 A 000 979 225 1,01,01,01,02,5 000 979 131000 979 131 A 000 979 133000 979 133 A 000 979 225 | 1H0 906 365 |
| 15 | flat contact housing withgasket Possible single wire: 000 979 125000 979 125 A 000 979 126000 979 126 A 000 979 217 1,01,01,01,02,5 000 979 125000 979 125 A 000 979 126000 979 126 A 000 979 217 | 1H0 906 365 |
| 15 | flat contact housing withgasket | 1H0 906 370 K |
| 16 | Seal 16 X 105 16 X 105 | 1H0 906 375 |
| 18 | Bracket protective cover | 357 906 732 A |
| 2 | flat fuse 29/2 x 8 | N 102 519 05 |
| 20 | Flat contact housing Connection piece Switch | 357 906 752 |
| 20 | Flat contact housing Possible single wire: counterpart to: also use: 000 979 126000 979 126 A 000 979 217357 972 763357 972 841 1,01,02,5 000 979 126000 979 126 A 000 979 217357 972 763357 972 841 | 357 972 753 |
| 21 | Control unit for glow plugfor vehicles with glow plugheater | 191 911 261 B |
| 22 | Flat contact housing Slot: Z 2 Z 2 | 357 915 971 A |
| 23 | Flat contact housing Slot: 30,30 B 30,30 B | 357 915 971 B |
| 24 | Flat contact housing Slot: Z 1 Z 1 | 357 915 971 C |
| 25 | fuse holderfor fuse N 102 519 05 N 102 519 05 | 3A0 937 501 A |
| 27 | Flat contact housing withcontact locking mechanism Slot: C C | 357 955 968 |
| 28 | Flat contact housing withcontact locking mechanism Slot: S S | 357 955 968 A |
| 29 | Cable guide Connection piecewater box | 1H0 971 615 M |
| 29A | Retainer, swivel Connection piece Injection pump | 028 972 335 A |
| 3 | Cable ties 4,6 X 200 4,6 X 200 | N 906 661 01 |
| 3 | Cable ties 6,5 X 175 6,5 X 175 | N 900 603 01 |
| 30 | Cable holder | 1H0 971 615 S |
| 30A | Formed part F 1 E-T-000 001>> | 1H0 971 617 B |
| 30B | Formed partt-piece F 1 E-T-000 001>> | 1H0 971 617 C |
| 31 | Flat contact housing Connection piece Wiper motor | 171 971 835 A |
| 32 | Grommet | 1H0 971 840 C |
| 33 | Bundling clip f wiring harness 20 X 28 20 X 28 | 4B0 971 848 |
| 33 | Cable holder 20 X 28 20 X 28 | 1H0 971 848 F |
| 35 | Bundling clip f wiring harness | 1H0 971 848 AS |
| 35 | Bundling clip f wiring harness | 4B0 971 848 |
| 36 | Grommet 39/5 39/5 | 1H0 971 905 H |
| 37 | Grommet 39/12 39/12 | 1H0 971 905 K |
| 38 | Flat contact housing withcontact locking mechanism Slot: G 1 G 1 | 357 971 967 |
| 39 | Flat contact housing withcontact locking mechanism Slot: G 2 G 2 | 357 971 967 A |
| 40 | Flat contact housing withcontact locking mechanism Slot: A 2 A 2 | 357 971 968 |
| 41 | Flat contact housing withcontact locking mechanism Slot: A 1 A 1 | 357 971 968 A |
| 42 | flat connector housing Connection piece Spray nozzle, heated | 161 971 988 C |
| 43 | Flat contact housing Coupling elementfor wiring set Potential distributor Hall sensor | 191 972 701 |
| 44 | Flat contact housing Coupling element Wiring set for dash panel | 535 972 701 |
| 45 | Flat contact housing Coupling elementwiring harness for steeringcolumn combination switch | 1J0 972 704 |
| 45 | Flat contact housing Coupling elementwiring harness for steeringcolumn combination switch | 191 972 704 |
| 46 | flat connector housing Coupling element Combi-instrument | 191 972 713 |
| 47 | Flat contact housing Coupling element Wiring harness for headlightrange control | 191 972 732 |
| 47 | Flat contact housing Coupling element Wiring harness for headlightrange control | 1J0 972 732 |
| 48 | single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0 | 357 972 740 D |
| 49 | single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0 | 357 972 741 |
| 5 | corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5 | N 906 355 17 |
| 50 | single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5 | 357 972 741 A |
| 51 | single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5 | 357 972 741 B |
| 53 | single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5 | 357 972 742 B |
| 54 | single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0 | 357 972 742 C |
| 56 | flat contact housing withgasket Connection piece Turn signal indicator Pump Selector on the gearbox Coupling elementfor compressorfor wiring set Alternatormulti-function indicator air condit. | 357 972 752 |
| 57 | Flat contact housing Connection piecespeed senderfor vehicles with glow plugheater Control unit for glow plug | 357 972 753 |
| 58 | flat contact housing withgasket Connection piece Starter | 357 972 771 |
| 59 | Bungs 4,0 X 7,8 4,0 X 7,8 | 357 972 840 |
| 59 | Bungs 4,0 X 7,8 4,0 X 7,8 | 4B0 972 840 |
| 6 | corrugated pipe in coils of 5 m'order unit 5' 10 10 | N 907 735 01 |
| 60 | Bungs 5,6 X 7,8 5,6 X 7,8 | 357 972 841 |
| 62 | flat contact housing withgasket Coupling elementharness for engine compartment | 3A0 973 103 |
| 63 | round connector housing | 1H0 973 103 A |
| 64 | flat contact housing withgasket Connection piecethermal switch Radiator fan | 1H0 973 203 |
| 65 | Flat contact housing Connection pieceair flow meter Coupling elementswitches at pedal cluster | 3A0 973 713 |
| 66 | Flat contact housing Coupling element Injection pump | 3A0 973 734 |
| 67 | fillister hd. bolt M 5 X 8 M 5 X 8 | N 014 128 11 |
| 68 | fillister hd. bolt shorten to: M 6 X 10 M 6 X 10 | N 014 138 7 |
| 69 | fuse 50 A 50 A | N 017 125 1 |
| 7 | corrugated pipe in coils of 5 m'order unit 5' 17 17 | N 907 737 01 |
| 7 | corrugated pipe 1000 X 17 X 21 1000 X 17 X 21 | 535 971 820 B |
| 8 | corrugated pipe 1000 X 22 X 25 1000 X 22 X 25 | 535 971 820 C |
| 8 | corrugated pipe in coils of 5 m'order unit 5' 22 22 | N 907 738 01 |
