Harness engine compartment — Mk3 Golf Wiring Looms (1997)

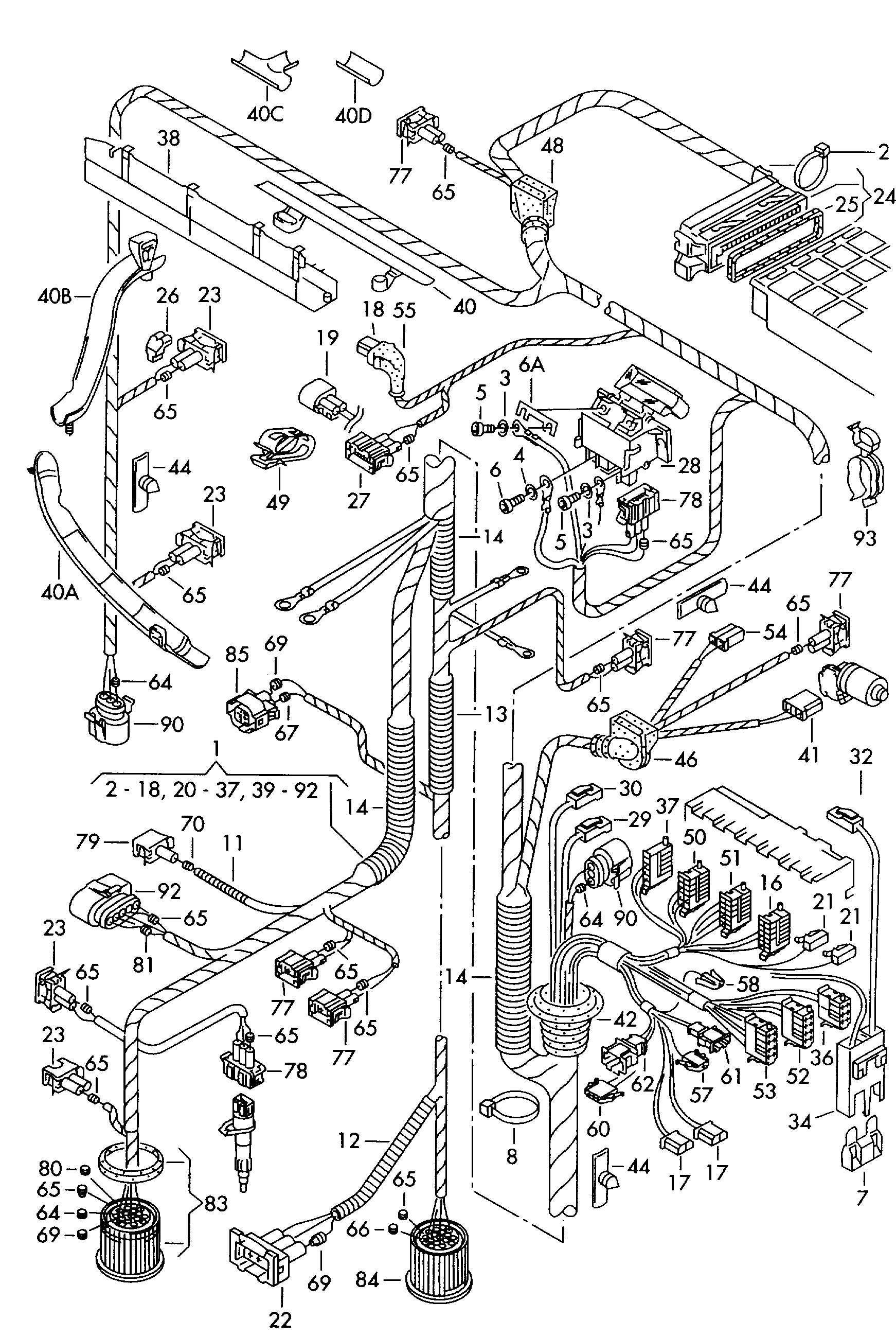

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine
Harness engine compartment for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971054 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 190 OEM part numbers across 196 catalogued positions including N 103 113 04, 1H1 971 617 A and 1H2 971 077 HT. Parts on this plate carry the engine codes 1Z, AEY, AFN, AHU and ALE. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 190 OEM part numbers across 196 numbered positions.
| № | Description | Part number |
|---|---|---|
| harness for engine compartment Diesel eng.+1 Z,AHU,AFN,ALE AFNAHUALE | — | |
| harness for engine compartmentfor vehicles with electroni-cally regulated air condit. Diesel eng.+1 Z,AHU,AFN,ALE AFNAHUALE | — | |
| harness for engine compartmentfor vehicles with air condit.with mechanical operation Diesel eng.+1 Z,AHU,AFN,ALE AFNAHUALE | — | |
| harness for engine compartment Diesel eng.+1 Z,AHU,AFN,AEY,ALE AEYAFNAHUALE | — | |
| harness for engine compartment Diesel eng.+AEY | — | |
| - | Insulating tape 19 19 | N 103 113 04 |
| - | Formed partt-piece | 1H1 971 617 A |
| (1) | wiring harness for enginecompartment and lightingfor models withtowing facility Automatic+AFN | 1H2 971 077 HT |
| (1) | wiring harness for enginecompartment and lighting Automatic+AFN | 1H1 971 077 JA |
| (1) | wiring harness for enginecompartment and lighting Automatic+AFN | 1H1 971 077 TR |
| (1) | wiring harness for enginecompartment and lighting Automatic+AFN | 1H2 971 077 JF |
| (1) | wiring harness for enginecompartment and lighting Automatic+AFN | 1H1 971 077 JD |
| (1) | wiring harness for enginecompartment and lighting Automatic+AFN | 1H2 971 077 SR |
| (1) | wiring harness for enginecompartment and lighting Automatic+AFN | 1H1 971 077 FB |
| (1) | wiring harness for enginecompartment and lighting Automatic+AFN | 1H2 971 077 JJ |
| (1) | harness for engine compartmentfor vehicles with glow plugheater | 1H1 971 077 DJ |
| (1) | harness for engine compartment | 1H1 971 077 DK |
| (1) | wiring harness for enginecompartment and lighting Automatic+AFN | 1H2 971 077 TA |
| (1) | harness for engine compartmentfor vehicles with glow plugheater | 1H1 971 077 FR |
| (1) | harness for engine compartment | 1H1 971 077 FS |
| (1) | harness for engine compartmentfor vehicles with glow plugheater | 1H2 971 077 TD |
| (1) | harness for engine compartmentfor vehicles with glow plugheater | 1H2 971 077 DJ |
| (1) | harness for engine compartment | 1H2 971 077 TE |
| (1) | harness for engine compartment | 1H2 971 077 DK |
| (1) | harness for engine compartment Automatic+AFN | 1H1 971 077 GQ |
| (1) | wiring harness for enginecompartment and lightingfor models withtowing facility Automatic+AFN | 1H1 971 077 HN |
| (1) | harness for engine compartment Automatic+AFN | 1H1 971 077 TH |
| (1) | wiring harness for enginecompartment and lightingfor models withtowing facility Automatic+AFN | 1H1 971 077 TK |
| (1) | harness for engine compartment Automatic+AFN | 1H2 971 077 GQ |
| (1) | harness for engine compartment Automatic+AFN | 1H2 971 077 SH |
| (1) | wiring harness for enginecompartment and lightingfor models withtowing facility Automatic+AFN | 1H2 971 077 SK |
| (1) | harness for engine compartmentfor vehicles with glow plugheaterwith/withoutfor vehicles with multifunction indicator 1 Z,AHU 1ZAHU | 1H2 971 077 GK |
| (1) | harness for engine compartmentfor vehicles with glow plugheater 1 Z,AHU 1ZAHU | 1H2 971 077 ED |
| (1) | harness for engine compartmentand/orfor vehicles with multifunction indicator 1 Z,AHU 1ZAHU | 1H2 971 077 RE |
| (1) | wiring harness for enginecompartment and lighting AFN AFN | 1H1 971 077 TT |
| (1) | harness for engine compartment Automatic+1 Z,AHU AHU | 1H1 971 077 SN |
| (1) | harness for engine compartmentfor models withtowing facilityfor vehicles with multifunction indicator Automatic+1 Z,AHU AHU | 1H1 971 077 GJ |
| (1) | harness for engine compartmentand/orfor vehicles with multifunction indicator 1 Z,AHU 1ZAHU | 1H1 971 077 GL |
| (1) | harness for engine compartmentfor vehicles with glow plugheater AFN AFN | 1H1 971 077 TD |
| (1) | wiring harness for enginecompartment and lighting AFN AFN | 1H2 971 077 ST |
| (1) | harness for engine compartment Automatic+1 Z,AHU AHU | 1H1 971 077 DQ |
| (1) | harness for engine compartmentfor vehicles with glow plugheaterfor vehicles with multifunction indicator 1 Z,AHU 1ZAHU | 1H1 971 077 GK |
| (1) | wiring harness for enginecompartment and lighting AFN AFN | 1H1 971 077 JC |
| (1) | harness for engine compartmentfor vehicles with glow plugheater 1 Z,AHU 1ZAHU | 1H1 971 077 ED |
| (1) | harness for engine compartment Automatic+1 Z,AHU AHU | 1H1 971 077 ST |
| (1) | harness for engine compartmentfor vehicles with multifunction indicator Automatic+1 Z,AHU AHU | 1H1 971 077 GH |
| (1) | harness for engine compartment Automatic+1 Z,AHU AHU | 1H1 971 077 EH |
| (1) | harness for engine compartmentand/orfor vehicles with multifunction indicator 1 Z,AHU 1ZAHU | 1H2 971 077 GG |
| (1) | harness for engine compartmentfor models withtowing facility Automatic+1 Z,AHU AHU | 1H2 971 077 DR |
| (1) | harness for engine compartment AFN AFN | 1H1 971 077 GP |
| (1) | harness for engine compartmentfor vehicles with glow plugheaterwith/withoutfor vehicles with multifunction indicator 1 Z,AHU 1ZAHU | 1H1 971 077 GF |
| (1) | harness for engine compartment Automatic+1 Z,AHU AHU | 1H1 971 077 EC |
| (1) | harness for engine compartment 1 Z,AHU 1ZAHU | 1H2 971 077 EA |
| (1) | harness for engine compartmentfor vehicles with glow plugheater AFN AFN | 1H2 971 077 SD |
| (1) | harness for engine compartmentfor vehicles with glow plugheaterwith/withoutfor vehicles with multifunction indicator 1 Z,AHU 1ZAHU | 1H2 971 077 RL |
| (1) | harness for engine compartmentfor models withtowing facility Automatic+1 Z,AHU AHU | 1H1 971 077 SE |
| (1) | harness for engine compartment 1 Z,AHU 1ZAHU | 1H1 971 077 DN |
| (1) | wiring harness for enginecompartment and lightingfor vehicles with glow plugheater AFN AFN | 1H1 971 077 HQ |
| (1) | harness for engine compartmentfor vehicles with glow plugheaterwith/withoutfor vehicles with multifunction indicator 1 Z,AHU,ALE 1ZAHUALE | 1H1 971 077 SG |
| (1) | harness for engine compartmentwith/withoutfor vehicles with multifunction indicator 1 Z,AHU,ALE 1ZAHUALE | 1H1 971 077 RT |
| (1) | harness for engine compartmentfor vehicles with glow plugheater AFN AFN | 1H1 971 077 GN |
| (1) | harness for engine compartmentfor vehicles with glow plugheater 1 Z,AHU,ALE 1ZAHUALE | 1H1 971 077 SP |
| (1) | harness for engine compartment Automatic+1 Z,AHU AHU | 1H2 971 077 EH |
| (1) | harness for engine compartment Automatic+1 Z,AHU AHU | 1H2 971 077 GH |
| (1) | harness for engine compartment AFN AFN | 1H2 971 077 GP |
| (1) | harness for engine compartmentfor vehicles with glow plugheater AFN AFN | 1H2 971 077 GN |
| (1) | harness for engine compartment Automatic+1 Z,AHU AHU | 1H2 971 077 DQ |
| (1) | harness for engine compartment 1 Z,AHU 1ZAHU | 1H2 971 077 RS |
| (1) | wiring harness for enginecompartment and lightingfor vehicles with glow plugheater AFN AFN | 1H2 971 077 SS |
| (1) | harness for engine compartmentfor vehicles with glow plugheaterand/orfor vehicles with multifunction indicator 1 Z,AHU 1ZAHU | 1H2 971 077 GF |
| (1) | harness for engine compartmentfor models withtowing facility Automatic+1 Z,AHU AHU | 1H1 971 077 DR |
| (1) | harness for engine compartment 1 Z,AHU,ALE 1ZAHUALE | 1H1 971 077 SR |
| (1) | harness for engine compartment AFN AFN | 1H1 971 077 TF |
| (1) | wiring harness for enginecompartment and lightingfor vehicles with glow plugheater AFN AFN | 1H1 971 077 TM |
| (1) | harness for engine compartment Automatic+1 Z,AHU AHU | 1H2 971 077 EC |
| (1) | harness for engine compartmentfor models withtowing facility Automatic+1 Z,AHU AHU | 1H2 971 077 GJ |
| (1) | wiring harness for enginecompartment and lightingfor vehicles with glow plugheater AFN AFN | 1H2 971 077 JG |
| (1) | wiring harness for enginecompartment and lightingfor vehicles with glow plugheater AFN AFN | 1H2 971 077 JB |
| (1) | harness for engine compartment 1 Z,AHU 1ZAHU | 1H1 971 077 EF |
| (1) | wiring harness for enginecompartment and lighting AFN AFN | 1H1 971 077 HS |
| (1) | harness for engine compartmentfor vehicles with multifunction indicator 1 Z,AHU 1ZAHU | 1H2 971 077 GL |
| (1) | wiring harness for enginecompartment and lighting AFN AFN | 1H1 971 077 TP |
| (1) | harness for engine compartmentfor vehicles with glow plugheaterwith/withoutfor vehicles with multifunction indicator 1 Z,AHU,ALE 1ZAHUALE | 1H1 971 077 RQ |
| (1) | wiring harness for enginecompartment and lighting AFN AFN | 1H2 971 077 JH |
| (1) | harness for engine compartment Automatic+1 Z,AHU AHU | 1H1 971 077 SC |
| (1) | wiring harness for enginecompartment and lighting AFN AFN | 1H2 971 077 JD |
| (1) | wiring harness for enginecompartment and lightingfor vehicles with glow plugheater AFN AFN | 1H2 971 077 SM |
| (1) | harness for engine compartmentfor vehicles with multifunction indicator Automatic+1 Z,AHU AHU | 1H2 971 077 GM |
| (1) | harness for engine compartment 1 Z,AHU,ALE 1ZAHUALE | 1H1 971 077 SK |
| (1) | harness for engine compartmentfor vehicles with multifunction indicator 1 Z,AHU 1ZAHU | 1H1 971 077 GG |
| (1) | harness for engine compartment 1 Z,AHU 1ZAHU | 1H2 971 077 EF |
| (1) | harness for engine compartmentfor vehicles with multifunction indicator Automatic+1 Z,AHU AHU | 1H1 971 077 GM |
| (1) | wiring harness for enginecompartment and lightingfor vehicles with glow plugheater AFN AFN | 1H1 971 077 JB |
| (1) | wiring harness for enginecompartment and lightingfor vehicles with glow plugheater AFN AFN | 1H1 971 077 TS |
| (1) | harness for engine compartment Automatic+1 Z,AHU AHU | 1H2 971 077 RT |
| (1) | harness for engine compartmentfor vehicles with glow plugheater 1 Z,AHU 1ZAHU | 1H1 971 077 DS |
| (1) | wiring harness for enginecompartment and lighting AFN AFN | 1H2 971 077 SP |
| (11) | corrugated pipe in coils of 5 m'order unit 5' 13 13 | N 907 736 01 |
| (11) | corrugated pipe in coils of 5 m'order unit 5' 5000 X 13 X 16 5000 X 13 X 16 | N 102 871 01 |
| (32) | Flat contact housing Connection piece Switch air condit. | 357 919 754 |
| (34) | relay plate air condit. | 161 937 501 B |
| (40) | Cable guide automatic | 1H0 971 615 T |
| (44) | Bundling clip f wiring harness | 4B0 971 848 |
| (44) | Bundling clip f wiring harness | 1H0 971 848 AS |
| (48) | Grommet 39/13 39/13 | 1H0 971 905 G |
| (55) | Flat contact housing Coupling elementfor wiring set Potential distributor Hall sensor | 191 972 701 |
| (62) | Flat contact housing withcontact locking mechanism Coupling elementwiring harness for anti-lockbrakesystem -abs- 1 Zautomatic | 191 972 725 |
| (68) | single wiring seal for wire cross section: 9,0 X 7,81,0 9,0 X 7,81,0 | 357 972 742 |
| (70) | single wiring seal for wire cross section: 16,2 X 15,06,0 16,2 X 15,06,0 | 357 972 744 A |
| (77) | Flat contact housing Coupling elementwiring harness for anti-lockbrakesystem -abs- Automatic+1 Z | 191 972 752 |
| (77) | Flat contact housing Coupling elementwiring harness for steeringcolumn combination switch | 191 972 751 |
| (77) | Flat contact housing Coupling elementwiring harness for anti-lockbrakesystem -abs- Automatic+1 Z | 1J0 972 752 |
| (77) | Flat contact housing Coupling elementfor vehicles with electroni-cally regulated air condit. 1 Z 1Z | 191 972 776 |
| (77) | flat connector housingfor vehicles with electroni-cally regulated air condit.Coupling element Wiring set for dash panel Wiring set for parking anddriving light switch | 191 972 761 |
| (81) | Bungs 9,0 9,0 | 357 972 842 |
| (85) | Flat contact housingfor models withtowing facility Connection piece Radiator fan Slot: CQ automatic/Air cond.+1 Z CQ | 1H0 973 204 |
| (85) | Flat contact housingfor models withtowing facility Slot: CN Automatic+1 Z CN | 3A0 973 712 |
| (85) | flat contact housing withgasket Slot: BW Air cond.+1 Z BW | 1H0 973 204 A |
| (92) | Flat contact housing | 1H0 973 763 |
| (92) | Flat contact housing withcontact locking mechanism Slot: BV Air cond.+1 Z BV | 3A0 973 715 |
| 11 | corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5 | N 906 355 17 |
| 12 | corrugated pipe in coils of 5 m'order unit 5' 10 10 | N 907 735 01 |
| 13 | corrugated pipe in coils of 5 m'order unit 5' 17 17 | N 907 737 01 |
| 13 | corrugated pipe 1000 X 17 X 21 1000 X 17 X 21 | 535 971 820 B |
| 14 | corrugated pipe 1000 X 22 X 25 1000 X 22 X 25 | 535 971 820 C |
| 14 | corrugated pipe in coils of 5 m'order unit 5' 22 22 | N 907 738 01 |
| 16 | Flat contact housing withcontact locking mechanism Slot: F F | 357 903 968 |
| 17 | Flat contact housing | 443 906 231 |
| 19 | Flat contact housing withcontact locking mechanism | 6N0 973 702 |
| 2 | Cable ties 3,6 X 246 3,6 X 246 | N 020 902 2 |
| 21 | Flat contact housing Connection piece Potential distributor Hall sensor | 701 906 231 |
| 22 | Flat contact housing Connection piece Radiator fan | 1H0 906 233 |
| 23 | flat contact housing withgasket Connection piece Exhaust gas recirculationwastegatetemperature switchby-pass air cut-off valve External temperature sensor Temperature sensor Coupling element Switch for accelerator pedal automatic air condit. air condit. | 037 906 240 |
| 24 | flat contact housing withgasket | 1H0 906 370 K |
| 24 | flat contact housing withgasket | 1H0 906 365 |
| 25 | Seal 16 X 105 16 X 105 | 1H0 906 375 |
| 26 | Bracket protective cover | 357 906 732 A |
| 27 | Flat contact housing Connection piece Switch | 357 906 752 |
| 28 | Control unit for glow plugfor vehicles with glow plugheater | 191 911 261 B |
| 29 | Flat contact housing Slot: Z 2 Z 2 | 357 915 971 A |
| 3 | Washer 5,3 X 9,5 X 1 5,3 X 9,5 X 1 | N 011 556 2 |
| 30 | Flat contact housing Slot: 30,30 B 30,30 B | 357 915 971 B |
| 32 | Flat contact housing Slot: Z 1 Z 1 | 357 915 971 C |
| 34 | fuse holderfor fuse N 102 519 04 N 102 519 04 | 3A0 937 501 A |
| 36 | Flat contact housing withcontact locking mechanism STECKPLATZ: C C | 357 955 968 |
| 37 | Flat contact housing withcontact locking mechanism Slot: S S | 357 955 968 A |
| 38 | Cable guide Connection piecewater box | 1H0 971 615 M |
| 4 | Spring washer 6 6 | N 012 226 5 |
| 40 | Cable holder | 1H0 971 615 S |
| 40A | Cable guide | 1H1 971 615 A |
| 40B | Cable guide | 1H2 971 615 C |
| 40C | Formed partt-piece | 1H0 971 617 C |
| 40D | Formed part | 1H0 971 617 D |
| 41 | Flat contact housing Connection piece Wiper motor | 171 971 835 A |
| 42 | Grommet | 1H0 971 840 C |
| 46 | Grommet 39/5 39/5 | 1H0 971 905 H |
| 47 | Grommet 39/6 39/6 | 1H0 971 905 J |
| 48 | Grommet 39/12 39/12 | 1H0 971 905 K |
| 49 | terminal Connection piece Radiator fan | 1H0 971 939 E |
| 5 | fillister hd. bolt M 5 X 8 M 5 X 8 | N 014 128 11 |
| 50 | Flat contact housing withcontact locking mechanism Slot: G 1 G 1 | 357 971 967 |
| 51 | Flat contact housing withcontact locking mechanism Slot: G 2 G 2 | 357 971 967 A |
| 52 | Flat contact housing withcontact locking mechanism Slot: A 2 A 2 | 357 971 968 |
| 53 | Flat contact housing withcontact locking mechanism Slot: A 1 A 1 | 357 971 968 A |
| 54 | Flat contact housing Connection piece Spray nozzle, heated | 161 971 989 C |
| 55 | Discont. / replace: 6 N 0 973 702 6 N 0 973 702 | — |
| 57 | Flat contact housing Coupling element Wiring set for dash panel Air cond.+1 Z | 191 972 702 |
| 57 | Flat contact housing withcontact locking mechanism Coupling element Wiring set for dash panel Air cond.+1 Z | 1J0 972 702 |
| 58 | Flat contact housing Coupling element Wiring set for dash panelfor wiring set Immobiliser | 535 972 701 |
| 6 | fillister hd. bolt M 6 X 10 M 6 X 10 | N 014 138 7 |
| 60 | Flat contact housing Coupling elementwiring harness for steeringcolumn combination switch | 1J0 972 704 |
| 60 | Flat contact housing Coupling elementwiring harness for steeringcolumn combination switch | 191 972 704 |
| 61 | flat connector housing Coupling element Combi-instrument | 191 972 713 |
| 62 | Flat contact housing Coupling element Wiring harness for headlightrange control | 1J0 972 732 |
| 62 | Flat contact housing Coupling element Wiring harness for headlightrange control | 191 972 732 |
| 64 | single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0 | 357 972 740 D |
| 65 | single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0 | 357 972 741 |
| 66 | single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5 | 357 972 741 A |
| 67 | single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5 | 357 972 741 B |
| 69 | single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5 | 357 972 742 B |
| 6A | fuse 50 A 50 A | N 017 125 1 |
| 7 | flat fuse 29/2 x 8 | N 102 519 05 |
| 70 | single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0 | 357 972 742 C |
| 77 | flat contact housing withgasket Connection piece Turn signal indicator Pump Selector on the gearbox External temperature sensorfor vehicles with electroni-cally regulated air condit.Coupling elementfor compressorfor wiring set Alternator air condit. | 357 972 752 |
| 78 | Flat contact housing Connection piecespeed senderfor vehicles with glow plugheater Control unit for glow plug | 357 972 753 |
| 79 | flat contact housing withgasket Connection piece Starter | 357 972 771 |
| 8 | Cable ties 6,5 X 175 6,5 X 175 | N 900 603 01 |
| 8 | Cable ties 4,6 X 200 4,6 X 200 | N 906 661 01 |
| 80 | Bungs 4,0 X 7,8 4,0 X 7,8 | 357 972 840 |
| 81 | Bungs 5,6 X 7,8 5,6 X 7,8 | 357 972 841 |
| 83 | flat contact housing withgasket Coupling elementharness for engine compartment | 3A0 973 103 |
| 84 | round connector housing | 1H0 973 103 A |
| 85 | flat contact housing withgasket Connection piecethermal switch Radiator fan | 1H0 973 203 |
| 90 | Flat contact housing Connection pieceair flow meter Coupling elementswitches at pedal cluster | 3A0 973 713 |
| 92 | Flat contact housing Coupling element Injection pump | 3A0 973 734 |
| 93 | Retainer, swivel 1 Z 1Z | 028 972 335 A |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Engine codes on this plate
- 1Z, AEY, AFN, AHU, ALE
- Variant tags
- diesel
- Factory group
- 06 Wiring looms
- Factory subgroup
- 971054
Related factory diagrams
Other published wiring looms plates for the Mk3 Golf in this catalogue.
The complete Mk3 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the harness engine compartment diagram for the Mk3 Golf?
- This diagram lists 190 OEM part numbers for the Mk3 Golf. The first three are N 103 113 04, 1H1 971 617 A and 1H2 971 077 HT.
- Which Mk3 Golf years and engines does this diagram cover?
- This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes 1Z, AEY, AFN, AHU and ALE.
- Where is the complete Mk3 Golf factory parts catalogue?
- The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
