Which VW part numbers are on the harness engine compartment aaa diagram for the Mk3 Golf?

This diagram lists 67 OEM part numbers for the Mk3 Golf. The first three are 1H0 971 842 F, 1H0 971 615 M and 000 979 133 A.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The parts on it carry the engine code AAA.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Harness engine compartment aaa — Mk3 Golf Wiring Looms (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Wiring set for engine

Generation: Mk3 1993 - 1996 (MEX) Group: Wiring looms Parts: 69 Primary OEM: 1H0 971 842 F, 1H0 971 615 M, 000 979 133 A

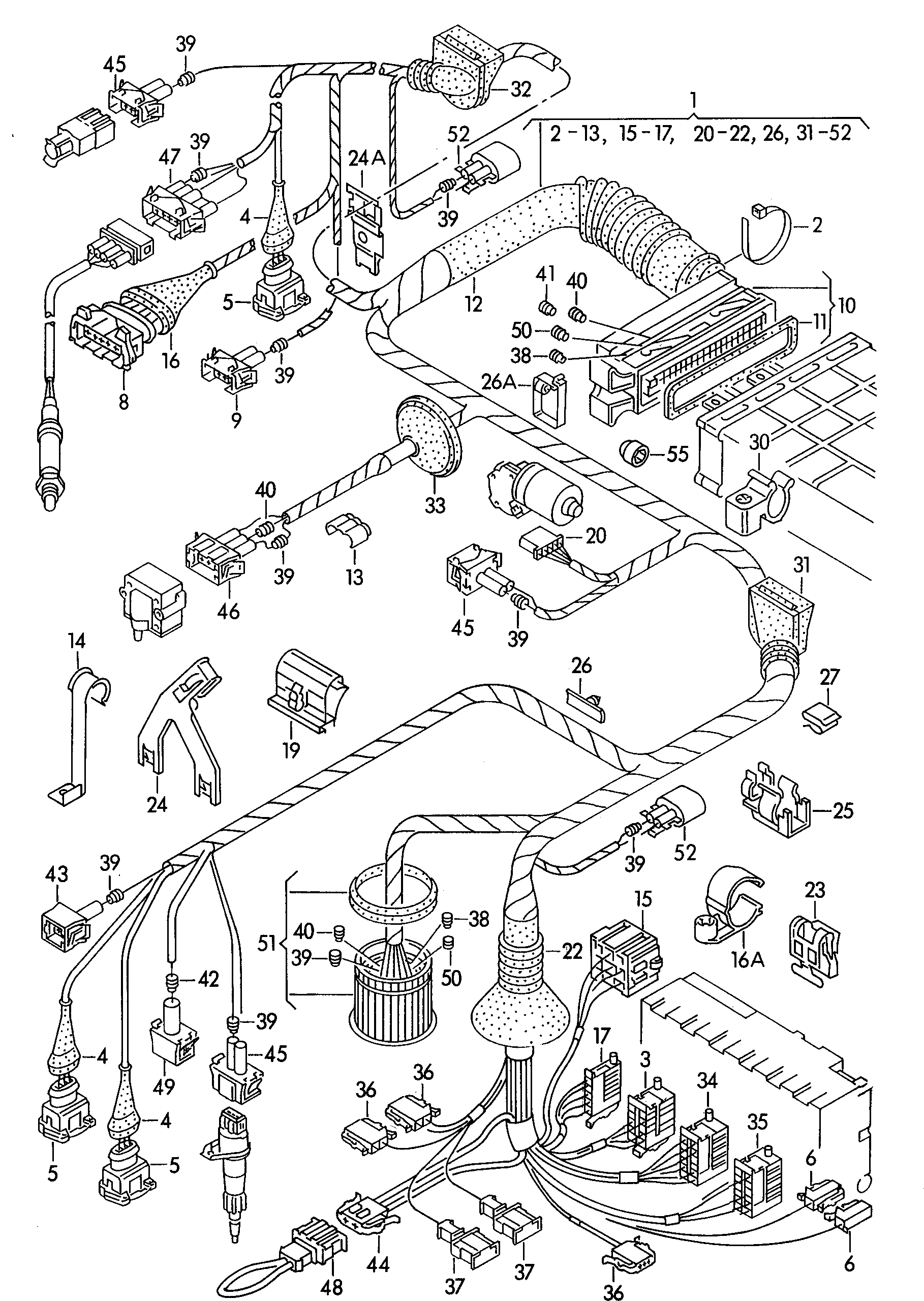

Harness engine compartment aaa for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 971060 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 67 OEM part numbers across 69 catalogued positions including 1H0 971 842 F, 1H0 971 615 M and 000 979 133 A. Parts on this plate carry the engine code AAA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 67 OEM part numbers across 69 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for engine compartment AAA AAA	—
	Cable holder Connection piece Line Lambda probe Heat shield F 1 H-R-064 134>>	1H0 971 842 F
	harness for engine compartment F >> 1 H-S-012 882 AAA AAA	—
-	Cable guide Connection piecewater box	1H0 971 615 M
-	1 set single wires each with 2 gold-plated contacts,in bag of 5'Order qty. 5'	000 979 133 A
-	1 set single wires each with 2 contacts,in bag of 5'Order qty. 5'	000 979 225
-	corrugated pipe in coils of 5 m'order unit 5' 13 13	N 107 327 01
-	corrugated pipe in coils of 5 m'order unit 5' 13 13	N 107 327 01
-	Cable holder Connection piece	1HM 971 843 G
-	Bracket Connection piece Flat contact housing Knock sensorspeed sensor	357 971 899 G
-	Clip Connection piece Line Control unitwater box 20 X 34 20 X 34	1H2 971 848
-	terminal Connection piece	1HM 971 843 B
-	1 set single wires each with 2 contacts,in bag of 5'Order qty. 5'	000 979 133
(1)	harness for engine compartment automatic	1HM 971 072 CG
(19)	Clip Connection piece	1H0 971 615 J
(23)	terminal Connection piece Line Lambda probe Heat shieldfor models with catalystcontrol	1H0 971 842 A
(27)	Retaining clip Connection piece Linedistance sensorabutment air condit.	811 971 848 B
(36)	Flat contact housing for contact:	1H0 972 702 A
(37)	Flat contact housing Coupling elementautomatic	191 972 724
(5)	Flat contact housing Connection piece Knock sensorspeed sensor	443 906 233
(8)	Flat contact housing	025 906 238 B
1	harness for engine compartment	1HM 971 072 CF
10	flat contact housing withgasket Connection piece Control unit	1H0 906 370 J
11	Seal	1H0 906 375
12	Protective cap 27/19 27/19	1H0 906 376
13	Bracket protective cover	357 906 733 B
14	Bracket Connection piece Retainer for reservoir	1H0 907 324
15	relay plate	161 937 501 B
16	Grommet	853 945 521
16A	Cable tie with holder for weld pin:Connection piecesuspension strut dome 10 X 187 10 X 187	N 906 437 01
17	Flat contact housing withcontact locking mechanism Slot: S S	357 955 968 A
19	Clip Connection piece Line Starter Switchfor reversing light	1H0 971 615 D
2	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
20	Flat contact housing Connection piece Wiper motor	171 971 835 A
22	Grommet 12,5 X 46 12,5 X 46	1H0 971 840 B
23	terminal Connection piece Line Lambda probe Heat shield F >> 1 H-R-064 133	1H0 971 842 B
24A	Bracket Connection piece Front cross panelwater box Linebrake pad wear display	1H0 971 845 G
25	Bracket Connection piece Linebrake pad wear display	1H0 971 845 B
26	Bundling clip f wiring harness	4B0 971 848
26A	Clip Connection piece Line Control unitwater box 20 X 34 20 X 34	1H2 971 848
27	Retaining clip Connection piece Line Lambda probe Bracket	811 971 848 B
3	Flat contact housing withcontact locking mechanism Slot: F F	357 903 968
31	Grommet 39/19 39/19	1H0 971 905 D
32	Grommet 31/15 31/15	1H0 971 905 E
33	Grommet 46/7 46/7	1H0 971 913 B
34	Flat contact housing withcontact locking mechanism Slot: G 1 G 1	357 971 967
35	Flat contact housing withcontact locking mechanism Slot: G 2 G 2	357 971 967 A
36	Flat contact housing withcontact locking mechanism Connection piece air condit.for diagnostic plugharness for vehicle lighting	1J0 972 702
36	Flat contact housing Connection piece air condit.for diagnostic plugharness for vehicle lighting	191 972 702
37	flat connector housing Coupling element Instrument housing MFA,BVA MFA,BVA	191 972 711
38	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
39	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
4	Grommet 18 X 20,5 18 X 20,5	443 906 102 B
40	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
41	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
42	single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0	357 972 742 C
43	flat contact housing withgasket Coupling element Alternator	357 972 751
44	Flat contact housing Coupling elementautomatic	1J0 972 752
45	flat contact housing withgasket Connection piece Temperature sensor Spray nozzle, heated Selector on the gearbox	357 972 752
46	Flat contact housing Connection piece Transformer	357 972 753
47	Flat contact housing Connection piece Lambda probe	357 972 754 J
48	flat connector housing Connection pieceautomatic	191 972 762
49	flat contact housing withgasket Connection piece Starter Instrument housing	357 972 771
50	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
51	flat contact housing withgasket Connection piece Wiring set for engine	1H0 973 103 B
52	flat contact housing withgasket Connection piecebrake pad wear display see illustration: 927-000 927-000	357 973 202
55	Protective cap 10 X 12 10 X 12	N 904 502 01
6	Flat contact housing Potential distributor Hall sensor	701 906 231
9	flat contact housing withgasket Connection pieceexhaust recirculation valve	037 906 240

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Engine codes on this plate: AAA
Factory group: 06 Wiring looms
Factory subgroup: 971060
