Harness engine compartment aaa — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 145 Primary OEM: N 103 113 03, 1H1 971 617 A, 1H1 971 077 CK

Harness engine compartment aaa for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971048 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 143 OEM part numbers across 145 catalogued positions including N 103 113 03, 1H1 971 617 A and 1H1 971 077 CK. Parts on this plate carry the engine code AAA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 143 OEM part numbers across 145 numbered positions.

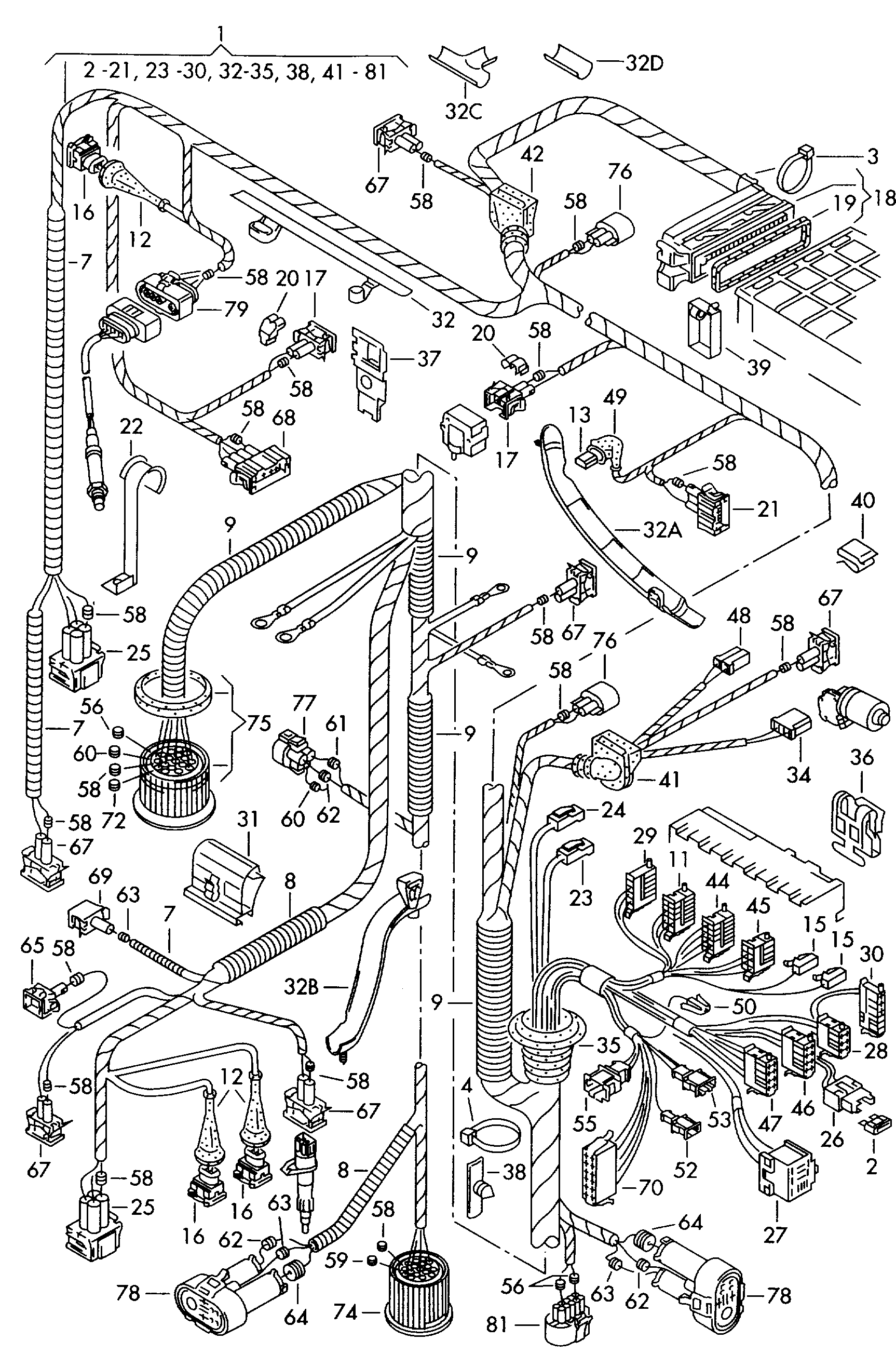

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for engine compartment AAA AAA	—
	harness for engine compartment AAA AAA	—
-	Insulating tape 19 19	N 103 113 03
-	Formed partt-piece diesel eng.	1H1 971 617 A
(1)	harness for engine compartmentfor vehicles with air condit. automatic	1H1 971 077 CK
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit. automatic	1H1 971 077 CP
(1)	harness for engine compartment "J.."	1H1 971 077 CF
(1)	harness for engine compartmentfor models withtowing facility "J.."	1H1 971 077 CG
(1)	harness for engine compartmentfor vehicles with air condit. "J.."	1H1 971 077 CL
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit. "J.."	1H1 971 077 CQ
(1)	harness for engine compartment "J..":automatic	1H1 971 077 CH
(1)	harness for engine compartmentfor vehicles with air condit. "J..":automatic	1H1 971 077 CM
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit. "J..":automatic	1H1 971 077 CR
(1)	harness for engine compartmentfor vehicles with air condit.	1H1 971 077 CJ
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H1 971 077 CN
(1)	harness for engine compartment	1H1 971 077 QQ
(1)	harness for engine compartmentfor models withtowing facilityfor vehicle use in warmclimatesfor vehicle use in coldclimates	1H1 971 077 QR
(1)	harness for engine compartmentfor vehicles with air condit.	1H1 971 077 QT
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H1 971 077 RD
(1)	harness for engine compartment TAXIhire car Local deliv.vangerman armypolice	1H1 971 077 QR
(1)	harness for engine compartment automatic	1H1 971 077 QS
(1)	harness for engine compartmentfor vehicles with air condit. automatic	1H1 971 077 RA
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit. automatic	1H1 971 077 RE
(1)	harness for engine compartmentfor vehicles with air condit. "J.."	1H1 971 077 QT
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit. "J.."	1H1 971 077 RD
(1)	harness for engine compartmentfor vehicles with air condit. "J..":automatic	1H1 971 077 RA
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit. "J..":automatic	1H1 971 077 RE
(1)	harness for engine compartment	1H2 971 077 CC
(1)	harness for engine compartmentfor models withtowing facilityfor vehicle use in warmclimatesfor vehicle use in coldclimates	1H2 971 077 QD
(1)	harness for engine compartmentfor models withtowing facilityfor vehicle use in warmclimatesfor vehicle use in coldclimates	1H2 971 077 CD
(1)	harness for engine compartmentfor vehicles with air condit.	1H2 971 077 QF
(1)	harness for engine compartmentfor vehicles with air condit.	1H2 971 077 CJ
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H2 971 077 QK
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H2 971 077 CN
(1)	harness for engine compartment TAXIhire car Local deliv.vangerman armypolice	1H2 971 077 QD
(1)	harness for engine compartment TAXIhire car Local deliv.vangerman armypolice	1H2 971 077 CD
(1)	harness for engine compartment automatic	1H2 971 077 QE
(1)	harness for engine compartment automatic	1H2 971 077 CE
(1)	harness for engine compartmentfor vehicles with air condit. automatic	1H2 971 077 QG
(1)	harness for engine compartmentfor vehicles with air condit. automatic	1H2 971 077 CK
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit. automatic	1H2 971 077 QL
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit. automatic	1H2 971 077 CP
(1)	harness for engine compartment "J.."	1H2 971 077 CF
(1)	harness for engine compartmentfor models withtowing facility "J.."	1H2 971 077 CG
(1)	harness for engine compartmentfor vehicles with air condit. "J.."	1H2 971 077 CL
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit. "J.."	1H2 971 077 CQ
(1)	harness for engine compartment "J..":automatic	1H2 971 077 CH
(1)	harness for engine compartmentfor vehicles with air condit. "J..":automatic	1H2 971 077 QG
(1)	harness for engine compartmentfor vehicles with air condit. "J..":automatic	1H2 971 077 CM
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit. "J..":automatic	1H2 971 077 QL
(1)	harness for engine compartment	1H2 971 077 QC
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit. "J..":automatic	1H2 971 077 CR
(1)	harness for engine compartment	1H1 971 077 CC
(1)	harness for engine compartmentfor models withtowing facilityfor vehicle use in warmclimatesfor vehicle use in coldclimates	1H1 971 077 CD
(1)	harness for engine compartment automatic	1H1 971 077 CE
(13)	Flat contact housing withcontact locking mechanism Connection piece Switchbrake fluid	6N0 973 702
(41)	Grommet 39/13 39/13	1H0 971 905 G
(42)	Grommet 39/6 39/6	1H0 971 905 J
(50)	Flat contact housing withcontact locking mechanism Coupling element Wiring set for dash panel air condit.	1J0 972 702
(50)	Flat contact housing Coupling element Wiring set for dash panel air condit.	191 972 702
(53)	Flat contact housing withcontact locking mechanism Coupling elementwiring harness for anti-lockbrakesystem -abs- automatic	191 972 725
(64)	Flat contact housing Coupling elementwiring harness for steeringcolumn combination switch	191 972 751
(65)	flat connector housing Coupling element Wiring set for parking anddriving light switch	191 972 761
(67)	Flat contact housing Coupling elementwiring harness for anti-lockbrakesystem -abs- automatic	191 972 752
(67)	Flat contact housing Coupling elementwiring harness for anti-lockbrakesystem -abs- automatic	1J0 972 752
(7)	corrugated pipe in coils of 5 m'order unit 5' 5000 X 13 X 16 5000 X 13 X 16	N 102 871 01
(7)	corrugated pipe in coils of 5 m'order unit 5' 10 10	N 907 735 01
(7)	corrugated pipe in coils of 5 m'order unit 5' 13 13	N 907 736 01
(72)	Bungs 9,0 9,0	357 972 842
(79)	Flat contact housing "J.."	3A0 973 712
11	Flat contact housing withcontact locking mechanism Slot: F F	357 903 968
12	Grommet 13,5 X 19 13,5 X 19	443 906 102 G
15	Flat contact housing Connection piece Potential distributor Hall sensor	701 906 231
16	Flat contact housing Connection piece Knock sensorspeed sender	443 906 233
17	flat contact housing withgasket Connection piece Valve Switch for accelerator pedalby-pass air cut-off valvetemperature switch External temperature sensor Temperature sensorfor vehicles with electroni-cally regulated air condit. AKF automatic air condit. air condit. AKF	037 906 240
18	flat contact housing withgasket	1H0 906 370 K
18	flat contact housing withgasket	1H0 906 365
19	Seal 16 X 105 16 X 105	1H0 906 375
2	flat fuse 19/2 x 5	N 017 131 15
20	Bracket protective cover	357 906 732 A
21	Flat contact housing	357 906 752
22	Bracket	1H0 907 324 B
23	Flat contact housing Slot: Z 2 Z 2	357 915 971 A
24	Flat contact housing Slot: 30,30 B 30,30 B	357 915 971 B
25	Flat contact housing Connection piece Switchtemperature switch air condit.	357 919 754
26	fuse box forflat fusesfor vehicles with electroni-cally regulated air condit.	1H0 937 530
26	fuse box forflat fusesfor vehicles with electroni-cally regulated air condit.	161 937 501
27	relay plate	161 937 501 B
28	Flat contact housing withcontact locking mechanism Slot: C C	357 955 968
29	Flat contact housing withcontact locking mechanism Slot: S S	357 955 968 A
3	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
30	Flat contact housing withcontact locking mechanism Slot: N N	357 959 968 B
31	Clip Connection piece Line Starter	1H0 971 615 P
32	Cable holder	1H0 971 615 S
32A	Cable guide	1H1 971 615 A
32B	Cable guide	1H2 971 615 C
32C	Formed partt-piece diesel eng.	1H0 971 617 C
32D	Formed part	1H0 971 617 D
34	Flat contact housing Connection piece Wiper motor	171 971 835 A
35	Grommet	1H0 971 840 C
38	Bundling clip f wiring harness	4B0 971 848
38	Cable holder	1H0 971 848 F
39	Clip Connection piece Line Control unitwater box 20 X 34 20 X 34	1H2 971 848
4	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
4	Cable ties 6,5 X 175 6,5 X 175	N 900 603 01
40	Retaining clip	811 971 848 B
41	Grommet 39/5 39/5	1H0 971 905 H
42	Grommet 39/12 39/12	1H0 971 905 K
44	Flat contact housing withcontact locking mechanism Slot: G 1 G 1	357 971 967
45	Flat contact housing withcontact locking mechanism Slot: G 2 G 2	357 971 967 A
46	Flat contact housing withcontact locking mechanism Slot: A 2 A 2	357 971 968
47	Flat contact housing withcontact locking mechanism Slot: A 1 A 1	357 971 968 A
48	Flat contact housing Connection piece Spray nozzle, heated	161 971 989 C
50	Flat contact housing Coupling element Wiring set for dash panel	535 972 701
52	flat connector housing Coupling element Combi-instrument	191 972 711
53	flat connector housing Coupling element Combi-instrument	191 972 713
55	Flat contact housing Coupling element Wiring harness for headlightrange control	191 972 732
55	Flat contact housing Coupling element Wiring harness for headlightrange control	1J0 972 732
56	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
58	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
59	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
60	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
61	single wiring seal for wire cross section: 9,0 X 7,81,0 9,0 X 7,81,0	357 972 742
62	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B
63	single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0	357 972 742 C
64	single wiring seal for wire cross section: 16,2 X 15,06,0 16,2 X 15,06,0	357 972 744 A
65	flat contact housing withgasket Coupling element Alternator	357 972 751
67	flat contact housing withgasket Connection piece Turn signal indicator Selector on the gearbox Pumpsolenoid External temperature sensor Coupling element Temperature sensor -KAT- air condit. air condit."J.." -KAT-	357 972 752
68	Flat contact housing Connection piece Air mass meter	357 972 754
69	flat contact housing withgasket Connection piece Starter	357 972 771
7	corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5	N 906 355 17
70	Flat contact housing Coupling element Wiring set for dash panelfor vehicles with electroni-cally regulated air condit.	191 972 776
72	Bungs 4,0 X 7,8 4,0 X 7,8	4B0 972 840
72	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
74	round connector housing	1H0 973 103 A
75	flat contact housing withgasket	1H0 973 103 B
76	flat contact housing withgasket Coupling elementbrake pad wear display	357 973 202
77	flat contact housing withgasket Connection piecethermal switch Radiator fan	1H0 973 203
78	Flat contact housing Connection piece Radiator fan	1H0 973 204
79	Flat contact housing Connection piece Lambda probe	3A0 973 204
8	corrugated pipe in coils of 5 m'order unit 5' 17 17	N 907 737 01
8	corrugated pipe 1000 X 17 X 21 1000 X 17 X 21	535 971 820 B
81	Flat contact housing withcontact locking mechanism	3A0 973 715
9	corrugated pipe 1000 X 22 X 25 1000 X 22 X 25	535 971 820 C
9	corrugated pipe in coils of 5 m'order unit 5' 22 22	N 907 738 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AAA
Factory group: 06 Wiring looms
Factory subgroup: 971048
