Which VW part numbers are on the harness engine compartment abf diagram for the Mk3 Golf?

This diagram lists 100 OEM part numbers for the Mk3 Golf. The first three are N 103 113 04, N 904 288 01 and 1H1 971 077 JF.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine code ABF.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Harness engine compartment abf — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 102 Primary OEM: N 103 113 04, N 904 288 01, 1H1 971 077 JF

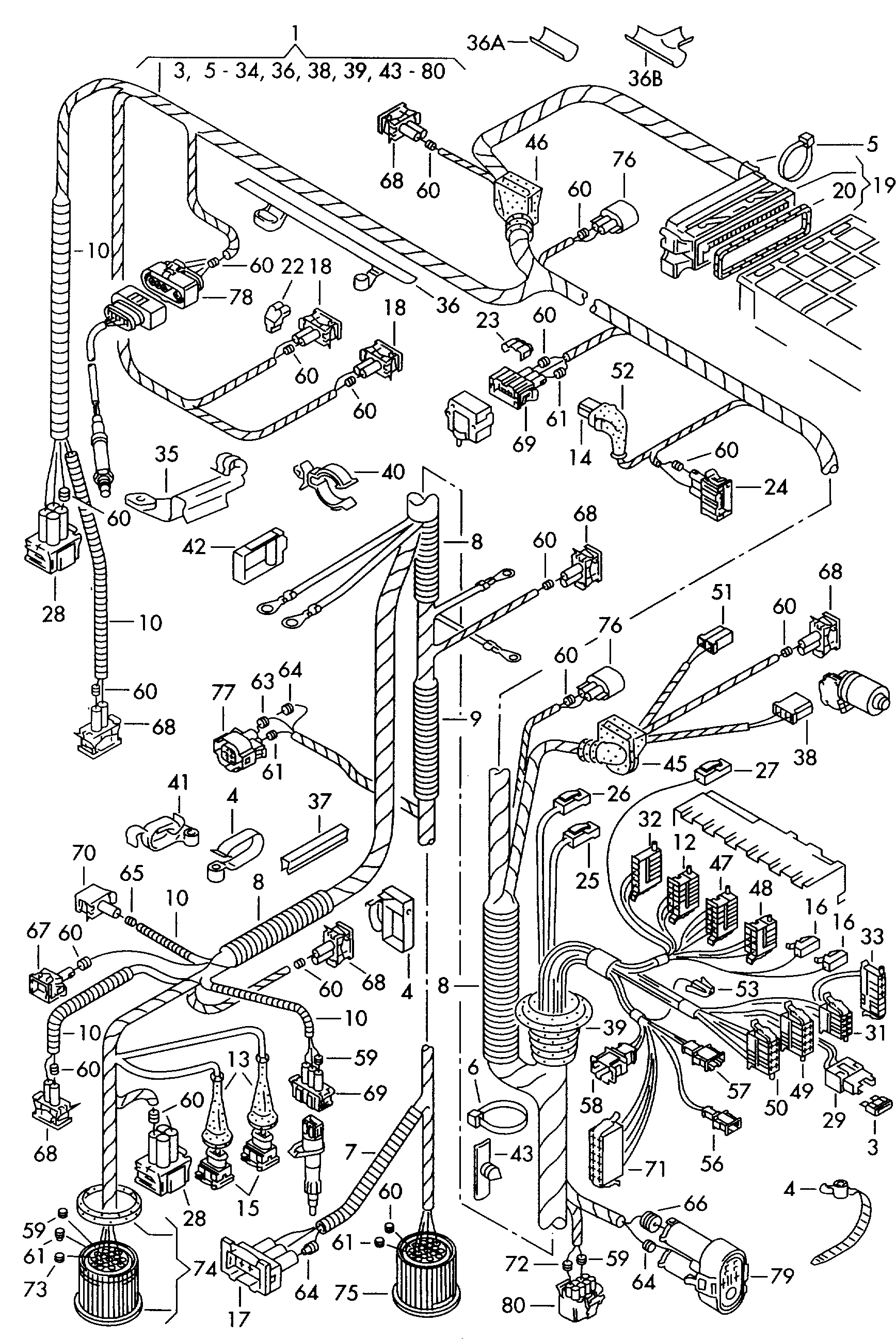

Harness engine compartment abf for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971046 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 100 OEM part numbers across 102 catalogued positions including N 103 113 04, N 904 288 01 and 1H1 971 077 JF. Parts on this plate carry the engine code ABF. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 100 OEM part numbers across 102 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for engine compartment ABF ABF	—
	harness for engine compartment ABF ABF	—
-	Insulating tape 0,15 X 19 X 10000 0,15 X 19 X 10000	N 103 113 04
-	Cable tie with holder for weld pin: 10 X 185/M 5 10 X 185/M 5	N 904 288 01
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit. "J.."	1H1 971 077 JF
(1)	harness for engine compartment	1H2 971 077 FN
(1)	harness for engine compartmentfor vehicles with air condit.	1H2 971 077 FP
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H2 971 077 FQ
(1)	harness for engine compartmentfor vehicles with air condit. "J.."	1H2 971 077 FR
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit. "J.."	1H2 971 077 FS
(1)	harness for engine compartment	1H1 971 077 FN
(1)	harness for engine compartmentfor vehicles with air condit.	1H1 971 077 FP
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H1 971 077 FQ
(1)	harness for engine compartmentfor vehicles with air condit. "J.."	1H1 971 077 JE
(14)	Flat contact housing withcontact locking mechanism Connection piece Switchbrake fluid	6N0 973 702
(26)	Flat contact housing Connection piecefor fuse box/relay plate "J.."	357 907 971 B
(29)	relay plate "J.."	161 937 501 B
(40)	Cable guide Hose	3A0 971 615 B
(45)	Grommet 39/13 39/13	1H0 971 905 G
(46)	Grommet 39/6 39/6	1H0 971 905 J
(53)	Flat contact housing Connection piecefor fuse box/relay plate "J.."	1H0 972 702
(53)	Flat contact housing Coupling element Wiring set for dash panel air condit.	191 972 702
(53)	Flat contact housing withcontact locking mechanism Coupling element Wiring set for dash panel air condit.	1J0 972 702
(58)	Flat contact housing Coupling elementwiring harness for steeringcolumn combination switch	191 972 751
(58)	flat connector housing Coupling element Wiring set for parking anddriving light switch	191 972 761
(61)	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
10	corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5	N 906 355 17
12	Flat contact housing withcontact locking mechanism Slot: F F	357 903 968
13	Grommet 18 X 20,5 18 X 20,5	443 906 102 B
15	Flat contact housing Connection piece Knock sensor	443 906 233
16	Flat contact housing Connection piece Potential distributor Hall sensor air condit.	701 906 231
17	Flat contact housing Connection piece Radiator fan	1H0 906 233
18	flat contact housing withgasket Connection pieceactivated carbon filter system Valvetemperature switchby-pass air cut-off valve External temperature sensor For deactivating the air-conditioning system NTC air condit. air condit. air condit. NTC	037 906 240
19	flat contact housing withgasket	1H0 906 365
19	flat contact housing withgasket	1H0 906 370 K
20	Seal 16 X 105 16 X 105	1H0 906 375
22	Bracket protective cover	357 906 732 A
23	Bracket protective cover	357 906 733 B
24	Flat contact housing	357 906 752
25	Flat contact housing Slot: Z 2 Z 2	357 915 971 A
26	Flat contact housing Slot: 30,30 B 30,30 B	357 915 971 B
27	Flat contact housing Slot: Z 1 Z 1	357 915 971 C
28	Flat contact housing Connection piece Switchtemperature switchfor vehicles with electroni-cally regulated air condit. air condit.	357 919 754
29	fuse box forflat fusesfor vehicles with electroni-cally regulated air condit.	161 937 501
29	fuse box forflat fusesfor vehicles with electroni-cally regulated air condit.	1H0 937 530
3	flat fuse 19/2 x 5 for vehicles with electroni-cally regulated air condit.	N 017 131 15
31	Flat contact housing withcontact locking mechanism Slot: C C	357 955 968
32	Flat contact housing withcontact locking mechanism Slot: S S	357 955 968 A
33	Flat contact housing withcontact locking mechanism Slot:for vehicles with electroni-cally regulated air condit. N N	357 959 968 B
35	Cable holder	1H0 971 615 R
36	Cable holder	1H0 971 615 S
36A	Formed part	1H0 971 617 B
36B	Formed partt-piece	1H0 971 617 C
37	Cover Connection piece Side member Cross panel	1H1 971 813 A
38	Flat contact housing Connection piece Wiper motor	171 971 835 A
39	Grommet	1H0 971 840 C
40	Bracket air condit.	6K0 971 847 A
41	Clip 20 X 28 20 X 28	1H1 971 848
42	Clip 20 X 34 20 X 34	1H2 971 848
43	Cable holder	1H0 971 848 F
43	Bundling clip f wiring harness	4B0 971 848
45	Grommet 39/5 39/5	1H0 971 905 H
46	Grommet 39/12 39/12	1H0 971 905 K
47	Flat contact housing withcontact locking mechanism Slot: G 1 G 1	357 971 967
48	Flat contact housing withcontact locking mechanism Slot: G 2 G 2	357 971 967 A
49	Flat contact housing withcontact locking mechanism Slot: A 2 A 2	357 971 968
5	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
50	Flat contact housing withcontact locking mechanism Slot: A 1 A 1	357 971 968 A
51	Flat contact housing Connection piece Spray nozzle, heated	161 971 989 C
53	Flat contact housing Coupling element Wiring set for dash panel	535 972 701
56	flat connector housing Coupling element Combi-instrument	191 972 711
57	flat connector housing Coupling element Combi-instrument	191 972 713
58	Flat contact housing Coupling element Wiring harness for headlightrange control	1J0 972 732
58	Flat contact housing Coupling element Wiring harness for headlightrange control	191 972 732
59	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
6	Cable ties 6,5 X 175 6,5 X 175	N 900 603 01
6	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
60	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
61	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
63	single wiring seal for wire cross section: 9,0 X 7,81,0 9,0 X 7,81,0	357 972 742
64	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B
65	single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0	357 972 742 C
66	single wiring seal for wire cross section: 16,2 X 15,06,0 16,2 X 15,06,0	357 972 744 A
67	flat contact housing withgasket Coupling element Alternator	357 972 751
68	flat contact housing withgasket Connection piece Turn signal indicator Selector on the gearbox Pump Switch Temperature sensor Resistor Coupling element Temperature sensor Temperature sensor air condit."J.." air condit.	357 972 752
69	Flat contact housing Connection piecespeed sensor Transformer	357 972 753
7	corrugated pipe in coils of 5 m'order unit 5' 10 10	N 907 735 01
70	flat contact housing withgasket Connection piece Starter	357 972 771
71	Flat contact housingfor vehicles with electroni-cally regulated air condit.	191 972 776
72	Bungs 4,0 X 7,8 4,0 X 7,8	4B0 972 840
72	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
73	Bungs 5,6 X 7,8 5,6 X 7,8	357 972 841
74	flat contact housing withgasket Coupling elementharness for engine compartment	1H0 973 103
75	round connector housing	1H0 973 103 A
76	flat contact housing withgasket	357 973 202
77	flat contact housing withgasket Connection piece Switch Radiator fan	1H0 973 203
78	Flat contact housing Connection piece Lambda probe	3A0 973 204
79	flat contact housing withgasket Connection piece Radiator fan air condit.	1H0 973 204 A
8	corrugated pipe 1000 X 22 X 25 1000 X 22 X 25	535 971 820 C
8	corrugated pipe in coils of 5 m'order unit 5' 22 22	N 907 738 01
80	Flat contact housing withcontact locking mechanism Connection piece Control unit for radiatorfan air condit.	3A0 973 715
9	corrugated pipe 400 X 17 X 21 MM 400 X 17 X 21 MM	893 971 788 B

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: ABF
Factory group: 06 Wiring looms
Factory subgroup: 971046
