Which VW part numbers are on the harness engine compartment acc aam adz diagram for the Mk3 Golf?

This diagram lists 158 OEM part numbers for the Mk3 Golf. The first three are N 103 113 04, 1H0 971 617 B and 1H1 971 617 A.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes AAM, ACC and ADZ.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Harness engine compartment acc aam adz — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 167 Primary OEM: N 103 113 04, 1H0 971 617 B, 1H1 971 617 A

Harness engine compartment acc aam adz for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971038 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 158 OEM part numbers across 167 catalogued positions including N 103 113 04, 1H0 971 617 B and 1H1 971 617 A. Parts on this plate carry the engine codes AAM, ACC and ADZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 158 OEM part numbers across 167 numbered positions.

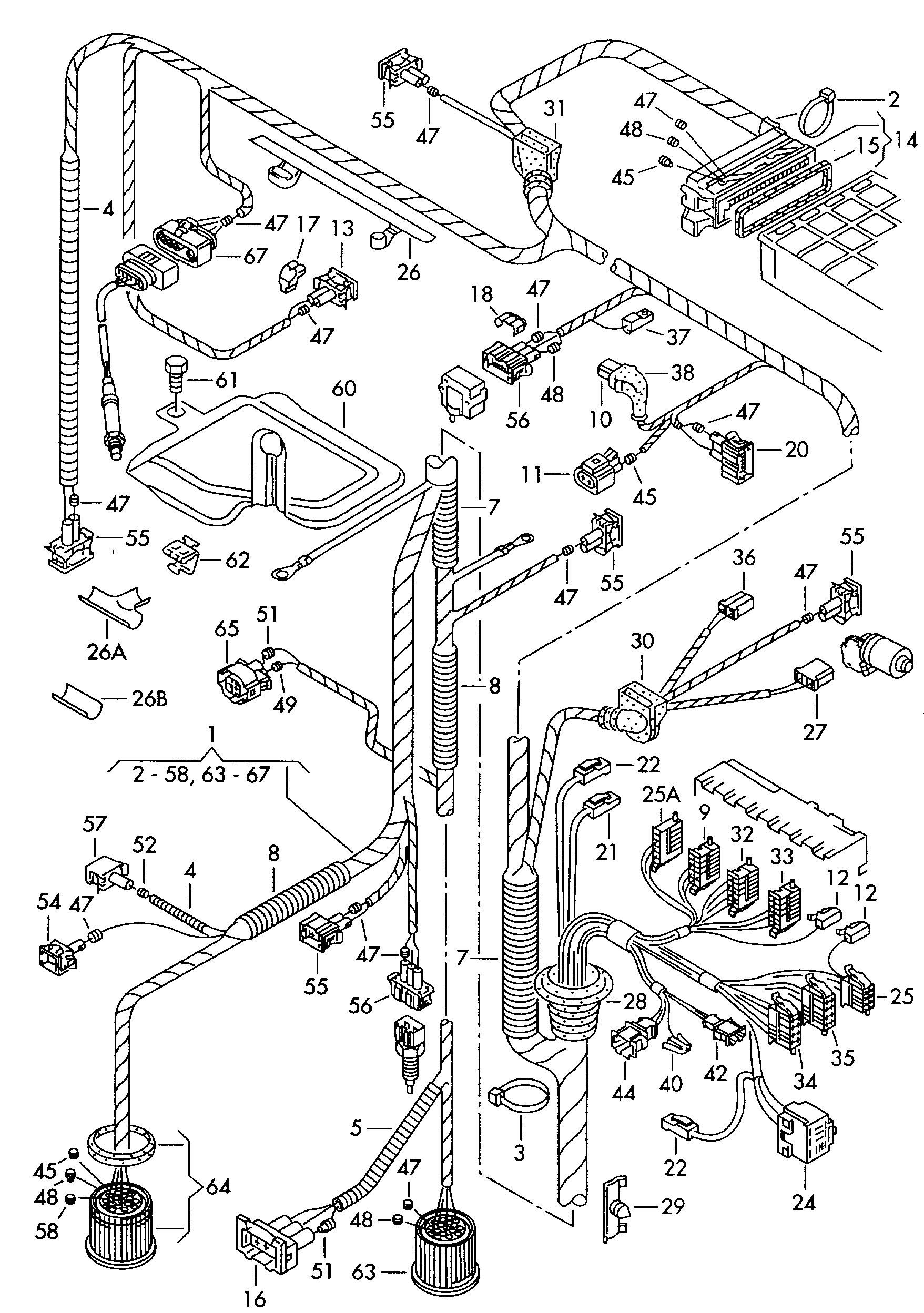

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for engine compartment ACC,AAM,ADZ AAMACCADZ	—
	harness for engine compartment F >> 1 H-VW 130 000F >> 1 H-VB 031 000F >> 1 H-VP 103 000* ACC,AAM,ADZ AAMACCADZ	—
	harness for engine compartment F 1 H-VW 130 001>>1 H-WW 033 000 F 1 H-VB 031 001>>1 H-WB 012 000 F 1 H-VP 103 001>>*1 H-WP 005 000 ACC,AAM,ADZ AAMACCADZ	—
	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.F >> 1 H-VW 130 000F >> 1 H-VB 031 000F >> 1 H-VP 103 000* ACC,AAM,ADZ AAMACCADZ	—
	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.F 1 H-VW 130 001>>1 H-WW 033 000 F 1 H-VB 031 001>>1 H-WB 012 000 F 1 H-VP 103 001>>*1 H-WP 005 000 ACC,AAM,ADZ AAMACCADZ	—
	harness for engine compartment F 1 H-WW 033 001>>F 1 H-WB 012 001>>F 1 H-WP 005 001>>* ACC,AAM,ADZ AAMACCADZ	—
	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.F 1 H-WW 033 001>>F 1 H-WB 012 001>>F 1 H-WP 005 001>>* ACC,AAM,ADZ AAMACCADZ	—
-	Insulating tape 0,15 X 19 X 10000 0,15 X 19 X 10000	N 103 113 04
-	Formed part	1H0 971 617 B
-	Formed partt-piece	1H1 971 617 A
(1)	harness for engine compartmentfor vehicles with air condit. "J.."	1H2 971 077 AG
(1)	harness for engine compartmentfor vehicles with air condit. "J..":automatic	1H2 971 077 AH
(1)	harness for engine compartmentfor vehicles with air condit. automatic	1H1 971 077 JM
(1)	harness for engine compartment	1H2 971 077 NC
(1)	harness for engine compartmentfor vehicles with air condit.	1H2 971 077 NH
(1)	harness for engine compartmentfor vehicles with air condit. automatic	1H2 971 077 NK
(1)	harness for engine compartmentfor vehicles with air condit. "J.."	1H2 971 077 NL
(1)	harness for engine compartmentfor vehicles with air condit. "J..":automatic	1H2 971 077 NF
(1)	harness for engine compartment	1H1 971 077 NF
(1)	harness for engine compartment	1H1 971 077 N
(1)	harness for engine compartmentfor vehicles with air condit.	1H1 971 077 NL
(1)	harness for engine compartment automatic	1H1 971 077 JJ
(1)	harness for engine compartmentfor vehicles with air condit. automatic	1H1 971 077 JM
(1)	harness for engine compartment	1H2 971 077 NC
(1)	harness for engine compartmentfor vehicles with air condit.	1H2 971 077 NH
(1)	harness for engine compartment automatic	1H2 971 077 NE
(1)	harness for engine compartment automatic	1H2 971 077 JK
(1)	harness for engine compartmentfor vehicles with air condit. "J..":automatic	1H2 971 077 JM
(1)	harness for engine compartmentfor vehicles with air condit. automatic	1H2 971 077 JN
(1)	harness for engine compartmentfor vehicles with air condit. "J..":ADZ	1H2 971 077 JQ
(1)	harness for engine compartmentfor vehicles with air condit. "J..":automatic	1H2 971 077 NF
(1)	harness for engine compartmentfor vehicles with air condit. automatic	1H2 971 077 NK
(1)	harness for engine compartmentfor vehicles with air condit. "J.."	1H2 971 077 NL
(1)	harness for engine compartment	1H1 971 077 NF
(1)	harness for engine compartment	1H0 971 077 A
(1)	harness for engine compartmentfor vehicles with air condit.	1H1 971 077 NL
(1)	harness for engine compartmentfor vehicles with air condit.	1H0 971 077 E
(1)	harness for engine compartment automatic	1H1 971 077 NR
(1)	harness for engine compartment automatic	1H0 971 077 J
(1)	harness for engine compartmentfor vehicles with air condit. automatic	1H1 971 077 PA
(1)	harness for engine compartmentfor vehicles with air condit. automatic	1H0 971 077 L
(1)	harness for engine compartment	1H2 971 077 NC
(1)	harness for engine compartment automatic	1H2 971 077 NE
(1)	harness for engine compartment automatic	1H2 971 077 JK
(1)	harness for engine compartmentfor vehicles with air condit. automatic	1H2 971 077 NK
(1)	harness for engine compartmentfor vehicles with air condit. "J..":automatic	1H2 971 077 NF
(1)	harness for engine compartmentfor vehicles with air condit. "J.."	1H2 971 077 NL
(1)	harness for engine compartment	1H1 971 077 NQ
(1)	harness for engine compartment	1H1 971 077 AJ
(1)	harness for engine compartment automatic	1H1 971 077 AL
(1)	harness for engine compartment	1H2 971 077 AJ
(1)	harness for engine compartment automatic	1H2 971 077 JR
(1)	harness for engine compartment automatic	1H2 971 077 AL
(1)	harness for engine compartment "J.."	1H2 971 077 AQ
(1)	harness for engine compartment "J..":automatic	1H2 971 077 AR
(1)	harness for engine compartment automatic	1H1 971 077 JQ
(1)	harness for engine compartment	1H2 971 077 NP
(1)	harness for engine compartment automatic	1H2 971 077 NQ
(1)	harness for engine compartment "J.."	1H2 971 077 JT
(1)	harness for engine compartment "J..":automatic	1H2 971 077 KA
(1)	harness for engine compartment	1H1 971 077 NQ
(1)	harness for engine compartment	1H1 971 077 AJ
(1)	harness for engine compartment automatic	1H1 971 077 JQ
(1)	harness for engine compartment	1H2 971 077 NP
(1)	harness for engine compartment automatic	1H2 971 077 NQ
(1)	harness for engine compartment "J.."	1H2 971 077 JT
(1)	harness for engine compartment "J..":automatic	1H2 971 077 KA
(1)	harness for engine compartment	1H0 971 077 H
(1)	harness for engine compartment automatic	1H1 971 077 PD
(1)	harness for engine compartment automatic	1H0 971 077 N
(1)	harness for engine compartment	1H2 971 077 NP
(1)	harness for engine compartment automatic	1H2 971 077 NQ
(1)	harness for engine compartment "J.."	1H2 971 077 JT
(1)	harness for engine compartment "J..":automatic	1H2 971 077 KA
(1)	harness for engine compartment	1H1 971 077 NQ
(1)	harness for engine compartment	1H1 971 077 N
(1)	harness for engine compartmentfor vehicles with air condit.	1H1 971 077 AB
(1)	harness for engine compartmentfor vehicles with air condit.	1H1 971 077 NL
(1)	harness for engine compartment automatic	1H1 971 077 P
(1)	harness for engine compartmentfor vehicles with air condit. automatic	1H1 971 077 AC
(1)	harness for engine compartment	1H2 971 077 N
(1)	harness for engine compartmentfor vehicles with air condit.	1H2 971 077 AB
(1)	harness for engine compartment automatic	1H2 971 077 P
(1)	harness for engine compartmentfor vehicles with air condit. automatic	1H2 971 077 AC
(1)	harness for engine compartment	1H1 971 077 NF
(23)	Flat contact housing Connection piece Switch air condit.	357 919 754
(24)	relay plate "J.."	161 937 501 B
(30)	Grommet 39/6 39/6	1H0 971 905 J
(30)	Grommet 39/13 39/13	1H0 971 905 G
(4)	corrugated pipe in coils of 5 m'order unit 5' 5000 X 13 X 16 5000 X 13 X 16	N 102 871 01
(4)	corrugated pipe in coils of 5 m'order unit 5' 13 13	N 907 736 01
(40)	Flat contact housing withcontact locking mechanism Coupling element Wiring set for dash panel air condit.	1J0 972 702
(40)	Flat contact housing Coupling element Wiring set for dash panel air condit.	191 972 702
(42)	Flat contact housing withcontact locking mechanism Coupling elementwiring harness for anti-lockbrakesystem -abs- automatic	191 972 725
(49)	single wiring seal for wire cross section: 9,0 X 7,81,0 9,0 X 7,81,0	357 972 742
(52)	single wiring seal for wire cross section: 16,2 X 15,06,0 16,2 X 15,06,0	357 972 744 A
(54)	Flat contact housing Coupling elementwiring harness for anti-lockbrakesystem -abs- automatic	1J0 972 752
(54)	Flat contact housing Coupling elementwiring harness for anti-lockbrakesystem -abs- automatic	191 972 752
(54)	Flat contact housing Connection piecewiring harness for steeringcolumn combination switch	191 972 751
(56)	flat connector housing Connection piece Wiring set for parking anddriving light switch automatic	191 972 761
(60)	Guard plate Connection piecebracket for engine	1H0 972 935 A
(60)	Guard plate Connection piecedistance sensor	1H0 972 935 C
(65)	flat contact housing withgasket air condit.	1H0 973 204 A
(67)	Flat contact housing withcontact locking mechanism air condit.	3A0 973 715
10	Discont. / replace: 6 N 0 973 702 6 N 0 973 702	—
11	Flat contact housing Connection piece Switchbrake fluid	443 906 231
12	Flat contact housing Connection piece Potential distributor Hall sensor air condit.	701 906 231
13	flat contact housing withgasket Connection piece Valve Switch for accelerator pedalby-pass air cut-off valve External temperature sensor AKF automatic air condit. air condit. AKF	037 906 240
14	flat contact housing withgasket Connection piece Control unit	1H0 906 365
14	flat contact housing withgasket Connection piece Control unit	1H0 906 370 K
14	flat contact housing withgasket Connection piece Control unit	1H0 906 370 L
15	Seal 16 X 105 16 X 105	1H0 906 375
16	Flat contact housing Connection piece Radiator fan	1H0 906 233
17	Bracket protective cover	357 906 732 A
18	Bracket protective cover	357 906 733 B
2	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
20	Flat contact housing	357 906 752
21	Flat contact housing Slot: Z 2 Z 2	357 915 971 A
22	Flat contact housing Slot: 30,30 B 30,30 B	357 915 971 B
24	relay plate	867 937 501
25	Flat contact housing withcontact locking mechanism Slot: C C	357 955 968
25A	Flat contact housing withcontact locking mechanism Slot: S S	357 955 968 A
26	Cable holder	1H0 971 615 S
27	Flat contact housing Connection piece Wiper motor	171 971 835 A
28	Grommet	1H0 971 840 C
29	Bundling clip f wiring harness	1H0 971 848 AS
29	Bundling clip f wiring harness	4B0 971 848
3	Cable ties 6,5 X 175 6,5 X 175	N 900 603 01
3	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
30	Grommet 39/5 39/5	1H0 971 905 H
31	Grommet 39/12 39/12	1H0 971 905 K
32	Flat contact housing withcontact locking mechanism Slot: G 1 G 1	357 971 967
33	Flat contact housing withcontact locking mechanism Slot: G 2 G 2	357 971 967 A
34	Flat contact housing withcontact locking mechanism Slot: A 2 A 2	357 971 968
35	Flat contact housing withcontact locking mechanism Slot: A 1 A 1	357 971 968 A
36	Flat contact housing Connection piece Spray nozzle, heated	161 971 989 C
37	Flat contact housing	161 971 990 A
38	Discont. / replace: 6 N 0 973 702 6 N 0 973 702	—
4	corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5	N 906 355 17
40	Flat contact housing Coupling element Wiring set for dash panel	535 972 701
42	flat connector housing Coupling element Combi-instrument	191 972 713
44	Flat contact housing Coupling element Wiring harness for headlightrange control	1J0 972 732
44	Flat contact housing Coupling element Wiring harness for headlightrange control	191 972 732
45	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
47	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
48	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
49	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
5	corrugated pipe in coils of 5 m'order unit 5' 10 10	N 907 735 01
51	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B
52	single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0	357 972 742 C
54	flat contact housing withgasket Coupling element Alternator	357 972 751
55	flat contact housing withgasket Connection piece Turn signal indicator External temperature sensor Temperature sensor Pump Selector on the gearbox Coupling element Switch "J.." air condit.	357 972 752
56	Flat contact housing Connection piecedistance sensor Transformer	357 972 753
57	flat contact housing withgasket Connection piece Starter	357 972 771
58	Bungs 4,0 X 7,8 4,0 X 7,8	4B0 972 840
58	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
60	Guard plate Connection piecedistance sensor automatic	1H0 972 935 B
61	Hexagon bolt M 10 X 15 automatic M 10 X 15	N 010 058 3
63	flat contact housing withgasket Coupling elementharness for engine compartment	1H0 973 103
64	round connector housing	1H0 973 103 A
65	flat contact housing withgasket Connection piecethermal switch Radiator fan	1H0 973 203
67	Flat contact housing Connection piece Lambda probe	3A0 973 204
7	corrugated pipe in coils of 5 m'order unit 5' 22 22	N 907 738 01
7	corrugated pipe 1000 X 22 X 25 1000 X 22 X 25	535 971 820 C
8	corrugated pipe in coils of 5 m'order unit 5' 17 17	N 907 737 01
8	corrugated pipe 1000 X 17 X 21 1000 X 17 X 21	535 971 820 B
9	Flat contact housing withcontact locking mechanism Slot: F F	357 903 968

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AAM, ACC, ADZ
Factory group: 06 Wiring looms
Factory subgroup: 971038

Related factory diagrams

Other published wiring looms plates for the Mk3 Golf in this catalogue.

Harness engine compartment 1992 · subgroup 971027
Harness engine compartmentwiring harness gearbox ecomatic 1992 · subgroup 971024
Harness engine compartment abf 1992 · subgroup 971030
Wiring set engine 1993 - 1996 · subgroup 971012
Wiring set engine aba adc 1993 - 1996 · subgroup 971010
Wiring set engine aaa 1993 - 1996 · subgroup 971013
Wiring set engine aam acc add 1993 - 1996 · subgroup 971009
Harness engine compartment aam aba acc aba acc 1993 - 1996 · subgroup 971022

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the harness engine compartment acc aam adz diagram for the Mk3 Golf?: This diagram lists 158 OEM part numbers for the Mk3 Golf. The first three are N 103 113 04, 1H0 971 617 B and 1H1 971 617 A.
Which Mk3 Golf years and engines does this diagram cover?: This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes AAM, ACC and ADZ.
Where is the complete Mk3 Golf factory parts catalogue?: The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
