Harness engine compartment adapter cable loom — Mk3 Golf Wiring Looms (1995)

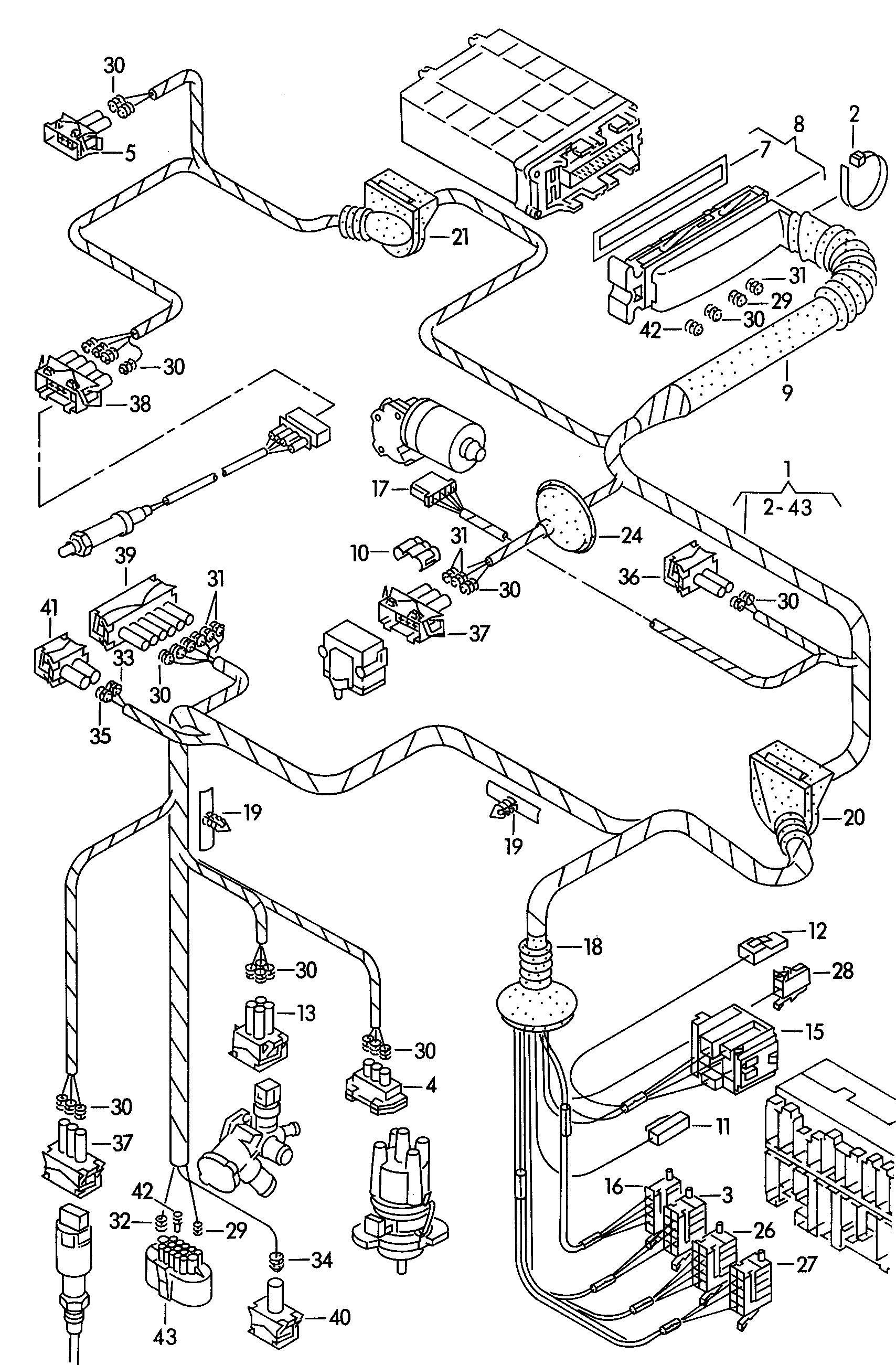

Factory title: Volkswagen Golf (1995) - Adapter cable loom. Wiring set for engine
Harness engine compartment adapter cable loom for the Volkswagen Golf Mk3 (1995): factory exploded diagram 971021 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 47 OEM part numbers across 50 catalogued positions including N 906 437 01, 030 972 831 D and 1H0 971 502. Parts on this plate carry the engine codes ABD and ABU. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 47 OEM part numbers across 50 numbered positions.
| № | Description | Part number |
|---|---|---|
| harness for engine compartment F >> 1 H-SW 122 920 F >> 1 H-SP 080 000*F >> 1 H-SB 029 454 ABD,ABU ABDABU | — | |
| harness for engine compartment Adapter cable loom F >> 1 H-SW 122 920 F >> 1 H-SP 080 000*F >> 1 H-SB 029 454 ABD,ABUABD ABD | — | |
| Adapter cable loom Connection piece Flat contact housing ABD ABD | — | |
| - | Cable tie with holder for weld pin: 10 X 1875 10 X 1875 | N 906 437 01 |
| - | Adapter cable loom | 030 972 831 D |
| - | Bracket Connection piece Lambda probe | 1H0 971 502 |
| - | Bracket Connection piece Lambda probe | 1H0 971 501 |
| - | Bracket Connection pieceswitch for reversing light | 084 971 848 |
| - | Clip Connection piece Line Starter Switchfor reversing light | 1H0 971 615 D |
| - | Cable tie with holder for weld pin: 10 X 185 10 X 185 | N 904 288 01 |
| - | Retainer, swivel 24/38 ABU 24/38 ABU | 1H0 971 787 A |
| (1) | harness for engine compartment ABD ABD | 1H2 971 072 JS |
| (1) | harness for engine compartment ABU ABU | 1H2 971 072 JR |
| (1) | harness for engine compartment ABD ABD | 1H1 971 072 MG |
| (1) | harness for engine compartment ABU ABU | 1H1 971 072 MJ |
| (10) | Bracket protective cover | 357 906 733 B |
| (19) | Cable holder | 1H0 971 848 F |
| (19) | Bundling clip f wiring harness | 4B0 971 848 |
| (2) | Cable ties 3,6 X 246 3,6 X 246 | N 020 902 2 |
| (28) | Flat contact housing Connection piecefor diagnostic plug | 1H0 972 701 |
| (36) | Flat contact housing Connection piecefor vehicles with anti-theftalarm system and imobiliser | 191 972 702 |
| (36) | Flat contact housing Connection piece For vehicles with anti-theftalarm system also use: 191 972 762 191 972 762 | 191 972 752 |
| (36) | Flat contact housing Connection piece For vehicles with anti-theftalarm system also use: 191 972 762 191 972 762 | 1J0 972 752 |
| (36) | Flat contact housing withcontact locking mechanism Connection piecefor vehicles with anti-theftalarm system and imobiliser | 1J0 972 702 |
| (36) | flat connector housing Connection piecefor vehicles with anti-theftalarm system and imobiliser | 191 972 712 |
| (8) | flat contact housing withgasket Connection piece Control unit | 1H0 906 370 H |
| (9) | Grommet 39/13 39/13 | 1H0 971 905 |
| 11 | Flat contact housing Slot: U 2,Y U 2,Y | 357 907 971 B |
| 12 | Flat contact housing Slot: 30,30 B 30,30 B | 357 915 971 B |
| 13 | Flat contact housing Connection piece Temperature sensor | 357 919 754 |
| 15 | relay plate | 867 937 501 |
| 16 | Flat contact housing withcontact locking mechanism Slot: S S | 357 955 968 A |
| 17 | Flat contact housing Connection piece Wiper motor see illustration: 971-015 971-015 | 171 971 835 A |
| 18 | Grommet 46/10,5 46/10,5 | 1H0 971 840 |
| 20 | Grommet 39/13 39/13 | 1H0 971 905 |
| 21 | Grommet 6/31 6/31 | 1H0 971 905 A |
| 24 | Grommet 46/7 46/7 | 1H0 971 913 B |
| 26 | Flat contact housing withcontact locking mechanism Slot: G 1 G 1 | 357 971 967 |
| 27 | Flat contact housing withcontact locking mechanism Slot: G 2 G 2 | 357 971 967 A |
| 3 | Flat contact housing withcontact locking mechanism Slot: F F | 357 903 968 |
| 36 | flat contact housing withgasket Connection pieceexhaust recirculation valveswitch for reversing light Spray nozzle, heated see illustration: 971-015 971-015 | 357 972 752 |
| 37 | Flat contact housing Connection piecedistance sensor Transformer | 357 972 753 |
| 38 | Flat contact housing Coupling element Lambda probe | 357 972 754 J |
| 39 | Flat contact housing Connection piece Selector on the gearbox | 357 972 756 |
| 4 | Flat contact housing Connection piece Distributor | 357 905 327 |
| 40 | flat contact housing withgasket Connection piecepre-heater | 357 972 771 |
| 41 | flat contact housing withgasket Coupling element Starter Alternator | 357 972 772 |
| 43 | Flat contact housing Connection piece Wiring set for engine | 357 973 215 |
| 5 | flat contact housing withgasket Connection piece Valve AKF AKF | 037 906 240 |
| 7 | Seal 16 X 105 16 X 105 | 1H0 906 375 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1995
- Generation region
- RDW
- Generation code
- 159
- Engine codes on this plate
- ABD, ABU
- Variant tags
- petrol_8v_gti_or_gl
- Factory group
- 06 Wiring looms
- Factory subgroup
- 971021
