Harness engine compartment ady agg akr — Mk3 Golf Wiring Looms (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Wiring set for engine

Generation: Mk3 1994 - 1997 (RDW) Group: Wiring looms Parts: 122 Primary OEM: 357 972 841, N 103 113 03, 1E1 971 070 HN

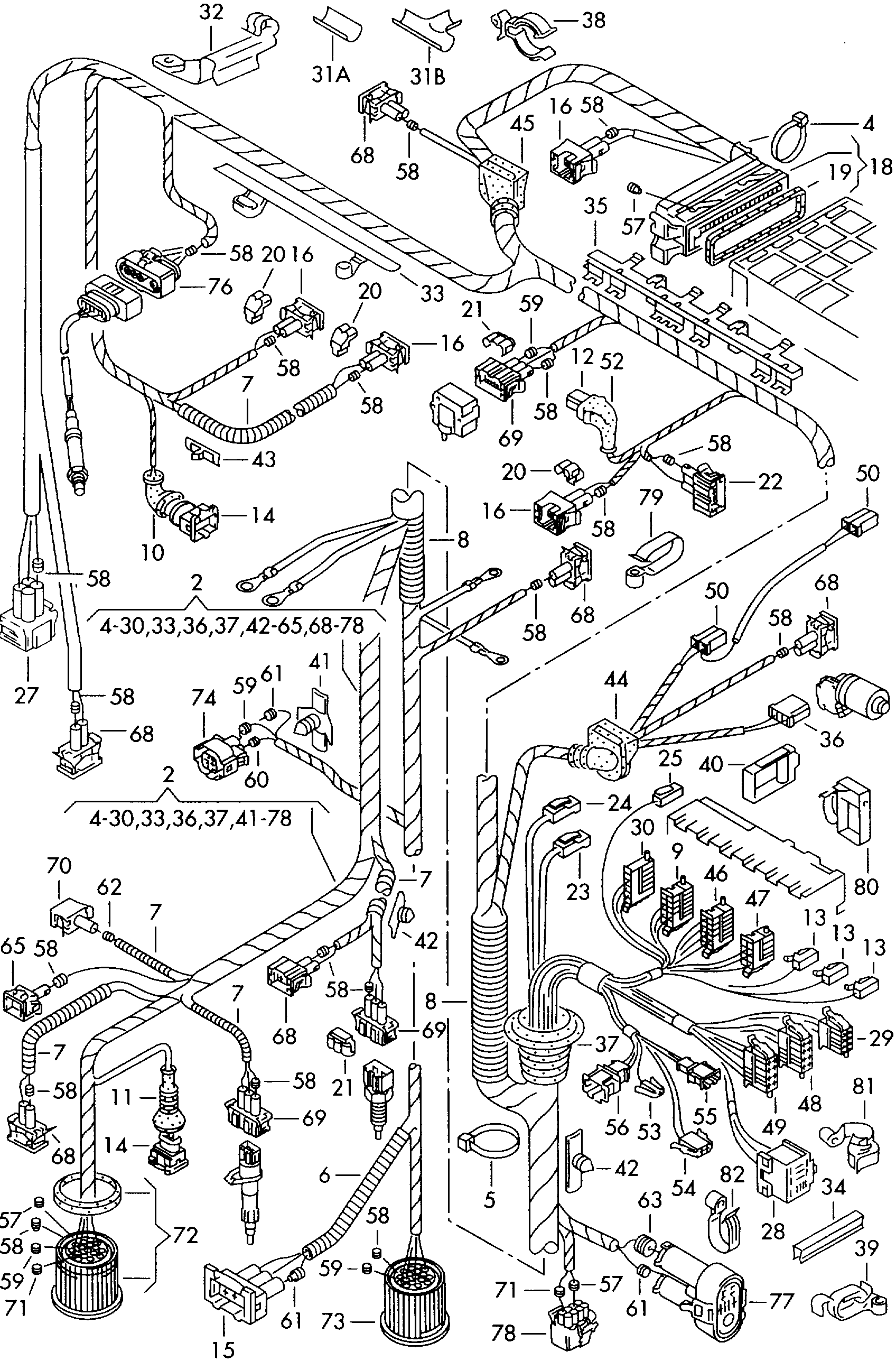

Harness engine compartment ady agg akr for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 971030 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 118 OEM part numbers across 122 catalogued positions including 357 972 841, N 103 113 03 and 1E1 971 070 HN. Parts on this plate carry the engine codes ADY, AGG and AKR. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 118 OEM part numbers across 122 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for engine compartment F 1 E-T-000 001>> ADY,AGG,AKR ADYAGGAKR	—
	harness for engine compartment ADY,AGG,AKR ADYAGGAKR	—
	harness for engine compartment F >> 1 E-S-040 000 ADY,AGG ADYAGG	—
-	Bungs 5,6 X 7,8 5,6 X 7,8	357 972 841
-	Insulating tape 19 19	N 103 113 03
(1)	harness for engine compartmentfor vehicles with air condit. automatic	1E1 971 070 HN
(1)	harness for engine compartment use if required: 443 906 231867 972 525 A automatic 443 906 231867 972 525 A	1E1 971 070 DF
(1)	harness for engine compartmentfor vehicles with air condit. use if required: 443 906 231867 972 525 A automatic 443 906 231867 972 525 A	1E1 971 070 DG
(1)	harness for engine compartmentfor vehicles with air condit. use if required: 443 906 231867 972 525 A 443 906 231867 972 525 A	1E1 971 070 DC
(1)	harness for engine compartment	1E1 971 070 AR
(1)	harness for engine compartment use if required: 443 906 231867 972 525 A 443 906 231867 972 525 A	1E1 971 070 DB
(1)	harness for engine compartment automatic	1E1 971 070 BB
(1)	harness for engine compartment	1E1 971 070 HH
(1)	harness for engine compartmentfor vehicles with air condit.	1E1 971 070 HJ
(1)	harness for engine compartment automatic	1E1 971 070 HM
(12)	Flat contact housing withcontact locking mechanism Connection piece Switchbrake fluid F 1 E-S-021 847>> also use: 357 972 741 357 972 741	6N0 973 702
(2)	harness for engine compartmentfor vehicles with air condit. use if required: 443 906 231867 972 525 A automatic 443 906 231867 972 525 A	1E2 971 070 DB
(2)	harness for engine compartment	1E2 971 070 AR
(2)	harness for engine compartment automatic	1E2 971 070 BB
(2)	harness for engine compartmentfor vehicles with air condit. automatic	1E2 971 070 BC
(2)	harness for engine compartment "J.."	1E2 971 070 BD
(2)	harness for engine compartmentfor vehicles with air condit. "J.."	1E2 971 070 BE
(2)	harness for engine compartment use if required: 443 906 231867 972 525 A 443 906 231867 972 525 A	1E2 971 070 CQ
(2)	harness for engine compartmentfor vehicles with air condit. use if required: 443 906 231867 972 525 A 443 906 231867 972 525 A	1E2 971 070 CR
(2)	harness for engine compartment use if required: 443 906 231867 972 525 A automatic 443 906 231867 972 525 A	1E2 971 070 DA
(2)	harness for engine compartmentfor vehicles with air condit. use if required: 443 906 231867 972 525 A "J.." 443 906 231867 972 525 A	1E2 971 070 DD
(2)	harness for engine compartment	1E2 971 070 GL
(2)	harness for engine compartmentfor vehicles with air condit.	1E2 971 070 GM
(2)	harness for engine compartment automatic	1E2 971 070 GQ
(2)	harness for engine compartmentfor vehicles with air condit. automatic	1E2 971 070 GR
(2)	harness for engine compartment "J.."	1E2 971 070 GS
(2)	harness for engine compartmentfor vehicles with air condit. "J.."	1E2 971 070 GT
(28)	relay plate "J.."	161 937 501 B
(34)	Cover Connection piece Side member Cross panel	1H2 971 615 A
(55)	Flat contact housing withcontact locking mechanism Coupling elementwiring harness for anti-lockbrakesystem -abs- automatic	191 972 725
(65)	flat connector housing Coupling element Wiring set for dash panel	191 972 761
(65)	Flat contact housing Coupling elementwiring harness for anti-lockbrakesystem -abs- automatic	191 972 752
(65)	Flat contact housing Coupling elementwiring harness for anti-lockbrakesystem -abs- automatic	1J0 972 752
(65)	Flat contact housing Coupling elementwiring harness for steeringcolumn combination switch	191 972 751
(7)	corrugated pipe in coils of 5 m'order unit 5' 17 17	N 907 737 01
(7)	corrugated pipe 1000 X 17 X 21 1000 X 17 X 21	535 971 820 B
(71)	Bungs 9,0 9,0	357 972 842
(78)	Flat contact housing	1H0 973 763
10	Grommet 18 X 20,5 18 X 20,5	443 906 102 C
11	Grommet 13,5 X 19 13,5 X 19	443 906 102 G
12	Flat contact housing Connection piece Switchbrake fluid F >> 1 E-S-021 846	443 906 231
13	Flat contact housing Connection piece Potential distributor Hall sensor	701 906 231
14	Flat contact housing Connection piece Knock sensor Air mass meter	443 906 233
15	Flat contact housing Connection piece Radiator fan	1H0 906 233
16	flat contact housing withgasket Connection piece Valve Valve Activated charcoal containerkick down actuatorby-pass air cut-off valve External temperature sensor automatic air condit. air condit.	037 906 240
18	flat contact housing withgasket	1H0 906 370 J
19	Seal 16 X 105 16 X 105	1H0 906 375
2	harness for engine compartmentfor vehicles with air condit.	1E2 971 070 AS
20	Bracket protective cover	357 906 732 A
21	Bracket protective cover	357 906 733 B
22	Flat contact housing Possible single wire: counterpart to: also use: 000 979 126000 979 126 A 000 979 217357 972 763357 972 841 1,01,02,5 000 979 126000 979 126 A 000 979 217357 972 763357 972 841	357 972 753
22	Flat contact housing Connection piece Switch	357 906 752
23	Flat contact housing Slot: Z 2 Z 2	357 915 971 A
24	Flat contact housing Slot: 30,30 B 30,30 B	357 915 971 B
25	Flat contact housing Slot: Z 1 Z 1	357 915 971 C
27	Flat contact housing Connection piece Switchfor compressor air condit.	357 919 754
28	relay platefor vehicles with air condit.	161 937 501 B
29	Flat contact housing withcontact locking mechanism Slot: C C	357 955 968
30	Flat contact housing withcontact locking mechanism Slot: S S	357 955 968 A
31A	Formed part F 1 E-T-000 001>>	1H0 971 617 B
31B	Formed partt-piece F 1 E-T-000 001>>	1H0 971 617 C
32	Cable holder	1H0 971 615 R
33	Cable holder	1H0 971 615 S
34	Cover Connection piece Side member Cross panel	1H1 971 813 A
35	Cable guide	037 971 824 A
36	Flat contact housing Connection piece Wiper motor	171 971 835 A
37	Grommet	1H0 971 840 C
38	Bracket Connection piece air condit.	6K0 971 847 A
39	Clip Connection piece Side member 20 X 28 20 X 28	1H1 971 848
4	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
40	Clip Connection piece Side member 20 X 34 20 X 34	1H2 971 848
41	Cable holderfor manual gearboxfor automatic gearbox	1H0 971 848 AF
42	Bundling clip f wiring harness	1H0 971 848 AS
42	Bundling clip f wiring harness	4B0 971 848
43	Cable holder	1H0 971 848 Q
44	Grommet 39/5 39/5	1H0 971 905 H
45	Grommet 39/12 39/12	1H0 971 905 K
46	Flat contact housing withcontact locking mechanism Slot: G 1 G 1	357 971 967
47	Flat contact housing withcontact locking mechanism Slot: G 2 G 2	357 971 967 A
48	Flat contact housing withcontact locking mechanism Slot: A 2 A 2	357 971 968
49	Flat contact housing withcontact locking mechanism Slot: A 1 A 1	357 971 968 A
5	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
5	Cable ties 6,5 X 175 6,5 X 175	N 900 603 01
50	flat connector housing Connection piece Spray nozzle, heated	161 971 988 C
52	Protective cap F >> 1 E-S-021 846	867 972 525 A
53	Flat contact housing Coupling element Wiring set for dash panel	535 972 701
54	Flat contact housing Coupling element Wiring set for dash panel air condit.	191 972 702
54	Flat contact housing Possible single wire: counterpart to: 000 979 126000 979 126 A 1 J 0 971 712 000 979 126000 979 126 A 1 J 0 971 712	1J0 972 702
54	Flat contact housing withcontact locking mechanism Possible single wire: counterpart to: 000 979 133000 979 133 A 1 J 0 971 712 000 979 133000 979 133 A 1 J 0 971 712	1J0 972 702
55	flat connector housing Coupling element Combi-instrument	191 972 713
56	Flat contact housing Coupling element Wiring harness for headlightrange control	191 972 732
56	Flat contact housing Coupling element Wiring harness for headlightrange control	1J0 972 732
57	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
58	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
59	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
6	corrugated pipe in coils of 5 m'order unit 5' 10 10	N 907 735 01
60	single wiring seal for wire cross section: 9,0 X 7,81,0 9,0 X 7,81,0	357 972 742
61	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B
62	single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0	357 972 742 C
63	single wiring seal for wire cross section: 16,2 X 15,06,0 16,2 X 15,06,0	357 972 744 A
65	flat contact housing withgasket Connection piece Alternator	357 972 751
68	flat contact housing withgasket Connection piece Turn signal indicator External temperature sensor Selector on the gearbox Pump Electromagnetic coupling Coupling element Temperature sensor air condit."J.."	357 972 752
69	Flat contact housing Connection piecespeed senderdistance sensor Transformer	357 972 753
7	corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5	N 906 355 17
70	flat contact housing withgasket Connection piece Starter	357 972 771
71	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
71	Bungs 4,0 X 7,8 4,0 X 7,8	4B0 972 840
72	flat contact housing withgasket	1H0 973 103
73	round connector housing	1H0 973 103 A
74	flat contact housing withgasket Connection piecethermal switch Radiator fan	1H0 973 203
76	Flat contact housing Connection piece Lambda probe	3A0 973 204
77	flat contact housing withgasket Connection piece Control unit for air condit. air condit.	1H0 973 204 A
78	Flat contact housing withcontact locking mechanism Connection piece Control unit for air condit. air condit.	3A0 973 715
79-82	Discont. / replace: N 904 288 01 N 904 288 01	—
8	corrugated pipe 1000 X 22 X 25 1000 X 22 X 25	535 971 820 C
8	corrugated pipe in coils of 5 m'order unit 5' 22 22	N 907 738 01
9	Flat contact housing withcontact locking mechanism Slot: F F	357 903 968

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1994 - 1997
Generation region: RDW
Generation code: 146
Engine codes on this plate: ADY, AGG, AKR
Factory group: 06 Wiring looms
Factory subgroup: 971030
