Which VW part numbers are on the harness engine compartment aee aex diagram for the Mk3 Golf?

This diagram lists 90 OEM part numbers for the Mk3 Golf. The first three are N 904 288 01, N 103 113 04 and 1H2 971 077 B.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes AEE and AEX.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Harness engine compartment aee aex — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 93 Primary OEM: N 904 288 01, N 103 113 04, 1H2 971 077 B

Harness engine compartment aee aex for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971030 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 90 OEM part numbers across 93 catalogued positions including N 904 288 01, N 103 113 04 and 1H2 971 077 B. Parts on this plate carry the engine codes AEE and AEX. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 90 OEM part numbers across 93 numbered positions.

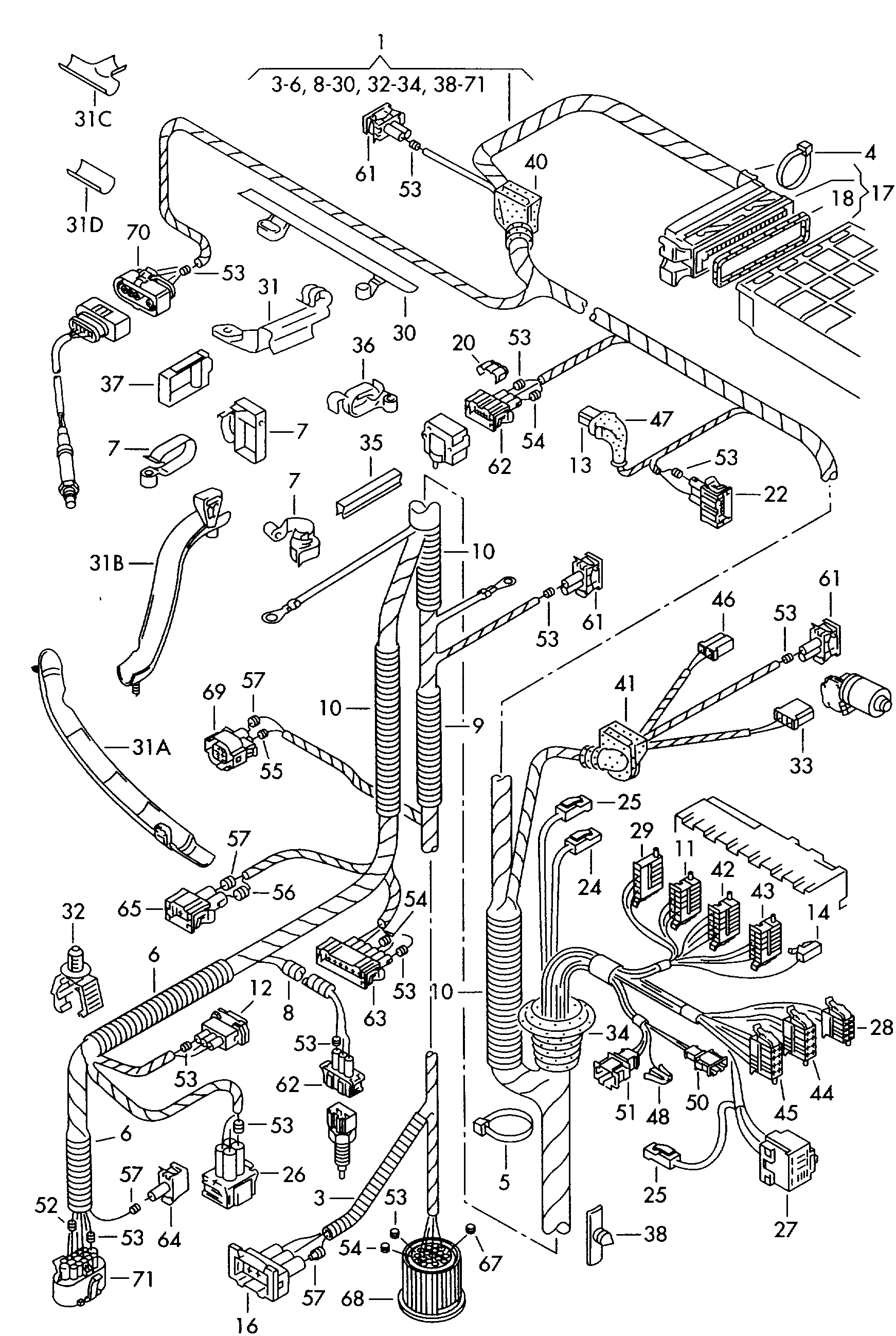

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for engine compartment AEE,AEX AEEAEX	—
	harness for engine compartment AEE,AEX AEEAEX	—
-	Cable tie with holder for weld pin: 10 X 185/M 5 10 X 185/M 5	N 904 288 01
-	Insulating tape 0,15 X 19 X 10000 0,15 X 19 X 10000	N 103 113 04
(1)	harness for engine compartmentfor vehicles with air condit.	1H2 971 077 B
(1)	harness for engine compartmentfor models with catalyst	1H1 971 077 A
(1)	harness for engine compartmentfor models with catalyst	1H2 971 077 SA
(1)	harness for engine compartmentfor vehicles with air condit.	1H1 971 077 B
(1)	harness for engine compartmentfor models with catalyst	1H2 971 077 A
(1)	harness for engine compartmentfor models with catalyst	1H1 971 077 TA
(13)	Flat contact housing withcontact locking mechanism Connection piece Switchbrake fluid	6N0 973 702
(14)	flat contact housing withgasket Connection piece Valveby-pass air cut-off valve External temperature sensor -AKF- air condit. air condit. -AKF-	037 906 240
(20)	Bracket protective coverfor models with activatedcharcoal canisterby-pass air cut-off valve	357 906 732 A
(25)	Flat contact housing Slot: Z 1 Z 1	357 915 971 C
(40)	Grommet 39/13 39/13	1H0 971 905 G
(41)	Grommet 39/6 39/6	1H0 971 905 J
(48)	Flat contact housing Coupling element Wiring set for dash panel air condit.	191 972 702
(48)	Flat contact housing withcontact locking mechanism Coupling element Wiring set for dash panel air condit.	1J0 972 702
(57)	single wiring seal for wire cross section: 16,2 X 15,06,0 air condit. 16,2 X 15,06,0	357 972 744 A
(61)	flat contact housing withgasket Coupling Alternator	357 972 751
(68)	flat contact housing withgasket Wiring set for engine	1H0 973 103
(69)	flat contact housing withgasket air condit.	1H0 973 204 A
(70)	Flat contact housing withcontact locking mechanism air condit.	3A0 973 715
10	corrugated pipe 1000 X 22 X 25 1000 X 22 X 25	535 971 820 C
10	corrugated pipe in coils of 5 m'order unit 5' 22 22	N 907 738 01
11	Flat contact housing withcontact locking mechanism Slot: F F	357 903 968
12	Flat contact housing Connection piece Distributor	357 905 327
14	Flat contact housing Connection piece Potential distributor Hall sensor	701 906 231
16	Flat contact housing Connection piece Radiator fan	1H0 906 233
17	flat contact housing withgasket	1H0 906 370 L
17	flat contact housing withgasket	1H0 906 365
17	flat contact housing withgasket	1H0 906 370 K
18	Seal 16 X 105 16 X 105	1H0 906 375
20	Bracket protective cover	357 906 733 B
22	Flat contact housing Connection piece Pumpfresh water tank also use: 357 972 841 357 972 841	357 972 753
22	Flat contact housing Connection piece Pumpfresh water tank	357 906 752
24	Flat contact housing Slot: Z 2 Z 2	357 915 971 A
25	Flat contact housing Slot: 30,30 B 30,30 B	357 915 971 B
26	Flat contact housing Connection piece Switch air condit.	357 919 754
27	relay plate	867 937 501
28	Flat contact housing withcontact locking mechanism Slot: C C	357 955 968
29	Flat contact housing withcontact locking mechanism Slot: S S	357 955 968 A
3	corrugated pipe in coils of 5 m'order unit 5' 10 10	N 907 735 01
30	Cable holder	1H0 971 615 S
31	Cable holder	1H0 971 615 R
31A	Cable guide	1H1 971 615 A
31B	Cable guide	1H2 971 615 C
31C	Formed partt-piece	1H0 971 617 C
31D	Formed part	1H0 971 617 D
32	Retainer, swivel 14/29 14/29	701 971 787 T
33	Flat contact housing	171 971 835 A
34	Grommet	1H0 971 840 C
35	Cover Connection piece Side member Cross panel	1H1 971 813 A
36	Clip 20 X 28 20 X 28	1H1 971 848
37	Clip 20 X 34 20 X 34	1H2 971 848
38	Cable holder	1H0 971 848 F
38	Bundling clip f wiring harness	4B0 971 848
4	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
40	Grommet 39/12 39/12	1H0 971 905 K
41	Grommet 39/5 39/5	1H0 971 905 H
42	Flat contact housing withcontact locking mechanism Slot: G 1 G 1	357 971 967
43	Flat contact housing withcontact locking mechanism Slot: G 2 G 2	357 971 967 A
44	Flat contact housing withcontact locking mechanism Slot: A 2 A 2	357 971 968
45	Flat contact housing withcontact locking mechanism Slot: A 1 A 1	357 971 968 A
46	Flat contact housing	161 971 989 C
47	Discont. / replace: 6 N 0 973 702 6 N 0 973 702	—
48	Flat contact housing Coupling element Wiring set for dash panel	535 972 701
5	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
5	Cable ties 6,5 X 175 6,5 X 175	N 900 603 01
50	flat connector housing Coupling element Combi-instrument	191 972 713
51	Flat contact housing Coupling element Wiring harness for headlightrange control	1J0 972 732
51	Flat contact housing Coupling element Wiring harness for headlightrange control	191 972 732
52	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
53	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
54	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
55	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
56	single wiring seal for wire cross section: 9,0 X 7,81,0 9,0 X 7,81,0	357 972 742
57	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B
6	corrugated pipe in coils of 5 m'order unit 5' 5000 X 13 X 16 5000 X 13 X 16	N 102 871 01
61	flat contact housing withgasket Connection piece Turn signal indicator Pump Selector on the gearbox Resistor A/C compressor air condit.	357 972 752
62	Flat contact housing Connection piece Transformerdistance sensorsolenoid air condit.	357 972 753
63	Flat contact housing	357 972 756
64	flat contact housing withgasket	357 972 771
65	flat contact housing withgasket	357 972 772
67	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
67	Bungs 4,0 X 7,8 4,0 X 7,8	4B0 972 840
68	round connector housing Connection pieceharness for vehicle lighting	1H0 973 103 A
69	flat contact housing withgasket Connection piecethermal switch Radiator fan	1H0 973 203
70	Flat contact housing Connection piece Lambda probe	3A0 973 204
71	Flat contact housing Connection piece Wiring set for engine	357 973 215
8	corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5	N 906 355 17
9	corrugated pipe in coils of 5 m'order unit 5' 13 13	N 907 736 01
9	corrugated pipe 1000 X 17 X 21 1000 X 17 X 21	535 971 820 B

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AEE, AEX
Factory group: 06 Wiring looms
Factory subgroup: 971030
