Which VW part numbers are on the harness engine compartment aft aks diagram for the Mk3 Golf?

This diagram lists 118 OEM part numbers for the Mk3 Golf. The first three are N 904 288 01, N 103 113 04 and 1H2 971 077 ML.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes AFT and AKS.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Harness engine compartment aft aks — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 122 Primary OEM: N 904 288 01, N 103 113 04, 1H2 971 077 ML

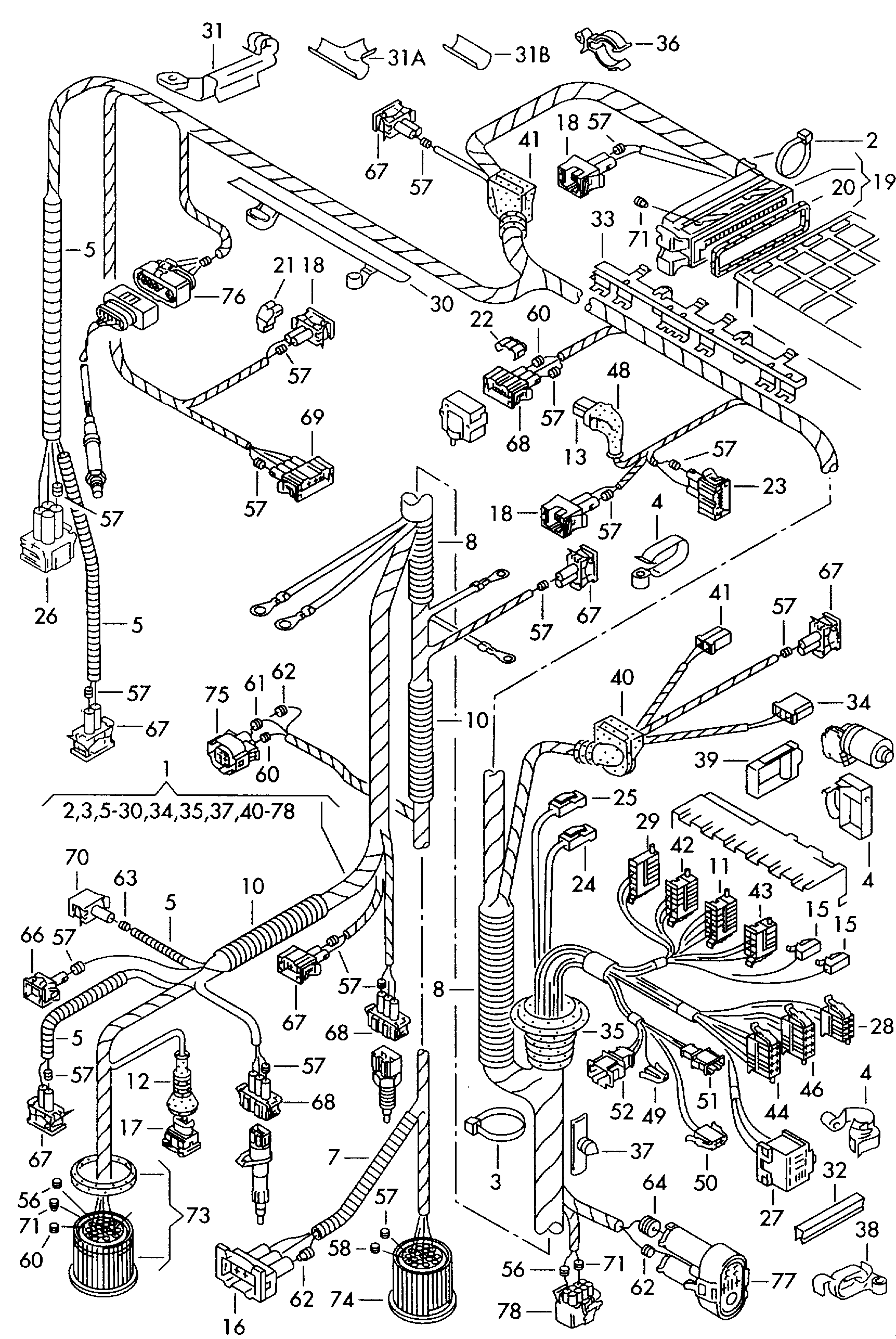

Harness engine compartment aft aks for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971040 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 118 OEM part numbers across 122 catalogued positions including N 904 288 01, N 103 113 04 and 1H2 971 077 ML. Parts on this plate carry the engine codes AFT and AKS. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 118 OEM part numbers across 122 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for engine compartment Automatic+AFT	—
	harness for engine compartment AFT,AKS AFTAKS	—
	harness for engine compartment AFT,AKS AFTAKS	—
-	Cable tie with holder for weld pin: 10 X 185/M 5 10 X 185/M 5	N 904 288 01
-	Insulating tape 19 19	N 103 113 04
(1)	harness for engine compartment	1H2 971 077 ML
(1)	harness for engine compartment	1H2 971 077 D
(1)	harness for engine compartmentfor vehicles with air condit.	1H2 971 077 MQ
(1)	harness for engine compartmentfor vehicles with air condit.	1H2 971 077 G
(1)	harness for engine compartment	1H1 971 077 D
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H2 971 077 J
(1)	harness for engine compartment	1H1 971 077 E
(1)	harness for engine compartmentfor vehicles with air condit.	1H1 971 077 H
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H1 971 077 L
(1)	harness for engine compartment	1H2 971 077 E
(1)	harness for engine compartmentfor vehicles with air condit.	1H2 971 077 H
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H2 971 077 L
(1)	harness for engine compartment	1H1 971 077 KH
(1)	harness for engine compartmentfor vehicles with air condit.	1H1 971 077 KJ
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H1 971 077 KK
(1)	harness for engine compartment	1H1 971 077 MR
(1)	harness for engine compartmentfor vehicles with air condit.	1H1 971 077 NB
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H1 971 077 ND
(1)	harness for engine compartment	1H2 971 077 MN
(1)	harness for engine compartment	1H2 971 077 KF
(1)	harness for engine compartmentfor vehicles with air condit.	1H2 971 077 MS
(1)	harness for engine compartmentfor vehicles with air condit.	1H2 971 077 KG
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H2 971 077 NA
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H2 971 077 KH
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H2 971 077 MT
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H1 971 077 J
(1)	harness for engine compartment	1H1 971 077 MP
(1)	harness for engine compartmentfor vehicles with air condit.	1H1 971 077 MT
(1)	harness for engine compartmentfor vehicles with electroni-cally regulated air condit.	1H1 971 077 NC
(1)	harness for engine compartmentfor vehicles with air condit.	1H1 971 077 G
(13)	Flat contact housing withcontact locking mechanism Connection piece Switchbrake fluid	6N0 973 702
(30)	Cable guide	1H1 971 615 A
(30)	Cable guide	1H2 971 615 C
(32)	Cover	1H2 971 615 A
(40)	Grommet 39/6 39/6	1H0 971 905 J
(41)	Grommet 39/13 39/13	1H0 971 905 G
(5)	corrugated pipe in coils of 5 m'order unit 5' 13 13	N 907 736 01
(5)	corrugated pipe in coils of 5 m'order unit 5' 5000 X 13 X 16 5000 X 13 X 16	N 102 871 01
(51)	Flat contact housing withcontact locking mechanism Coupling elementwiring harness for anti-lockbrakesystem -abs- automatic	191 972 725
(52)	Flat contact housing Coupling elementwiring harness for anti-lockbrakesystem -abs- automatic	1J0 972 752
(52)	Flat contact housing Coupling elementwiring harness for anti-lockbrakesystem -abs- automatic	191 972 752
(69)	Flat contact housing Connection piece Air mass meter	443 906 233
10	corrugated pipe in coils of 5 m'order unit 5' 17 17	N 907 737 01
10	corrugated pipe 1000 X 17 X 21 1000 X 17 X 21	535 971 820 B
11	Flat contact housing withcontact locking mechanism Slot: F F	357 903 968
12	Grommet 18 X 20,5 18 X 20,5	443 906 102 B
15	Flat contact housing Connection piece Potential distributor Hall sensor air condit.	701 906 231
16	Flat contact housing Connection piece Radiator fan	1H0 906 233
17	Flat contact housing Connection piece Knock sensor	443 906 233
18	flat contact housing withgasket Connection piece Valve Switch for accelerator pedal External temperature sensorby-pass air cut-off valve TEV automatic air condit. air condit. TEV	037 906 240
19	flat contact housing withgasket	1H0 906 370 K
19	flat contact housing withgasket	1H0 906 365
2	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
20	Seal 16 X 105 16 X 105	1H0 906 375
21	Bracket protective cover	357 906 732 A
22	Bracket protective cover	357 906 733 B
23	Flat contact housing	357 906 752
24	Flat contact housing Slot: Z 2 Z 2	357 915 971 A
25	Flat contact housing Slot: 30,30 B 30,30 B	357 915 971 B
26	Flat contact housing Connection piece Switch air condit.	357 919 754
27	relay plate	161 937 501 B
28	Flat contact housing withcontact locking mechanism Slot: C C	357 955 968
29	Flat contact housing withcontact locking mechanism Slot: S S	357 955 968 A
3	Cable ties 6,5 X 175 6,5 X 175	N 900 603 01
3	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
30	Cable holder	1H0 971 615 S
31	Cable holder	1H0 971 615 R
31A	Formed partt-piece	1H0 971 617 C
31B	Formed part	1H0 971 617 D
32	Cover Connection piece Side member Cross panel	1H1 971 813 A
33	Cable guide	037 971 824 A
34	Flat contact housing Connection piece Wiper motor	171 971 835 A
35	Grommet	1H0 971 840 C
36	Bracket air condit.	6K0 971 847 A
37	Cable holder	1H0 971 848 F
37	Bundling clip f wiring harness	4B0 971 848
38	Clip Connection piece Side member 20 X 28 20 X 28	1H1 971 848
39	Clip Connection piece Line Control unitwater box 20 X 34 20 X 34	1H2 971 848
4	Discont. / replace: N 904 288 01 N 904 288 01	—
40	Grommet 39/5 39/5	1H0 971 905 H
41	Grommet 39/12 39/12	1H0 971 905 K
42	Flat contact housing withcontact locking mechanism Slot: G 1 G 1	357 971 967
43	Flat contact housing withcontact locking mechanism Slot: G 2 G 2	357 971 967 A
44	Flat contact housing withcontact locking mechanism Slot: A 2 A 2	357 971 968
46	Flat contact housing withcontact locking mechanism Slot: A 1 A 1	357 971 968 A
47	Flat contact housing Connection piece Spray nozzle, heated	161 971 989 C
49	Flat contact housing Coupling element Wiring set for dash panel	535 972 701
5	corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5	N 906 355 17
50	Flat contact housing withcontact locking mechanism Coupling element Wiring set for dash panel air condit.	1J0 972 702
50	Flat contact housing Coupling element Wiring set for dash panel air condit.	191 972 702
51	flat connector housing Coupling element Combi-instrument	191 972 713
52	Flat contact housing Coupling element Wiring harness for headlightrange control	1J0 972 732
52	Flat contact housing Coupling element Wiring harness for headlightrange control	191 972 732
56	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
57	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
58	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
60	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
61	single wiring seal for wire cross section: 9,0 X 7,81,0 9,0 X 7,81,0	357 972 742
62	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B
63	single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0	357 972 742 C
64	single wiring seal for wire cross section: 16,2 X 15,06,0 16,2 X 15,06,0	357 972 744 A
66	flat contact housing withgasket Coupling element Alternator	357 972 751
67	flat contact housing withgasket Connection piece Turn signal indicator Temperature sensor Pump Selector on the gearbox Coupling element Switch air condit.	357 972 752
68	Flat contact housing Connection piecespeed sensordistance sensor Transformer	357 972 753
69	Flat contact housing Connection piece Air mass meter	357 972 754
7	corrugated pipe in coils of 5 m'order unit 5' 10 10	N 907 735 01
70	flat contact housing withgasket Connection piece Starter	357 972 771
71	Bungs 4,0 X 7,8 4,0 X 7,8	4B0 972 840
71	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
73	flat contact housing withgasket Coupling elementharness for engine compartment	1H0 973 103
74	round connector housing	1H0 973 103 A
75	flat contact housing withgasket Connection piecethermal switch Radiator fan	1H0 973 203
76	Flat contact housing Coupling element Lambda probe	3A0 973 204
77	flat contact housing withgasket Slot: BR air condit. BR	1H0 973 204 A
78	Flat contact housing withcontact locking mechanism Slot: BQ BQ	3A0 973 715
8	corrugated pipe 1000 X 22 X 25 1000 X 22 X 25	535 971 820 C
8	corrugated pipe in coils of 5 m'order unit 5' 22 22	N 907 738 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AFT, AKS
Factory group: 06 Wiring looms
Factory subgroup: 971040
