Harness engine compartment agg aep akr — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 138 Primary OEM: 1H1 971 617 A, N 103 113 04, 1H1 971 077 BJ

Harness engine compartment agg aep akr for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971044 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 130 OEM part numbers across 138 catalogued positions including 1H1 971 617 A, N 103 113 04 and 1H1 971 077 BJ. Parts on this plate carry the engine codes ADY, AEP, AGG and AKR. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 130 OEM part numbers across 138 numbered positions.

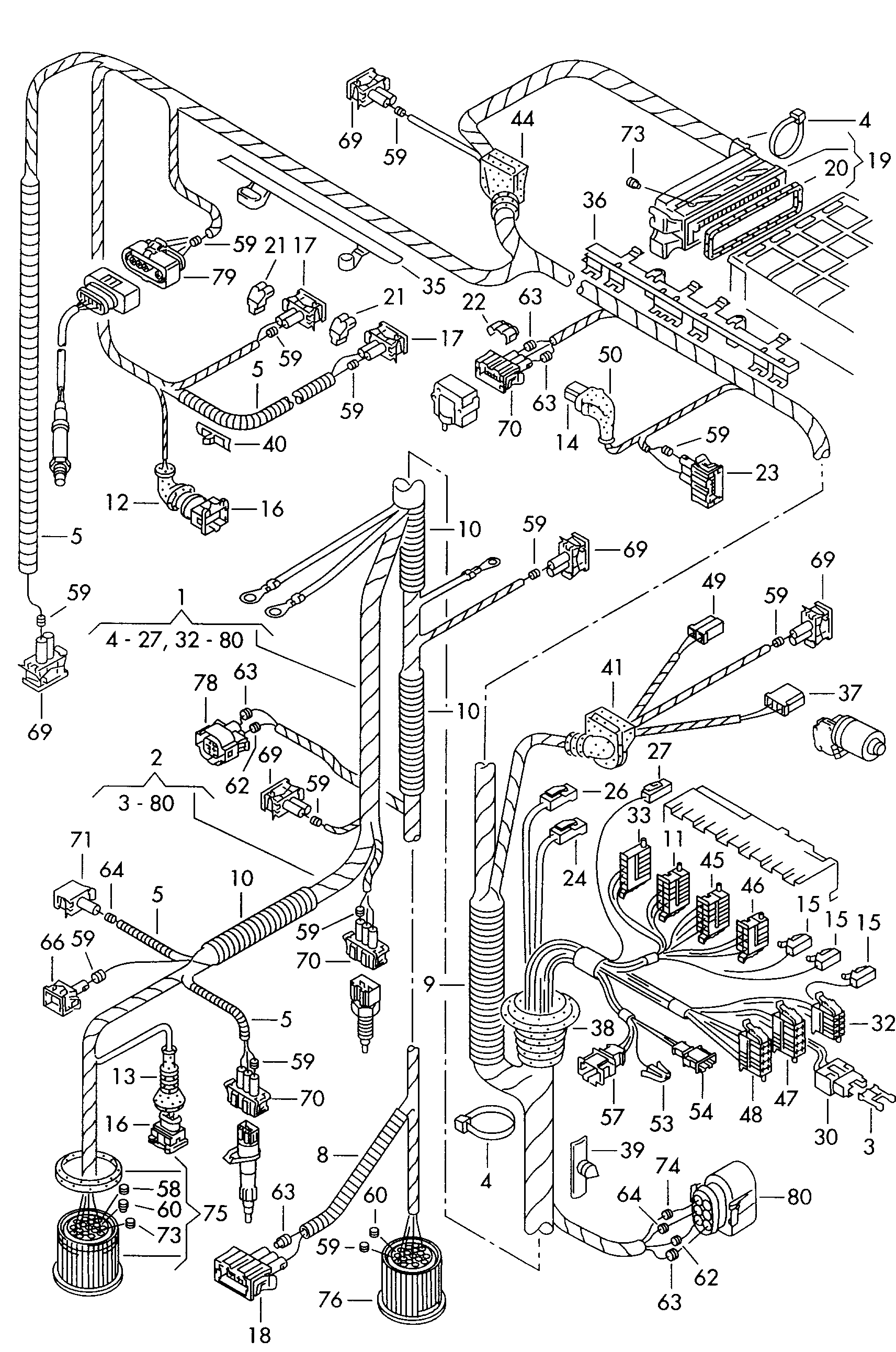

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for engine compartmentfor vehicles with electroni-cally regulated air condit. ADY,AGG,AEP,AKR ADYAEPAGGAKR	—
	harness for engine compartmentfor vehicles with electroni-cally regulated air condit. Automatic+AGG,AEP AEP	—
	harness for engine compartmentfor vehicles with air condit.with mechanical operation AGG,AEP,AKR AEPAGGAKR	—
	harness for engine compartment AGG,AEP,AKR AEPAGGAKR	—
	harness for engine compartment Automatic+AGG,AEP AEP	—
	harness for engine compartment AGG,AEP,AKR AEPAGGAKR	—
	harness for engine compartmentfor vehicles with air condit.with mechanical operation Automatic+AGG,AEP AEP	—
-	Formed partt-piece	1H1 971 617 A
-	Insulating tape 0,15 X 19 X 10000 0,15 X 19 X 10000	N 103 113 04
(1)	harness for engine compartment "J.."	1H1 971 077 BJ
(1)	harness for engine compartment	1H2 971 077 PF
(1)	harness for engine compartment "J.."	1H2 971 077 BJ
(1)	harness for engine compartment	1H1 971 077 BG
(1)	harness for engine compartment "J.."	1H1 971 077 BK
(1)	harness for engine compartment	1H2 971 077 BG
(1)	harness for engine compartment	1H1 971 077 JT
(1)	harness for engine compartment	1H2 971 077 BF
(1)	harness for engine compartment "J.."	1H2 971 077 BK
(1)	harness for engine compartment	1H1 971 077 KB
(1)	harness for engine compartment	1H1 971 077 PN
(1)	harness for engine compartment "J.."	1H1 971 077 KD
(1)	harness for engine compartment	1H2 971 077 PH
(1)	harness for engine compartment	1H2 971 077 KC
(1)	harness for engine compartment "J.."	1H2 971 077 PD
(1)	harness for engine compartment "J.."	1H2 971 077 KJ
(1)	harness for engine compartment	1H1 971 077 PH
(1)	harness for engine compartment	1H1 971 077 AT
(1)	harness for engine compartment	1H2 971 077 AT
(1)	harness for engine compartment	1H1 971 077 BA
(1)	harness for engine compartment	1H2 971 077 BA
(1)	harness for engine compartment	1H2 971 077 PA
(1)	harness for engine compartment	1H1 971 077 PL
(1)	harness for engine compartment	1H1 971 077 BF
(1)	harness for engine compartment	1H1 971 077 PQ
(14)	Flat contact housing withcontact locking mechanism Connection piece Switchbrake fluid	6N0 973 702
(2)	harness for engine compartment	1H2 971 077 KD
(2)	harness for engine compartment	1H1 971 077 BL
(2)	harness for engine compartment	1H1 971 077 QC
(2)	harness for engine compartment "J.."	1H1 971 077 BN
(2)	harness for engine compartment	1H2 971 077 BL
(2)	harness for engine compartment "J.."	1H2 971 077 BN
(2)	harness for engine compartment	1H1 971 077 BM
(2)	harness for engine compartment "J.."	1H1 971 077 BP
(2)	harness for engine compartment	1H2 971 077 BM
(2)	harness for engine compartment "J.."	1H2 971 077 BP
(2)	harness for engine compartment	1H1 971 077 KE
(2)	harness for engine compartment	1H1 971 077 QG
(2)	harness for engine compartment "J.."	1H1 971 077 QH
(2)	harness for engine compartment "J.."	1H1 971 077 KF
(2)	harness for engine compartment	1H2 971 077 PP
(2)	harness for engine compartment "J.."	1H2 971 077 PQ
(2)	harness for engine compartment "J.."	1H2 971 077 KE
(27)	Flat contact housing Connection piece Switch air condit.	357 919 754
(30)	relay platefor vehicles with electroni-cally regulated air condit. "J.."	161 937 501 B
(33)	Flat contact housing withcontact locking mechanism Slot: N air condit. N	357 959 968 B
(35)	Formed part	1H0 971 617 B
(4)	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
(41)	Grommet 39/13 39/13	1H0 971 905 G
(44)	Grommet 39/6 39/6	1H0 971 905 J
(5)	corrugated pipe in coils of 5 m'order unit 5' 13 13	N 907 736 01
(5)	corrugated pipe in coils of 5 m'order unit 5' 5000 X 13 X 16 5000 X 13 X 16	N 102 871 01
(51)	Flat contact housing withcontact locking mechanism Coupling element Wiring set for dash panelfor vehicles with air condit.with mechanical operation	1J0 972 702
(51)	Flat contact housing Coupling element Wiring set for dash panelfor vehicles with air condit.with mechanical operation	191 972 702
(54)	Flat contact housing withcontact locking mechanism Coupling elementwiring harness for anti-lockbrakesystem -abs-	191 972 725
(60)	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
(64)	single wiring seal for wire cross section: 16,2 X 15,06,0 16,2 X 15,06,0	357 972 744 A
(66)	Flat contact housing Coupling elementwiring harness for anti-lockbrakesystem -abs-	1J0 972 752
(66)	Flat contact housing Coupling elementwiring harness for anti-lockbrakesystem -abs-	191 972 752
(71)	Flat contact housing Coupling element Wiring set for dash panelfor vehicles with electroni-cally regulated air condit.	191 972 776
(79)	Flat contact housing withcontact locking mechanism air condit.	3A0 973 715
(79)	flat contact housing withgasket air condit.	1H0 973 204 A
10	corrugated pipe 1000 X 17 X 21 1000 X 17 X 21	535 971 820 B
10	corrugated pipe in coils of 5 m'order unit 5' 17 17	N 907 737 01
11	Flat contact housing withcontact locking mechanism Slot: F F	357 903 968
12	Grommet 18 X 20,5 18 X 20,5	443 906 102 C
13	Grommet 13,5 X 19 13,5 X 19	443 906 102 G
15	Flat contact housing Connection piece Potential distributor Hall sensor	701 906 231
16	Flat contact housing Connection piece Knock sensor Air mass meter	443 906 233
17	flat contact housing withgasket Connection piece Valve Switch for accelerator pedalby-pass air cut-off valve External temperature sensor Temperature sensorfor vehicles with electroni-cally regulated air condit. AKFNTC automatic air condit. air condit. AKFNTC	037 906 240
18	Flat contact housing Connection piece Radiator fan	1H0 906 233
19	flat contact housing withgasket	1H0 906 370 K
19	flat contact housing withgasket	1H0 906 365
20	Seal 16 X 105 16 X 105	1H0 906 375
21	Bracket protective cover	357 906 732 A
22	Bracket protective cover	357 906 733 B
23	Flat contact housing	357 906 752
24	Flat contact housing Slot: Z 2 Z 2	357 915 971 A
26	Flat contact housing Slot: 30,30 B 30,30 B	357 915 971 B
27	Flat contact housing Slot: Z 1 Z 1	357 915 971 C
3	flat fuse 19/2 x 5	N 017 131 15
30	fuse box forflat fusesfor vehicles with electroni-cally regulated air condit.	161 937 501
30	fuse box forflat fusesfor vehicles with electroni-cally regulated air condit.	1H0 937 530
32	Flat contact housing withcontact locking mechanism Slot: C C	357 955 968
33	Flat contact housing withcontact locking mechanism Slot: S S	357 955 968 A
35	Cable holder	1H0 971 615 S
36	Cable guide	037 971 824 A
37	Flat contact housing Connection piece Wiper motor	171 971 835 A
38	Grommet	1H0 971 840 C
39	Bundling clip f wiring harness	4B0 971 848
39	Cable holder	1H0 971 848 F
4	Cable ties 6,5 X 175 6,5 X 175	N 900 603 01
4	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
40	Cable holder	1H0 971 848 Q
41	Grommet 39/5 39/5	1H0 971 905 H
44	Grommet 39/12 39/12	1H0 971 905 K
45	Flat contact housing withcontact locking mechanism Slot: G 1 G 1	357 971 967
46	Flat contact housing withcontact locking mechanism Slot: G 2 G 2	357 971 967 A
47	Flat contact housing withcontact locking mechanism Slot: A 2 A 2	357 971 968
48	Flat contact housing withcontact locking mechanism Slot: A 1 A 1	357 971 968 A
49	Flat contact housing	161 971 989 C
5	corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5	N 906 355 17
50	Discont. / replace: 6 N 0 973 702 6 N 0 973 702	—
51	Flat contact housing Coupling elementfor vehicles with electroni-cally regulated air condit.	191 972 701
53	Flat contact housing Coupling element Wiring set for dash panel	535 972 701
54	flat connector housing Coupling element Combi-instrument	191 972 713
57	Flat contact housing Coupling element Wiring harness for headlightrange control	191 972 732
57	Flat contact housing Coupling element Wiring harness for headlightrange control	1J0 972 732
58	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
59	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
60	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
62	single wiring seal for wire cross section: 9,0 X 7,81,0 9,0 X 7,81,0	357 972 742
63	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B
64	single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0	357 972 742 C
66	flat contact housing withgasket Coupling element Alternator	357 972 751
69	flat contact housing withgasket Connection piece Turn signal indicator Selector on the gearbox External temperature sensor Temperature sensor Pump Coupling element Switch "J.." air condit.	357 972 752
70	Flat contact housing Connection piecespeed senderdistance sensor Transformer	357 972 753
71	flat contact housing withgasket Connection piece Starter	357 972 771
73	Bungs 4,0 X 7,8 4,0 X 7,8	4B0 972 840
73	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
74	Bungs 9,0 9,0	357 972 842
75	flat contact housing withgasket Coupling elementharness for engine compartment	1H0 973 103
76	round connector housing	1H0 973 103 A
78	flat contact housing withgasket Connection piecethermal switch Radiator fan	1H0 973 203
79	Flat contact housing Connection piece Lambda probe	3A0 973 204
8	corrugated pipe in coils of 5 m'order unit 5' 10 10	N 907 735 01
80	Flat contact housing	1H0 973 763
9	corrugated pipe in coils of 5 m'order unit 5' 22 22	N 907 738 01
9	corrugated pipe 1000 X 22 X 25 1000 X 22 X 25	535 971 820 C

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: ADY, AEP, AGG, AKR
Factory group: 06 Wiring looms
Factory subgroup: 971044
