Harness engine compartment f 1 e s 009 002 aam adz aek abs — Mk3 Golf Wiring Looms (1994 - 1997)
Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Wiring set for engine
Harness engine compartment f 1 e s 009 002 aam adz aek abs for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 971023 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 165 OEM part numbers across 175 catalogued positions including N 904 288 01, N 103 113 03 and 281 957 787 C. Parts on this plate carry the engine codes AAM, ABS, ADZ, AEK, AFT and AKS. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

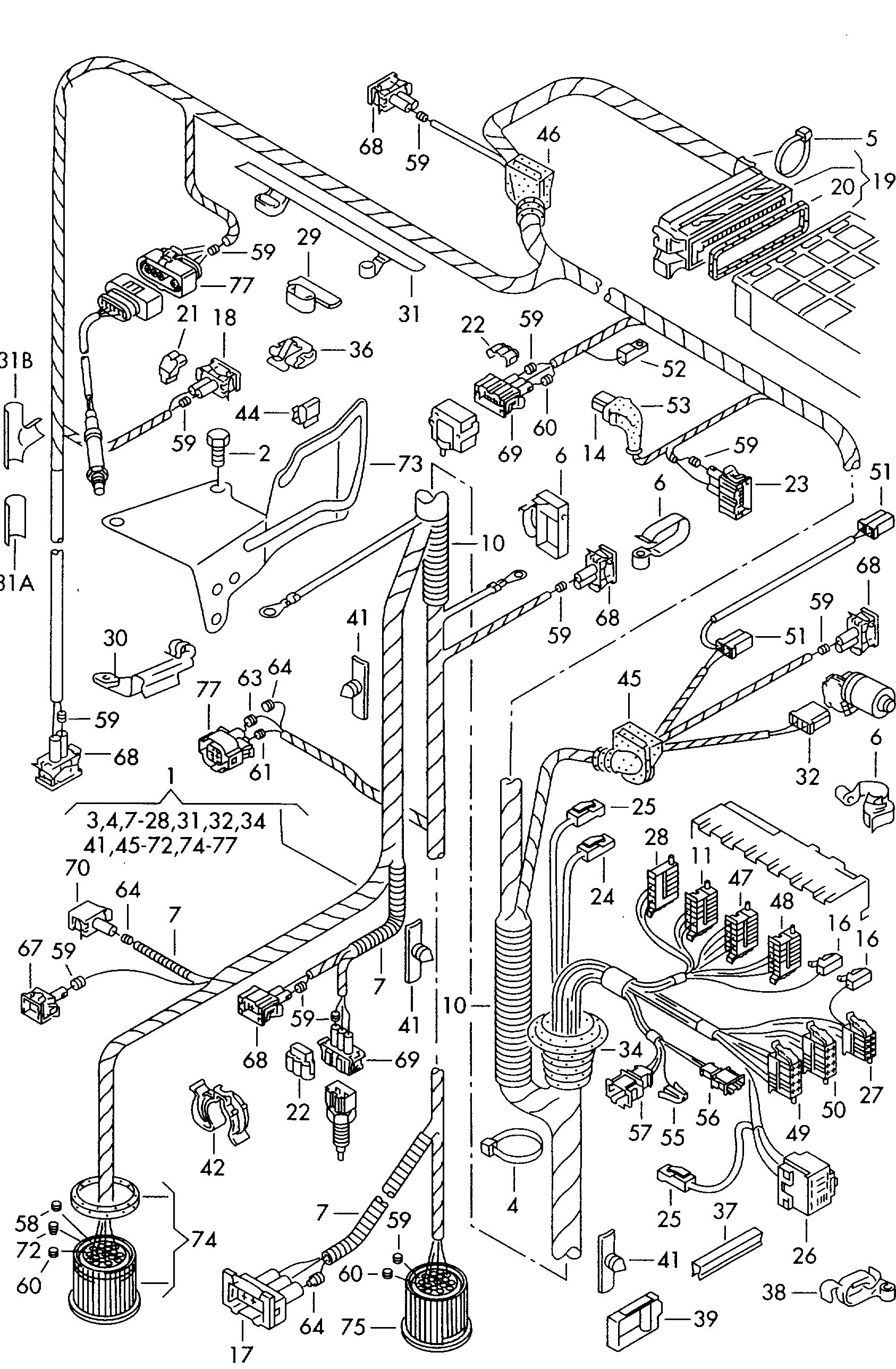

Parts on this diagram
This Mk3 Golf plate lists 165 OEM part numbers across 175 numbered positions.
| № | Description | Part number |
|---|---|---|
| harness for engine compartment F 1 E-T-000 001>>1 E-T-023 000* AEK AEK | — | |
| harness for engine compartment F 1 E-S-009 002>> AAM,ADZ,AEK,ABS,AFT,AKS AAMABSADZAEKAFTAKS | — | |
| harness for engine compartment F 1 E-S-021 847>> 1 E-S-040 000 AAM,ABS AAMABS | — | |
| harness for engine compartment F 1 E-T-000 001>> 1 E-W-004 500* AAM,ADZ AAMADZ | — | |
| harness for engine compartment F 1 E-S-021 847>> 1 E-S-040 000* AEK AEK | — | |
| harness for engine compartment F 1 E-S-009 002>> 1 E-S-021 846 AEK AEK | — | |
| harness for engine compartment F 1 E-W-004 501>>* AAM,ADZ AAMADZ | — | |
| harness for engine compartment F 1 E-S-009 002>> 1 E-S-021 846 AAM,ABS AAMABS | — | |
| harness for engine compartment F 1 E-T-023 001>>* AFT,AKS AFTAKS | — | |
| - | Cable tie with holder for weld pin: 10 X 185/M 5 10 X 185/M 5 | N 904 288 01 |
| - | Insulating tape 19 19 | N 103 113 03 |
| - | Retainer, swivel 12/29 12/29 | 281 957 787 C |
| - | Bungs 5,6 X 7,8 5,6 X 7,8 | 357 972 841 |
| (1) | harness for engine compartmentfor vehicles with air condit. also use: 443 906 231867 972 525 A 443 906 231867 972 525 A | 1E2 971 070 DH |
| (1) | harness for engine compartment also use: 443 906 231867 972 525 A automatic 443 906 231867 972 525 A | 1E2 971 070 DL |
| (1) | harness for engine compartmentfor vehicles with air condit.MITVERW 443 906 231867 972 525 A automatic 443 906 231867 972 525 A | 1E2 971 070 DM |
| (1) | harness for engine compartment | 1E1 971 070 GG |
| (1) | harness for engine compartmentfor vehicles with air condit. | 1E1 971 070 GH |
| (1) | harness for engine compartment automatic | 1E1 971 070 GL |
| (1) | harness for engine compartmentfor vehicles with air condit. automatic | 1E1 971 070 GM |
| (1) | harness for engine compartment | 1E1 971 070 DM |
| (1) | harness for engine compartmentfor vehicles with air condit. | 1E1 971 070 DN |
| (1) | harness for engine compartment automatic | 1E1 971 070 DR |
| (1) | harness for engine compartmentfor vehicles with air condit. automatic | 1E1 971 070 DS |
| (1) | harness for engine compartmentfor vehicles with air condit. | 1E2 971 070 DH |
| (1) | harness for engine compartment automatic | 1E2 971 070 DL |
| (1) | harness for engine compartmentfor vehicles with air condit. automatic | 1E2 971 070 DM |
| (1) | harness for engine compartment | 1E1 971 070 JH |
| (1) | harness for engine compartmentfor vehicles with air condit. | 1E1 971 070 JJ |
| (1) | harness for engine compartment automatic | 1E1 971 070 JM |
| (1) | harness for engine compartmentfor vehicles with air condit. automatic | 1E1 971 070 JN |
| (1) | harness for engine compartment | 1E2 971 070 FM |
| (1) | harness for engine compartmentfor vehicles with air condit. | 1E2 971 070 FN |
| (1) | harness for engine compartment automatic | 1E2 971 070 FR |
| (1) | harness for engine compartmentfor vehicles with air condit. automatic | 1E2 971 070 FS |
| (1) | harness for engine compartment "J.." | 1E2 971 070 FT |
| (1) | harness for engine compartmentfor vehicles with air condit. "J.." | 1E2 971 070 GA |
| (1) | harness for engine compartment | 1E1 971 070 JH |
| (1) | harness for engine compartmentfor vehicles with air condit. | 1E1 971 070 JJ |
| (1) | harness for engine compartment automatic | 1E1 971 070 JM |
| (1) | harness for engine compartmentfor vehicles with air condit. automatic | 1E1 971 070 JN |
| (1) | harness for engine compartment | 1E2 971 070 FM |
| (1) | harness for engine compartmentfor vehicles with air condit. | 1E2 971 070 FN |
| (1) | harness for engine compartment automatic | 1E2 971 070 FR |
| (1) | harness for engine compartmentfor vehicles with air condit. automatic | 1E2 971 070 FS |
| (1) | harness for engine compartment "J.." | 1E2 971 070 FT |
| (1) | harness for engine compartmentfor vehicles with air condit. "J.." | 1E2 971 070 GA |
| (1) | harness for engine compartment also use: 443 906 231867 972 525 A 443 906 231867 972 525 A | 1E1 971 070 EG |
| (1) | harness for engine compartmentfor vehicles with air condit. also use: 443 906 231867 972 525 A 443 906 231867 972 525 A | 1E1 971 070 EL |
| (1) | harness for engine compartment also use: 443 906 231867 972 525 AN 017 483 5 443 906 231867 972 525 AN 017 483 5 | 1E2 971 070 DR |
| (1) | harness for engine compartmentfor vehicles with air condit. also use: 443 906 231867 972 525 AN 017 483 5 443 906 231867 972 525 AN 017 483 5 | 1E2 971 070 EB |
| (1) | harness for engine compartment | 1E1 971 070 EG |
| (1) | harness for engine compartmentfor vehicles with air condit. | 1E1 971 070 EL |
| (1) | harness for engine compartment | 1E1 971 070 FR |
| (1) | harness for engine compartmentfor vehicles with air condit. | 1E1 971 070 GB |
| (1) | harness for engine compartment | 1E1 971 070 FH |
| (1) | harness for engine compartmentfor vehicles with air condit. | 1E1 971 070 FM |
| (1) | harness for engine compartment automatic | 1E1 971 070 FK |
| (1) | harness for engine compartmentfor vehicles with air condit. automatic | 1E1 971 070 FP |
| (1) | harness for engine compartment | 1E2 971 070 EN |
| (1) | harness for engine compartmentfor vehicles with air condit. | 1E2 971 070 ES |
| (1) | harness for engine compartment Automatic+ | 1E2 971 070 EQ |
| (1) | harness for engine compartmentfor vehicles with air condit. Automatic+ | 1E2 971 070 FA |
| (1) | harness for engine compartment | 1E2 971 070 DG |
| (1) | harness for engine compartmentfor vehicles with air condit. also use: 443 906 231867 972 525 A 443 906 231867 972 525 A | 1E1 971 070 DN |
| (1) | harness for engine compartment automatic | 1E1 971 070 BM |
| (1) | harness for engine compartmentfor vehicles with air condit. automatic | 1E1 971 070 BN |
| (1) | harness for engine compartment | 1E2 971 070 BH |
| (1) | harness for engine compartmentfor vehicles with air condit. | 1E2 971 070 BJ |
| (1) | harness for engine compartment automatic | 1E2 971 070 BM |
| (1) | harness for engine compartmentfor vehicles with air condit. automatic | 1E2 971 070 BN |
| (1) | harness for engine compartment "J.." | 1E2 971 070 BP |
| (1) | harness for engine compartmentfor vehicles with air condit. "J.." | 1E2 971 070 BQ |
| (1) | harness for engine compartment also use: 443 906 231867 972 525 A automatic 443 906 231867 972 525 A | 1E1 971 070 DR |
| (1) | harness for engine compartmentfor vehicles with air condit. also use: 443 906 231867 972 525 A automatic 443 906 231867 972 525 A | 1E1 971 070 DS |
| (1) | harness for engine compartment also use: 443 906 231867 972 525 A 443 906 231867 972 525 A | 1E2 971 070 DG |
| (14) | Flat contact housing withcontact locking mechanism Connection piece Switchbrake fluid F 1 E-S-021 847>> | 6N0 973 702 |
| (14) | Flat contact housing Connection piece Knock sensor AEK AEK | 443 906 233 |
| (19) | flat contact housing withgasket AEK AEK | 1H0 906 370 K |
| (25) | Flat contact housing Connection piece Switch air condit. | 357 919 754 |
| (26) | relay plate F >> 1 E-T-010 000* AEK AEK | 161 937 501 B |
| (28) | Flat contact housing withcontact locking mechanism Slot:F 1 E-T-010 001>>* | 357 959 968 B |
| (34) | Grommet 18 X 20,5 AEK 18 X 20,5 AEK | 443 906 102 B |
| (41) | Bracket automatic | 084 971 848 |
| (45) | Grommet 39/13 39/13 | 1H0 971 905 G |
| (46) | Grommet 39/6 39/6 | 1H0 971 905 J |
| (55) | Flat contact housing | 535 972 701 |
| (55) | Flat contact housing Coupling element Wiring set for dash panel air condit. | 191 972 702 |
| (55) | Flat contact housing Possible single wire: counterpart to: 000 979 126000 979 126 A 1 J 0 971 712 000 979 126000 979 126 A 1 J 0 971 712 | 1J0 972 702 |
| (55) | Flat contact housing withcontact locking mechanism Possible single wire: counterpart to: 000 979 133000 979 133 A 1 J 0 971 712 000 979 133000 979 133 A 1 J 0 971 712 | 1J0 972 702 |
| (56) | Flat contact housing withcontact locking mechanism Coupling elementwiring harness for 4-speedautomatic gearbox automatic | 191 972 725 |
| (61) | single wiring seal for wire cross section: 9,0 X 7,81,0 air condit. 9,0 X 7,81,0 | 357 972 742 |
| (64) | single wiring seal for wire cross section: 16,2 X 15,06,0 air condit. 16,2 X 15,06,0 | 357 972 744 A |
| (67) | flat connector housing Coupling element Wiring set for parking anddriving light switch | 191 972 761 |
| (67) | Flat contact housing Coupling elementwiring harness for steeringcolumn combination switch | 191 972 751 |
| (68) | Flat contact housing Coupling elementwiring harness for 4-speedautomatic gearbox automatic | 191 972 752 |
| (68) | Flat contact housing Coupling elementwiring harness for 4-speedautomatic gearbox automatic | 1J0 972 752 |
| (73) | Guard plate Connection piecedistance sensor automatic | 1H0 972 935 B |
| (77) | flat contact housing withgasket air condit. | 1H0 973 204 A |
| (77) | Flat contact housing withcontact locking mechanism air condit. | 3A0 973 715 |
| (8) | corrugated pipe 1000 X 17 X 21 1000 X 17 X 21 | 535 971 820 B |
| (8) | corrugated pipe in coils of 5 m'order unit 5' 17 17 | N 907 737 01 |
| 1 | harness for engine compartment also use: 443 906 231867 972 525 A 443 906 231867 972 525 A | 1E1 971 070 DM |
| 10 | corrugated pipe 1000 X 22 X 25 1000 X 22 X 25 | 535 971 820 C |
| 10 | corrugated pipe in coils of 5 m'order unit 5' 22 22 | N 907 738 01 |
| 11 | Flat contact housing withcontact locking mechanism Slot: F F | 357 903 968 |
| 14 | Flat contact housing Connection piece Switchbrake fluid F >> 1 E-S-021 846 | 443 906 231 |
| 16 | Flat contact housing Connection piece Potential distributor Hall sensor Potential distributor air condit. | 701 906 231 |
| 17 | Flat contact housing Connection piece Radiator fan | 1H0 906 233 |
| 18 | flat contact housing withgasket Connection piece Valve Switch for accelerator pedalby-pass air cut-off valve External temperature sensor AKF automatic air condit. air condit. AKF | 037 906 240 |
| 19 | flat contact housing withgasket | 1H0 906 365 |
| 19 | flat contact housing withgasket | 1H0 906 370 L |
| 2 | Hexagon bolt M 10 X 15 automatic M 10 X 15 | N 010 058 3 |
| 20 | Seal 16 X 105 16 X 105 | 1H0 906 375 |
| 21 | Bracket protective cover | 357 906 732 A |
| 22 | Bracket protective cover | 357 906 733 B |
| 23 | Flat contact housing Possible single wire: counterpart to: also use: 000 979 126000 979 126 A 000 979 217357 972 763357 972 841 1,01,02,5 000 979 126000 979 126 A 000 979 217357 972 763357 972 841 | 357 972 753 |
| 23 | Flat contact housing | 357 906 752 |
| 24 | Flat contact housing Slot: Z 2 Z 2 | 357 915 971 A |
| 25 | Flat contact housing Slot: 30,30 B 30,30 B | 357 915 971 B |
| 26 | relay plate AAM,ADZ AAMADZ | 867 937 501 |
| 27 | Flat contact housing withcontact locking mechanism Slot: C C | 357 955 968 |
| 28 | Flat contact housing withcontact locking mechanism Slot: S S | 357 955 968 A |
| 29 | Cable tie with holder for weld pin: 5 X 200 5 X 200 | 1J0 971 838 A |
| 29 | Cable guide 23 X 46 23 X 46 | 3A0 971 615 D |
| 30 | Cable holder | 1H0 971 615 R |
| 31 | Cable holder | 1H0 971 615 S |
| 31A | Formed part Battery console F 1 E-T-000 001>> | 1H0 971 617 B |
| 31B | Formed partt-piece F 1 E-T-000 001>> | 1H0 971 617 C |
| 32 | Flat contact housing Connection piece Wiper motor | 171 971 835 A |
| 34 | Grommet | 1H0 971 840 C |
| 36 | Cable holder Connection piece Line Lambda probe Heat shield | 1H0 971 842 F |
| 36 | Clip Connection piece Line Lambda probe Heat shield | 1H0 971 842 C |
| 37 | Cover Connection piece Side member Cross panel | 1H1 971 813 A |
| 38 | Clip 20 X 28 20 X 28 | 1H1 971 848 |
| 39 | Clip 20 X 34 20 X 34 | 1H2 971 848 |
| 4 | Cable ties 4,6 X 200 4,6 X 200 | N 906 661 01 |
| 4 | Cable ties 6,5 X 175 6,5 X 175 | N 900 603 01 |
| 41 | Cable holder | 1H0 971 848 AF |
| 42 | Clip Connection piece Cooling pipe 20 20 | 535 971 848 A |
| 44 | Retaining clip | 811 971 848 B |
| 45 | Grommet 39/5 39/5 | 1H0 971 905 H |
| 46 | Grommet 39/12 39/12 | 1H0 971 905 K |
| 47 | Flat contact housing withcontact locking mechanism Slot: G 1 G 1 | 357 971 967 |
| 48 | Flat contact housing withcontact locking mechanism Slot: G 2 G 2 | 357 971 967 A |
| 49 | Flat contact housing withcontact locking mechanism Slot: A 2 A 2 | 357 971 968 |
| 5 | Cable ties 3,6 X 246 3,6 X 246 | N 020 902 2 |
| 50 | Flat contact housing withcontact locking mechanism Slot: A 1 A 1 | 357 971 968 A |
| 51 | flat connector housing Connection piece Spray nozzle, heated | 161 971 988 C |
| 52 | Flat contact housing | 161 971 990 A |
| 53 | Protective cap F >> 1 E-S-021 846 | 867 972 525 A |
| 55 | Flat contact housing Coupling elementwiring harness forimmobilizer | 535 972 701 A |
| 56 | flat connector housing Coupling element Combi-instrument | 191 972 713 |
| 57 | Flat contact housing Coupling element Wiring harness for headlightrange control | 191 972 732 |
| 57 | Flat contact housing Coupling element Wiring harness for headlightrange control | 1J0 972 732 |
| 58 | single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0 | 357 972 740 D |
| 59 | single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0 | 357 972 741 |
| 6 | Discont. / replace: N 904 288 01 N 904 288 01 | — |
| 60 | single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5 | 357 972 741 A |
| 61 | single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5 | 357 972 741 B |
| 63 | single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5 | 357 972 742 B |
| 64 | single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0 | 357 972 742 C |
| 67 | flat contact housing withgasket Coupling element Alternator | 357 972 751 |
| 68 | flat contact housing withgasket Connection piece Turn signal indicator Switch External temperature sensor Pumpsolenoid Resistor air condit. | 357 972 752 |
| 69 | Flat contact housing Connection piecedistance sensor Transformer | 357 972 753 |
| 7 | corrugated pipe in coils of 5 m'order unit 5' 10 10 | N 907 735 01 |
| 70 | flat contact housing withgasket Connection piece Starter | 357 972 771 |
| 72 | Bungs 4,0 X 7,8 4,0 X 7,8 | 357 972 840 |
| 72 | Bungs 4,0 X 7,8 4,0 X 7,8 | 4B0 972 840 |
| 73 | Guard plate Connection piecebracket for engine | 1H0 972 935 A |
| 74 | flat contact housing withgasket | 1H0 973 103 |
| 75 | round connector housing | 1H0 973 103 A |
| 76 | flat contact housing withgasket Connection piecethermal switch Radiator fan | 1H0 973 203 |
| 77 | Flat contact housing Connection piece Lambda probe | 3A0 973 204 |
| 8 | corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5 | N 906 355 17 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1994 - 1997
- Generation region
- RDW
- Generation code
- 146
- Engine codes on this plate
- AAM, ABS, ADZ, AEK, AFT, AKS
- Factory group
- 06 Wiring looms
- Factory subgroup
- 971023
Related factory diagrams
Other published wiring looms plates for the Mk3 Golf in this catalogue.
The complete Mk3 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the harness engine compartment f 1 e s 009 002 aam adz aek abs diagram for the Mk3 Golf?
- This diagram lists 165 OEM part numbers for the Mk3 Golf. The first three are N 904 288 01, N 103 113 03 and 281 957 787 C.
- Which Mk3 Golf years and engines does this diagram cover?
- This plate is from the Mk3 Golf 1994 - 1997 generation (RDW). The parts on it carry the engine codes AAM, ABS, ADZ, AEK, AFT and AKS.
- Where is the complete Mk3 Golf factory parts catalogue?
- The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
