Harness engine compartment — Mk3 Golf Wiring Looms (1995)

Factory title: Volkswagen Golf (1995) - Adapter cable loom. Wiring set for engine

Generation: Mk3 1995 (RDW) Group: Wiring looms Parts: 56 Primary OEM: 1H0 971 615 M, 1H2 971 072 JG, 1H2 971 072 FB

Harness engine compartment for the Volkswagen Golf Mk3 (1995): factory exploded diagram 971053 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 52 OEM part numbers across 56 catalogued positions including 1H0 971 615 M, 1H2 971 072 JG and 1H2 971 072 FB. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 52 OEM part numbers across 56 numbered positions.

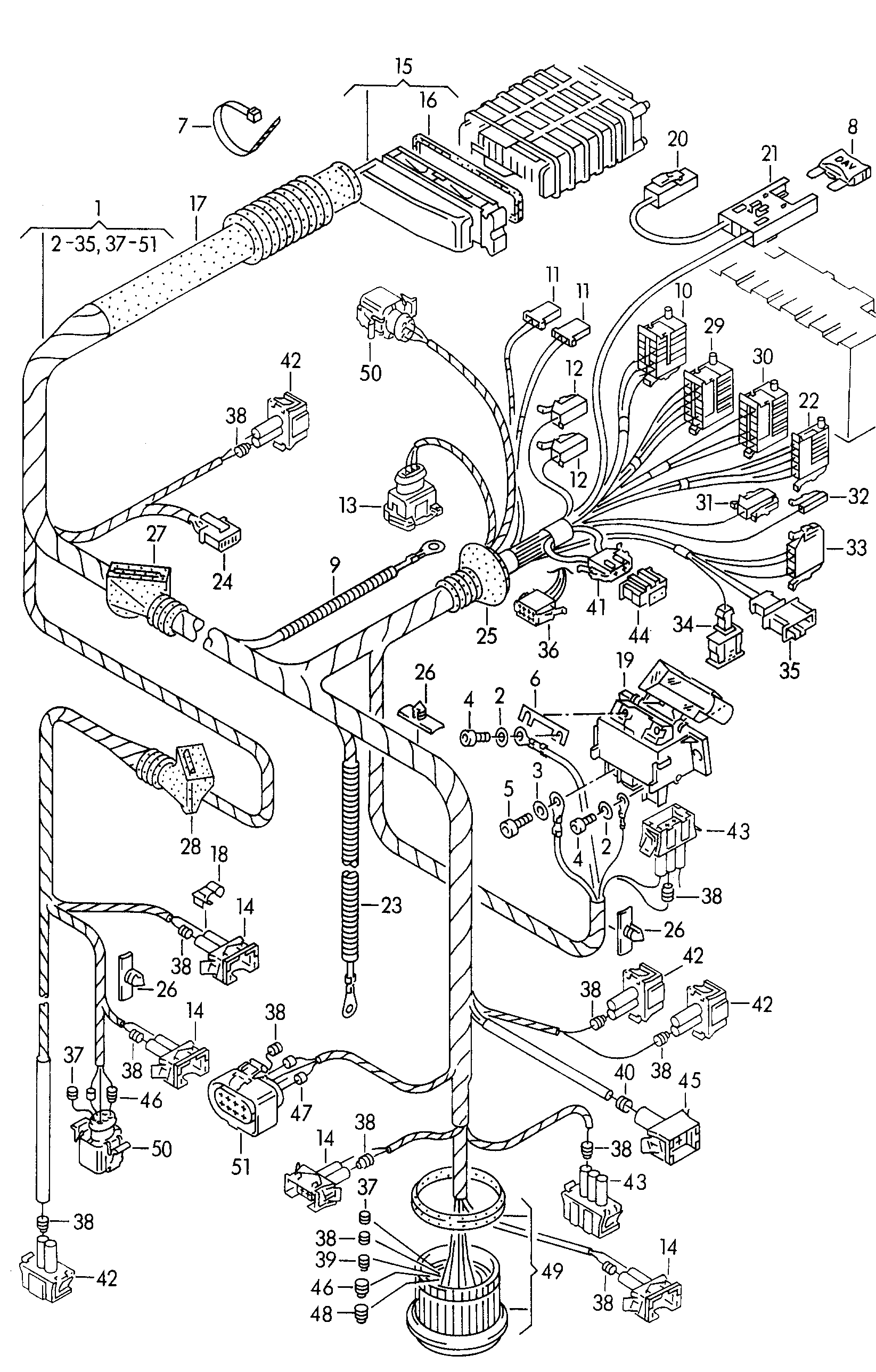

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for engine compartment F >> 1 H-SW 122 920F >> 1 H-SP 080 000F >> 1 H-SB 029 454 Diesel eng.+1 Z	—
	harness for engine compartment F >> 1 H-SW 122 920 F >> 1 H-SP 080 000*F >> 1 H-SB 029 454 Diesel eng.+1 Z	—
-	Cable guide Connection piecewater box	1H0 971 615 M
(1)	No longer available	—
(1)	harness for engine compartment automatic	1H2 971 072 JG
(1)	harness for engine compartmentfor vehicles with glow plugheater	1H2 971 072 FB
(1)	harness for engine compartment	1H2 971 072 HQ
(1)	harness for engine compartmentfor vehicles with glow plugheater	1H1 971 072 GF
(1)	harness for engine compartment	1H1 971 072 GL
(1)	harness for engine compartment automatic	1H1 971 072 LS
10	Flat contact housing withcontact locking mechanismcentral electrics Slot: F F	357 903 968
11	Flat contact housing Connection pieceswitch for brake pedal Switch for clutchpedal	443 906 231
12	Flat contact housing Connection piece Potential distributor Hall sensor Potential distributor 15 A 15 A	701 906 231
13	Flat contact housing Pressure sender Height corrector	443 906 233
14	flat contact housing withgasket Connection pieceexhaust recirculation valvewastegate Temperature sensor Intake manifold Coupling elementimpulse sender	037 906 240
15	flat contact housing withgasket Connection piece Control unit	1H0 906 370 J
16	Seal 16 X 105 16 X 105	1H0 906 375
17	Protective cap Connection piece Control unit 27/19 27/19	1H0 906 376
17	No longer available Connection piece Control unit 27/19 27/19	—
18	Bracket protective cover Connection pieceexhaust recirculation valve	357 906 732 A
19	Control unit for glow plug	191 911 261 B
2	Washer 5,3 X 9,5 X 1 5,3 X 9,5 X 1	N 011 556 2
20	Flat contact housingcentral electrics Slot: Z 1 Z 1	357 915 971 C
21	fuse holder	3A0 937 501 A
22	Flat contact housing withcontact locking mechanismcentral electrics Slot: S S	357 955 968 A
24	Flat contact housing Connection piece Wiper motor	171 971 835 A
25	Grommet 46/10,5 46/10,5	1H0 971 840
26	Bundling clip f wiring harness	4B0 971 848
26	Cable holder	1H0 971 848 F
27	Grommet 39/19 39/19	1H0 971 905 D
28	Grommet 31/15 31/15	1H0 971 905 E
29	Flat contact housing withcontact locking mechanismcentral electrics Slot: G 1 G 1	357 971 967
3	Spring washer 6 6	N 012 226 5
30	Flat contact housing withcontact locking mechanismcentral electrics Slot: G 2 G 2	357 971 967 A
31	Flat contact housing Connection piece Hall sensorfor vehicles with anti-theftalarm system and imobiliser	191 972 701
32	Flat contact housing Connection piece Diagnostics infinite bus	1H0 972 701
33	Flat contact housing Connection piecesteering col. combi switch	1J0 972 704
33	Flat contact housing Connection piecesteering col. combi switch	191 972 704
34	flat connector housing Coupling element Combi-instrument MFA MFA	191 972 711
35	flat connector housing Coupling element Air conditioningfor vehicles with anti-theftalarm system and imobiliser	191 972 712
36	Flat contact housing Connection piecefor automatic gearbox automatic	191 972 724
4	fillister hd. bolt M 5 X 8 M 5 X 8	N 014 128 11
41	Flat contact housing Coupling elementanti-theft alarm system	191 972 752
41	Flat contact housing Coupling elementanti-theft alarm system	1J0 972 752
42	flat contact housing withgasket Connection piece External temperature sensor Transmission switch Spray nozzle, heated Coupling elementdynamo	357 972 752
43	Flat contact housing Connection piecespeed senderrelay fortemperature sensorfor glow plug relay	357 972 753
44	contact bridge Coupling elementanti-theft alarm system	1H0 972 762
45	flat contact housing withgasket Connection piece Starter	357 972 771
49	flat contact housing withgasket	3A0 973 103
5	fillister hd. bolt M 6 X 10 M 6 X 10	N 014 138 7
50	Flat contact housing Connection pieceaccelerator pedal sender Air mass meter	3A0 973 713
51	Flat contact housing Connection piece Injection pump with charging-pressure connection	3A0 973 734
6	fuse 50 A 50 A	N 017 125 1
7	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
8	flat fuse 29/2 x 8	N 102 519 05
9	corrugated pipe in coils of 5 m'order unit 5' 5000 X 13 X 16 5000 X 13 X 16	N 102 871 01
