Harness engine compartment — Mk3 Golf Wiring Looms (1995)

Factory title: Volkswagen Golf (1995) - Adapter cable loom. Wiring set for engine

Generation: Mk3 1995 (RDW) Group: Wiring looms Parts: 59 Primary OEM: N 103 113 03, N 103 113 04, 1H2 971 072 PK

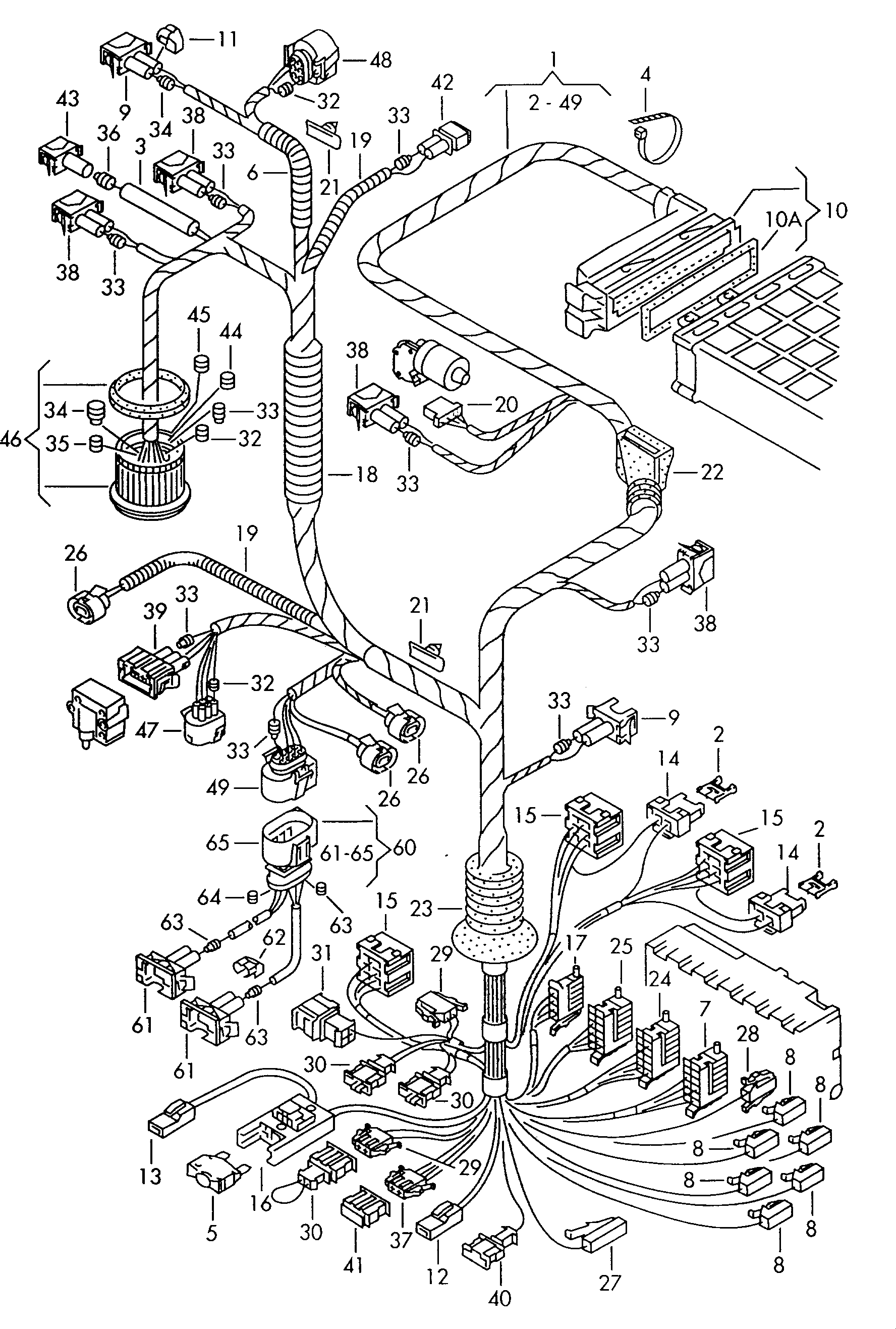

Harness engine compartment for the Volkswagen Golf Mk3 (1995): factory exploded diagram 971049 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 55 OEM part numbers across 59 catalogued positions including N 103 113 03, N 103 113 04 and 1H2 971 072 PK. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 55 OEM part numbers across 59 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for engine compartment F >> 1 H-SW 122 920 F >> 1 H-SP 080 000*F >> 1 H SB 029 454 ecomatic	—
	harness for engine compartment F >> 1 H-SW 122 920 F >> 1 H-SP 080 000F >> 1 H SB 060 000------------------------------F 1 H-SW 122 921>>F 1 H-SP 080 001>>*F 1 H-SB 029 455>> see illustration: ecomaticecomatic	—
-	Insulating tape 19 19	N 103 113 03
-	Insulating tape 19 19	N 103 113 04
(1)	harness for engine compartment	1H2 971 072 PK
(1)	No longer available	—
(1)	harness for engine compartment Connection piece Control unit DIGISWING DIGISWING	1H1 971 072 TG
(23)	Grommet 46/10,5 46/10,5	1H0 971 840
10	flat contact housing withgasket Connection piece Control unit	1H0 906 370 H
10A	Seal 16 X 105 16 X 105	1H0 906 375
11	Bracket protective cover Connection piece Vacuum pump	357 906 732 A
12	Flat contact housing Slot: 30,30 B 30,30 B	357 915 971 B
13	Flat contact housing Slot:Connection piececentral electrics Z 1 Z 1	357 915 971 C
14	fuse box forflat fuses	161 937 501
14	fuse box forflat fuses	1H0 937 530
15	relay plate Fuel pump relayrelay for starterrelay for brake andtail light control	161 937 501 B
16	fuse holder Connection piece	3A0 937 501 A
17	Flat contact housing withcontact locking mechanism Slot:Connection piececentral electrics S S	357 955 968 A
2	flat fuse 19/2 x 5	N 017 131 11
20	Flat contact housing Connection piece Wiper motor	171 971 835 A
21	Cable holder	1H0 971 848 F
21	Bundling clip f wiring harness	4B0 971 848
22	Grommet 39/13 39/13	1H0 971 905
24	Flat contact housing withcontact locking mechanism Slot:Connection piececentral electrics G 1 G 1	357 971 967
25	Flat contact housing withcontact locking mechanism Slot:Connection piececentral electrics G 2 G 2	357 971 967 A
26	flat contact housing withgasket Connection piece Vacuum switchfor brake servoand Coupling elementswitch for reversing light	1H0 972 117
27	Flat contact housing Coupling elementfor diagnostic plug	1H0 972 701
28	Flat contact housing Coupling element Wire set Hall sensor KL 54 KL 54	191 972 701
29	Flat contact housing withcontact locking mechanism Coupling elementwiring harness fortail lightfor vehicles with anti-theftalarm system and imobiliser	1J0 972 702
29	Flat contact housing Coupling elementwiring harness fortail lightfor vehicles with anti-theftalarm system and imobiliser	191 972 702
3	Insulating hose(Bulk stock) 14 X 0,8 14 X 0,8	N 018 014 1
30	flat connector housing Coupling elementwiring harness for steeringcolumn combination switchand Wire setfor headlampsfor vehicles with anti-theftalarm system and imobiliser	191 972 712
31	Flat contact housing Coupling element Wire set Combi-instrument	1J0 972 732
31	Flat contact housing Coupling element Wire set Combi-instrument	191 972 732
37	Flat contact housing Coupling elementanti-theft alarm system	191 972 752
37	Flat contact housing Coupling elementanti-theft alarm system	1J0 972 752
38	flat contact housing withgasket Connection piece Coolant pump Switch Engine compartment light Coupling element Wiring set for three-phasealternator Spray nozzle, heated	357 972 752
39	Flat contact housing Connection piece Speedometer	357 972 753
4	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
40	flat connector housing Coupling element Wire setdashboard	191 972 761
41	contact bridge Connection pieceanti-theft alarm system	1H0 972 762
42	flat connector housing Coupling elementcontact close relay	357 972 762
43	flat contact housing withgasket Connection piece Starter	357 972 771
46	Flat contact housing Coupling elementharness for engine compartment also use: 357 972 840 357 972 840	6N0 973 103
46	flat connector housing Coupling elementharness for engine compartment	1H0 973 103 D
46	flat contact housing withgasket Coupling elementharness for engine compartment also use: 4 B 0 972 840 4 B 0 972 840	6N0 973 103
47	Flat contact housing Connection piece Selector on the gearbox	3A0 973 206 A
47	Flat contact housing Connection piece Selector on the gearbox	3A0 973 206
48	Flat contact housing Connection piece Servo motor	3A0 973 713
49	Flat contact housing Coupling elementwiring harness for gearbox	3A0 973 734
5	flat fuse 29/2 x 8	N 102 519 05
60	No longer available	—
60	wiring harness for gearbox	1H1 971 659
61	flat contact housing withgasket Connection piecespeed sender Engine Input shaft	037 906 240
62	Bracket protective cover Connection piecespeed sender Engine	357 906 732 A
65	flat connector housing Coupling element Wiring set for engine	3A0 973 834
7	Flat contact housing withcontact locking mechanism Slot:Connection piececentral electrics F F	357 903 968
8	Flat contact housing Connection piece Potential distributorfor:door contact switch Hall sensor Earth line Contact Contact KL 31 KL 30/30 BKL 15 A KL 31 KL 30/30 BKL 15 A	701 906 231
9	flat contact housing withgasket Connection piece Vacuum pump Solenoid valve	037 906 240

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1995
Generation region: RDW
Generation code: 159
Variant tags: petrol_8v_gti_or_gl
Factory group: 06 Wiring looms
Factory subgroup: 971049
