Harness interior lightwith withoutglass sliding roofwiring — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 18 Primary OEM: 1H5 971 101 K, 1H5 971 101 L, 1J0 972 702

Harness interior lightwith withoutglass sliding roofwiring for the Volkswagen Golf Mk3 (1997): factory exploded diagram 972045 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 16 OEM part numbers across 18 catalogued positions including 1H5 971 101 K, 1H5 971 101 L and 1J0 972 702. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 16 OEM part numbers across 18 numbered positions.

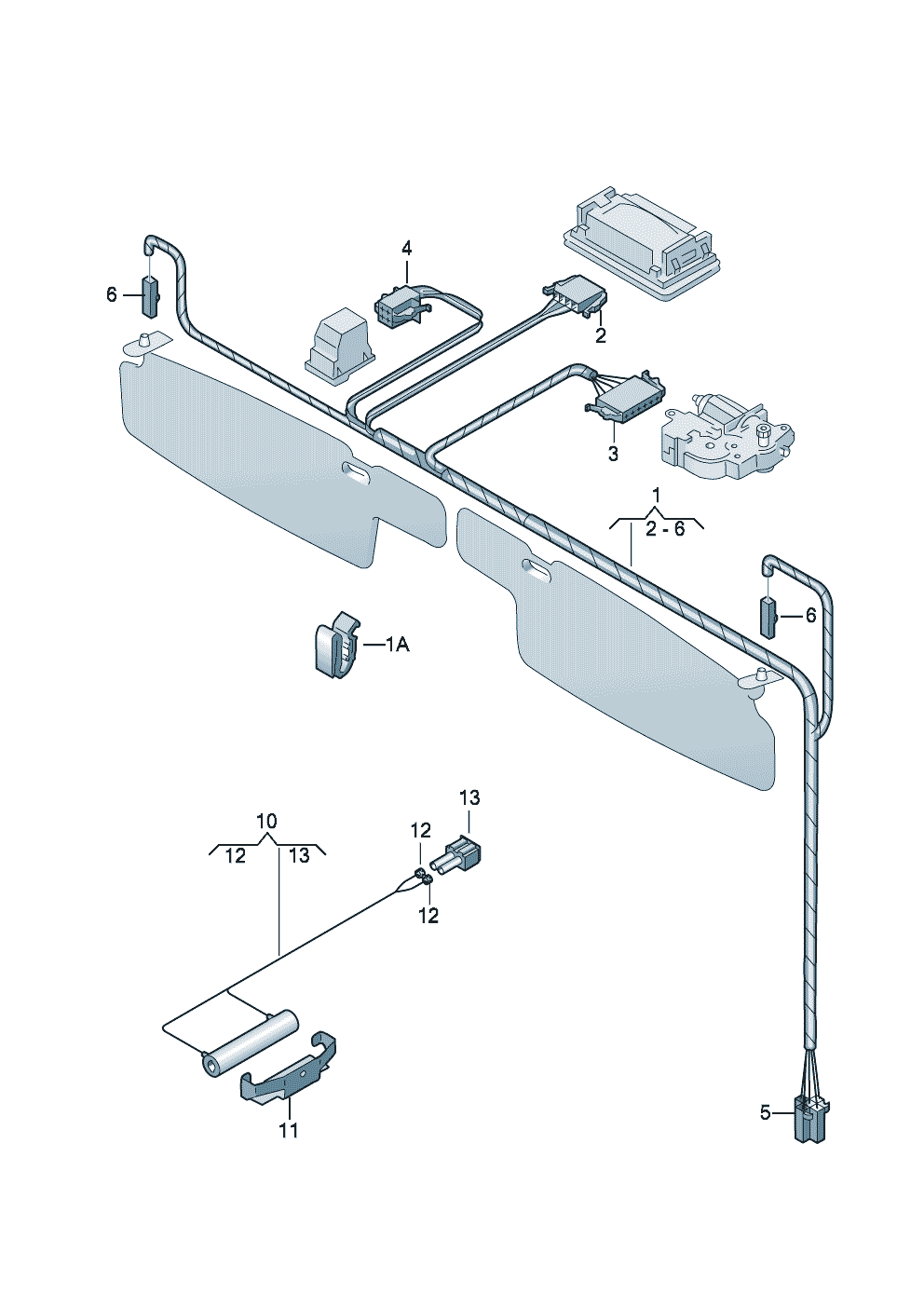

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	wiring loom for dim-dipdriving lights "GB."	—
	harness for interior lightwith/withoutglass sliding roofwiring loom for dim-dipdriving lights "GB."	—
(1)	harness for interior lightwith/withoutglass sliding roof	1H5 971 101 K
(1)	harness for interior lightwith/withoutglass sliding roof TAXI	1H5 971 101 L
(2)	Flat contact housing withcontact locking mechanism Connection pieceinterior light	1J0 972 702
(2)	Flat contact housing Connection pieceinterior light	191 972 702
10	wiring loom for dim-dipdriving lights	535 971 284
11	bracket for resistance	321 971 280
12	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
13	flat connector housing	357 972 762
1A	Clip	321 971 897
2	Flat contact housing	1J0 972 704
2	Flat contact housing	191 972 704
3	Flat contact housing	1J0 972 706
3	Flat contact housing	191 972 706
4	Flat contact housing	191 972 722
4	Flat contact housing	1J0 972 722
5	Flat contact housing Connection piece Rear wiring set	1H0 972 755
