Harness vehicle lighting front — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 49 Primary OEM: N 906 355 17, 1H0 971 073 AH, 1J0 973 722

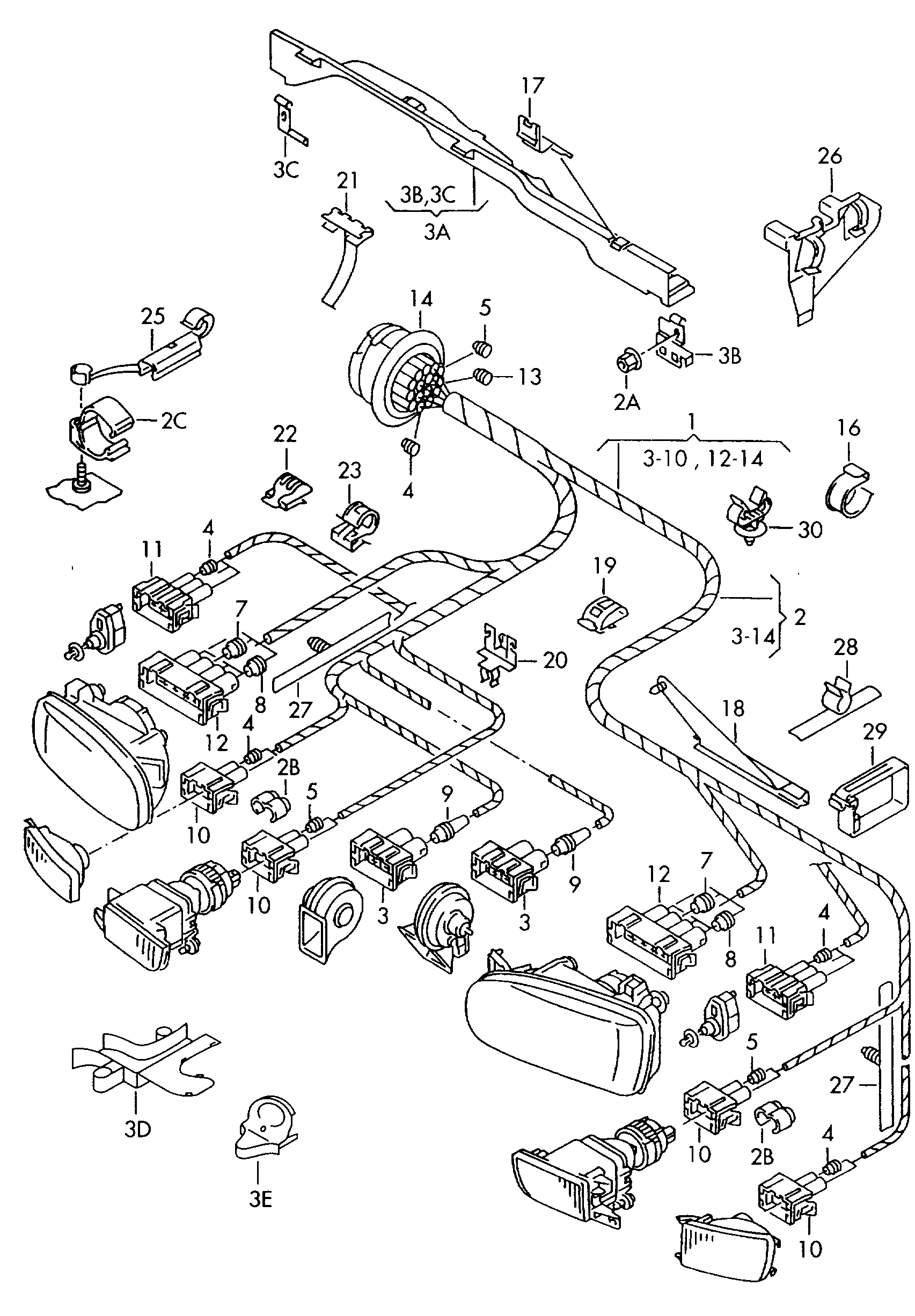

Harness vehicle lighting front for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971014 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 48 OEM part numbers across 49 catalogued positions including N 906 355 17, 1H0 971 073 AH and 1J0 973 722. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 48 OEM part numbers across 49 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	corrugated pipe 5000 X 4,5 5000 X 4,5	N 906 355 17
(1)	harness for vehicle lighting F >> 1 H-VW 500 000F >> 1 H-VP 300 000F >> 1 H-VD 480 000*F >> 1 H-VB 166 064 use if required: 357 972 841 357 972 841	1H0 971 073 AH
(10)	Flat contact housing withcontact locking mechanism Connection piece Turn signal indicator F 1 H-VW 500 001>>F 1 H-VP 300 001>>F 1 H-VD 480 001>>*F 1 H-VB 166 065>>	1J0 973 722
(12)	Flat contact housing Connection piece Headlights also use: 357 972 741 A 357 972 741 B 357 972 741 A 357 972 741 B	1H0 973 734
(12)	Flat contact housing Connection piece Adapter cable loom Headlights 1 H 0 971 671 1 H 0 971 671	357 972 774
(12)	flat connector housing Connection piece Adapter cable loom Headlights also use: 1 H 0 971 671 N 904 889 03 N 904 890 03 1 H 0 971 671 N 904 889 03 N 904 890 03	357 972 784
(16)	terminal Connection piece Radiator fan	1H0 971 939 E
(17)	Clip Connection piece Cable guide Web platewater box	1H0 972 891
(18)	Cover Connection piece Side member Cross panel	1H1 971 813 A
(18)	Cover Connection piece Side member Cross panel	1H2 971 615 A
(2)	harness for vehicle lightingfor vehicles with headlightrange adjustment F >> 1 H-VW 500 000F >> 1 H-VP 300 000F >> 1 H-VD 480 000*F >> 1 H-VB 166 064	1H0 971 073 AH
(2)	harness for vehicle lightingwith/without Headlight range control F 1 H-VW 500 001>>F 1 H-VP 300 001>>F 1 H-VD 480 001>>*F 1 H-VB 166 065>> use if required: 357 972 841 357 972 841	1H0 971 073 BB
(25)	Cable holder	1H0 971 615 R
(26)	protection platefor vehicles with air condit.	1H2 971 825 A
(27)	Cable holder Connection piececorrugated pipe	1H0 971 848 AF
(27)	Cable holder Connection piece Cross member 6 MM 6 MM	1H0 971 848 F
(27)	Bundling clip f wiring harness Connection piece Cross member 6 MM 6 MM	4B0 971 848
(2A)	Hexagon collar nut 5 5	171 201 969
(2B)	Bracket protective cover	357 906 732 B
(3A)	Cable guide	1H0 972 373 B
(3B)	Cable guide	1H0 972 373 B
(3C)	Cable guide	1H0 972 373 B
10	flat contact housing withgasket Connection piece Turn signal indicator F >> 1 H-VW 500 000F >> 1 H-VP 300 000F >> 1 H-VD 480 000*F >> 1 H-VB 166 064	357 972 752
10	flat contact housing withgasket Connection piece Halogen fog lamp	357 972 752
11	Flat contact housing Connection pieceheadlight range control	357 972 753
13	Bungs 5,6 X 7,8 5,6 X 7,8	357 972 841
14	round connector housingto use for:Connection piecewiring harness: front	1H0 973 135
16	terminal Connection piece Hoseheadlight washer system 17,5 17,5	1H0 955 846
17	Clip Connection piece Cable guide Web platewater box	357 972 793 F
19	Cable holder Connection piece Line Cross panel Hoseheadlight washer system	1H0 971 842
20	terminal Connection piece Line Cross panel	1H0 971 843 A
21	terminal Connection pieceround connector housing	1H0 971 848 D
22	clamp Connection piece Line Headlight range control Radiator fan	1H0 971 939
23	terminal Connection piece Radiator fan	1H0 971 939 C
26	protection platefor vehicles with air condit.	1H1 971 825 A
28	No longer available	—
29	Clip 23 X 46 23 X 46	1H0 971 848 M
2C	Cable tie with holder for weld pin: 10 X 1875 10 X 1875	N 906 437 01
2C	Cable tie with holder for weld pin: 10 X 185/M 5 10 X 185/M 5	N 904 288 01
2C	Cable tie with holder for weld pin: 10 X 1005 10 X 1005	N 906 333 01
3	flat contact housing withgasket Connection piece Signal horndual horn	357 951 772
30	Bracket Flat contact housing Connection piece Side member For vehicles with city drivinglight	1H0 971 899 B
3B	Hinge	1H0 972 375
3C	Hinge	1H0 972 376
4	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
5	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
7	single wiring seal for wire cross section: 9,0 X 7,81,0 9,0 X 7,81,0	357 972 742
8	single wiring seal for wire cross section: 9,0 X 7,81,5 9,0 X 7,81,5	357 972 742 A
9	single wiring seal for wire cross section: 9,0 X 23,51,5 9,0 X 23,51,5	357 972 743

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 06 Wiring looms
Factory subgroup: 971014
