Rear wiring set cable set tailgate — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 61 Primary OEM: 1H6 971 904, N 906 530 03, 1H6 971 011 CA

Rear wiring set cable set tailgate for the Volkswagen Golf Mk3 (1997): factory exploded diagram 972082 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 61 OEM part numbers including 1H6 971 904, N 906 530 03 and 1H6 971 011 CA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 61 OEM part numbers across 61 numbered positions.

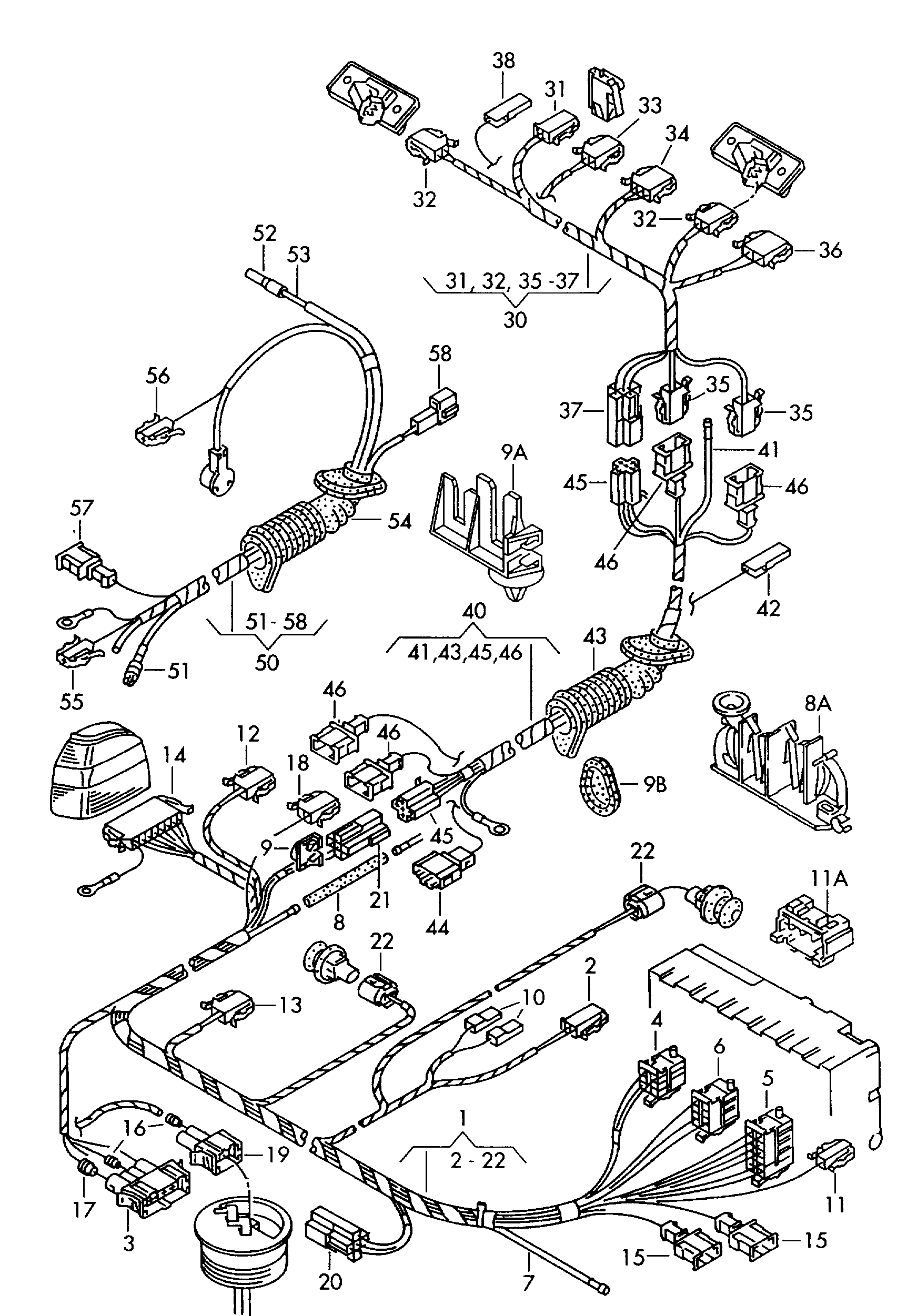

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Bungs	1H6 971 904
-	Flat insert sleeve withlocking lug'Order qty.25' 6,3-2,5 1,5-2,5 6,3-2,5	N 906 530 03
(1)	Rear wiring set also use:** see current flow diagram * 357 972 752 diesel eng. 357 972 752	1H6 971 011 CA
(1)	Rear wiring set also use:** see current flow diagram * 357 972 752 diesel eng. 357 972 752	1H6 971 011 CG
(10)	Flat contact housing	1H0 973 121 C
(11)	Flat contact housing withcontact locking mechanismfor vehicles withbuzzer	1J0 972 702
(11)	Flat contact housingfor vehicles withbuzzer	191 972 702
(11)	Flat contact housing Connection piece Potential distributor	701 906 231
(12)	Flat contact housing Coupling element Cable set fortailgate	1H0 972 705
(14)	Flat contact housing	1H0 972 708
(15)	Flat contact housing Connection pieceanti-theft alarm system	191 972 751
(15)	Flat contact housing Connection piecewiring harness for interior Connection piecefor vehicles with navigationsystem	191 972 723
(22)	flat contact housing withgasket	1H0 972 117 A
(30)	Cable set fortailgate	1H6 971 211 S
(40)	Adapter cable loom Rear lid	1H6 972 175 G
(40)	Adapter cable loom Rear lid For vehicles with anti-theftalarm system	1H6 972 175 H
(40)	Adapter cable loom Rear lid For vehicles with anti-theftalarm systemfor vehicles with navigationsystem "J.."	1H6 972 175 K
(50)	Adapter cable loom Rear lid	1H6 972 176 P
(53)	Pipefor central locking systemmodify in workshop also use: 1450 MM 533 862 225 1450 MM 533 862 225	8D0 862 245
(58)	Flat contact housing	1H0 972 702
(8)	Hose 3,8 X 2,1 X 1300 MM 3,8 X 2,1 X 1300 MM	2D0 955 962
11A	Potential distributor	357 937 517
12	Flat contact housing withcontact locking mechanism	1J0 972 702
12	Flat contact housing	191 972 702
16	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
17	single wiring seal for wire cross section: 9,0 X 7,81,5 9,0 X 7,81,5	357 972 742 A
18	Flat contact housing	191 972 751
19	flat contact housing withgasket diesel eng.	357 972 752
20	Flat contact housing Connection pieceharness for interior light	1H0 972 765
21	Flat contact housing	1H0 972 765
3	Flat contact housing	357 906 231
31	Flat contact housing	191 906 231 A
32	Flat contact housing withcontact locking mechanism	1J0 972 702
32	Flat contact housing	191 972 702
33	Flat contact housing withcontact locking mechanism For vehicles with anti-theftalarm system	1J0 972 702
33	Flat contact housing For vehicles with anti-theftalarm system	191 972 702
34	Flat contact housing Wiper motor	1J0 972 703
34	Flat contact housing Wiper motor	191 972 703
34	Flat contact housing Wiper motor	1J0 972 924
35	Flat contact housing	191 972 751
37	Flat contact housing	1H0 972 765
38	Flat contact housing For rear window,heatednegative contact also use: N 906 530 03 N 906 530 03	1H0 971 921 A
4	Flat contact housing withcontact locking mechanism	357 906 968
41	Pipe shorten to: 5 X 1 X 6000 MM 1790 5 X 1 X 6000 MM 1790	7M0 955 961 B
42	Flat contact housing For rear window,heated also use: N 906 530 03 N 906 530 03	1H0 971 921 A
43	Grommet 38,8 X 28,8/17/31 X 21 38,8 X 28,8/17/31 X 21	1H6 971 840
44	flat connector housing Connection piece Wiring set for anti-theftalarm system	191 972 712
45	Flat contact housing	1H0 972 755
46	flat connector housing	191 972 761
5	Flat contact housing withcontact locking mechanism Slot: B B	357 945 968
52	Hose 3,5 X 540 3,5 X 540	533 862 225
53	Pipe shorten to: 5 X 1 X 6000 MM 1650 5 X 1 X 6000 MM 1650	7M0 955 961 B
54	Grommet 38,8 X 28,8/17/31 X 21 38,8 X 28,8/17/31 X 21	1H6 971 840
55	Flat contact housing	191 972 701
6	Flat contact housing withcontact locking mechanism Slot: L L	357 947 968
7	Pipe shorten to: 5 X 1 X 6000 MM 4190 5 X 1 X 6000 MM 4190	7M0 955 961 B
8	Hose 4 X 2,5 X 150 4 X 2,5 X 150	333 955 962
8A	Cable holdera-pillar	1H0 971 731
9	Bracket	1H6 971 848 A
9A	Bracket Connection piece Cable set fortailgate	1H0 971 845 K
9B	Bungs 30 X 20 X 16 30 X 20 X 16	1H0 971 908 E
