Rear wiring set cable set tailgate — Mk3 Golf Wiring Looms (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Wiring set for engine

Generation: Mk3 1994 - 1997 (RDW) Group: Wiring looms Parts: 54 Primary OEM: N 103 113 03, 533 863 288 A, 1E2 971 011

Rear wiring set cable set tailgate for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 972082 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 53 OEM part numbers across 54 catalogued positions including N 103 113 03, 533 863 288 A and 1E2 971 011. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 53 OEM part numbers across 54 numbered positions.

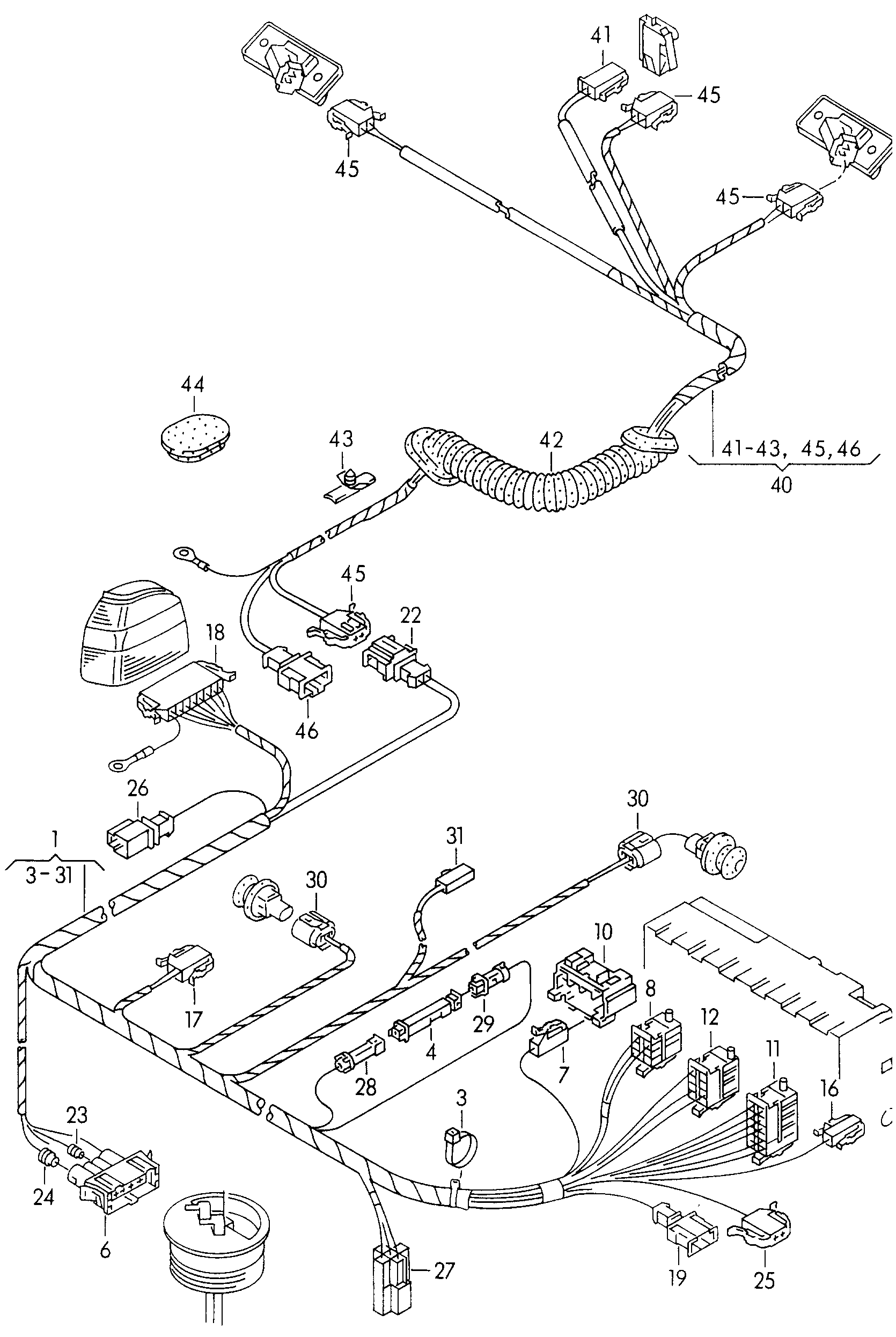

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Insulating tape 0,15 X 19 X 10 0,15 X 19 X 10	N 103 113 03
-	------------------------------* free cable ends* must be isolated------------------------------	—
-	Felt strips (self-adhesive) 20 X 3 X 880 MM 20 X 3 X 880 MM	533 863 288 A
(1)	Rear wiring set F >> 1 E-R-012 309	1E2 971 011
(1)	Rear wiring set F 1 E-R-012 310>> 1 E-R-030 000	1E2 971 011 A
(1)	Rear wiring set F 1 E-S-000 001>> 1 E-S-016 430*	1E2 971 011 C
(1)	Rear wiring set also use:** see current flow diagram * 357 972 752 diesel eng. 357 972 752	1E1 971 011 Q
(1)	Rear wiring set also use:** see current flow diagram * 357 972 752 diesel eng. 357 972 752	1E2 971 011 H
(1)	Rear wiring set F 1 E-S-016 431>>*	1E2 971 011 E
(1)	Rear wiring set F 1 E-R-012 310>> 1 E-R-030 000	1E1 971 011 C
(1)	Rear wiring set F 1 E-S-000 001>>	1E1 971 011 G
(10)	Potential distributor F 1 E-S-016 431*	357 937 517
(16)	Flat contact housing Connection piece Rear fog light F 1 E-S-000 001>>	191 972 701
(17)	Flat contact housing Possible single wire: counterpart to: 000 979 126000 979 126 A 1 J 0 971 712 000 979 126000 979 126 A 1 J 0 971 712	1J0 972 702
(17)	Flat contact housing withcontact locking mechanism Possible single wire: counterpart to: 000 979 133000 979 133 A 1 J 0 971 712 000 979 133000 979 133 A 1 J 0 971 712	1J0 972 702
(22)	Flat contact housing Coupling elementwiring harness for interior F 1 E-T-000 001>>	191 972 723
(25)	flat contact housing withgasket Connection piece Sender forfuel gauge diesel eng.	357 972 752
(26)	flat connector housing Connection piece Cable set fortailgate F 1 E-T-000 001>>	191 972 711
(30)	flat contact housing withgasket Connection piecedoor contact switch	1H0 972 117 A
(40)	Cable set fortailgate F 1 E-S-008 964>>*	1E0 972 175 D
(41)	Flat contact housing Connection piece Switch for luggage comp.light F 1 E-S-008 964>>*	893 971 632
(6)	flat contact housing withgasket Connection piece Sender forfuel gauge diesel eng.	357 972 752
1	Rear wiring set F >> 1 E-R-012 309	1E1 971 011
10	Potential distributordoor contact switch	357 937 517
11	Flat contact housing withcontact locking mechanism Slot:Connection piececentral electrics B B	357 945 968
12	Flat contact housing withcontact locking mechanism Slot:Connection piececentral electrics L L	357 947 968
13	Cable holdera-pillar	1H0 971 731
14	Clip Cross panel trim	1H0 971 897
16	Flat contact housing Connection piecewiring harness forcentral locking F >> 1 E-S-040 000	191 972 701
17	Flat contact housing withcontact locking mechanism Possible single wire: counterpart to: 000 979 126000 979 126 A 1 J 0 971 712 000 979 126000 979 126 A 1 J 0 971 712	1J0 972 702
17	Flat contact housing Connection pieceluggage compartment light	191 972 702
18	Flat contact housing Connection piece Tail light	1H0 972 708
19	flat connector housing Connection piece Adapter cable loomfor electric window regulators F >> 1 E-S-040 000	191 972 711
22	flat connector housing Connection piece Cable set fortailgate	191 972 712
23	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
24	single wiring seal for wire cross section: 9,0 X 7,81,5 9,0 X 7,81,5	357 972 742 A
25	Flat contact housing Coupling element Wiring set for anti-theftalarm system F >> 1 E-S-040 000	191 972 751
26	flat connector housing Connection piece Cable set fortailgate F >> 1 E-S-040 000	3A0 972 761 H
27	Flat contact housing Connection pieceharness for interior light	1H0 972 765
3	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
31	Flat contact housing	1H0 973 121 C
40	Cable set fortailgate F >> 1 E-S-008 963*	1E0 972 175 A
41	Flat contact housing Connection piece Switch for luggage comp.light F >> 1 E-S-008 963*	191 906 231 A
42	Grommet 35 X 25/35 X 25 35 X 25/35 X 25	1E0 971 840
43	Cable holder	1H0 971 848 F
43	Bundling clip f wiring harness	4B0 971 848
44	Bungs	1E0 971 904
45	Flat contact housing Possible single wire: counterpart to: 000 979 126000 979 126 A 1 J 0 971 712 000 979 126000 979 126 A 1 J 0 971 712	1J0 972 702
45	Flat contact housing Connection piece Rear wiring set Connection piece Licence plate light Coupling element Wire setanti-theft alarm system	191 972 702
45	Flat contact housing withcontact locking mechanism Possible single wire: counterpart to: 000 979 133000 979 133 A 1 J 0 971 712 000 979 133000 979 133 A 1 J 0 971 712	1J0 972 702
46	flat connector housing Connection piece Wiring set for anti-theftalarm system	191 972 712
6	Flat contact housing Connection piece Fuel pump	357 906 231
7	Flat contact housing Connection piece Potential distributor	701 906 231
8	Flat contact housing withcontact locking mechanism Connection piececentral electrics	357 906 968
