Rear wiring set cable set tailgate jetta — Mk3 Golf Wiring Looms (1993 - 1996)
Factory title: Volkswagen Golf (1993 - 1996) - Wiring set for engine

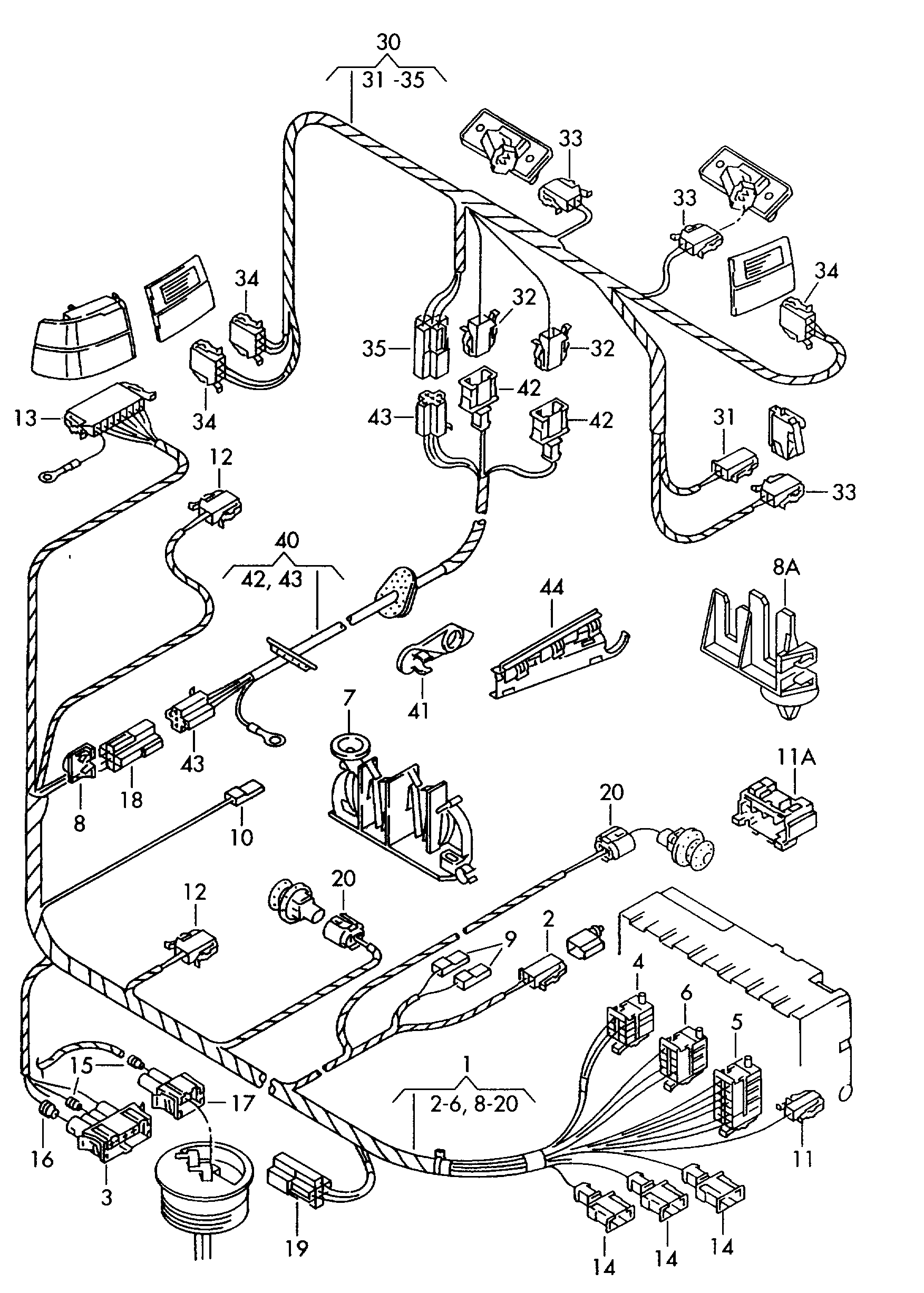

Rear wiring set cable set tailgate jetta for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 972086 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 59 OEM part numbers across 61 catalogued positions including 3A0 937 517, 059 905 371 D and 1H0 972 117 A. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 59 OEM part numbers across 61 numbered positions.
| № | Description | Part number |
|---|---|---|
| Rear wiring set Cable set fortailgate JETTA | — | |
| Rear wiring set JETTA | — | |
| - | Potential distributor F 1 H-T-003 102>>*F 1 H-T-070 450>>* | 3A0 937 517 |
| - | Diode connector 3 A 3 A | 059 905 371 D |
| - | flat contact housing withgasket | 1H0 972 117 A |
| - | Clip | 321 971 897 |
| - | flat contact housing withgasket | 1H0 972 117 |
| - | Hose 3,8 X 2,1 X 1300 MM 3,8 X 2,1 X 1300 MM | 2D0 955 962 |
| - | Potential distributor F 1 H-R-000 001>> 1 H-T-003 101*F 1 H-R-000 001>> 1 H-T-070 449* | 357 937 517 |
| (1) | Rear wiring set F >> 1 H-S-012 882 diesel eng. | 1HM 971 011 M |
| (1) | Rear wiring set F >> 1 H-T-084 500* diesel eng. | 1HM 971 011 AT |
| (1) | Rear wiring set F 1 H-T-084 501>>* diesel eng. | 1HM 971 011 CR |
| (1) | Rear wiring setfor models with airbag F >> 1 H-S-012 882 diesel eng. | 1HM 971 011 T |
| (1) | Rear wiring setfor models with airbag F 1 H-T-084 501>>* diesel eng. | 1HM 971 011 DF |
| (1) | Rear wiring setfor models with airbag F >> 1 H-T-084 500* diesel eng. | 1HM 971 011 BB |
| (1) | Rear wiring set F >> 1 H-R-000 685 | 1HM 971 011 G |
| (1) | Rear wiring setfor models with airbag F 1 H-R-052 052>> 1 H-S-012 882 | 1HM 971 011 S |
| (1) | Rear wiring setfor models with airbag F >> 1 H-T-003 731*F >> 1 H-T-084 500* | 1HM 971 011 BA |
| (1) | Rear wiring setfor models with airbag F 1 H-T-003 732>>*F 1 H-T-084 501>>* | 1HM 971 011 CS |
| (1) | Rear wiring set F >> 1 H-R-999 000 F >> 1 H-S-012 882 | 1HM 971 011 L |
| (1) | Rear wiring set F 1 H-S-000 001>> 1 H-T-003 731*F 1 H-S-012 883>> 1 H-T-084 500* | 1HM 971 011 AS |
| (1) | Rear wiring set F 1 H-T-003 732>>* | 1HM 971 011 CQ |
| (1) | Rear wiring setfor models with airbag F >> 1 H-R-052 051 | 1HM 971 011 P |
| (11) | Flat contact housing | 321 906 231 |
| (40) | Adapter cable loom Rear lid For vehicles with anti-theftalarm system F 1 H-P-004 605>>* | 1H5 972 175 L |
| (9) | Flat contact housing F 1 H-P-004 605>>* | 1H0 973 121 C |
| 1 | Rear wiring set F >> 1 H-P-003 434* | 1HM 971 011 B |
| 10 | Flat contact housing | 111 971 921 B |
| 12 | Flat contact housing | 191 972 702 |
| 12 | Flat contact housing withcontact locking mechanism | 1J0 972 702 |
| 13 | Flat contact housing | 1J0 972 706 |
| 14 | flat connector housing | 191 972 711 |
| 15 | single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0 | 357 972 741 |
| 16 | single wiring seal for wire cross section: 9,0 X 7,81,5 9,0 X 7,81,5 | 357 972 742 A |
| 17 | flat contact housing withgasket diesel eng. | 357 972 752 |
| 18 | Flat contact housing | 1H0 972 765 |
| 19 | Flat contact housing Connection pieceharness for interior light | 1H0 972 765 |
| 2 | Flat contact housing | 191 906 231 A |
| 2 | Flat contact housing | 191 906 231 A |
| 20 | Flat contact housing | 1H0 973 117 B |
| 3 | Flat contact housing | 357 906 231 |
| 30 | Cable set fortailgate For vehicles with anti-theftalarm system F >> 1 H-R-999 000 | 1HM 971 145 C |
| 30 | Cable set fortailgate For vehicles with anti-theftalarm system | 1HM 971 145 D |
| 31 | Flat contact housing | 191 906 231 A |
| 32 | Flat contact housing | 191 972 701 |
| 33 | Flat contact housing | 191 972 702 |
| 33 | Flat contact housing withcontact locking mechanism | 1J0 972 702 |
| 34 | Flat contact housing | 1J0 972 924 |
| 35 | Flat contact housing | 1H0 972 765 |
| 4 | Flat contact housing withcontact locking mechanism | 357 906 968 |
| 40 | Adapter cable loom Rear lid F >> 1 H-P-004 604* | 1HM 972 175 J |
| 40 | Cable set fortailgate Adapter cable loom F >> 1 H-P-004 604* | 1HM 972 175 F |
| 41 | Clip | 1H5 971 847 |
| 42 | flat connector housing | 191 972 711 |
| 43 | Flat contact housing | 1H0 972 755 |
| 44 | Bracket | 1H5 971 897 A |
| 5 | Flat contact housing withcontact locking mechanism Slot: B B | 357 945 968 |
| 6 | Flat contact housing withcontact locking mechanism Slot: L L | 357 947 968 |
| 7 | Cable holdera-pillar | 1H0 971 731 |
| 8 | Bracket | 1H5 971 845 A |
| 9 | Flat contact housing F >> 1 H-P-004 604* | 111 971 921 B |
