Wire setretrofit kit immobilizer — Mk3 Golf Wiring Looms (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Wiring set for engine

Generation: Mk3 1994 - 1997 (RDW) Group: Wiring looms Parts: 14 Primary OEM: 1H1 971 809, 3A0 972 751 H, 191 972 761

Wire setretrofit kit immobilizer for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 972056 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 13 OEM part numbers across 14 catalogued positions including 1H1 971 809, 3A0 972 751 H and 191 972 761. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 13 OEM part numbers across 14 numbered positions.

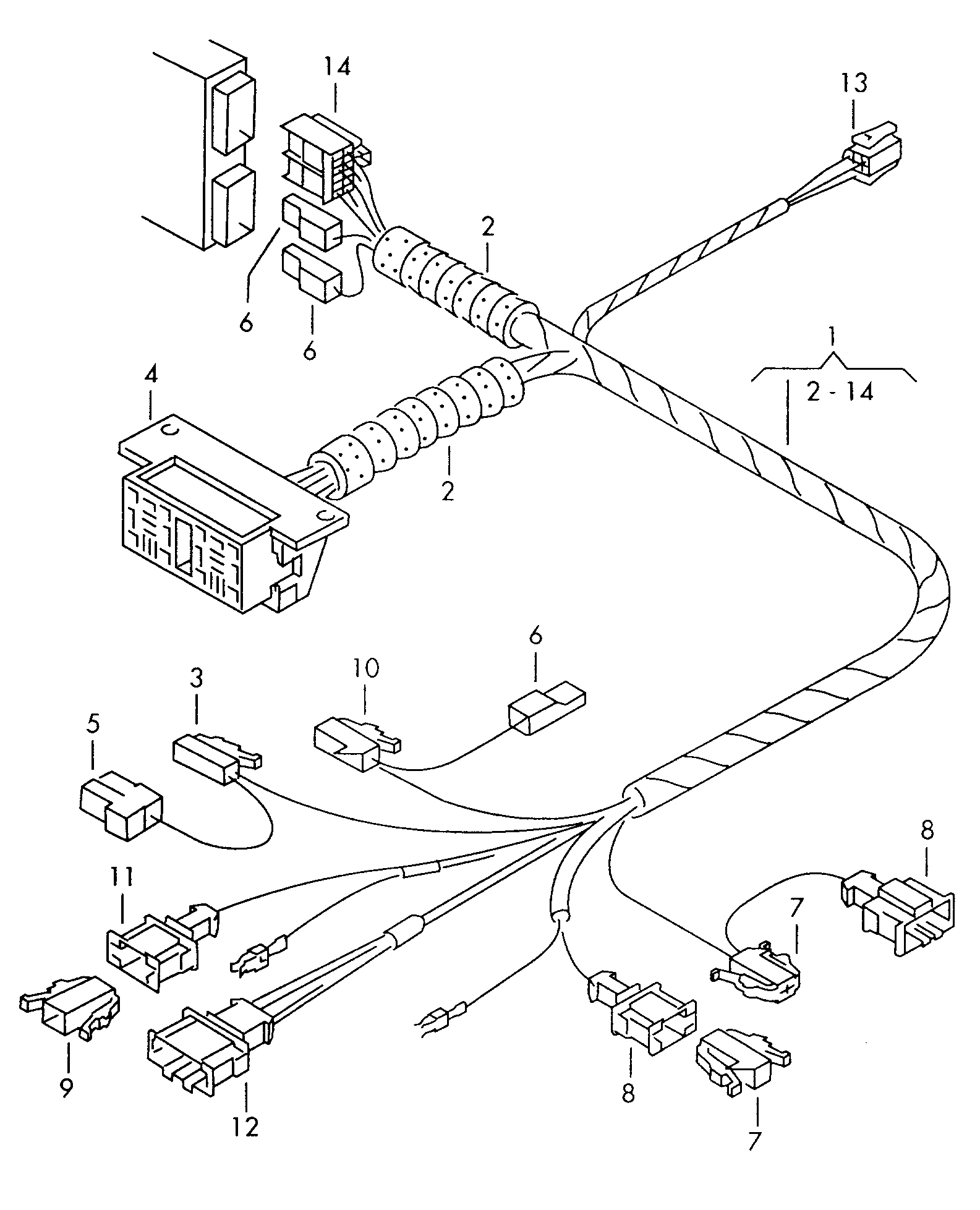

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
1	wiring harness forimmobilizer	1H1 971 809
10	Flat contact housing Connection pieceground connector	3A0 972 751 H
11	flat connector housing Coupling elementwiring harness for steeringcolumn combination switch	191 972 761
12	flat connector housing Coupling element Wiring set for engine Starter	191 972 762
13	Flat contact housing Coupling element Socket	3A0 973 606
14	No longer available	—
2	Felt strips (self-adhesive) 20 X 3 X 880 MM 20 X 3 X 880 MM	533 863 288 A
3	Flat contact housing Connection piece Potential distributor 30 30	701 906 231
4	relay plate	251 937 501 C
5	flat connector housing also use: 161 971 989 C 161 971 989 C	161 971 988 C
6	flat connector housing Connection piece Control unitground connector	431 971 995
7	Flat contact housing Coupling element Wiring set for engine Wiring set for dash panel	191 972 701
8	flat connector housing Coupling element Wiring set for enginewiring harness for steeringcolumn combination switch	191 972 711
9	Flat contact housing Coupling elementwiring harness for steeringcolumn combination switch	191 972 751

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1994 - 1997
Generation region: RDW
Generation code: 146
Factory group: 06 Wiring looms
Factory subgroup: 972056
