Which VW part numbers are on the wiring harness 4 speed automatic gearbox diagram for the Mk3 Golf?

This diagram lists 35 OEM part numbers for the Mk3 Golf. The first three are 1H1 971 774 AS, 1H2 971 774 AR and 1H1 971 774 AR.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes 1Z, AAM, ADY, ADZ, AEP, AFT and AGG.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Wiring harness 4 speed automatic gearbox — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 35 Primary OEM: 1H1 971 774 AS, 1H2 971 774 AR, 1H1 971 774 AR

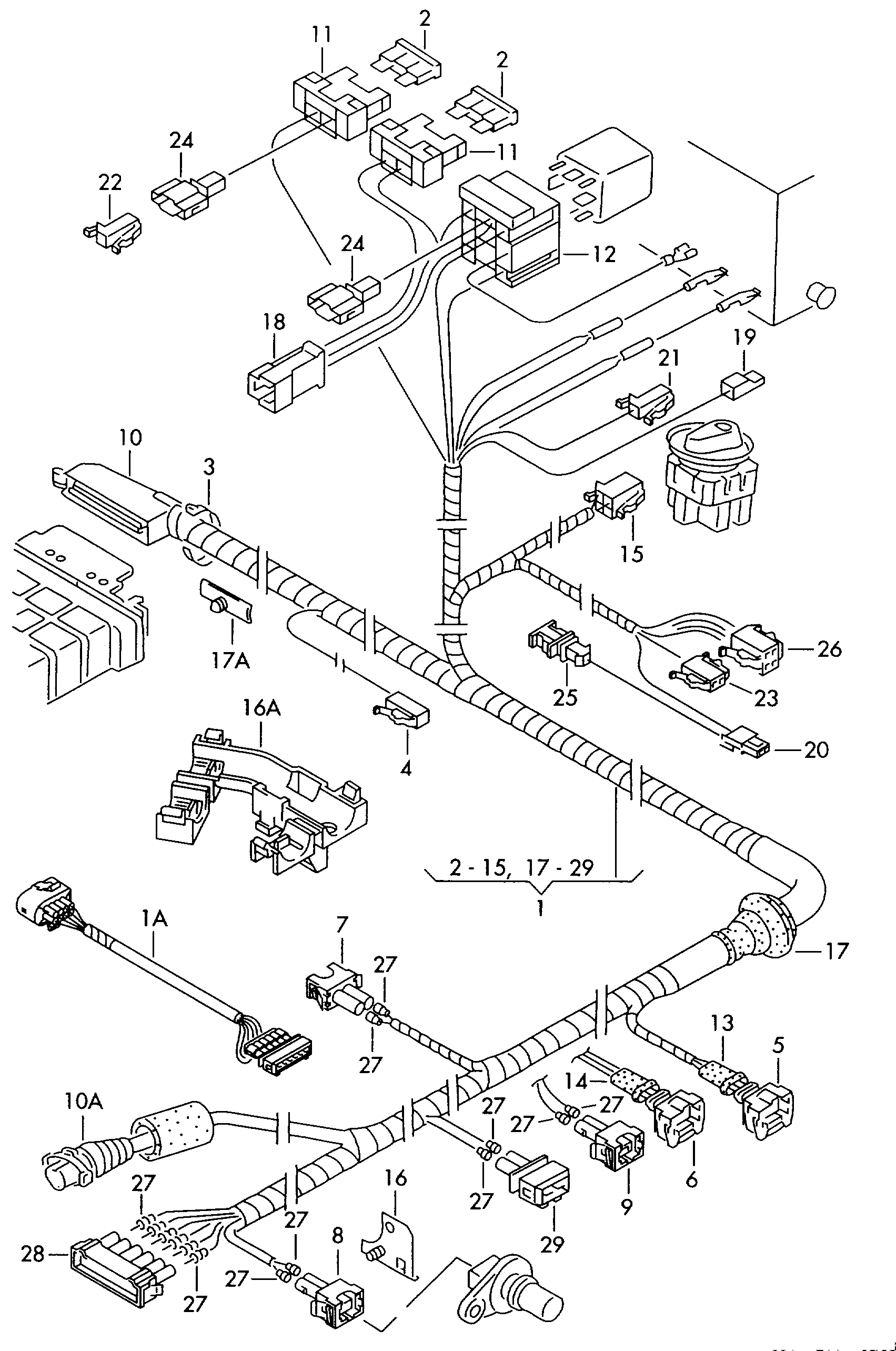

Wiring harness 4 speed automatic gearbox for the Volkswagen Golf Mk3 (1997): factory exploded diagram 972016 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 35 OEM part numbers including 1H1 971 774 AS, 1H2 971 774 AR and 1H1 971 774 AR. Parts on this plate carry the engine codes 1Z, AAM, ADY, ADZ, AEP, AFT and AGG. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 35 OEM part numbers across 35 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	wiring harness for 4-speedautomatic gearbox 1 Z 1Z	1H1 971 774 AS
(1)	wiring harness for 4-speedautomatic gearbox ADY,AFT,AGG ADYAFTAGG	1H2 971 774 AR
(1)	wiring harness for 4-speedautomatic gearbox ADY,AFT,AEP,AGG ADYAEPAFTAGG	1H1 971 774 AR
(1)	wiring harness for 4-speedautomatic gearbox 1 Z 1Z	1H2 971 774 AS
(1)	wiring harness for 4-speedautomatic gearbox ADZ,AAM AAMADZ	1H2 971 774 AQ
(1)	wiring harness for 4-speedautomatic gearbox ADZ,AAM AAMADZ	1H1 971 774 AQ
(10A)	part section wiring harnessround connector housingvalve body** see current flow diagram *	1H1 971 158 A
(15)	Flat contact housing	191 972 751
(17A)	Bundling clip f wiring harness	1H0 971 848 AS
(17A)	Bundling clip f wiring harness	4B0 971 848
(18)	Flat contact housing	191 972 734
(19)	Flat contact housing	3A0 972 751 H
(21)	Flat contact housing	191 972 701
(21)	Flat contact housingcentral electrics M 5 M 5	701 906 231
(21)	Flat contact housingfor diagnostic plug	1H0 972 701
(26)	Flat contact housing	1J0 972 706
(26)	Flat contact housing	191 972 706
(28)	Flat contact housing withcontact locking mechanism Coupling element Wiring set for engine 1 Z,AEP,AFT,ADY,AGG 1ZADYAEPAFTAGG	191 972 735
(28)	Flat contact housing withcontact locking mechanism Coupling element Wiring set for engine ADZ,AAM AAMADZ	191 972 736
(28)	flat connector housing	191 972 762
10	flat contact housing withgasket	191 906 370
10A	Securing ringrd. connector sleeve housingvalve body	191 927 397
12	relay plate	161 937 501 B
16A	Cable holder	1H0 971 848 P
17	Grommet	1H0 971 840
17A	Bundling clip f wiring harness	4B0 971 848
17A	Cable holder	1H0 971 848 F
1A	Adapter cable loommulti-function switch forautomatic gearbox	357 971 774 DC
24	flat connector housing	191 972 711
26	Flat contact housing	1J0 972 704
26	Flat contact housing	191 972 704
27	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
28	Flat contact housing Coupling element Adapter cable loommulti-function switch forautomatic gearbox	357 972 756
7	flat contact housing withgasket	037 906 240
8	flat contact housing withgasket	357 972 752

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Z, AAM, ADY, ADZ, AEP, AFT, AGG
Factory group: 06 Wiring looms
Factory subgroup: 972016
