Wiring harness 4 speed automatic gearbox anti lock brake — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 68 Primary OEM: N 103 113 04, N 902 055 01, N 904 288 01

Wiring harness 4 speed automatic gearbox anti lock brake for the Volkswagen Golf Mk3 (1997): factory exploded diagram 972017 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 62 OEM part numbers across 68 catalogued positions including N 103 113 04, N 902 055 01 and N 904 288 01. Parts on this plate carry the engine codes 1Z, AAA, AAM, ADY, ADZ, AEP, AFN and AFT. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 62 OEM part numbers across 68 numbered positions.

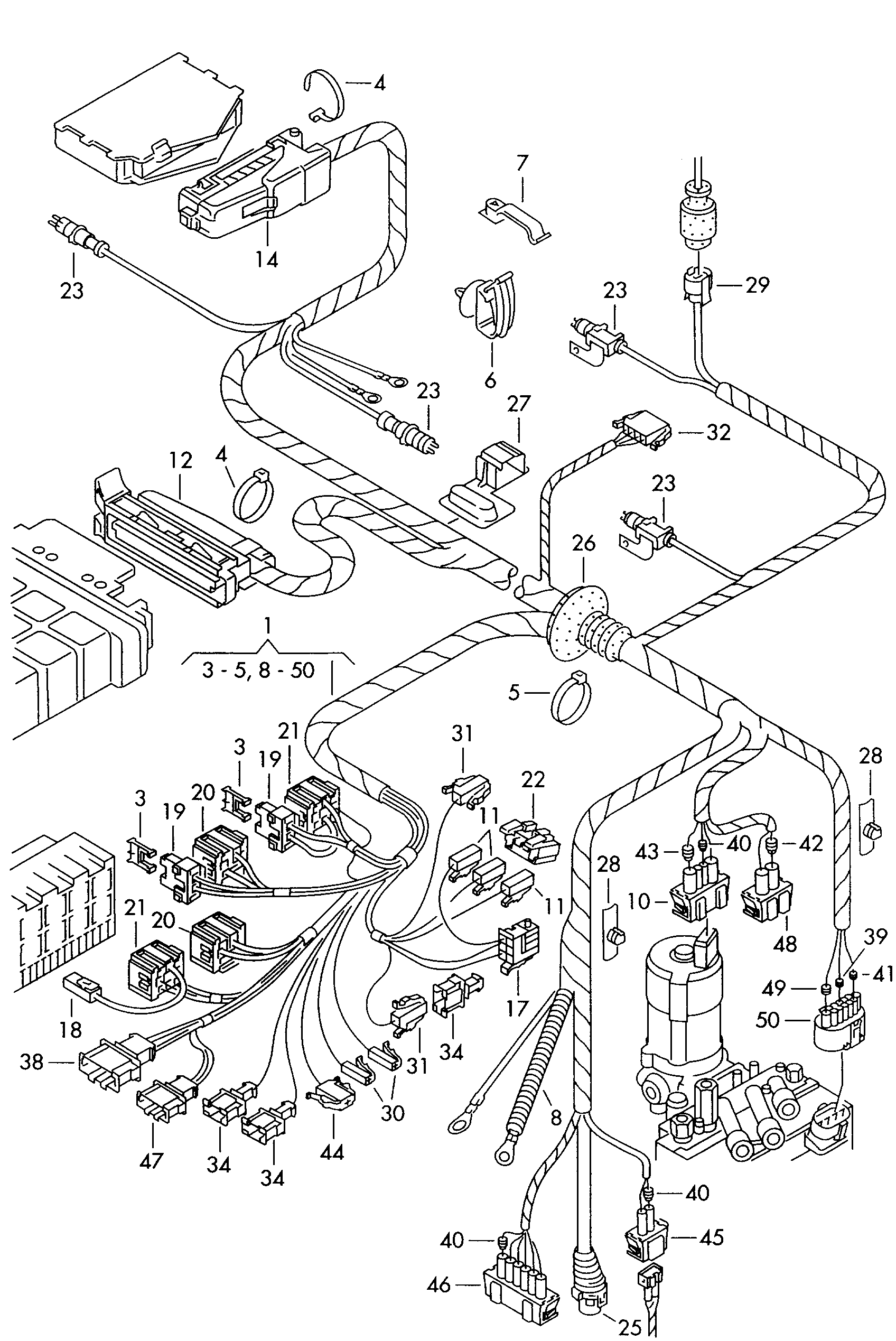

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs-F >> 1 H-VW 120 000F >> 1 H-VB 040 000F >> 1 H-VP 080 000F >> 1 H-VD 120 000 automatic	—
	wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs- automatic	—
	------------------------------wiring harness for 4-speedautomatic gearbox see illustration:------------------------------wiring harness for anti-lockbrakesystem -abs- see illustration:------------------------------ 972-016972-079 manualgearbox 972-016972-079	—
	wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs-F 1 H-VW 120 001>>F 1 H-VB 040 001>>F 1 H-VP 080 001>>F 1 H-VD 120 001>> automatic	—
-	Insulating tape 0,15 X 19 X 10000 0,15 X 19 X 10000	N 103 113 04
-	Cable ties for sheet metal thickness: 4,5 X 1400,5-1,5 4,5 X 1400,5-1,5	N 902 055 01
-	Cable tie with holder for weld pin: 10 X 185/M 5 10 X 185/M 5	N 904 288 01
(1)	wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs- AFN,AHU,1 Z 1ZAFNAHU	1H1 971 210 S
(1)	wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs- 1 Z 1Z	1H1 971 210 P
(1)	wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs- AAA,ADY,AFT,AGG AAAADYAFTAGG	1H1 971 210 N
(1)	wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs- AAA,ADY,AFT,AGG AAAADYAFTAGG	1H2 971 210 N
(1)	wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs- AFN,AHU,1 Z 1ZAFNAHU	1H2 971 210 S
(1)	wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs- AAM,ADZ AAMADZ	1H1 971 210 M
(1)	wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs- 1 Z 1Z	1H2 971 210 P
(1)	wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs- AAA,AFT,AGG AAAAFTAGG	1H1 971 210 R
(1)	wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs- ADZ,AAM AAMADZ	1H1 971 210 Q
(1)	wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs- AAM,ADZ AAMADZ	1H2 971 210 M
(1)	wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs- AAA,AFT,AGG AAAAFTAGG	1H2 971 210 R
(1)	wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs- ADZ,AAM AAMADZ	1H2 971 210 Q
(14)	Flat contact housing withcontact locking mechanism Connection piece Control unit for ABS	1H0 973 213 A
(19)	fuse box forflat fuses F 1 H-VW 120 001>>F 1 H-VB 040 001>>F 1 H-VP 080 001>>F 1 H-VD 120 001>>	1H0 937 530
(23)	wiring harness for speedsensor	1H0 927 903 G
(25)	Securing ringrd. connector sleeve housingvalve body	191 927 397
(28)	Bundling clip f wiring harness	1H0 971 848 AS
(28)	Bundling clip f wiring harness	4B0 971 848
(32)	Flat contact housing Coupling elementharness for vehicle lighting	1J0 972 706
(32)	Flat contact housing Coupling elementharness for vehicle lighting	191 972 706
(34)	flat connector housing Coupling elementwiring harness for speedsensor	535 972 731
(44)	Flat contact housingground connector F 1 H-VW 120 001>>F 1 H-VB 040 001>>F 1 H-VP 080 001>>F 1 H-VD 120 001>>	3A0 972 751 H
(46)	Flat contact housing withcontact locking mechanism Coupling element Wiring set for engine ADZ,AAM AAMADZ	191 972 736
(46)	Flat contact housing withcontact locking mechanism Coupling element Wiring set for engine 1 Z,AEP,AFT,ADY,AGG 1ZADYAEPAFTAGG	191 972 735
11	Flat contact housing Connection piece Potential distributor	701 906 231
12	flat contact housing withgasket Connection piece Control unit for automaticgearbox	1H0 906 370 J
17	Flat contact housing Slot:central electrics W W	357 907 968 A
18	Flat contact housing Slot:central electrics U 2,Y U 2,Y	357 907 971 B
19	fuse box forflat fuses	161 937 501
19	fuse box forflat fuses	1H0 937 530
21	relay plate	161 937 501 B
22	Potential distributor	357 937 517
23	wiring harness for speedsensor	191 971 413 A
25	part section wiring harnessround connector housingvalve body** see current flow diagram *	1H1 971 158 A
26	Grommet	1H0 971 840 C
27	Cable holder Control unit for automaticgearbox	1H0 971 848 AP
28	Cable holder	1H0 971 848 F
28	Bundling clip f wiring harness	4B0 971 848
3	flat fuse 19/2 x 5	N 017 131 15
30	Flat contact housing	1H0 972 701
31	Flat contact housing	191 972 701
32	Flat contact housing Coupling elementharness for vehicle lighting	1J0 972 704
32	Flat contact housing Coupling elementharness for vehicle lighting	191 972 704
34	flat connector housing Coupling element Combi-instrument	191 972 711
38	Flat contact housing withcontact locking mechanism Coupling elementharness for engine compartment	191 972 735
39	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
4	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
40	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
41	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
42	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B
43	single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0	357 972 742 C
44	Flat contact housing Coupling elementwiring harness forcruise control system	191 972 751
45	flat contact housing withgasket Connection piecespeed sensor	357 972 752
46	Flat contact housing Coupling element Adapter cable loommulti-function switch forautomatic gearbox	357 972 756
47	flat connector housing Coupling element Wiring set for engine	191 972 762
49	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
5	Cable ties 6,5 X 175 6,5 X 175	N 900 603 01
5	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
6	Discont. / replace: N 902 055 01 N 902 055 01	—
7	Discont. / replace: N 904 288 01 N 904 288 01	—
8	corrugated pipe in coils of 5 m'order unit 5' 10 10	N 907 735 01
