Wiring harness anti lock brakesystem abs — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 37 Primary OEM: N 103 113 04, 1H2 971 279 L, 1H1 971 279 M

Wiring harness anti lock brakesystem abs for the Volkswagen Golf Mk3 (1997): factory exploded diagram 972079 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 33 OEM part numbers across 37 catalogued positions including N 103 113 04, 1H2 971 279 L and 1H1 971 279 M. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 33 OEM part numbers across 37 numbered positions.

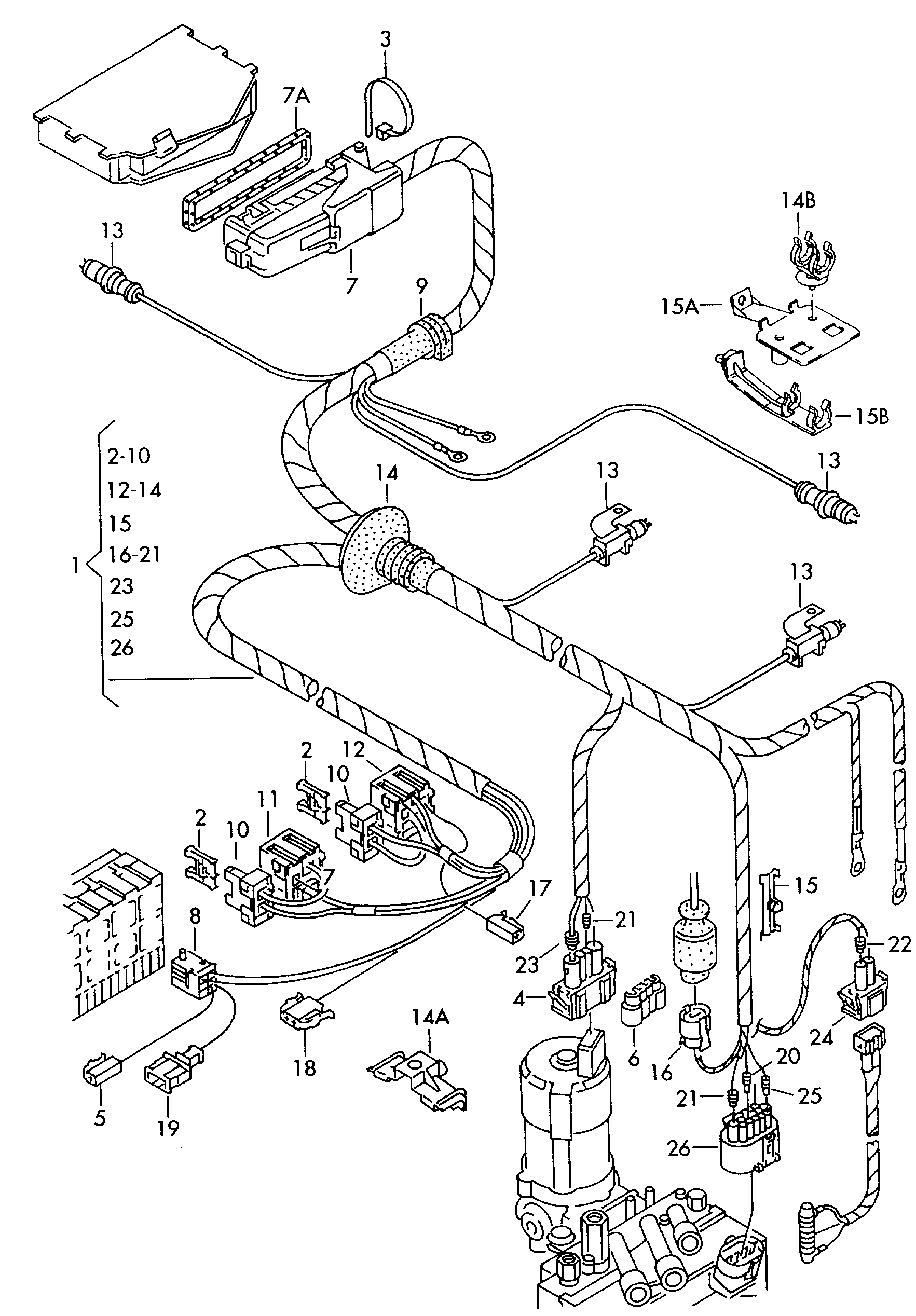

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	wiring harness for anti-lockbrakesystem -abs-F 1 H-VW 120 001>>F 1 H-VB 040 001>>F 1 H-VP 080 001>>F 1 H-VD 120 001>> manualgearbox	—
	------------------------------wiring harness for 4-speedautomatic gearbox and anti-lock brake system -abs- see illustration:------------------------------ 972-017 automatic 972-017	—
	wiring harness for anti-lockbrakesystem -abs-F >> 1 H-VW 120 000F >> 1 H-VB 040 000F >> 1 H-VP 080 000F >> 1 H-VD 120 000 manualgearbox	—
-	Insulating tape 0,15 X 19 X 10000 0,15 X 19 X 10000	N 103 113 04
(1)	wiring harness for anti-lockbrakesystem -abs-	1H2 971 279 L
(1)	wiring harness for anti-lockbrakesystem -abs-	1H1 971 279 M
(1)	wiring harness for anti-lockbrakesystem -abs-	1H2 971 279 M
(1)	wiring harness for anti-lockbrakesystem -abs-	1H1 971 279 L
(10)	fuse box forflat fuses F 1 H-VW 120 001>>F 1 H-VB 040 001>>F 1 H-VP 080 001>>F 1 H-VD 120 001>>	1H0 937 530
(13)	wiring harness for speedsensor	1H0 927 903 G
(18)	Flat contact housingfor diagnostic plug	1H0 972 701
(19)	flat connector housing Coupling elementwiring harness for speedsensor	535 972 731
(6)	Bracket protective cover	1H0 906 921
(7)	Flat contact housing withcontact locking mechanism Connection piece Control unit for ABS	1H0 973 213 A
10	fuse box forflat fuses	1H0 937 530
10	fuse box forflat fuses	161 937 501
12	relay plate	161 937 501 B
14	Grommet 46/10,5 46/10,5	1H0 971 840
14A	Clip Brake servo	1H0 971 845 E
15	Bundling clip f wiring harness	4B0 971 848
15	Cable holder	1H0 971 848 F
15B	Bracketround connector housing	1H0 971 852 B
16	flat contact housing withgasket Connection piecetrip recorder Brake servo	1H0 972 117
17	Flat contact housing	191 972 701
19	flat connector housing Connection piece Cruise-control system	191 972 711
2	flat fuse 19/2 x 5	N 017 131 15
20	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
21	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
22	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B
23	single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0	357 972 742 C
24	flat contact housing withgasketfor vehicles with electronicdifferential lock -edl-	357 972 772
25	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
26	Flat contact housing	357 973 215
3	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
5	Flat contact housing	701 906 231
8	Flat contact housing	357 907 968 A
9	No replacement part	—
