Wiring harness anti theft system central locking — Mk3 Golf Wiring Looms (1995)

Factory title: Volkswagen Golf (1995) - Adapter cable loom. Wiring set for engine

Generation: Mk3 1995 (RDW) Group: Wiring looms Parts: 42 Primary OEM: N 103 113 04, N 103 113 03, 1H6 971 807 M

Wiring harness anti theft system central locking for the Volkswagen Golf Mk3 (1995): factory exploded diagram 972058 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 42 OEM part numbers including N 103 113 04, N 103 113 03 and 1H6 971 807 M. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 42 OEM part numbers across 42 numbered positions.

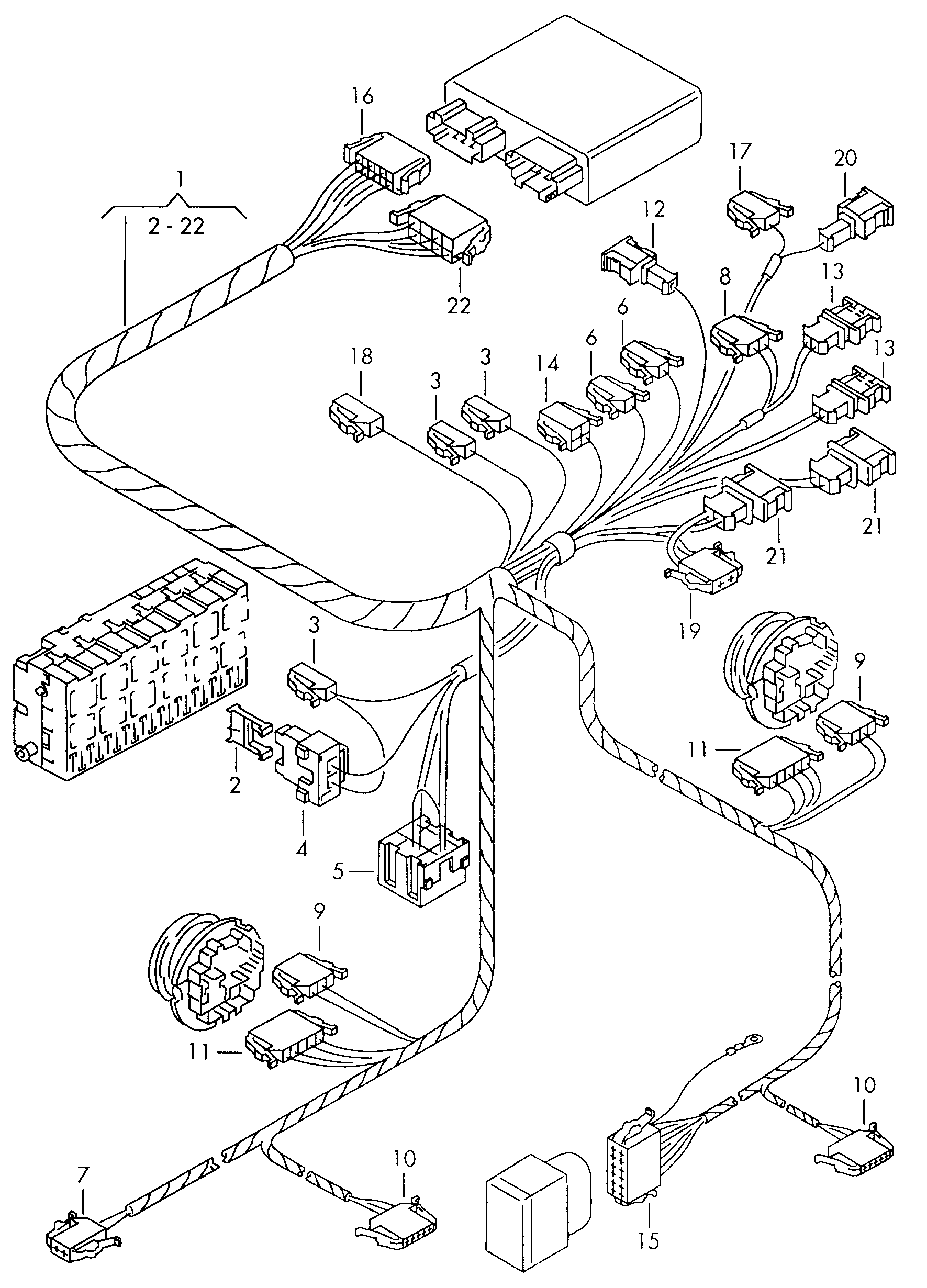

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Insulating tape 19 19	N 103 113 04
-	Insulating tape 19 19	N 103 113 03
(1)	wiring harness for anti-theftsystem and central locking F >> 1 H-SW 122 919 F >> 1 H-SB 029 454 F >> 1 H-SP 078 032*	1H6 971 807 M
(1)	wiring harness for anti-theftsystem and central locking F 1 H-SW 122 920>>F 1 H-SB 029 455>>F 1 H-SP 078 033>>	1H6 971 807 AD
(1)	wiring harness for anti-theftsystem and central locking F >> 1 H-SW 122 919 F >> 1 H-SB 029 454 F >> 1 H-SP 078 032	1H6 971 807 S
(1)	wiring harness for anti-theftsystem and central locking F >> 1 H-SW 122 919 F >> 1 H-SB 029 454 F >> 1 H-SP 078 032	1H6 971 807 T
(1)	wiring harness for anti-theftsystem and central locking F 1 H-SW 122 920>>F 1 H-SB 029 455>>F 1 H-SP 078 033>>	1H6 971 807 AJ
(1)	wiring harness for anti-theftsystem and central locking F 1 H-SW 122 920>>F 1 H-SB 029 455>>F 1 H-SP 078 033>>	1H6 971 807 AH
(1)	wiring harness for anti-theftsystem and central locking F 1 H-SW 122 920>>F 1 H-SB 029 455>>F 1 H-SP 078 033>>	1H6 971 807 AC
(13)	flat connector housing Coupling element Wiring set for dash panel F 1 H-SW 122 920>>F 1 H-SB 029 455>>F 1 H-SP 078 033>>*	191 972 713
(8)	Flat contact housing Coupling elementharness for engine compartment F 1 H-SW 122 920>>F 1 H-SB 029 455>>F 1 H-SP 078 033>>*	1J0 972 924
(8)	Flat contact housing Coupling elementharness for engine compartment F 1 H-SW 122 920>>F 1 H-SB 029 455>>F 1 H-SP 078 033>>*	191 972 703
1	wiring harness for anti-theftsystem and central locking F >> 1 H-SW 122 919 F >> 1 H-SB 029 454 F >> 1 H-SP 078 032	1H6 971 807 N
10	Flat contact housing Connection pieceflat contact housing mountingb-pillar	1H4 972 705
11	Flat contact housing Connection pieceflat contact housing mountinga-pillar	191 972 705
12	flat connector housing Coupling element Rear wiring set	191 972 711
13	flat connector housing Coupling element Wiring set for dash panelharness for engine compartment F >> 1 H-SW 122 919 F >> 1 H-SB 029 454 F >> 1 H-SP 078 032*	191 972 712
14	Flat contact housing Coupling element Signal horn	191 972 722
14	Flat contact housing Coupling element Signal horn	1J0 972 722
15	Flat contact housing withcontact locking mechanism Connection piece Pumpcentral locking system	1J0 972 726
15	Flat contact housing Connection piece Pumpcentral locking system	191 972 726
16	Flat contact housing Connection piece Control unit	535 972 726
16	Flat contact housing Connection piece Control unit	3B0 972 726
17	Flat contact housing Coupling element Rear wiring set	191 972 751
18	Flat contact housing Connection piece Potential distributor	3A0 972 751 H
19	Flat contact housing Coupling elementwiring harness for 4-speedautomatic gearbox F >> 1 H-SW 122 919 F >> 1 H-SB 029 454 F >> 1 H-SP 078 032*	1J0 972 752
19	Flat contact housing Coupling elementwiring harness for 4-speedautomatic gearbox F >> 1 H-SW 122 919 F >> 1 H-SB 029 454 F >> 1 H-SP 078 032*	191 972 752
2	flat fuse 19/2 x 5	N 017 131 11
20	flat connector housing Coupling elementharness for electric window	191 972 761
21	flat connector housing Coupling elementwiring harness for steeringcolumn combination switch Wiring set for engine F >> 1 H-SW 122 919 F >> 1 H-SB 029 454 F >> 1 H-SP 078 032*	191 972 762
22	Flat contact housing Connection piece Control unit	1J0 972 774
22	Flat contact housing Connection piece Control unit	191 972 774
3	Flat contact housing Connection piececentral electrics Potential distributor	701 906 231
4	fuse box forflat fuses	1H0 937 530
4	fuse box forflat fuses	161 937 501
5	relay plate F >> 1 H-SW 122 919 F >> 1 H-SB 029 454 F >> 1 H-SP 078 032*	161 937 501 B
6	Flat contact housing Coupling element Rear wiring set	191 972 701
7	Flat contact housing withcontact locking mechanism Connection piece Cable set fortailgate	1J0 972 702
7	Flat contact housing Connection piece Cable set fortailgate	191 972 702
8	Flat contact housing withcontact locking mechanism Coupling elementharness for vehicle lighting F >> 1 H-SW 122 919 F >> 1 H-SB 029 454 F >> 1 H-SP 078 032*	1J0 972 702
8	Flat contact housing Coupling elementharness for vehicle lighting F >> 1 H-SW 122 919 F >> 1 H-SB 029 454 F >> 1 H-SP 078 032*	191 972 702
9	Flat contact housing Connection pieceflat contact housing mountinga-pillar	1H0 972 703
