Wiring harness blower — Mk3 Golf Wiring Looms (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Wiring set for engine

Generation: Mk3 1994 - 1997 (RDW) Group: Wiring looms Parts: 17 Primary OEM: 1H1 971 566 F, 1H2 971 566 A, 1H2 971 566 F

Wiring harness blower for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 972061 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 16 OEM part numbers across 17 catalogued positions including 1H1 971 566 F, 1H2 971 566 A and 1H2 971 566 F. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 16 OEM part numbers across 17 numbered positions.

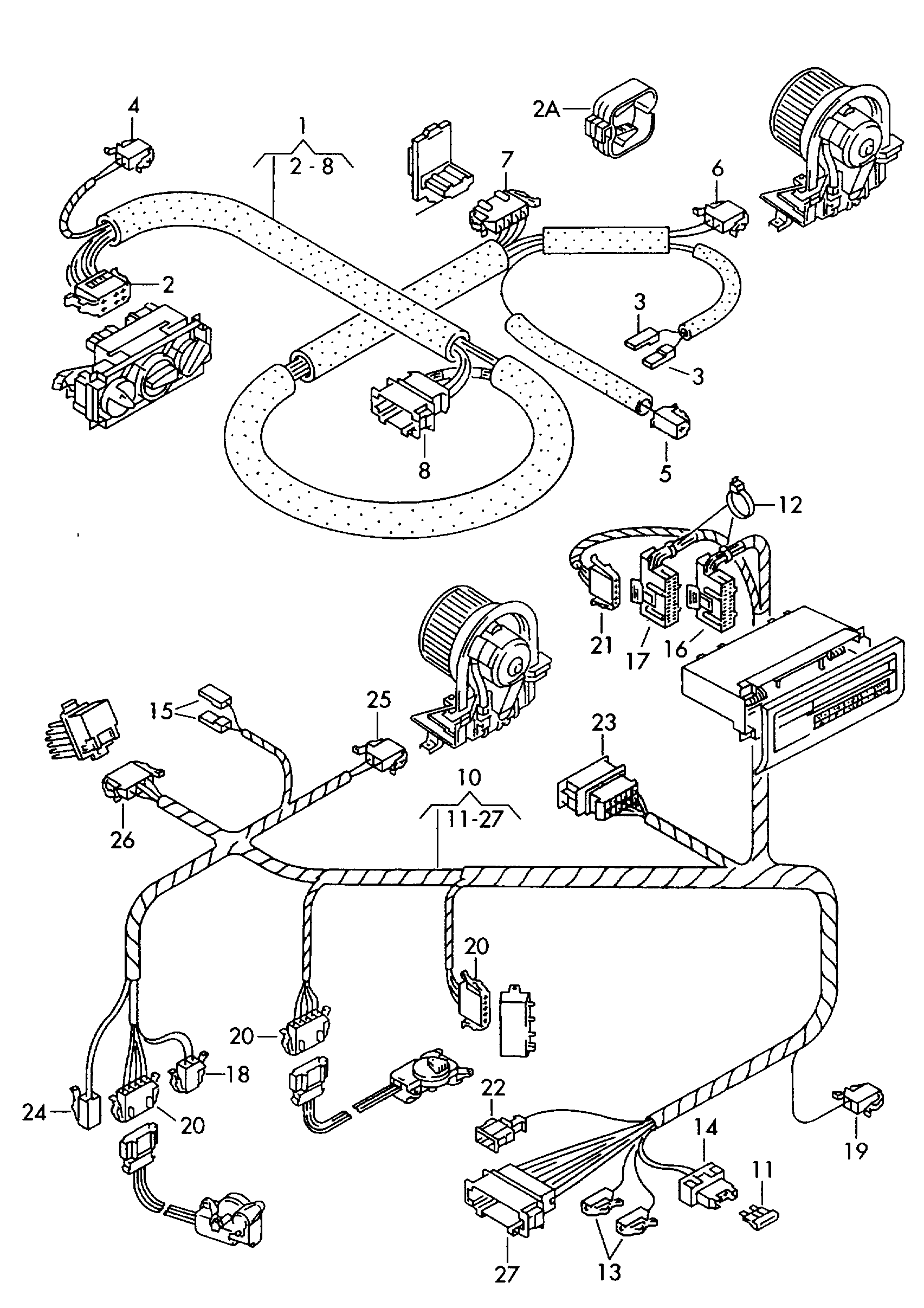

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	wiring harness for blower F 1 E-S-008 964>>*	1H1 971 566 F
(1)	wiring harness for blower F >> 1 E-S-008 963*	1H2 971 566 A
(1)	wiring harness for blower F 1 E-S-008 964>>*	1H2 971 566 F
1	wiring harness for blower F >> 1 E-S-008 963*	1H1 971 566 A
10	not for: CABRIO CABRIO	—
2	Flat contact housing	357 959 545
2A	Clip F 1 E-S-008 964>>*	1H0 971 848 AD
3	Flat contact housingthermostat	111 971 921 B
4	Flat contact housing Possible single wire: counterpart to: 000 979 126000 979 126 A 1 J 0 971 712 000 979 126000 979 126 A 1 J 0 971 712	1J0 972 702
4	Flat contact housing	191 972 702
4	Flat contact housing withcontact locking mechanism Possible single wire: counterpart to: 000 979 133000 979 133 A 1 J 0 971 712 000 979 133000 979 133 A 1 J 0 971 712	1J0 972 702
5	Flat contact housing F >> 1 H-S-008 963	3A0 972 751 H
6	Flat contact housing	191 972 752
6	Flat contact housing	1J0 972 752
7	Flat contact housing	191 972 754
7	Flat contact housing	1J0 972 754
8	Flat contact housing	191 972 784
