Which VW part numbers are on the wiring harness central locking diagram for the Mk3 Golf?

This diagram lists 14 OEM part numbers for the Mk3 Golf. The first three are 1HM 971 122 A, 1HM 971 122 B and 1H4 959 741 B.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Wiring harness central locking — Mk3 Golf Wiring Looms (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Wiring set for engine

Generation: Mk3 1993 - 1996 (MEX) Group: Wiring looms Parts: 14 Primary OEM: 1HM 971 122 A, 1HM 971 122 B, 1H4 959 741 B

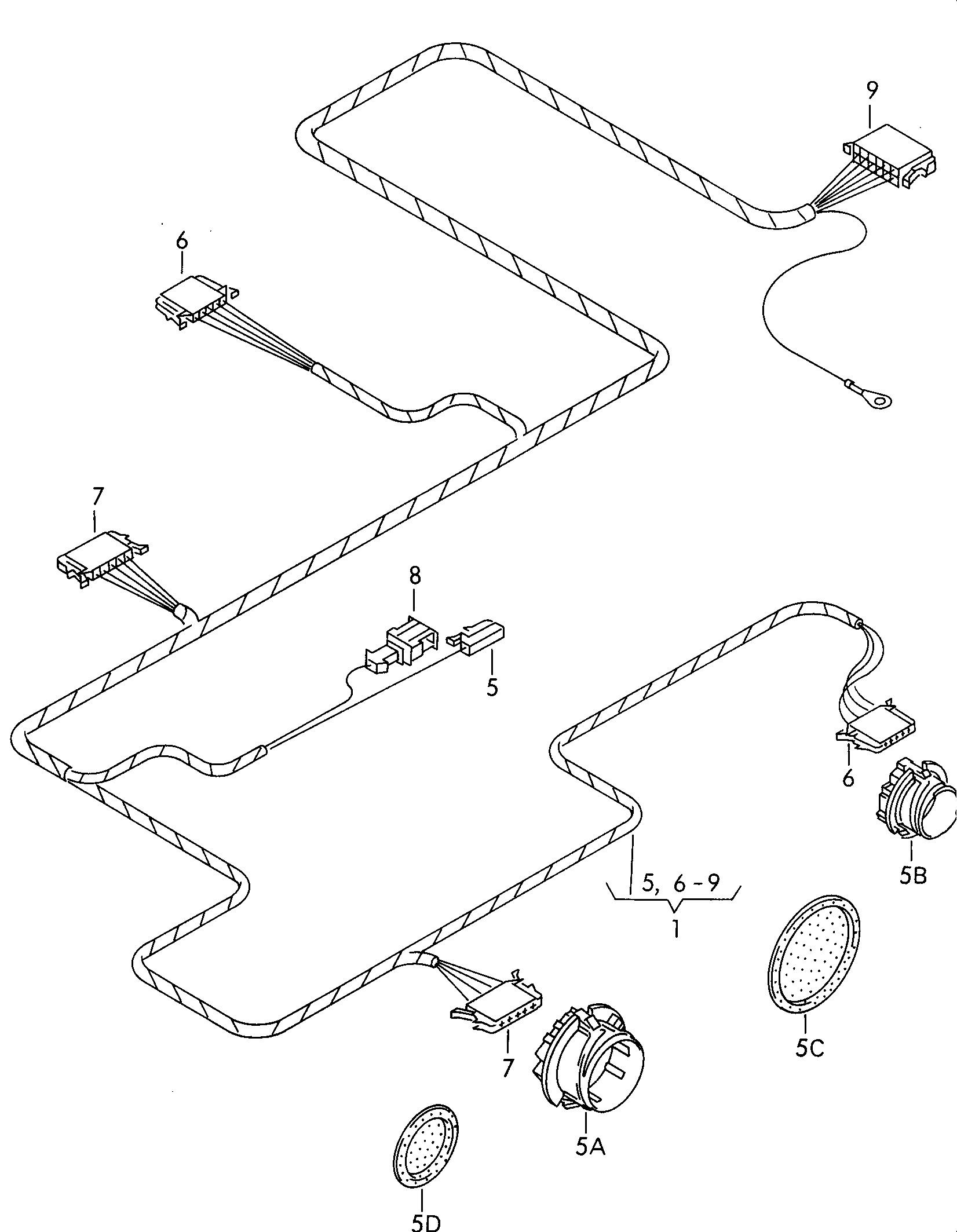

Wiring harness central locking for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 972037 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 14 OEM part numbers including 1HM 971 122 A, 1HM 971 122 B and 1H4 959 741 B. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 14 OEM part numbers across 14 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	wiring harness forcentral locking F 1 H-P-004 605>>* GOLF	1HM 971 122 A
(1)	wiring harness forcentral locking JETTA	1HM 971 122 B
(5B)	flat contact housing mountingb-pillarfor:Cylinders 2-5 Wiring set for door	1H4 959 741 B
(5B)	flat contact housing mountingb-pillar F 1 H-S-012 883>>	1H4 959 741 C
(5B)	flat contact housing mountingb-pillarfor:Connection piece Wiring set for door F >> 1 H-S-012 882	1H4 959 741 B
1	wiring harness forcentral locking F >> 1 H-P-004 604* JETTA	1HM 971 122
5	Flat contact housing	701 906 231
5A	flat contact housing mountinga-pillarfor:Connection piece Wiring set for door	3A0 959 741 A
5C	Bungsa-pillar 70 70	1H0 971 908
5D	Bungsb-pillar 41 41	1H4 971 908 A
6	Flat contact housing Connection piece Wiring set for door	1H4 972 705
7	Flat contact housing Connection piece Wiring set for door	6N0 972 705
8	flat connector housing Connection piece Rear wiring set	191 972 711
9	Flat contact housing Control unit	191 972 726

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Factory group: 06 Wiring looms
Factory subgroup: 972037
