Wiring harness convertible top frame operation — Mk3 Golf Wiring Looms (1994 - 1997)
Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Wiring set for engine

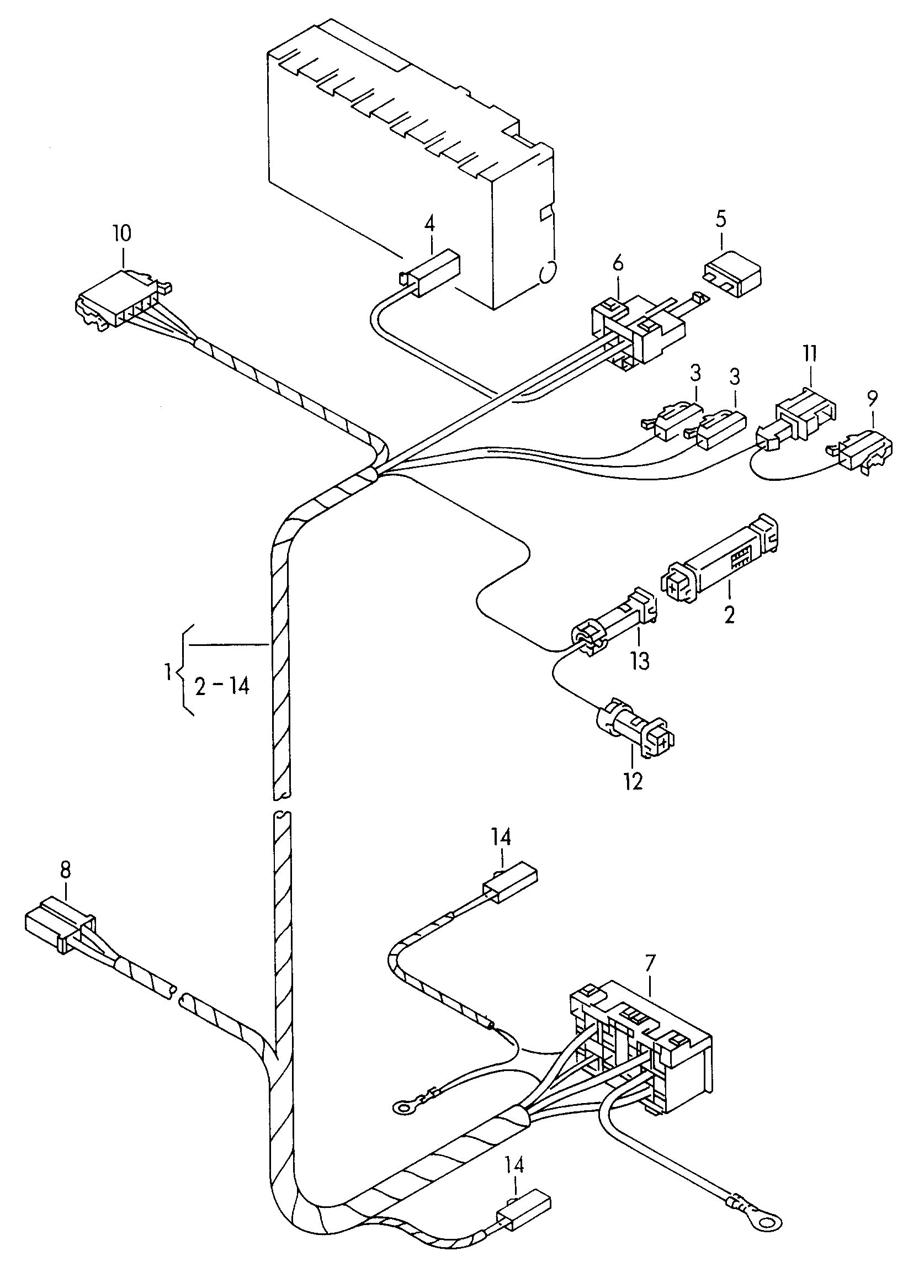

Wiring harness convertible top frame operation for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 972070 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 20 OEM part numbers including N 103 113 03, 1E1 972 383 B and 1E2 972 383. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 20 OEM part numbers across 20 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | Insulating tape 0,15 X 19 X 10 0,15 X 19 X 10 | N 103 113 03 |
| (1) | Wiring set for control unitfor vehicles with hydraulictop operation F 1 E-T-018 001>>* | 1E1 972 383 B |
| (1) | Wiring set for control unitfor vehicles with hydraulictop operation F >> 1 E-T-018 000* | 1E2 972 383 |
| (1) | Wiring set for control unitfor vehicles with hydraulictop operation F 1 E-T-018 001>> | 1E2 972 383 A |
| (3) | Flat contact housing Connection pieceground connector | 3A0 972 751 H |
| (5) | Thermal fuse F 1 E-T-018 001>>* 15 A 15 A | 443 937 105 B |
| 1 | Wiring set for control unitfor vehicles with hydraulictop operation F >> 1 E-T-018 000* | 1E1 972 383 |
| 10 | Flat contact housing Connection piece Adapter cable loom Switch | 191 972 705 |
| 11 | flat connector housing Connection piecedrop arm | 191 972 711 |
| 12 | Flat contact housing withcontact locking mechanismand grommet Connection piecedrop arm 6,3 6,3 | 813 972 924 |
| 13 | Round connector housing withrubber grommet Connection piecedrop arm 6,3 6,3 | 813 972 925 |
| 14 | Flat contact housing Connection piece Hood cover | 1H0 973 121 C |
| 2 | Diode connector 3 A 3 A | 059 905 371 D |
| 3 | Flat contact housing Connection piece Potential distributorfor dashboard lighting | 701 906 231 |
| 4 | Flat contact housing Connection piececentral electrics KL 30 KL 30 | 357 907 971 B |
| 5 | Thermal fuse F >> 1 E-T-018 000* 20 A 20 A | 443 937 105 |
| 6 | bracket for thermo switch | 191 937 501 |
| 7 | relay plate Control unit | 357 937 501 |
| 8 | Flat contact housing Connection piece Pump | 161 971 989 C |
| 9 | Flat contact housing | 191 972 701 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1994 - 1997
- Generation region
- RDW
- Generation code
- 146
- Factory group
- 06 Wiring looms
- Factory subgroup
- 972070
Related factory diagrams
Other published wiring looms plates for the Mk3 Golf in this catalogue.
The complete Mk3 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the wiring harness convertible top frame operation diagram for the Mk3 Golf?
- This diagram lists 20 OEM part numbers for the Mk3 Golf. The first three are N 103 113 03, 1E1 972 383 B and 1E2 972 383.
- Which Mk3 Golf years and engines does this diagram cover?
- This plate is from the Mk3 Golf 1994 - 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
- Where is the complete Mk3 Golf factory parts catalogue?
- The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
